KX-FP101AL

(for Australia)

Compact Plain Paper FAX

ORDER NO. KM79909316C3

1 INTRODUCTION

1.1. SAFETY PRECAUTIONS

1.Before servicing, unplug the AC power cord to prevent an electric shock.

2.When replacing parts, use only the manufacturer’s recommended components.

3.Check the condition of the power cord. Replace if wear or damage is evident.

4.After servicing, be sure to restore the lead dress, insulation barriers, insulation papers, shields, etc.

5.Before returning the serviced equipment to the customer, be sure to perform the following insulation resistance test to prevent

the customer from being exposed to shock hazards.

1.2. INSULATION RESISTANCE TEST

1.Unplug the power cord and short the two prongs of the plug with a jumper wire.

2.Turn on the power switch.

3.Measure the resistance value with an ohmmeter between the jumpered AC plug and each exposed metal cabinet part

(screwheads, control shafts, bottom frame, etc.).

Note: Some exposed parts may be isolated from the chassis by design. These will read infinity.

4.If the measurement is outside the specified limits, there is a possibility of a shock hazard.

1.3. FOR SERVICE TECHNICIANS

ICs and LSIs are vulnerable to static electricity.

When repairing, the following precautions will help prevent recurring malfunctions.

1.Cover the plastic part’s boxes with aluminum foil.

2.Ground the soldering irons.

3.Use a conductive mat on the worktable.

4.Do not touch the IC or LSI pins with bare fingers.

1.4. BATTERY CAUTION

CAUTION

Danger of explosion if the battery is replaced incorrectly. Replace only with the same or equivalent type recommended by the

manufacturer. Discard used batteries according to following caution:

Disposal of lithium batteries should be performed by permitted, professional disposal firms knowledgeable in state government

federal and local hazardous materials and hazardous waste transportation and disposal requirements.

A battery continues to have no transportation limitations as long as it is separated to prevent short circuits and packed in strong

packaging.

Commercial firms that dispose of any quantity of lithium cells should have a mechanism in place to account for their ultimate

disposition. This is a good practice for all types of commercial or industrial waste.

Recommend Type Number:

CR2032 (BATT) Manufactured by MATSUSHITA

CR2032 (BATT) Manufactured by SONY

KX-FP101AL

1.5. AC CAUTION

For safety, before closing the lower cabinet, please make sure of the following precautions.

1.The earth lead is fixed with the screw.

2.The AC connector is connected properly.

3.Wrap the earth lead around the core 3 times.

(Bottom View)

1.6. PERSONAL SAFETY PRECAUTIONS

1.6.1. MOVING SECTIONS OF THE UNIT

Be careful not to let your hair, clothes, fingers, accessories, etc., become caught in any moving sections of the unit.

The moving sections of the unit are the rollers and a gear. There is a separation roller and a document feed roller which are rotated

by the document feed motor. A gear rotates the two rollers. Be careful not to touch them with your hands, especially when the unit

is operating.

1.6.2. LIVE ELECTRICAL SECTIONS

All the electrical sections of the unit supplied with AC power by the AC power cord are live.

Never disassemble the unit for service with the AC power supply plugged in.

CAUTION:

AC voltage is supplied to the primary side of the power supply unit. Therefore, always unplug the AC power cord before

disassembling for service.

(Bottom View)

KX-FP101AL

1.7. SERVICE PRECAUTIONS

1.7.1. PRECAUTIONS TO PREVENT DAMAGE FROM STATIC ELECTRICITY

Electrical charges accumulate on a person. For instance, clothes rubbing together can damage electric elements or change their

electrical characteristics. In order to prevent static electricity, touch a metallic part that is grounded to release the static electricity.

Never touch the electrical sections such as the power supply unit, etc.

KX-FP101AL

General

· Help function

Display:

1.HOW TO SET UP

2.JOG/AUTO DIAL

3.FAX SENDING

4.FAX RECEIVING

5.COPIER

6.Q and A

7.ERRORS

8.REPORTS

9.CALLER ID

· LCD (Liquid Crystal Display) readout

· TAM (Telephone answering machine) interface

Plain Paper Facsimile Machine

· 12 second transmission speed *

· Letter/Legal, G3 compatible

· Automatic document feeder (15 sheets)

· 6 stations one-touch dialer

· Broadcast (up to 20 station) × 3

· Resolution : Standard/Fine/Super fine/Half tone (64 level)

· LCD Contrast : Normal/Darker

· Delayed transmission

· Overseas transmission function

· Remote FAX receiving using an extension phone

· 150-sheet paper capacity

· Automatic fax/phone switching

· Distinctive ring detection **

· Caller ID

* The 12 second speed is based upon the ITU-T Test Chart on

the condition that memory transmission is performed.

** Subscription to distinctive ring services required.

Large Memory (28 pages) ... Performed by DRAM

Approx. 28 pages of memory reception

Approx. 25 pages of memory transmission

Integrated Telephone System

· On-hook dialing

· Monitor

· Voice muting

· Redialing function

· 50-Station telephone directory with Jog Dial

Copier function

· Multi-copy function (up to 99 copies)

· Enlargement and reduction

· Collate

· 64-Level halftone

· Electronic film indicator

1.8. FEATURES

KX-FP101AL

1.9. SPECIFICATIONS

Applicable Lines: Public Switched Telephone Network

Document Size: Max. 216 mm (8 1/2") in width

Max. 600 mm (23 5/8") in length

Effective Scanning Width: 208 mm (8 3/16")

Recording Paper Size: A4: 210×297 mm (8 1/4"×11 11/16")

Effective Printing Width: 202 mm (8")

Transmission Time*: Approx. 12 sec./page (Original mode)**

Scanning Density: Horizontal:

8 pels/mm (203 pels/inch)

Vertical:

3.85 lines/mm (98 lines/inch)—STANDARD mode

7.7 lines/mm (196 lines/inch)—FINE/HALF TONE mode

15.4 lines/mm (392 lines/inch)—SUPER FINE Mode

Halftone Level: 64-level

Scanner Type: Contact Image Sensor (CIS)

Printer Type: Thermal Printing

Data Compression System: Modified Huffman (MH), Modified READ (MR)

Modem Speed: 9,600/7,200/4,800/2,400 bps; Automatic Fallback

Operating Environment: 5—35°C (41—95°F), 20—80 % RH(Relative Humidity)

Dimensions (H×W×D): 143×325×305 mm (5 5/8"×12 13/16"×12")

Mass (Weight): Approx. 4.0 kg (8.8 lb.)

Power Consumption: Standby: Approx. 6.5 W

Transmission: Approx. 15 W

Reception: Approx. 42 W (When receiving a 20% black document)

Copy: Approx. 45 W (When copying a 20% black document)

Maximum: Approx. 150 W (When copying a 100% black document)

Power Supply: 220—240 V AC, 50/60 Hz

Memory Capacity: Approx. 28 pages memory reception

Approx. 25 pages memory transmission

(Based on ITU-T Test Chart in standard resolution.)

* Transmission speed depends upon the contents of the pages, resolution, telephone line conditions and capability of the receiving

unit.

** The 12 second speed is based upon the ITU-T Test Chart and original mode. (Refer to "1.11. ITU-T Test Chart".) If the capability

of the other party’s machine is inferior to your unit, the transmission time may be longer.

Note:

· Any details given in these instructions are subject to change without notice.

· The pictures and illustrations in these instructions may vary slightly from the actual product.

Design and specifications are subject to change without notice.

1.10. OPTIONAL ACCESSORIES

KX-FP101AL

1.11. ITU-T Test Chart (Actual size)

KX-FP101AL

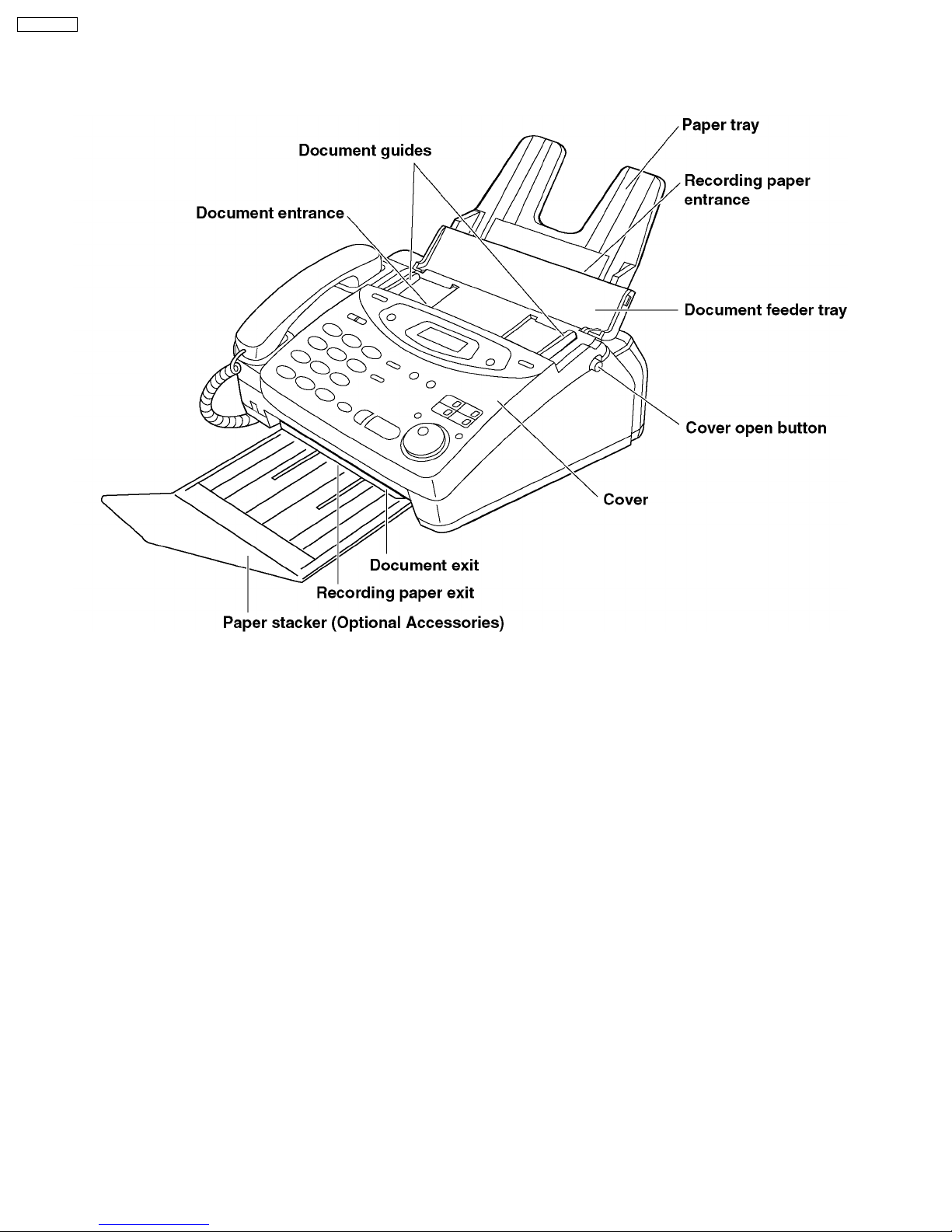

1.12. LOCATION OF CONTROLS

1.12.1. OVERVIEW

Note:

· The document and recording paper will be ejected from the front of the unit. Do not put anything in front of the unit.

KX-FP101AL

1.12.2. CONTROL PANEL

KX-FP101AL

1.13. CONNECTIONS

To the power outlet

(220–240 V, 50/60 Hz)

Telephone

line cord

Power cord

Handset cord

To the single

telephone line

Telephone plug

Connect the handset cord.

Connect the telephone line cord.

Connect the power cord.

When the power is turned on for the

first time, the unit will print some

basic information.

NOTE

When you operate this product, the power outlet should be near the product and easily accessible.

KX-FP101AL
