Panasonic KX-F910BX Manuel utilisateur

|5|

KX-F910BX

INTRODUCTION

SAFETY PRECAUTIONS

1. Before servicing, unplug the power cord to prevent an electric shock.

2. When replacing parts, use only the manufacturer’s recommended components.

3. Check the condition of the power cord. Replace if wear or damage is evident.

4. After servicing, be sure to restore the lead dress, insulation barriers, insulation papers, shields, etc.

5. Before returning the serviced equipment to the customer, be sure to perform the following insulation resistance

test to prevent the customer from being exposed to shock hazards.

INSULATION RESISTANCE TEST

1. Unplug the power cord and short the two prongs of the plug with a jumper wire.

2. Turn on the power switch.

3. Measure the resistance value with an ohmmeter between the jumpered AC plug and each exposed metal cabinet part

(screwheads, control shafts, handle brackets, etc.).

“Note: Some exposed parts may be isolated from the chassis by design. These will read infinity.

4. If the measurement is outside the specified limits, there is a possibility of a shock hazard.

The equipment should be repaired and rechecked before it is returned to the customer.

FOR SERVICE TECHNICIANS

ICs and LSIs are vulnerable to static electricity.

When repairing, the following precautions will help prevent recurring malfunctions.

1) Cover the plastic parts boxes with aluminum foil.

2) Ground the soldering irons.

3) Use a conductive mat on the worktable.

4) Do not touch IC or LSI pins with bare fingers.

Exposed

metal

part

Ohmmeter

Resistance = more than 5M ¶

(at DC 500 V)

|6|

KX-F910BX

BATTERY CAUTION

CAUTION

Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the

manufacture. Discard used batteries according to following caution:

Disposal of lithium batteries should be performed by permitted, professional disposal firms knowledgeable in state govern-

ment federal and local hazardous materials and hazardous waste transportation and disposal requirements.

Battery continues to have no transportation limitations as long as they are separated to prevent short circuits and packed

in strong packaging.

Commercial firms that dispose of any quantity of lithium cells should have a mechanism in place to account for their ulti-

mate disposition. This is a good practice for all types of commercial or industrial waste.

Recommend Type Number: CR2032 (BATT) Manufactured by MATSUSHITA

CR2032 (BATT) Manufactured by SONY

(BOTTOM VIEW)

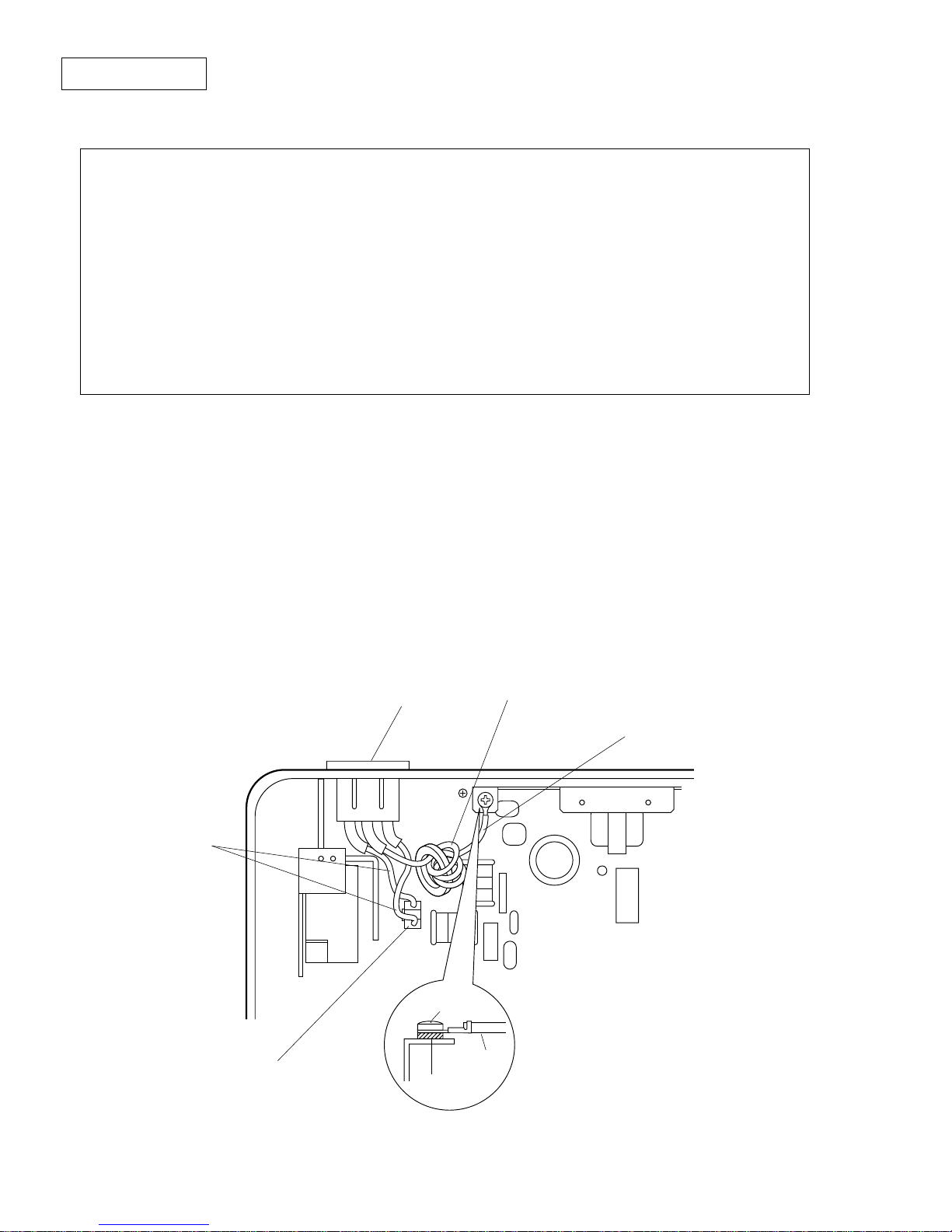

AC CAUTION

For safety, before closing the lower cabinet , please make sure of the following precautions.

@ The earth lead is fixed by the screw.

A The AC connector is connected properly.

B Wrap the AC lead around the core 3 times.

AC lnlet

AC Lead

AC Connector

Earth Lead

Earth

Lead

Earth Lead

(Ferrite Core)

Screw

Washer

|7|

KX-F910BX

INTRODUCTION

STANDARD BATTERY LIFE

PERSONAL SAFETY PRECAUTIONS

Be careful not to let your hair, clothes fingers, accessories, etc., become caught in any moving sections of the unit.

These are driven by the carriage monitor, and the slow down gear, the paper feed roller, the pressure roller, the eject roller,

the spur, the pick-up roller, etc., which are driven by the paper feed motor. These separation roller and document feed roller

which are rotated by the document feed motor and a gear which makes the two rollers rotate.

Also, the spurs are metal and sharply pointed. Be careful not to touch them accidentally by hand.

If your Panasonic battery is fully charged;

While in use (TALK) Up to about 2.5 hours

While not in use (Stand-By) Up to about 4 days

EBattery life may vary depending on usage conditions and ambient temperature.

EClean the handset and the main unit charge contacts with a dry soft cloth once a

month, or the battery may not charge properly.

EOnce the battery is fully charged, you do not have to place the handset on the main unit until

the TALK/BATT LOW indicator flashes slowly.

EThe battery cannot be overcharged.

Document feed gear

Separation roller gear

Document rollers

|8|

KX-F910BX SPECIFICATIONS

KX-A106

KX-A116

KX-A125

Parts No.

Standard Thermal Recording Paper

Description

OPTIONAL ACCESSORIES

Super Thermal recording Paper

(Like plain paper)

Comment

216 mm ~ 30 m (8

2~98′) roll,

with 25 mm (1") core

216 mm ~ 50 m (8

2~164′) roll,

with 25 mm (1") core

216 mm ~30 m (8

2~98′) roll,

with 25 mm (1") core

1. Applicable Lines:

2. Document Size:

3. Effective Scanning Width:

4. Printing Paper Size:

5. Effective Printing Width:

6. Transmission Time*:

7. Scanning Density:

8. Halftone Level:

9. Scanner Type:

10. Printer Type:

11. Data Compression System:

12. Modem Speed:

13. Operating Environment:

14. Dimensions (H ~W~D):

15. Mass (Weight):

16. Power Consumption:

17.Power Supply:

¡ Main unit Public Switched Telephone Network

Max. 216 mm (8 1/2) in width

Max. 600 mm (23 5/8) in length

208 mm(8 3/16 )

216 mm ~ max. 50 m (8 1/2~164

’

) roll

216 mm (8 3/16 )

Approx.15 sec/page (Original mode)

Approx.30 sec/page (G3 Normal mode)

Horizontal : 8 pels/mm (203 pels/inch)

Vertical : 3.85 lines/mm (98 lines/inch) -Standard mode

7.7 lines/mm (196 lines/inch) -Fine/Halftone mode

15.4 lines/mm (392 lines/inch) -Superfine mode

64-level

CCD image sensor

Thermal printing

Modified Huffman (MH), Modified READ (MR)

9600/7200/4800/2400 bps; Automatic Fallback

5-35 (41-95 °F), 45-85 % RH (Relative Humidity)

Approx. 118 ~366 ~265 mm (4 21/32 ~13 3/8~10 7/16 )

Approx. 3.4 kg (7.5 lb.)

Standby: Approx. 6.5W / Transmission: Approx. 16W

Reception: Approx. 31W / Copy: Approx. 40W

Maximum: Approx. 120W

220-240V AC, 50/60Hz

¡ Handset

5-35 (41-95 °F), 45-85 % RH (Relative Humidity)

Approx. 37 ~55 ~238 mm (1 7/16 ~2 3/32 ~9 3/8)

Approx. 200 g (0.4 lb.)

Ni-Cd battery (3.6 V, 600 mAh)

814.0125-814.9875 MHz, 904.0125-904.9875 MHz (40 channels)

1,000,000

1. Operating Environment:

2. Dimensions (H ~W~D):

3. Weight:

4. Power Supply:

5. Frequency:

6. Security Codes:

*Transmission speed depends upon the contents of the pages, resolution, telephone line conditions and capability of

receiving unit. 15 second speed based upon CCITT No.1 Test Chart.

•Design and specifications are subject to change without notice.

|9|

KX-F910BX

INTRODUCTION

Control panel

LOCATION OF CONTROLS

Front View

SPARE CHARGE CHARGE

Battery charger

(beneath the cover)

Spare battery

cover

Charge contacts

Microphone

CHARGE Indicator

SPARE CHARGE Indicator Document exit

Front lid open button

Document guide(s)

Document feeder tray

Paper stacker

Antenna

Document entrance

456

789

TONE

REDIAL/PAUSEFLASH

MUTE

ABC DEF

GHI JKL MNO

PQRS TUV WXYZ

MIC

SP-PHONE

HELP DIRECTORY MENU RESOLUTION

AUTO RECEIVE LOCATOR/

INTERCOM

FAX

IN USE

123

678

910

LOWER

VOLUME

STOP START/COPY/ SET

RINGER

SP-PHONE

Direct call stations LOWER

RESOLUTION

DIRECTORY

HELP

Dial keypad

Display panel

TONE

FLASH AUTO RECEIVEMUTE

REDIAL/PAUSE SP-PHONE

VOLUME

LOCATOR/INTERCOM

IN USE indicator

STOP

START/COPY/SET

|10 |

KX-F910BX

900MHz Cordless

Fax activation from handset

Intercom with 2-way paging

4-day battery life

Sound Charger

technology

10-station speed dial

Spare battery charger

Integrated Telephone System

Speakerphone

Telephone directory with alpha-search

One touch dialer (10 phone-number)

50-station speed dialer

General

Automatic paper cutter

Answering machine interface

64-Level halftones resolution

Large 165 ft. paper roll

Help printout

Facsimile

Easy-to view LCD (16-character)

Automatic document feeder (up to 15 sheets)

Paper curl reduction technology

Resolution: Standard/Fine/Super Fine/Half Tone

Distinctive ring detection

Super thermal paper

Correct order reception printout

Handset

FEATURES

PAUSE Button

INTERCOM Button and Indicator

REDIAL Button

FLASH Button

POWER/RINGER Switch

Antenna

TALK/BATT (Battery)

LOW/PROG (Program)

Indicator

TALK Button

PROGRAM Button

TONE Button

AUTO Button

Charge Contacts

|11 |

KX-F910BX

INTRODUCTION

CONNECTION

Note:

For additional equipment protection, we recommend the use of a surge protector. The following types are

available; TELESPIKE BLOK MODEL TSB (TRIPPE MFG. CO.), SPIKE BLOK MODEL SK6-0 (TRIPPE MFG.

CO.), SUPER MAX (PANAMAX) or MP1 (ITW LINX).

You can connect an extension phone or a telephone answering machine to the unit after removing the stopper on the

external telephone jack (EXT).

When you operate this product, the power outlet should be near the product and easily accessible.

Helpful hint:

If assistance is needed, press HELP . The unit will print a quick reference.

Connect to

"LINE"

Power cord

Telephone line

cord

Single telephone line

(RJ11C)

Power outlet

(220V, 50/60Hz)

HELP

|12 |

KX-F910BX

1. Installing the recording paper

Open the back lid by lifting up the tabs located

on the both sides.

Install a recording paper roll in the main unit.

Make sure that the shiny side of the paper is

facing down and there is no stack, tape, or

glue residue on the paper roll.

Close the back lid by gently pressing down on both

ends.

Insert the leading edge of the recording paper

between the recording paper roller and the silver

plate.

incorrectcorrect

INSTALLATION

Note:

Only use the included roll of paper or specified recording paper, or else the print quality may be affected

and/or excessive thermal head wear may occur.

The beginning of some recording paper rolls are secured with glue or tape.

Cut approximately 150 mm (6 inches) from the new roll of paper prior to installation.

Tab

Recording paper roller

Silver plate

|13 |

KX-F910BX

INTRODUCTION

2. Installing the paper stacker

Install the paper stacker.

Spare battery cover

Battery cover

3. Installing the antenna on the main unit

push down and twist the antenna onto the main unit.

Keep the antenna .in an upright position to get the

best reception .

4. Installing the spare battery cover on the main unit

5. Installing the battery in the handset

Close the spare battery cover.

Install the battery as shown observing the

proper polarity.

Install the battery cover.

Paper stack

Battery

–

Table des matières

Autres manuels Panasonic Télécopieur

Panasonic

Panasonic KX-FP207FX-S Manuel utilisateur

Panasonic

Panasonic KX-FLB758RU Manuel utilisateur

Panasonic

Panasonic KX-F2781NZ Manuel utilisateur

Panasonic

Panasonic UF-E1 Manuel utilisateur

Panasonic

Panasonic Panafax UF-490 Manuel utilisateur

Panasonic

Panasonic KX-FLM661 Manuel utilisateur

Panasonic

Panasonic KX-FLM551 Instructions d'utilisation et d'installation

Panasonic

Panasonic KX-FLB752CX Manuel utilisateur

Panasonic

Panasonic UF-5600 Manuel utilisateur

Panasonic

Panasonic Panafax UF-585 Manuel utilisateur

Panasonic

Panasonic KXF1600 - MFD FAX PRINTER Manuel utilisateur

Panasonic

Panasonic KXF110 - CONSUMER FACSIMILE Manuel utilisateur

Panasonic

Panasonic KX-FT982LS-B Manuel utilisateur

Panasonic

Panasonic KX-PW503DL Manuel utilisateur

Panasonic

Panasonic KX-FP121 Manuel utilisateur

Panasonic

Panasonic KX-FP81AL Manuel utilisateur

Panasonic

Panasonic UF 890 - Panafax B/W Laser Comment utiliser

Panasonic

Panasonic KX-FP342BX Manuel utilisateur

Panasonic

Panasonic KX-FHD301 Manuel utilisateur

Panasonic

Panasonic KX-FC238FX Manuel utilisateur

Panasonic

Panasonic KX-PW320DL Manuel utilisateur

Panasonic

Panasonic KX-FM106 Manuel utilisateur

Panasonic

Panasonic UF 890 - Panafax B/W Laser Manuel utilisateur

Panasonic

Panasonic KX-PW95CL Manuel utilisateur

Manuels Télécopieur populaires d'autres marques

Samsung

Samsung SF-515 Manuel utilisateur

Radio Shack

Radio Shack TFX-1031 Manuel utilisateur

imagistics

imagistics 2030 Manuel

Furuno

Furuno FAX-30 Manuel utilisateur

Savin

Savin 3740 Manuel

Sharp

Sharp FO-51 Manuel utilisateur

Muratec

Muratec MFX-C3035 Manuel utilisateur

Canon

Canon FAX-L400 Manuel utilisateur

Ricoh

Ricoh 1000L Guide de démarrage rapide

Sharp

Sharp FO-3150 Manuel utilisateur

Kyocera

Kyocera KM-F1060 Manuel utilisateur

Sharp

Sharp FO-2970M Manuel utilisateur

Canon

Canon JX510P Manuel utilisateur

Mita

Mita LDC-870 Manuel

Brother

Brother MFC 640CW - Color Inkjet - All-in-One Manuel utilisateur

Samsung

Samsung FX100 Manuel

Sharp

Sharp MX-FXX1 Manuel utilisateur

Develop

Develop ineo 25e Manuel utilisateur
