Panasonic RG-C1315A Manuel utilisateur

Service Manual

PESMX2210001CE

Version:2201

Ventilating Fan

RG-C1315A

CONTENTS

1.Specification

2.Parts Identification

3.Wiring Diagram

PAGE

2~4

4.Parts List 6~7

(North AmericaMarket)

WARNING

This service information is designed for experienced repair technicians only and is not designed for use by

the general public. It does not contain warnings or cautions to advise non-technical individuals of potential

dangers in attempting to service a product. Products powered by electricity should be serviced or repaired

only by experienced professional technicians. Any attempt to service or repair the product or products dealt

with in this service information by anyone else could result in serious injury or death.

IMPORTANT SAFETY NOTICE

There are special components used in this equipment which are important for safety. These parts are

marked by in the Schematic Diagrams, Exploded Views and Replacement Parts List. It is essential

that these critical parts should be replaced with manufacturer's specified parts to prevent shock, fire

or other hazards. Do not modify the original design without the manufacturer’s approval.

.Please have a static electricity depletion process in place before handling these components.

. Please use gloves when handling PCB parts during the repair process.

1. Specification

1. Parts Identification

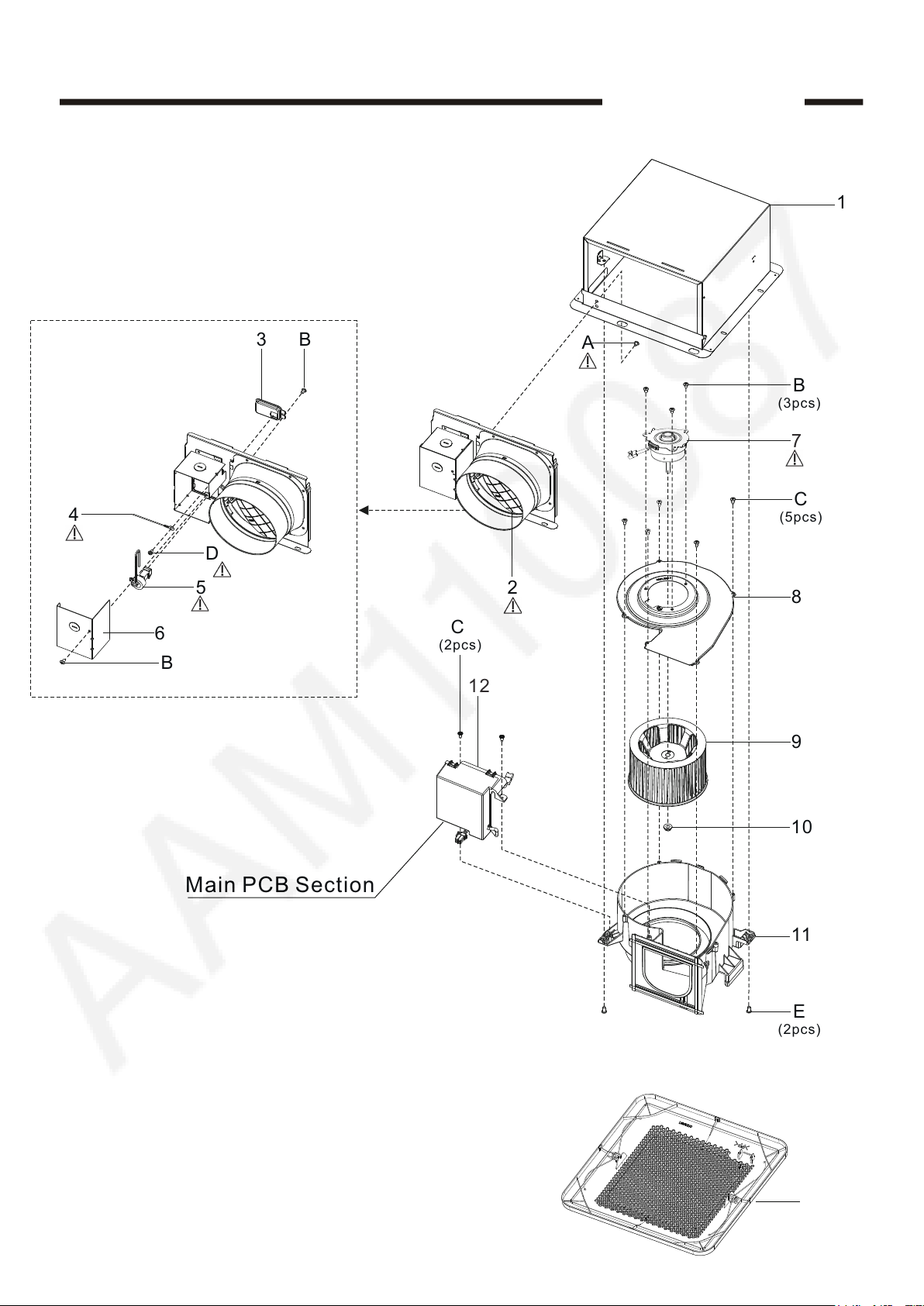

Main Body Section

(3pcs)

(5pcs)

(2pcs)

RG-C1315A

Main PCB Section

2. Parts Identification

RG-C1315A

Main Label

(3pcs)

2. Parts Identification

Packing Section

RG-C1315A

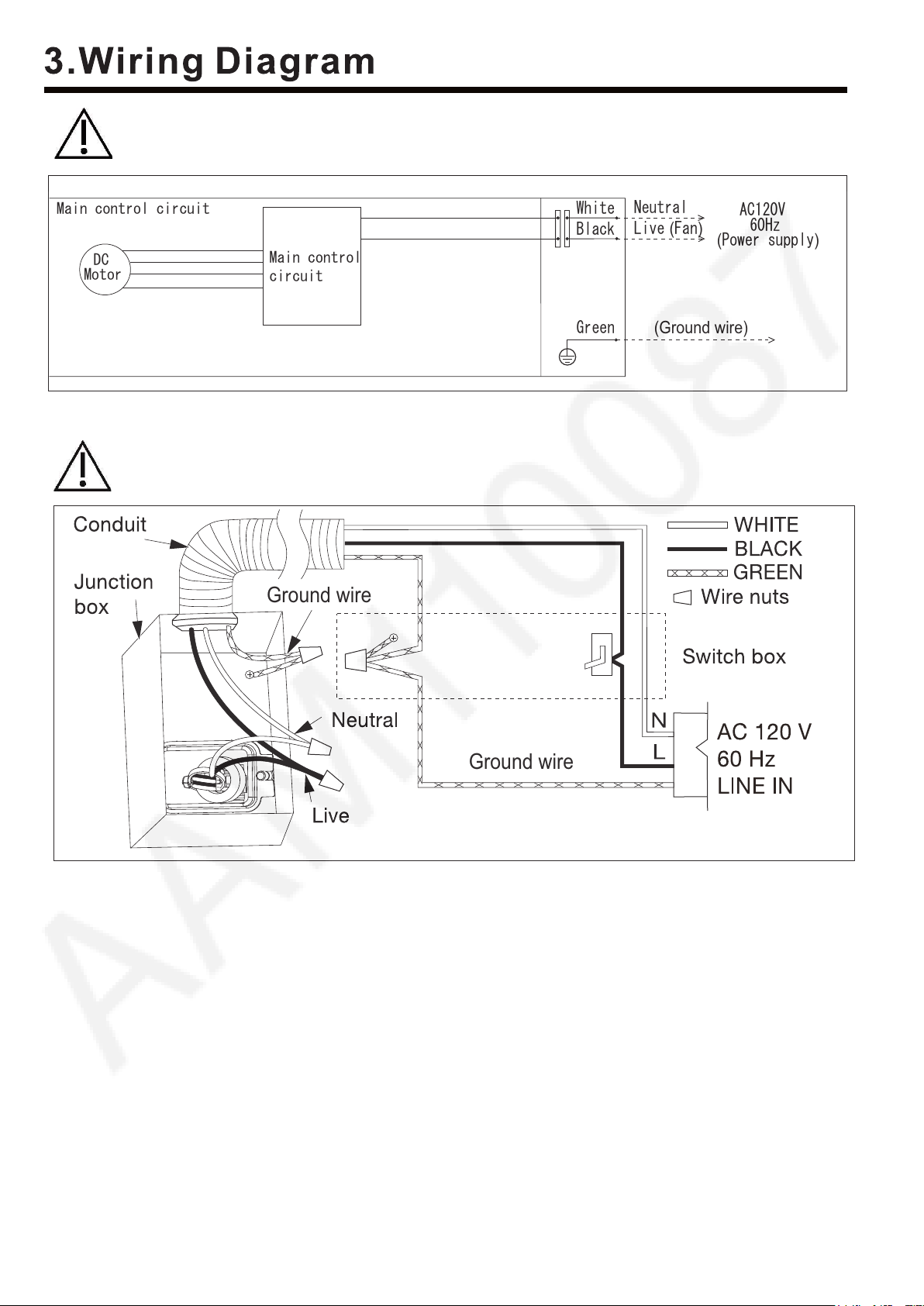

Main control circuit

Fan body

Motor

Junction box

AC120V

60Hz

(Power supply)

White

Black

Live (Fan)

Neutral

Green

(Ground wire)

Main control

circuit

Ground wire

4. Parts List

RG-C1315A

Main Body Section

No. Part No. Part Name Q'ty Remark

1 FFVC811LH900 Frame Assembly 1

2 FFV15VQ10910 Adapter Assembly 1

3 FFV08VKS3M915 Connector Plate 1

4 FFV11QCL1331 Ground Wire 1

5 FFV11QCL1301A Connector Assy 1

6 FFV11QCL1912A Junction Cover 1

7 FFV11QCL1M21AX Motor 1

8 FFVM15VQ10904C Motor Support 1

9 FFV0400115S Blade 1

10 FFV7020021S Nut 1

11 FFVM15VQ10906B Casing 1

12 FFVC1315PCB Main PCB section 1

13 FFV1315A810 Grill Assembly 1

A FFVXYM4-E8FJ Screw (M4-8) 1

B FFVXTT4-8FFJ Screw (ST4-8) 5

C FFV7000089S Screw (ST4-12) 7

D FFVXYM4DC8BN Screw w/Washer (M4-8) 1

E FFV7000065S Screw (M4-12) 2

Main PCB Section

No. Part No. Part Name Q'ty Remark

14 FFVC1315A991 Main PCB Box 1

15 FFV11QCL1992C MAIN PCB Cover 1

F FFVXTN3-8GFJ Screw (M3-8) 3

4. Parts List

RG-C1315A

Main Label

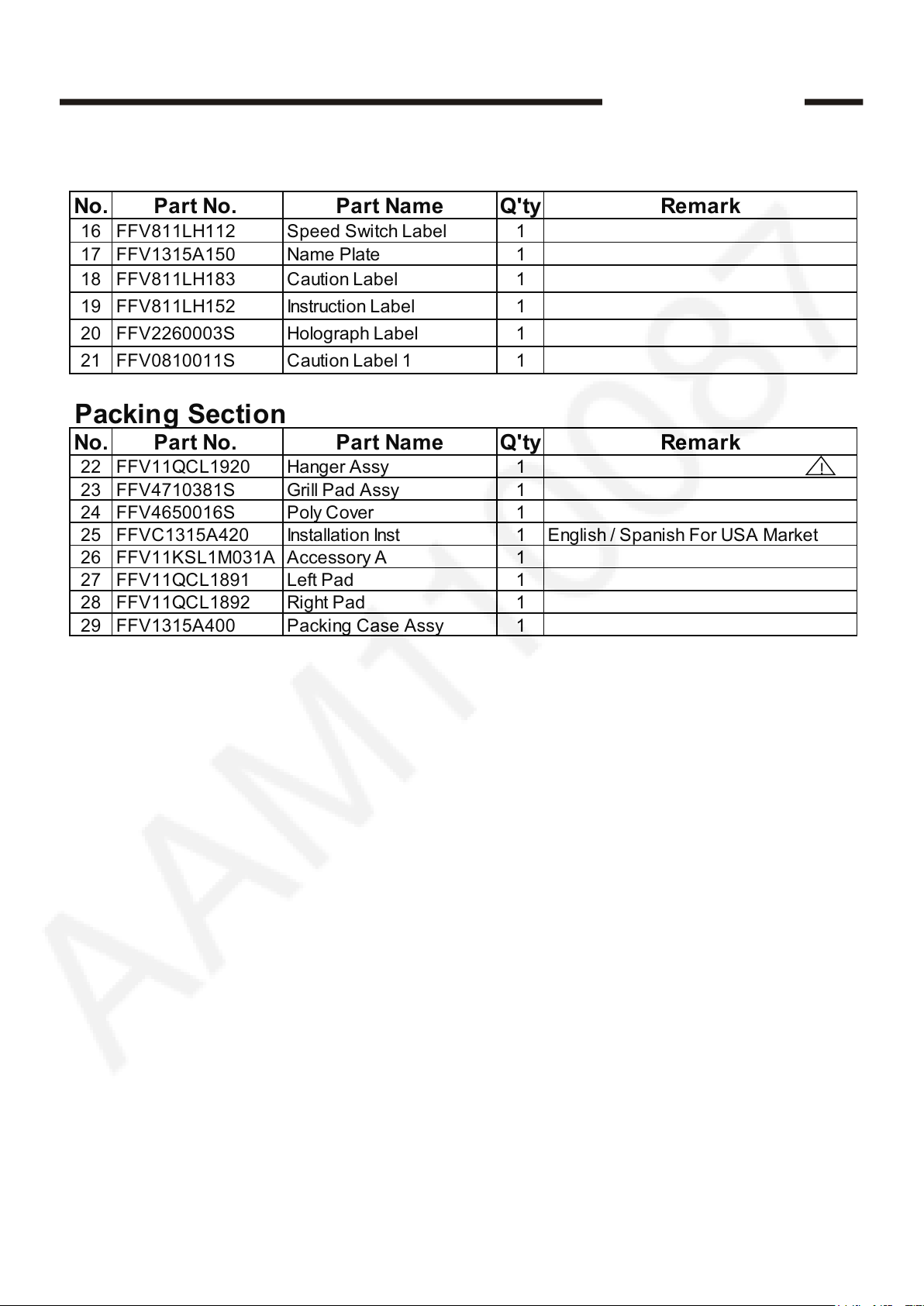

No. Part No. Part Name Q'ty Remark

16 FFV811LH112 Speed Switch Label 1

17 FFV1315A150 Name Plate 1

18 FFV811LH183 Caution Label 1

19 FFV811LH152 Instruction Label 1

20 FFV2260003S Holograph Label 1

21 FFV0810011S Caution Label 1 1

Packing Section

No. Part No. Part Name Q'ty Remark

22 FFV11QCL1920 Hanger Assy 1

23 FFV4710381S Grill Pad Assy 1

24 FFV4650016S Poly Cover 1

25 FFVC1315A420 Installation Inst 1 English / Spanish For USA Market

26 FFV11KSL1M031A Accessory A 1

27 FFV11QCL1891 Left Pad 1

28 FFV11QCL1892 Right Pad 1

29 FFV1315A400 Packing Case Assy 1
