Panasonic DMREA18 - DVD RECORDER - MULTI LANGUAGE Manuel utilisateur
Connecting with an HDMI (High Definition Multimedia
Interface) Cable
1
2
3
4
7
AV OUT
RF OUTRF IN/
SATELLITE IN
RF IN AV IN
SET TOP BOX
CONTROL
5
H1207FJ0
RQCA1684
HDMI IN
HDMI AV OUT
SET TOP BOX
CONTROL
DMR-EA18
Quick Setup Guide
• Before making any connections, turn off all equipment.
• For details on the benefits and limitations of different types of connections, please
refer to pages 8 to 9, 52 to 54 in the operating instructions.
DVD Connection Guides (This is in English only) http://www.panasonic.com/consumer_electronics/dvd_recorder/dvd_connection.asp
Connection
Connecting to a TV and a Set Top Box
(Included)
Cable from the wall
or satellite antenna
Set top box
zIf you connect a VCR ( page 52 in the operating instructions)
TV
This unit
(Included)
If you have any
questions contact
1-800-211-7
PANA
262
6
Connecting and
positioning the set top
box control cable
The set top box control cable is
a device that allows this unit to
communicate with the set top box.
If you connect a set top box to this
unit, you also need to attach the set
top box control cable.
(Included)
This unit
Set top box
Set top box control cable
(in front of, and as near as possible to,
the signal sensor)
(the signal sensor)
• Set “HDMI Priority” and “HDMI Audio Output” to “On” (The default setting is “On”.)
(pages 48 and 49 in the operating instructions).
VIERA LinkTM “HDAVI ControlTM ”
What is VIERA Link “HDAVI Control”?
VIERA LinkTM is a new name for EZ SyncTM.
VIERA Link “HDAVI Control” is a convenient function that offers linked operations of this unit, and a
Panasonic TV (VIERA) or receiver under “HDAVI Control”. You can use this function by connecting the
equipment with the HDMI cable.
For details on the benefits of “HDAVI Control”, please refer to pages 30 and 31 in the operating
instructions.
You can enjoy high-quality picture and audio by changing the audio/video (AV) cable connection between
this unit and your TV ( left).
When connected to an HDMI compatible unit, an uncompressed digital audio and video signal is
transmitted, enabling you to enjoy high quality digital video and audio with just one cable. When connecting
to an HDMI-compatible HDTV (High Definition Television), the output can be switched to 1080p, 1080i or
720p HD video.
• Please use HIGH SPEED HDMI cables that have the HDMI logo (as shown on the cover of the operating
instructions). It is recommended that you use Panasonic’s HDMI cable.
TV
This unit

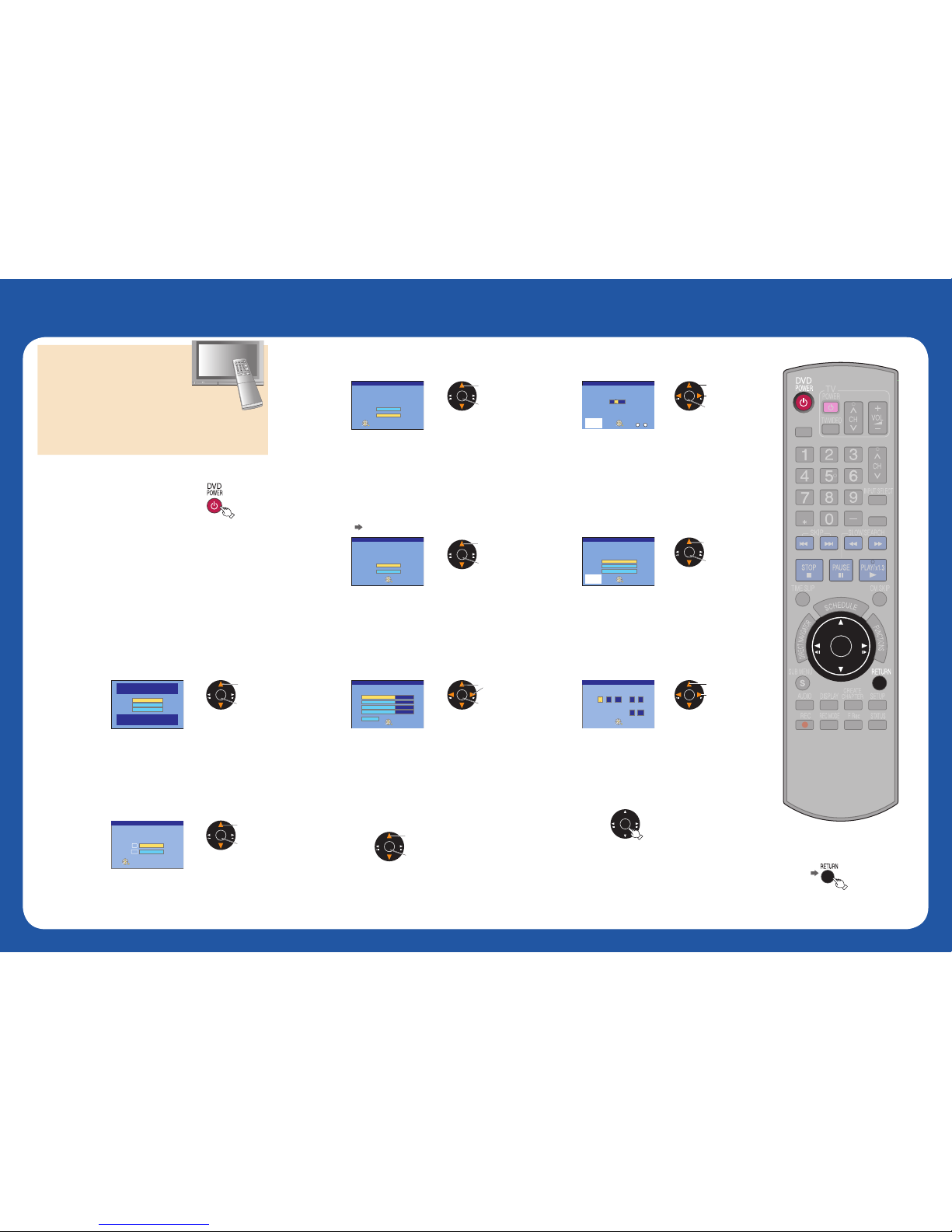

Initial Settings
Turn the TV and the set
top box on.
Selecting the video
input on your TV.
Activate the TV’s video input
which was connected to this unit.
e.g. the TV/VIDEO or INPUT
button
Preparing the TV and the
set top box
1
2
• Please refer to “Basic Operations” (pages
13 to 16) in the operating instructions.
STB (Set Top Box) IR Settings
Please choose settings based on your
Set Top Box.
Cable Box/DVR
ABC
3 Digit
Off
STB (Set Top Box) Type
Brand Name
Max. CH digits
OK Key Operation
Test
OK
8Select an item and change the
STB (Set Top Box) IR Settings.
AB
DRIVE
SELECT
OK
DELETE
CANCEL
• To return to the
previous screen
Turn this unit on.
3
• When this unit is connected to a Panasonic TV
(VIERA) supporting HDAVI Control 3 and initially
set up, it automatically acquires the TV setting
information. For details, please refer to page 12
in the operating instructions.
Select Language
English
Español
Français
Seleccione el idioma
Sélection de langue
Press OK
Pulse OK
Appuyer sur OK
Select the language.
• If you make a mistake, press [RETURN].
4
OK
Select,
set
Aspect Ratio Selection
Select TV type and press OK
(Please refer to Operation Instruction
for details)
4:3 TV
16:9 Widescreen TV
16:9
4:3
OK
Select the type of TV you are
using.
5
OK
Select,
set
Quick Start Setting
The unit can be turned on faster, in about
1 second. Please note that Quick Start
mode slightly increases power
consumption when the unit is off.
(See Operation Instructions for details)
Turn Quick Start on ?
On
Off
OK
Set Quick Start to “On” or “Off”.
6
OK
Select,
set
STB (Set Top Box) IR Settings
This unit can control your STB
(Set Top Box), when connected to IN1
input using the Set Top Box Control cable.
Start setup now?
Yes
No
OK
Select whether to control your
set top box with this unit or not.
7• If you select “No”, you can proceed to “Set Clock
Manually” ( Step 12, right).
Select “Test” to check the
operation of the Set Top Box
Control cable.
9
Complete the settings
.
13
OK
STB (Set Top Box) IR Settings
Start Set Top Box Control testing.
Please Input the channel number
for testing. Use either numbered
buttons or UP/DOWN Cursors.
STB Type: Cable Box/DVR
Brand Name: Panasonic
Max. CH digits: 3 Digit
OK Key Operation: On
IR Code: OO
1Channel:
OK
Number
0 9
--
0
Enter a channel that can be
received by your set top box.
10
OK
Select,
set
next,
STB (Set Top Box) IR Settings
Completed testing the / IR codes.
Has the STB channel changed to the number you
selected? Please select from the following:
Note: “Yes, try other channels” is
recommended to try several channels.
IR Code: OO
Yes, try other channels
Yes, complete setup
No, try another code
OK
Select “Yes, try other
channels”, “Yes, complete
setup” or “No, try another
code”.
11
Set Clock Manually
//SAT : AM
DST
112000 12
Off
Time Zone
EST
00
Month Day Year Hour Minute
OK
Select
an item and
change the setting.
12
OK
Select,
next,
OK
Select,
set
OK
Select,
set
OK
Select,
set
OK
Select,
set
