ORDER NO.MAD0605017CE

DVD Recorder

DMR-EH65EC / DMR-EH65EP

Vol.1

Colour

(K).......................Black Type

(S).......................Silver Type

SPECIFICATIONS

Unauthorized copying and distribution is a violation of law.

1. SAFETY PRECAUTIONS

1.1. GENERAL GUIDELINES

1. Be careful during removing metal parts, sharp edges.

2. When servicing, observe the original lead dress. If a short circuit is

found, replace all parts which have been overheated or damaged by the

short circuit.

3. After servicing, see to it that all the protective devices such as

insulation barriers, insulation papers shields are properly installed.

4. After servicing, make the following leakage current checks to prevent

the customer from being exposed to shock hazards.

1.1.1. LEAKAGE CURRENT COLD CHECK

1. Unplug the AC cord and connect a jumper between the two prongs on

the plug.

2. Measure the resistance value, with an ohmmeter, between the

jumpered AC plug and each exposed metallic cabinet part on the

equipment such as screw heads, connectors, control shafts, etc. When

the exposed metallic part has a return path to the chassis, the reading

should be between 1M and 5.2M . / When the exposed metal does

not have a return path to the chassis, the reading must be infinity.

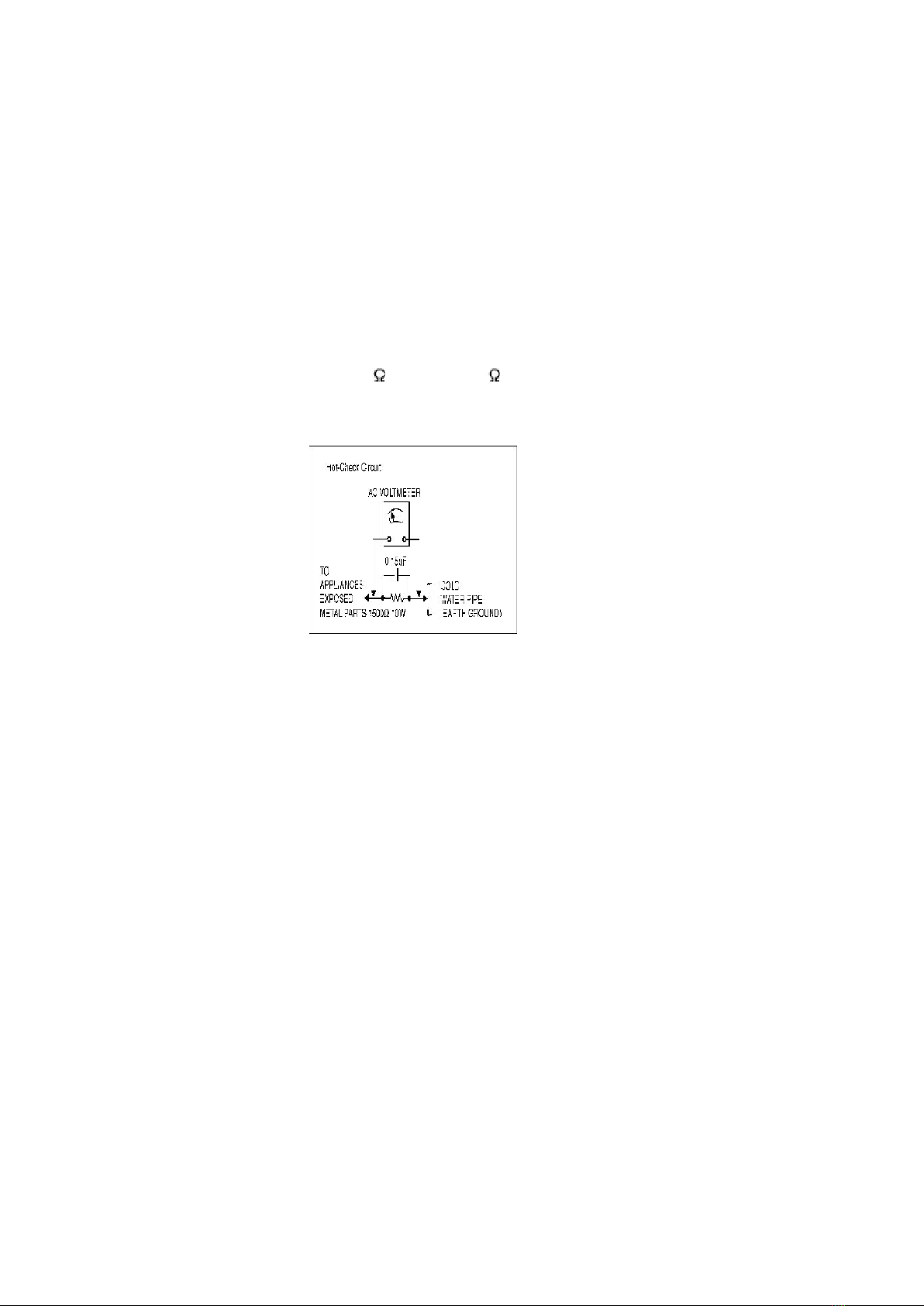

Figure 1

1.1.2. LEAKAGE CURRENT HOT CHECK

1. Plug the AC cord directly into the AC outlet. Do not use an isolation

transformer for this check.

2. Connect a 1.5k , 10 watts resistor, in parallel with a 0.15 F

capacitors, between each exposed metallic part on the set and a good

earth ground such as a water pipe, as shown in Figure 1.

3. Use an AC voltmeter, with 1000 ohms/volt or more sensitivity, to

measure the potential across the resistor.

4. Check each exposed metallic part, and measure the voltage at each

point.

5. Reverse the AC plug in the AC outlet and repeat each of the above

measurements.

6. The potential at any point should not exceed 0.75 volts RMS. A leakage

current tester (Simpson Model 229 or equivalent) may be used to make

the hot checks, leakage current must not exceed 1/2 milliampere. In

case a measurement is outside of the limits specified, there is a

possibility of a shock hazard, and the equipment should be repaired

and rechecked before it is returned to the customer.

2. WARNING

2.1. PREVENTION OF ELECTROSTATIC DISCHARGE (ESD) TO

ELECTROSTATIC SENSITIVE (ES) DEVICES

Some semiconductor (solid state) devices can be damaged easily by static electricity. Such

components commonly are called Electrostatic Sensitive (ES) Devices. Examples of typical ES devices

are integrated circuits and some field-effect transistor-sand semiconductor "chip" components. The

following techniques should be used to help reduce the incidence of component damage caused by

electrostatic discharge (ESD).

1. Immediately before handling any semiconductor component or

semiconductor-equipped assembly, drain off any ESD on your body by

touching a known earth ground. Alternatively, obtain and wear a

commercially available discharging ESD wrist strap, which should be

removed for potential shock reasons prior to applying power to the unit

under test.

2. After removing an electrical assembly equipped with ES devices, place

the assembly on a conductive surface such as aluminum foil, to

prevent electrostatic charge buildup or exposure of the assembly.

3. Use only a grounded-tip soldering iron to solder or unsolder ES

devices.

4. Use only an anti-static solder removal device. Some solder removal

devices not classified as "anti-static (ESD protected)" can generate

electrical charge sufficient

to damage ES devices.

5. Do not use freon-propelled chemicals. These can generate electrical

charges sufficient to damage ES devices.

6. Do not remove a replacement ES device from its protective package

until immediately before you are ready to install it. (Most replacement

ES devices are packaged with leads electrically shorted together by

conductive foam, aluminum foil or comparable conductive material).

7. Immediately before removing the protective material from the leads of a

replacement ES device, touch the protective material to the chassis or

circuit assembly into which the device will be installed.

Caution

Be sure no power is applied to the chassis or circuit, and observe all

other safety precautions.

8. Minimize bodily motions when handling unpackaged replacement ES

devices. (Otherwise hamless motion such as the brushing together of

your clothes fabric or the lifting of your foot from a carpeted floor can

generate static electricity sufficient to damage an ES device).

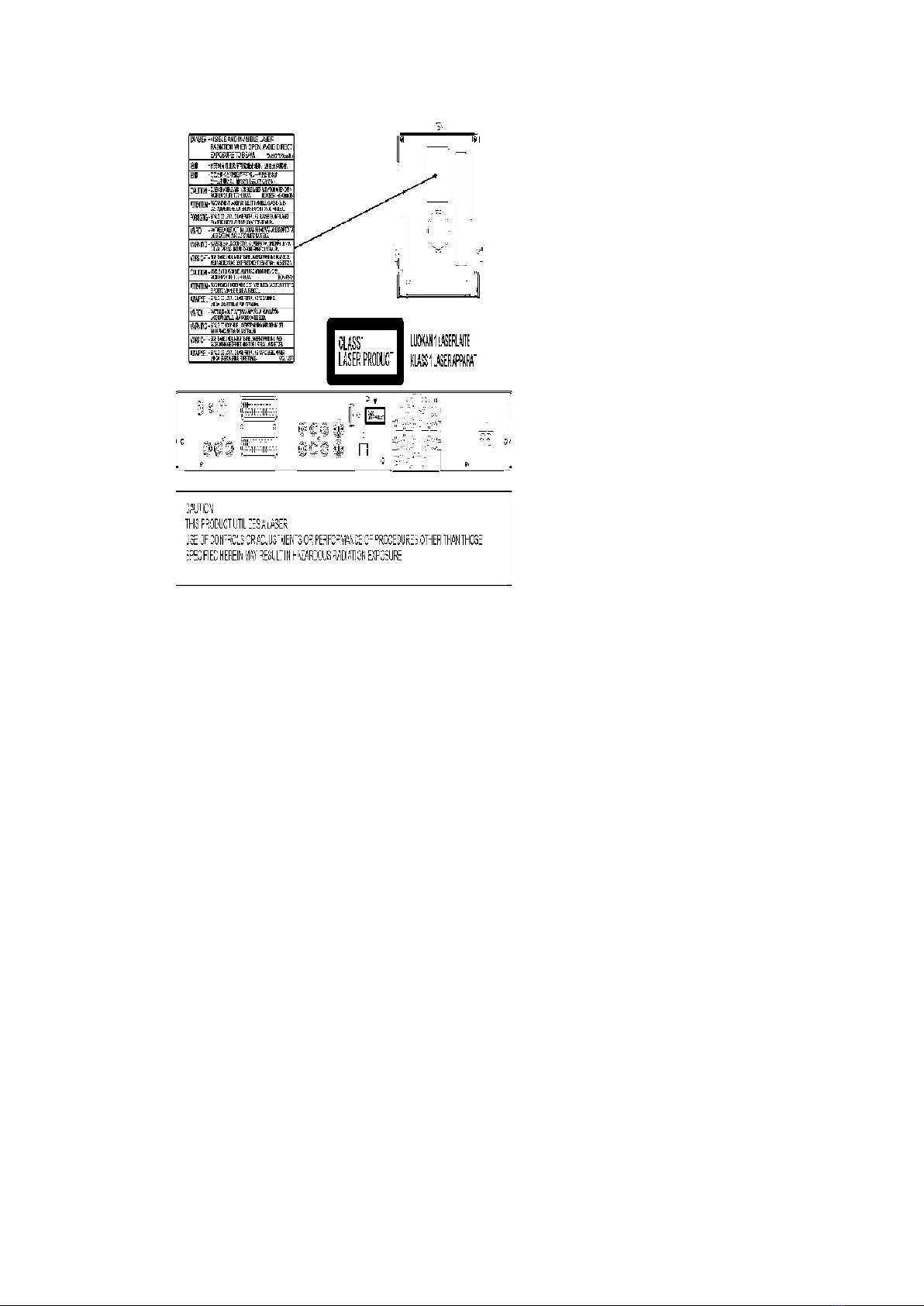

2.2. PRECAUTION OF LASER DIODE

CAUTION: ACHTUNG:

This product utilizes a laser diode with the unit

turned “on”,

invisible laser radiation is emitted from the pickup

lens.

Wave length: 662 nm (DVDs)/795 nm (CDs)

Maximum output radiation power from pickup: 100

W/VDE.

Laser radiation from the pickup lens is safety level,

but be sure

the followings:

Dieses Produkt enthält eine Laserdiode.

Im eingeschalteten Zustand wird unsichtbare

Laserstrahlung von der

Lasereinheit ausgestrahlt.

Wellenlänge: 662 nm(DVDs)/795 nm (CDs)

Maximale Strahlungsleistung der Lasereinheit: 100

VDE.

Die Strahlung der eingeschalteten Lasereinheit ist

ungefährlich, wenn

folgende Punkte beachtet werden:

1. Do not disassemble the optical pickup unit,

since radiation

from exposed laser diode is dangerous.

1. Die Lasereinheit nicht zerlegen, da die Strahlung

der freigelegten

Laserdiode gefährlich ist.

2. Do not adjust the variable resistor on the pickup

unit.

It was already adjusted.

2. Den werksseitig justierten Einstellregler der

Lasereinheit nicht

verstellen.

3. Do not look at the focus lens using optical

instruments.

3. Nicht in die Fokussierlinse blicken.

4. Recommend not to look at pickup lens for a long

time.

4. Auch nicht mit optischen Instrumenten in die

Fokussierlinse blicken.

2.3. SERVICE CAUTION BASED ON LEGAL RESTRICTIONS

General description about Lead Free Solder (PbF)

- The lead free solder has been used in the mounting process of all

electrical components on the printed circuit boards used for this

equipment in considering the globally environmental conservation.

- The normal solder is the alloy of tin (Sn) and lead (Pb). On the other

hand, the lead free solder is the alloy mainly consists of tin (Sn), silver

(Ag) and Copper (Cu), and the melting point of the lead free solder is

higher approx.30 degrees C (86°F) more than that of the normal solder.

Service caution for repair work using Lead Free Solder (PbF)

- The lead free solder has to be used when repairing the equipment for

which the lead free solder is used.

- To put lead free solder, it should be well molten and mixed with the

original lead free solder.

- Remove the remaining lead free solder on the PCB cleanly for soldering

of the new IC.

- Since the melting point of the lead free solder is higher than that of the

normal lead solder, it takes the longer time to melt the lead free solder.

- Use the soldering iron (more than 70W) equipped with the temperature

control after setting the temperature

at 350±30 degrees C (662±86°F). When soldering or unsoldering, please

completely remove all of the solder

on the pins or solder area and be sure to heat the soldering points with

the Pb free solder until it melts enough.

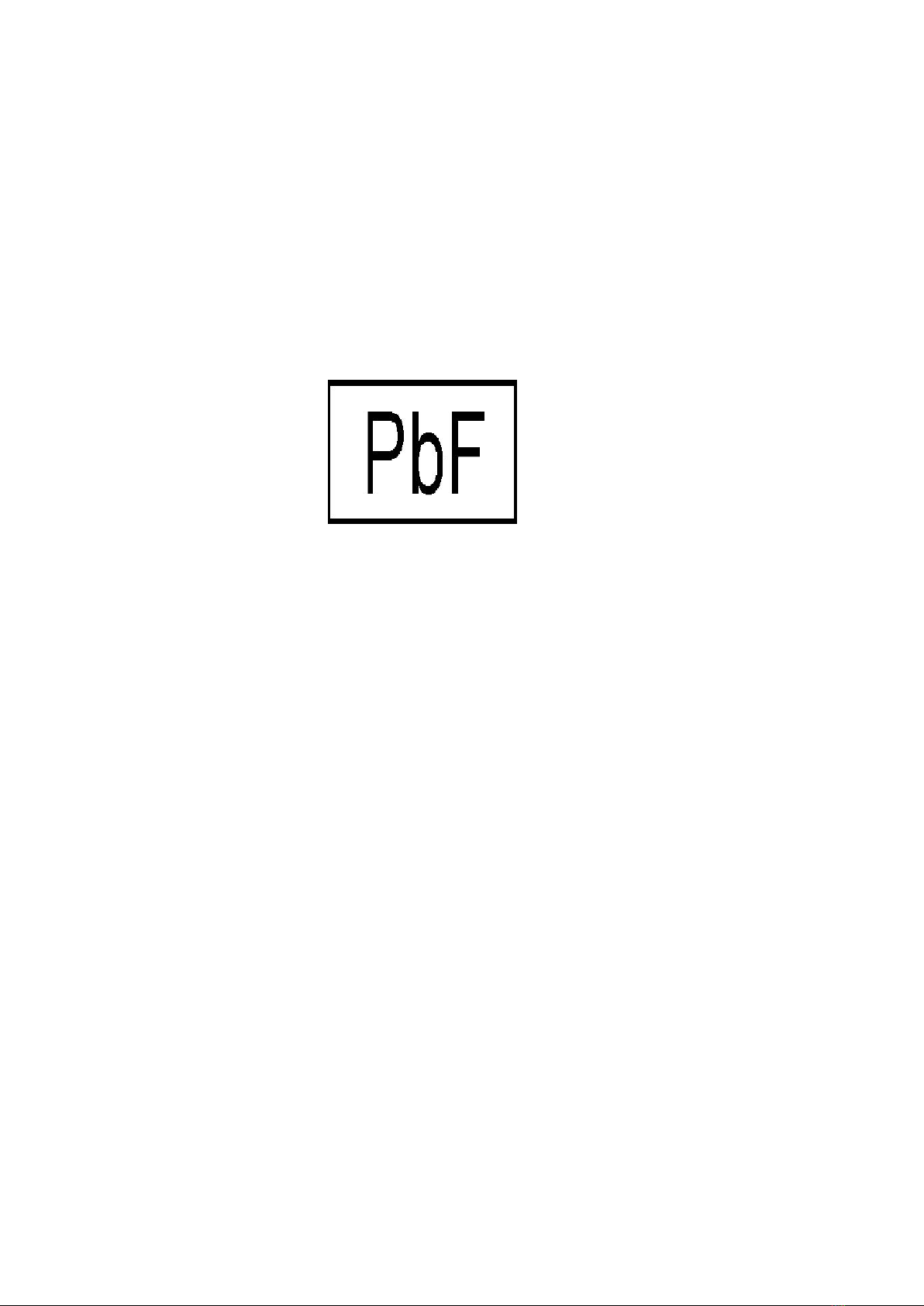

Definition of PCB Lead Free Solder being used

- The letter of “Pbf is printed either foil side or component side using the

lead free solder.

Recommended Lead Free Solder (Service Parts Route.)

- The following 3 types of lead free solder are available through the

service parts route.

RFKZ03D01K-----------(0.3mm 100g Reel)

RFKZ06D01K-----------(0.6mm 100g Reel)

RFKZ10D01K-----------(1.0mm 100g Reel)

Note

- Ingredient: tin (Sn), 96.5%, silver (Ag) 3.0%, Copper (Cu) 0.5%, Cobalt

(Co) / Germanium (Ge) 0.1 to 0.3%

3. SERVICE NAVIGATION

3.1. SERVICE INFORMATION

This service manual contains technical which will alow service personnel’s to understand and service

this model.

Please place orders using the parts list and not the drawing reference numbers.

If the circuit is changed or modified, this information will be followed by supplement service manual to

be filed with

original service manual.

1. This service manual does not contain the following information,

because of the impossibility of sevicing at component level.

- Schematic Diagram, Block Diagram and P.C.B. layout of RAM/

Digital P.C.B. Module.

- Parts List for individual parts of RAM/Digital P.C.B. Module.

- Exploded View and Parts List for individual parts of RAM/Digital

P.C.B. Module.

2. The following category are recycle module part. Please send them to

Central Repair Center.

- RAM/Digital P.C.B. Module: RFKNEH65EC

- RAM/Digital P.C.B. Module: RFKNEH65EP

3.2. CAUTION FOR DivX

Please give the information “Warning for Customers who use the DivX Video-on-Demand content.”

always to the customer

together with the product, if you have to exchange EEPROM, P.C.B. including EEPROM or the product

itself.

Also attach these information to every service part (EEPROM or P.C.B. including EEPROM).

This complete Information is needed for every customer who is using the DivX Video-on-Demand

Serivce.

Appendix:

* Parts that memorize user’s information are only on the EEPROM.

* The registration of Registration Code is possible for half a year up to 6 recorders up to 10 recorders a

year.

Every replacement of EEPROM or P.C.B. including EEPROM spends one of this.

- Registration Code is memorized in the EEPROM (RFKFxxxxxxx)

- If the Power & Digital I/F P.C.B. or the EEPROM will be changed a new

Registration Code

different from the previous one will be generated.

- In this case the customer, who is useing DivX Video-on-Demand sercive,

can not longer play any content that

was or is purchased under that old registration code.

- Therefore the customer will need to register a new registration code.

4. SPECIFICATION

Power supply: AC220-240 V, 50/60 Hz

Power consumption: 34 W ±1,3 W

Power save mode 2 W ±

0,4 W

Dimensions and Mass: 430 (W) x 329 (D) x 58 (H)

(excluding protrusions) /

4.2 kg

Operating temperature

range:

+5 to +40 °C

Operating humility range: 10 to 80 % RH (no

condensation)

Pickup Laser power: CLASS1

Pickup Wave length: DVD 662 nm / CD 780 nm

No hazardous radiation is

emitted

with the safety protection

(NORSK) BØLGELENGDE

DVD 662 nm / CD 780 nm

Laserstyrke Ingen farling stråling

sendes ut

Recording system: MPEG2 (Hybrid VBR)

Audio: Dolby Digital 2CH

Signal system: PAL 625/50, NTSC 525/60

DVD Region number: Region No. 2

Internal Hard Disc Drive: 250 GB

DVD Recording / Playable

discs:

DVD-RAM (12 cm 4.7 GB)

DVD-RAM (12 cm 9.4 GB)

DVD-RAM (8 cm 2.8 GB)

DVD-R (12 cm 4.7 GB)

DVD-R (8 cm 1.4 GB)

DVD-RW (12 cm 4.7GB)

DVD+R (12 cm 4.7 GB)

DVD+RW (12 cm 4.7 GB)

DVD approximate

Recording time:

XP: 10 MBps (60 min)

SP: 5 MBps (120 min)

LP: 3 MBps (240 min)

EP: 1.7 / 1.2 MBps (360 -

480 min)

Additional playable discs: DVD-RAM (VR format)

DVD-RW (VR format)

DVD-R (MP3, DivX, JPG)

DVD-R DL, DVD+R DL

DVD-Video, DVD-Audio

CD-Audio (CD-DA), Video

SVCD (IEC62107)

CD-R, CD-RW

(CD-DA, MP3, DivX, JPG,

VCD)

TV tuner system EC/EP-

Model:

VHF: E2-E12, A-H2 (Italy)

PAL-BGH, SECAM-BG

(CCIR)

UHF: CH21-CH69

CATV: S01-S05 (S1-S3)

SECAM-L (France) VHF: 2-10, UHF: 21-69

EC-Model CATV: CH B -CH Q

CATV: CH S21 - CH S41

EP-Model PAL-DK,

SECAM-DKK1

OIRT VHF: CH R1 - CH

R12

OIRT UHF: CH 21 - CH 69

OIRT CATV: CH 44MHz -

470MHz

EP-Model PAL-BGH,

SECAM-BG

CCIR VHF: CH E2 - CH

E12

CCIR UHF: CH E21 - CH

E69

CCIR CATV: S01 - S05

CCIR CATV: CH M1 - CH

M10

CCIR CATV: CH U1 - CH

U10

CCIR CATV: CH S21 - CH

S41

EP-Model PAL-I VHF: CH 4 - CH 13

UHF: CH 21 - CH 68

RF Converter Output: not provided

SD Card Slot: JPEG (Still Picture DCF

Standard)

TIFF (uncompressed)

MPEG2 (rec. by

Panasonic cam)

Campatible Cards: SD Card, Multimedia Card

miniSD Card (with

adapter)

Card format: FAT12, FAT16

Card picture pixels: 34x34 to 6144x4096

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Panasonic Enregistreur DVD

Panasonic

Panasonic Diga DMR-EH68 Manuel d'installation

Panasonic

Panasonic DMR-E85HEB Manuel utilisateur

Panasonic

Panasonic DMR-EX95V Manuel utilisateur

Panasonic

Panasonic Diga DMR-EX773 Manuel utilisateur

Panasonic

Panasonic DMR-EH57EC Manuel utilisateur

Panasonic

Panasonic Diga DMR-E50 Manuel utilisateur

Panasonic

Panasonic DMR-ES35VP Manuel utilisateur

Panasonic

Panasonic Diga DMR-EX99V Manuel utilisateur

Panasonic

Panasonic Diga DMR-EZ45VEBS Manuel utilisateur

Panasonic

Panasonic DMR-XW380EB Manuel utilisateur

Panasonic

Panasonic Diga DMR-EX79 Manuel utilisateur

Panasonic

Panasonic DIGA DMR-XW380 Manuel utilisateur

Panasonic

Panasonic Diga DMR-EX98V Manuel utilisateur

Panasonic

Panasonic Diga DMR-EH69 Manuel utilisateur

Panasonic

Panasonic LQ-MD800 Manuel utilisateur

Panasonic

Panasonic WJHD220 - DIGITAL DISK RECORDER Manuel utilisateur

Panasonic

Panasonic Diga DMR-XW390 Manuel utilisateur

Panasonic

Panasonic Diga DMR-ES35V Manuel utilisateur

Panasonic

Panasonic DMR-EZ17P Manuel utilisateur

Panasonic

Panasonic DMR-EZ47VP Manuel utilisateur

Panasonic

Panasonic Diga DMR-EZ28EB Manuel utilisateur

Panasonic

Panasonic DMR-EX85EC Manuel utilisateur

Panasonic

Panasonic Diga DMR-XW350 Manuel utilisateur

Panasonic

Panasonic Diga DMR-ES10EB Manuel utilisateur

Manuels Enregistreur DVD populaires d'autres marques

Pioneer

Pioneer DVR-65H-S Guide de configuration

Sony

Sony RDR-VX525 - DVDr/ VCR Combo Manuel utilisateur

Daewoo

Daewoo DHD-4000D Manuel utilisateur

Medion

Medion MD 40570 Manuel utilisateur

Philips

Philips ShowView DVDR3460H Manuel utilisateur

Sony

Sony RDR-GX355 - Tunerless DVD Recorder Manuel utilisateur

Sony

Sony DVDirect VRD-MC3 Manuel utilisateur

Samsung

Samsung DVD-R130/XAA Manuel utilisateur

FUNAI

FUNAI HD-B2735 Manuel utilisateur

Pioneer

Pioneer PRV-LX1 Manuel technique

Sanyo

Sanyo DRW-1000 Manuel utilisateur

Philips

Philips DVDR610/05 Manuel utilisateur

JVC

JVC DR-M10 Manuel utilisateur

Samsung

Samsung SV-DVD40 Manuel utilisateur

Philips

Philips DVDR3355 Manuel utilisateur

FUNAI

FUNAI FDR-90E Manuel utilisateur

LG RC298 Manuel utilisateur

Samsung

Samsung DVD-R130 Manuel utilisateur
