Panasonic ET-PLF10 Manuel utilisateur
ENGLISH
Operating Instructions
Lens Fixed Attachment
Model No. ET-PLF10
DPQX1156ZA
Commercial Use
Thank you for purchasing this Panasonic product.
■To ensure safe and correct use, please read this manual together with the operating instructions supplied
with the projector carefully.
■ Before using this product, be sure to read “Read this rst!” (Page 3).
■Please save this manual for future use.
Downloaded from ManualsNet.com search engine
2 - ENGLISH
Contents
Read this rst! ................................................................................................... 3
Before Use.......................................................................................................... 4
Attaching............................................................................................................ 5
Preparing the Projection Lens ............................................................................................ 5
Preparing the Lens Fixing Attachment................................................................................ 5
Attaching the Lens Fixing Attachment ................................................................................ 6
Attaching the Lens Hood .................................................................................................... 9
Specications .................................................................................................. 11
External Dimensions....................................................................................... 11
Downloaded from ManualsNet.com search engine
ENGLISH - 3
Read this rst! Always follow these precautions
WARNING:
Before attaching the lens xing attachment, be sure to turn off the power and disconnect the power
plug from the wall outlet.
zUnexpected projection of light may cause injury to eyes.
zReplacing without removing the power plug may result in electrical shock.
Do not allow children to reach the supplied at washers, spring washers, and thumbscrews.
zThese items can cause personal injury if swallowed.
zIf swallowed, seek medical help immediately.
CAUTION:
Do not touch any part or remove parts other than specied.
zDoing so may cause a loss of performance or safety.
Information for users in the European Union
Importer’s name and address within the European Union
Panasonic Marketing Europe GmbH
Panasonic Testing Centre
Winsbergring 15, 22525 Hamburg, Germany
Downloaded from ManualsNet.com search engine
4 - ENGLISH
Before Use
■Overview
This product suppresses vibration of projection images due to vibration of the lens by xing the projection lens of
the projector.
■Supported Projectors
PT-RQ32K, PT-RZ31K, and PT-RS30K series
PT-RQ13K, PT-RZ12K, and PT-RS11K series
Note
zModels other than the above may also be supported. Refer to the operating instructions of the projector you
are using.

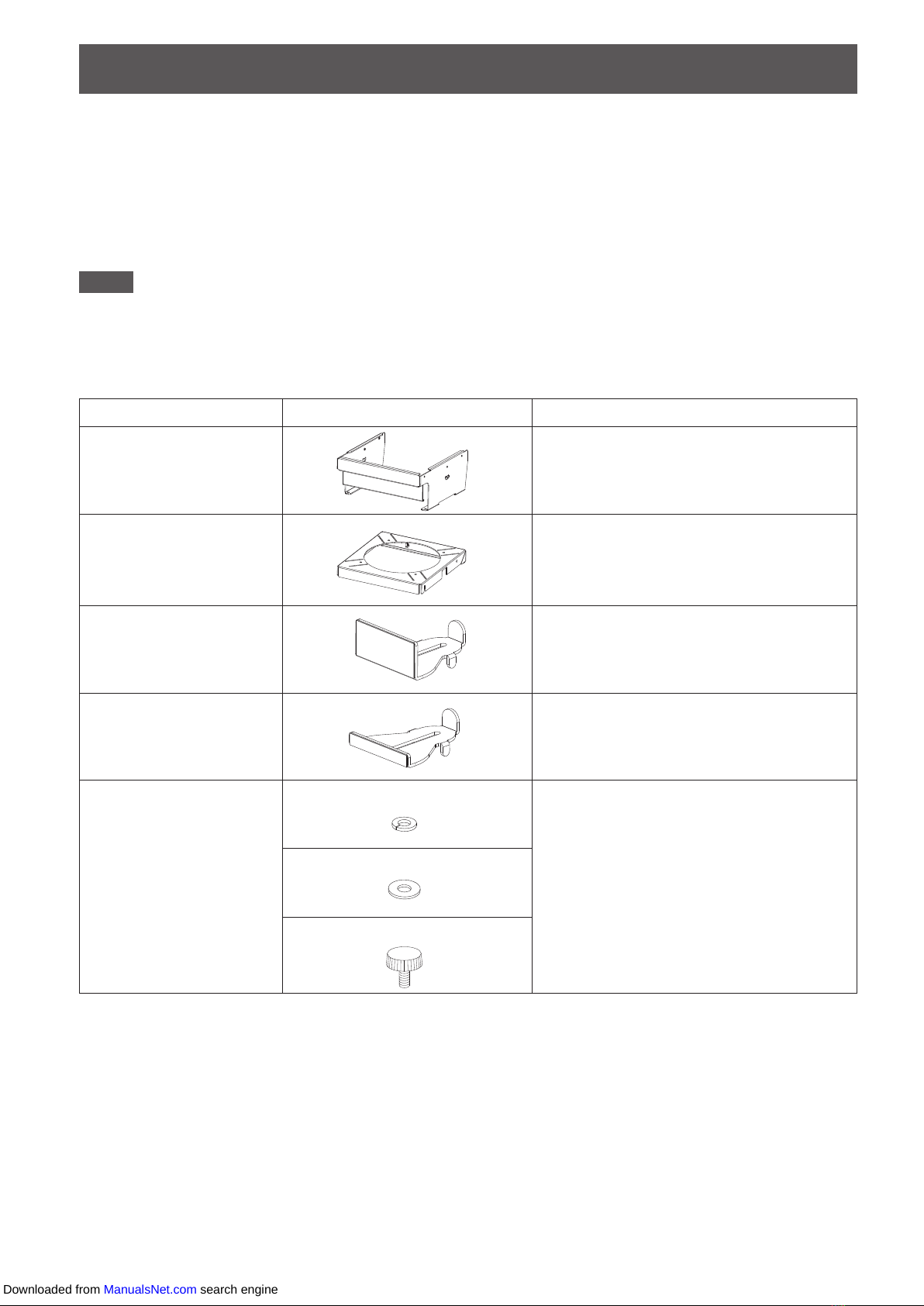

■Structural components
Check that the package contains the following parts.
Part name Appearance (quantity) Application
Lens xing attachment
mount bracket
x1
This part attaches to the projector unit.
It is a bracket for attaching the lens xing
attachment bracket
Lens xing attachment
bracket
x1
This part attaches to the lens xing
attachment mount bracket.
It is a bracket for adjusting and xing the
positions of the lens xing brackets.
Lens xing bracket (A)
x2
These x a lens other than the ET-D75LE50 /
ET-D75LE90 / ET-D75LE95.
Lens xing bracket (B)
x2
These x the ET-D75LE50 / ET-D75LE90 /
ET-D75LE95.
Screws and washers Spring washer (M4)
x4
These are used for bracket assembly and
xing the lens xing brackets.
Flat washer (M4)
x4
Thumbscrew (M4 x 10)
x8
Downloaded from ManualsNet.com search engine
ENGLISH - 5
Preparing the Projection Lens
Attach the lens xing attachment after installing and adjusting the lens.
If the lens hood, which is an accessory of the projector, is already mounted, it must rst be removed.
The lens will become unable to be adjusted after the lens xing attachment is attached.

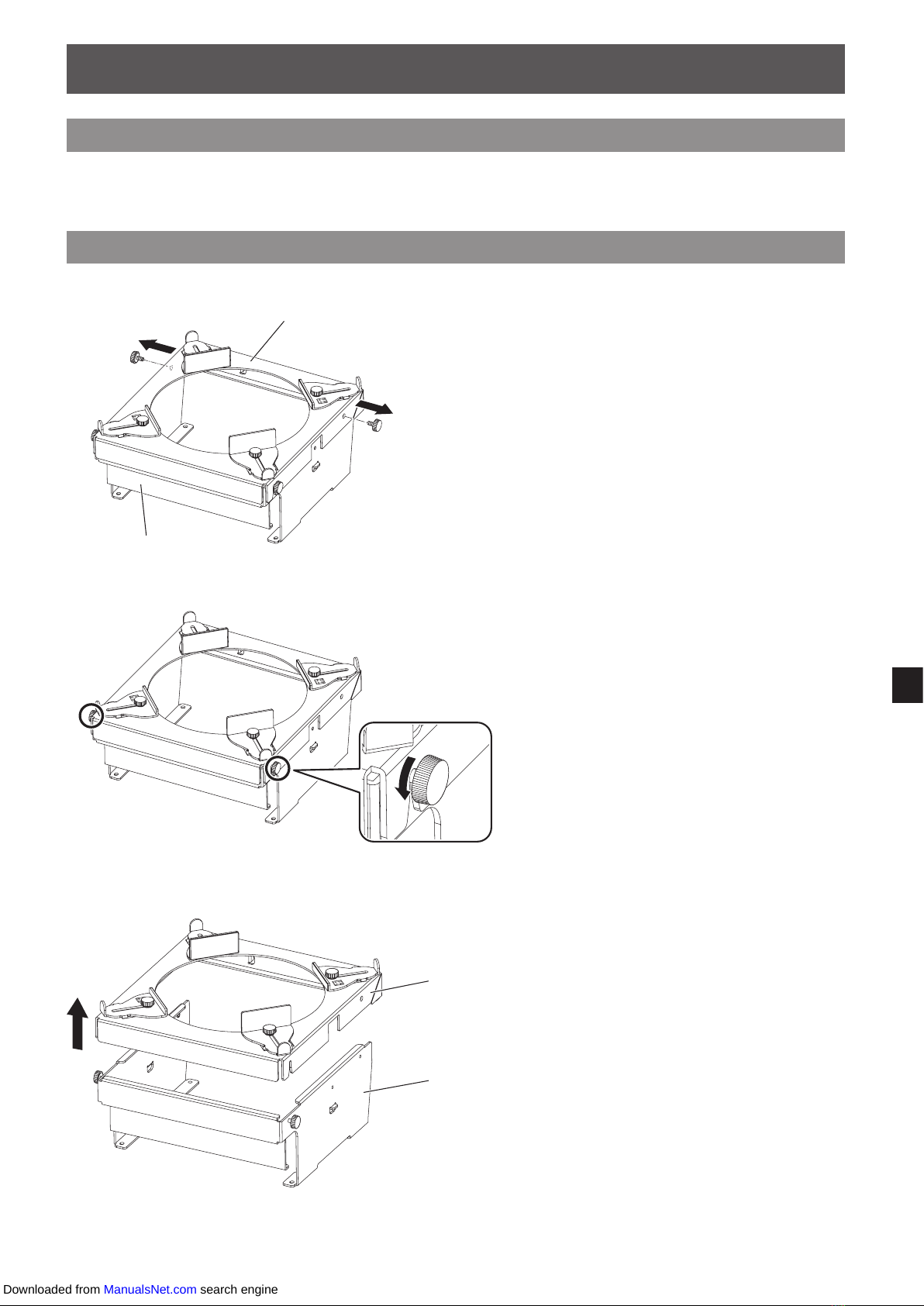

Preparing the Lens Fixing Attachment
Attaching
1) Remove the two upper thumbscrews (inserted
in round holes).
2) Loosen the two lower thumbscrews (inserted
in slots).
3) Remove the lens xing attachment bracket as
shown in the gure.
Lens xing
attachment
bracket
Lens xing
attachment mount
bracket
Lens xing attachment bracket
Lens xing attachment
mount bracket
Downloaded from ManualsNet.com search engine
6 - ENGLISH
Attaching (continued)
The illustrations for this procedure use the PT-
RZ31K as an example.
1) Remove the screws from the four places
around the projector lens.
Attaching the Lens Fixing Attachment
2) Fix the upper part the lens xing attachment
mount bracket using two of the screws that
were removed in step 1.
4) Attach the lens xing attachment bracket to
the lens xing attachment mount bracket as
shown in the gure.
3) Fix the lower part of the lens xing
attachment mount bracket using the
remaining two screws.
Screws
Lens xing attachment
bracket
Screws
Screws
Screws
Downloaded from ManualsNet.com search engine
ENGLISH - 7
Attaching (continued)

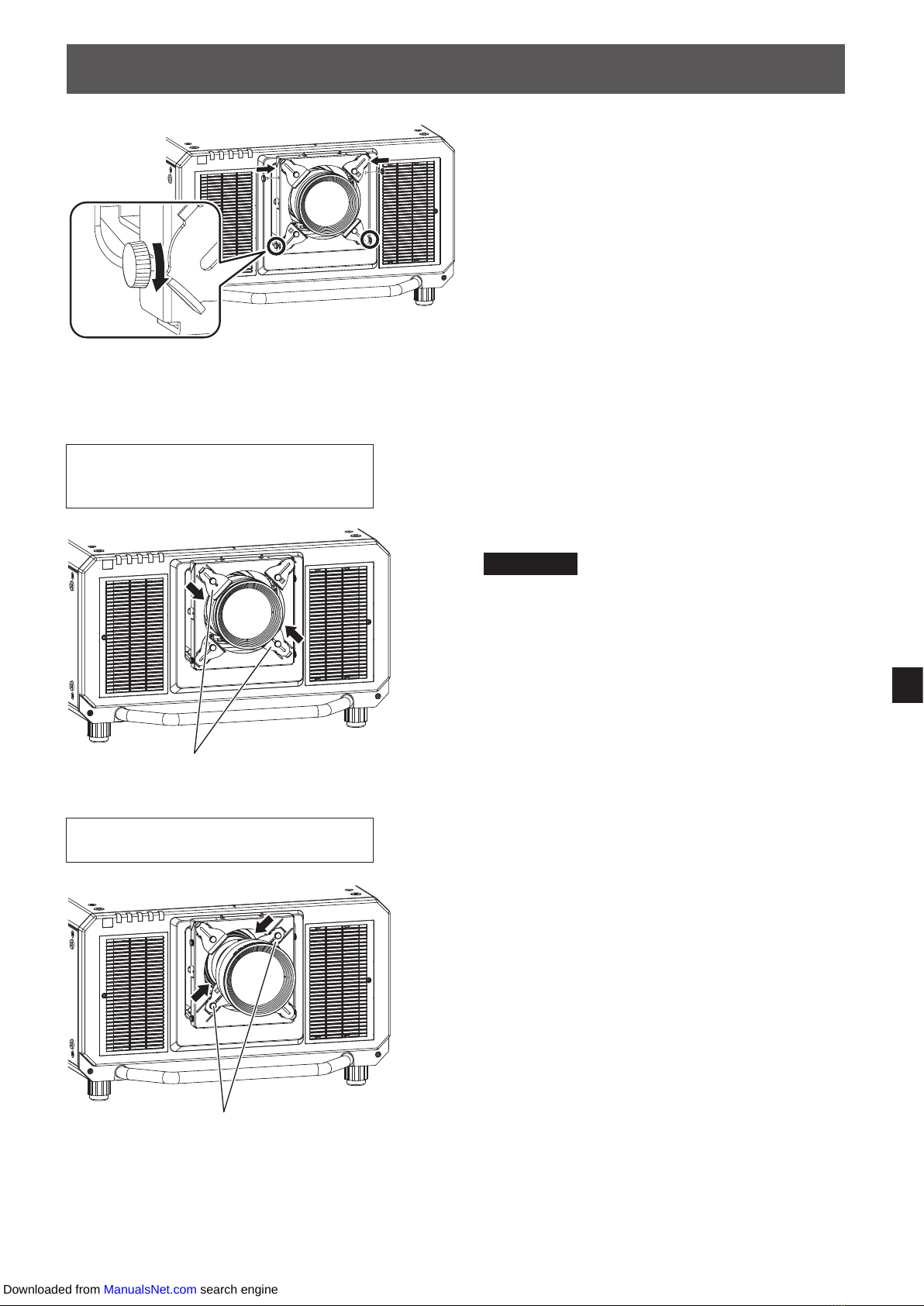

5) Fix the upper part of the lens xing
attachment bracket using the thumbscrews
removed in step 1 of "Preparing the Lens
Fixing Attachment."
6) Fix the lower part of the lens xing attachment
bracket by tightening the thumbscrews (two
places).
7) Loosen the two thumbscrews of the lens
xing brackets.
8) Push the lens xing brackets up against the
lens, and then x them in place by tightening
the two thumbscrews.
Attention
zThe lens xing brackets to use differ as shown in
the gure depending on the lens to be xed.
(The lens xing brackets (B) are labeled "LE50"
and "LE95.")
When lens other than ET-D75LE50 / ET-D75LE90 /
ET-D75LE95:
Use lens xing brackets (A)
When ET-D75LE50 / ET-D75LE90 / ET-D75LE95:
Use lens xing brackets (B)
When using the ET-D75LE50 /
ET-D75LE90 / ET-D75LE95
When using a lens other than the
ET-D75LE50 / ET-D75LE90 /
ET-D75LE95
Lens xing brackets (B)
Lens xing brackets (A)
Downloaded from ManualsNet.com search engine
8 - ENGLISH

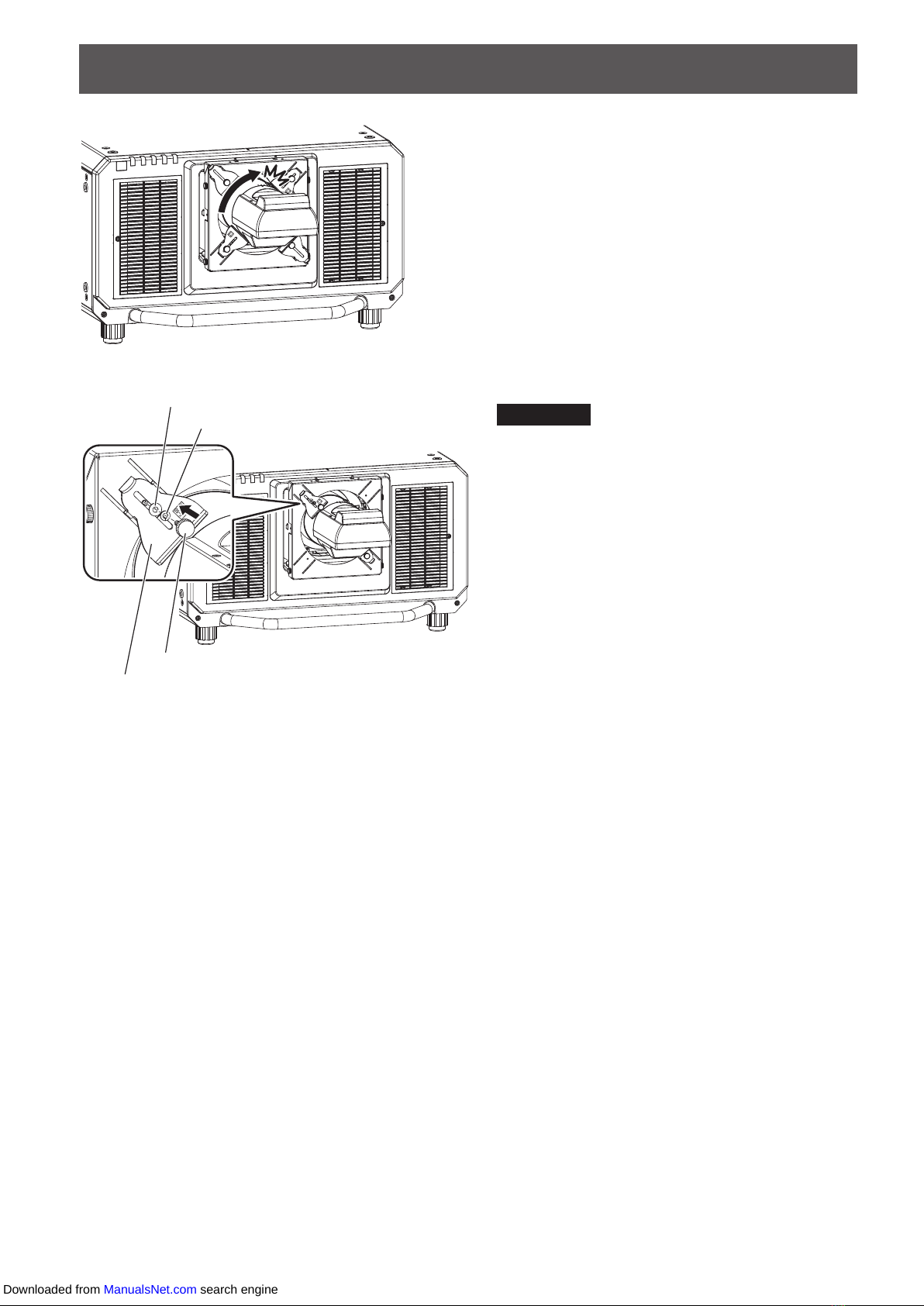

<When using the ET-D75LE90 / ET-D75LE95
lens>
The lens xing brackets (B) may interfere with the
screws on the lens side depending on the state (i.e.,
focus adjustment) of the lens.
If they interfere, reattach and use lens xing
brackets (B) in the positions for lens xing brackets
(A).
When attaching the lens xing brackets (B), attach
the spring washers and then the at washers to the
thumbscrews before attaching them to the unit.
Attention
zSafely store the removed lens xing brackets (A),
thumbscrews, spring washers, and at washers
so as not to lose them.
Flat washer
Spring washer
Lens xing
bracket (B)
Thumbscrew
Attaching (continued)
Downloaded from ManualsNet.com search engine
ENGLISH - 9
Attaching the Lens Hood
If you need to attach the lens hood, attach it after attaching the lens xing attachment.
Attention
zWhen mounting the lens hood supplied with the projector to the projector, be sure to request installation from
your dealer or certied personnel.
Be sure to hand this manual and the "Mounting the lens hood" document supplied with the projector to the
personnel performing the installation. After installation, have the installation personnel return these documents
to you, and store them for future reference.

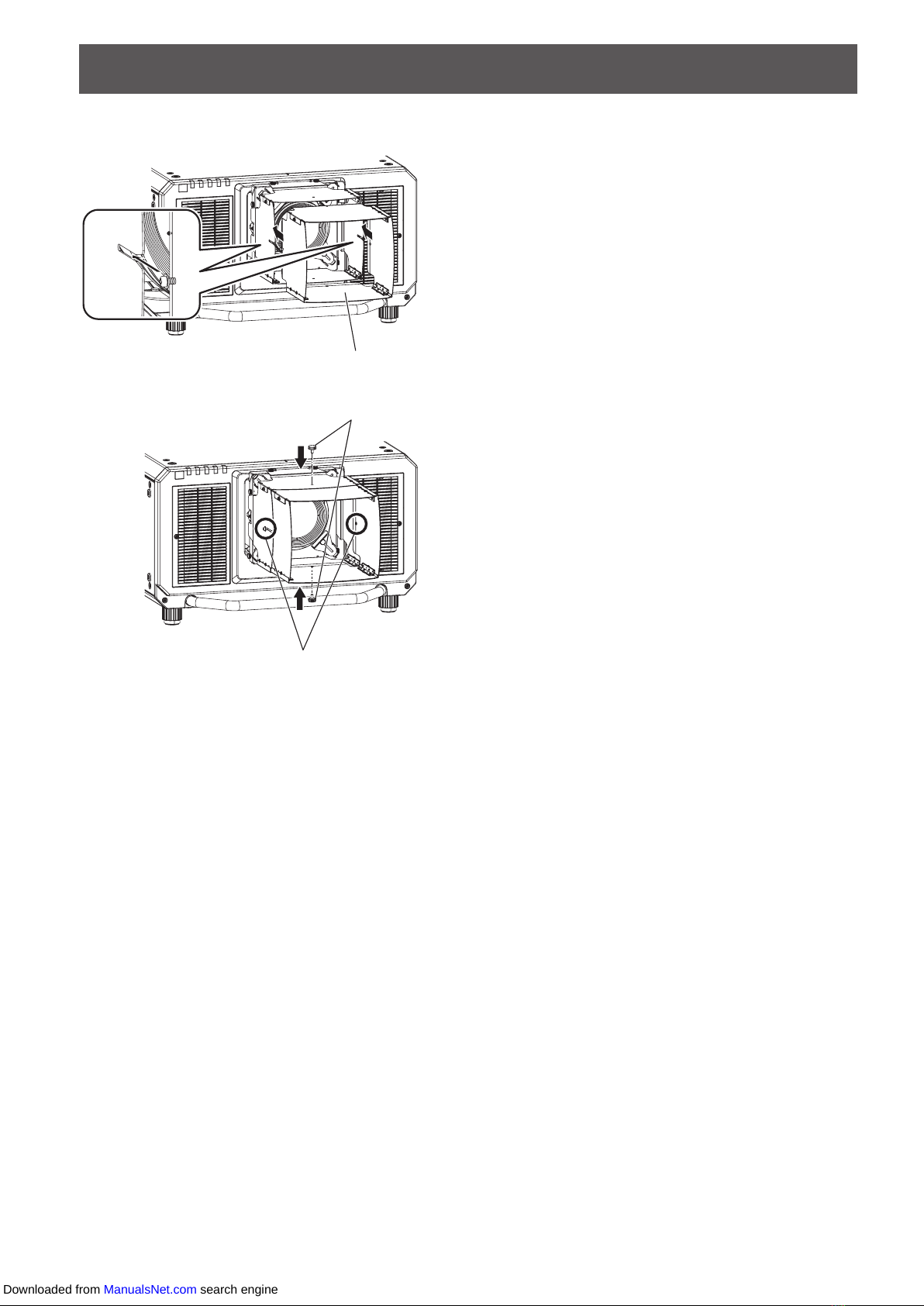

1) Attach lens hood 1 to the lens xing
attachment.
2) Tighten the lens hood screws (two places)
and thumbscrews (two places) to x lens
hood 1.
Thumbscrews
Lens hood 1
Lens hood screw Lens hood screw
Lens hood 1
Attaching (continued)
Downloaded from ManualsNet.com search engine
10 - ENGLISH
<When using the ET-D75LE8 / ET-D75LE40>
1) Attach lens hood 2 to lens hood 1.
Lens hood 2
2) Attach the thumbscrews (one place each at
top and bottom) to x lens hood 2.
3) Tighten the left and right lens hood screws
(one on each side) of lens hood 2.
Thumbscrews
Knurled screws
Attaching (continued)
