Panasonic DP-130 Series Manuel
DA-DS150
Setup Procedure
Model No.
DP-130/135/150 Series
Option
Model No.
DA-DS150
Table of Contents
Setup Procedure ............................. 2
Before setting up
Releasing Scanner
Removing Shipping Materials
InstallingTonerCartridge
Installing Paper
Connecting Printer Cable and
Telephone Line
Setup Procedure For Option.......... 8
2nd Paper Feed Module
Handset Unit
Expansion Flash Memory Card
Installing Printer Driver ................ 12
ForWindows 95/98
For Windows NT 4.0
ForWindows 2000
Installing Panasonic
Document Management System .. 24
Installing Panasonic Class 2 Fax
Modem........................................... 27 This setup guide includes the setup procedure
not only for the main unit but also for options.
Please keep this guide.
You will need it when you buy the options.
ForWindows 95/98
For Windows NT 4.0
ForWindows 2000
Digital Copier
2
Before setting up
Setup Procedure
ATTENTION
CUse only the setup units/parts designated by Panasonic.If the copier should
be damaged by using other setup units/parts, Panasonic will not bear any
responsibility.
CDrum unit already comes installed in copier.
Copier Operating Instructions
CFor Copier (1 piece)
CFor Facsimile (1 piece)
CCD-ROM (1 piece)
CSetup Guide (1 piece)
Toner Cartridge
(1 piece)
■■
■■
■Unpack and install on a stable flat surface.
Check that you have all the contents illustrated.
Note: Do not plug the copier until directed to do so.
■■
■■
■Minimum Space Requirement
Copier Sheet BypassExitTray
300 mm 700 mm
100 mm
Cable
CPacked in the paper tray
3
CUse only the setup units/parts designated by Panasonic.If the copier should be
damaged by using other setup units/parts, Panasonic will not bear any
responsibility.
CUnplug the power code when setting up the main unit.
Setup Procedure
1Set up the main unit
Do not plug the main unit for these
operations.
Releasing the scanner
Installing the toner cartridge
Removing shipping materials
Installing paper
(See P.##)
■■
■■
■Following procedure needs to power on.
2Printer
#Install the printer driver software
from the CD-ROM.(See P.##)
$Connect the printer to the PC
with a bi-directional parallel
interface cable (36 pins)
3Fax
#Connect the telephone line and
the handset cable.(See P.##)
$Set up the dialing method (See
P.##)
4Extended Functions
Install the extended function you need by
following the instructions of the CD-ROM
CScanner
CDevice Setting
CPhone Book
CStatus Monitor
CPanasonic Document Management
System
ATTENTION
4

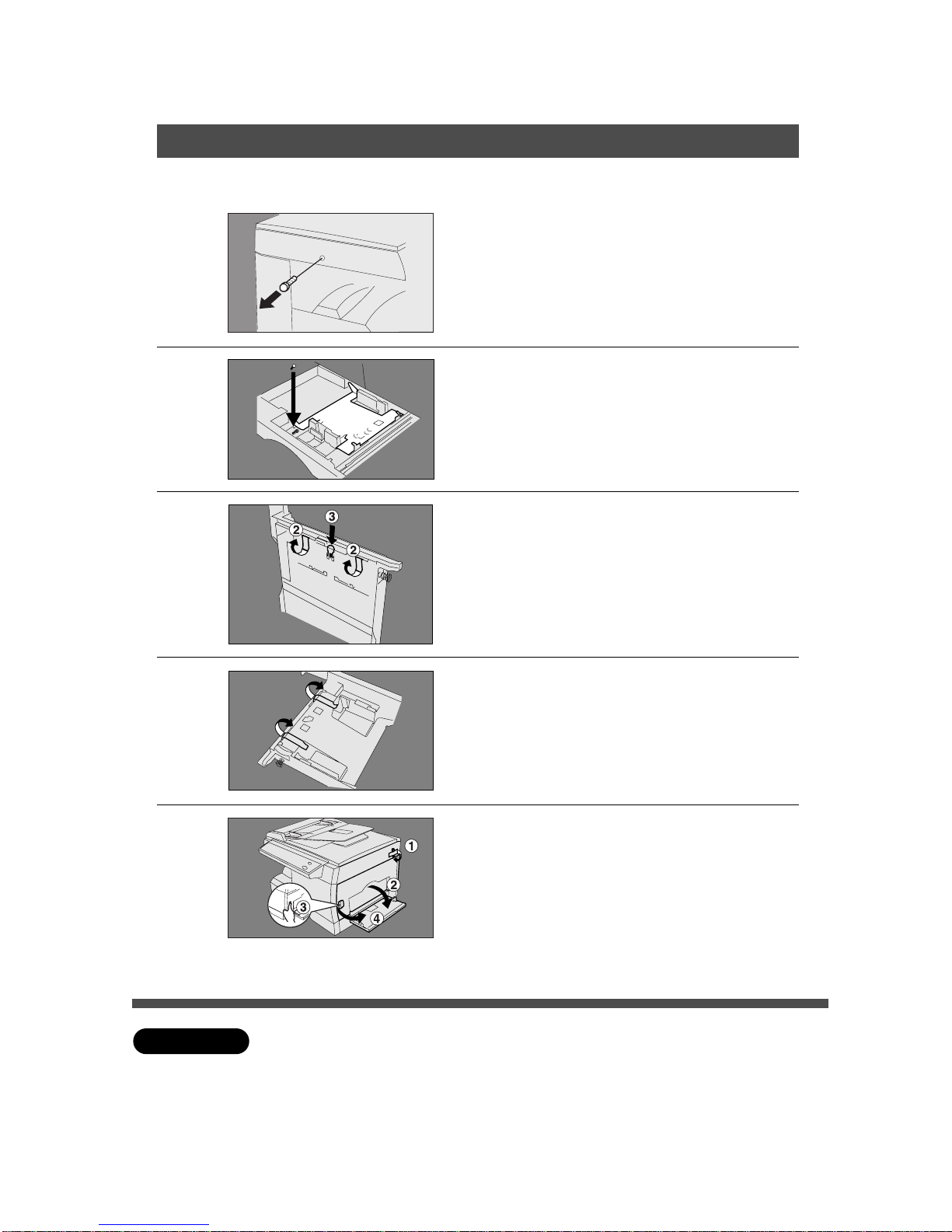

Release Scanner/Remove shipping materials
Setup Procedure
ATTENTION
■■
■■
■Do not plug the copier until directed to do so.
CDo not plug in copier until set-up is complete.
1Remove the fixing screw for the
optics unit.
2Pull paper tray out of copier and
secure the screw to the bottom of
the paper tray.
Note: When moving the copier reinstall
the fixing screw.
3#Completely remove the paper
tray from the copier.
$Release the shipping tapes
(2 pieces) from the bottom.
%Push the bottom plate lock
button.
Bottom view
4Remove the shipping tapes from
the bottom plate.(2 pieces)
5#Remove the shipping tape.
$Open the sheet bypass.
%Push the button.
&Open the right cover.
5
Remove shipping materials/Install Toner Cartridge
Setup Procedure
ATTENTION
CFor optimum copy quality use the recommended Panasonic toner cartridge.
Store toner cartridge in a cool dark place.Install toner cartridge immediately
after unsealing.
Remove the shipping material of
fuser unit.
#Remove the tapes.
(2 pieces)
$
Pullout the shippingmaterials (whitestring
with2blue stoppers)from thefuserunit.
6
7Open the front panel.
CDo not open the front panel first. It can
not be opened unless you open the
covers shown in procedure 5.
8#Shake the toner cartridge
several times.
$Take off the toner cartridge
cover (white plastic) and
discard.
9
Do not touch the magnetic roller!
Do not stand the toner cartridge on end!
Install the toner cartridge.
10
#Push the toner cartridge until it
stops.
$
Push the green handle until it locks.
%Close the front panel.
&
Close the right cover. (See page 7)
(Close the sheet bypass.
Handle
6
Install paper
Setup Procedure
ATTENTION
CWhen making 2-sided copies, use the sheet bypass.
CIf the paper tray is not closed completely, the Add Paper Indicator in the control
panel will light up.In that case, please close the paper tray completely.
CFor changing paper size, see page 19.
Lift slightly and pull paper tray out
of copier until it stops.
1
2Push the bottom plate down until it
locks.
3Install the paper guide into the
holes that correspond to the paper
size you plan to load.
4Place paper.
Up to 250 sheets.
Do not fill above
5#Slide the paper guide (front) to
the paper edge.
$Push the paper tray back into
copier.
Overfill Indicator
1-sided copy
Set-up is completed.Now ready to make a copy.
■■
■■
■
Push the paper tray into copier. Plug in the unit and turn on the power.When
the Add Paper Indicator (JJ
JJ
J) lights, install paper using the following procedure.
7
Connecting Printer Cable and Telephone Line
Setup Procedure
■■
■■
■Back & Left Side View
LINETEL
HANDSET
Ventilation Openings
CDo not block the ventilation
openings.
Handset (Option)
Parallel Interface Connector
CConnect to PC
Telephone Line Modular Jack (LINE)
CConnect to a leased line from telephone company.
TModular Jack for a Telephone Set independent from
DP-150 series
CTo be connected with the non-DP-150 use telephone.
Optional Modular Jack for an Optional Telephone
Handset.
Parallel Interface Cable
CObtain a cable conforming to a PC separately.
(A cable does not come with the unit.) Use a cable of
IEEE1284 specifications, with a maximum length of 6 ft.
8

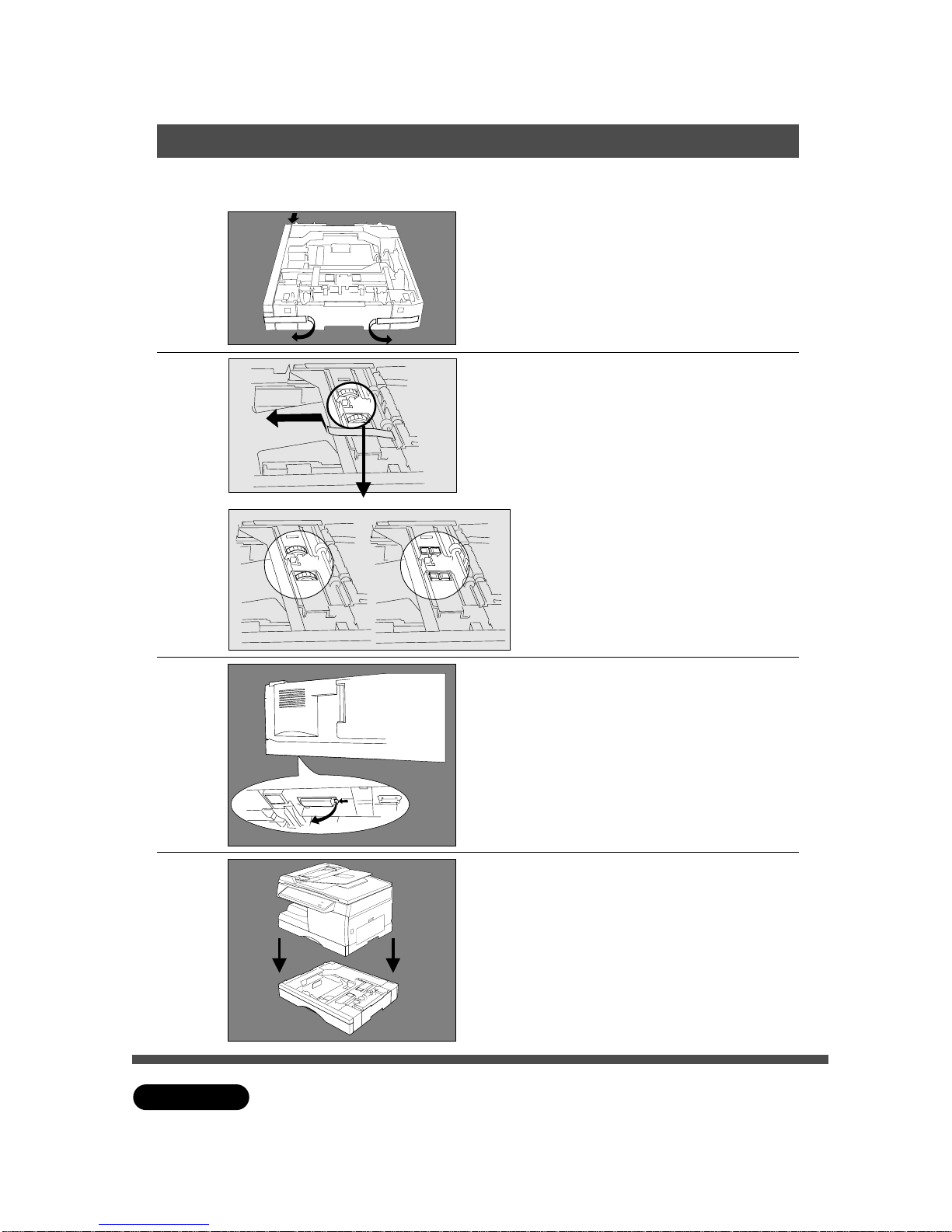

2nd Cassette Module
Setup Procedure For Option
ATTENTION
■■
■■
■Unplug the power code when installing the 2nd cassette module
CUnplug the power code when installing each unit.
1Remove the tapes. (3 pieces)
2Remove the tape as the arrow
shows.
Make sure that the roller is on the
right position as shown left.
(The jagged side is up.)
If the position is wrong, adjust the
rollers the right position.
3Press the button of the white rear
cover then remove the cover.
4Place the machine on the 2nd
cassette module.
Right Position Wrong Position
9
-1
-2
2nd Cassette Module
Setup Procedure For Option
ATTENTION
CUnplug the power code when installing each unit.
Do not touch the gear area of the 2nd cassette
module.
Reinstall the rear cover and insert the hook then
plug the power code.
Fix the 2nd cassette module under
the machine by turning the gears.
(Total 4 points)
If the 2nd cassette module is not
fixed securely, it may fall and hurt
you.
5
6Remove the rear cover of the 2nd
cassette module.
#Pull out the hook.
$Open the cover slightly, and
remove it.
7Plug the harness of the 2nd
cassette module into the machine
connector.
8#Reinstall the rear cover.
$Insert the hook untill it locks.
9Slide out the paper cassette and
remove the shipping materials.
(See steps 3, 4 on page 9)
10
Handset Unit
Setup Procedure For Option
ATTENTION
CUnplug the power code when installing the handset unit.
Take the handset unit out of the
carton.
Connect the handset code to the
handset cradle.
1
2Hook the projections into square
holes on the machine without
putting on the receiver.
3Connect the cable into the
handset jack on the machine.
4Connect the handset code into the
receiver.
Put the receiver on the cradle.
■■
■■
■Unplug the power code when installing the handset-unit.
