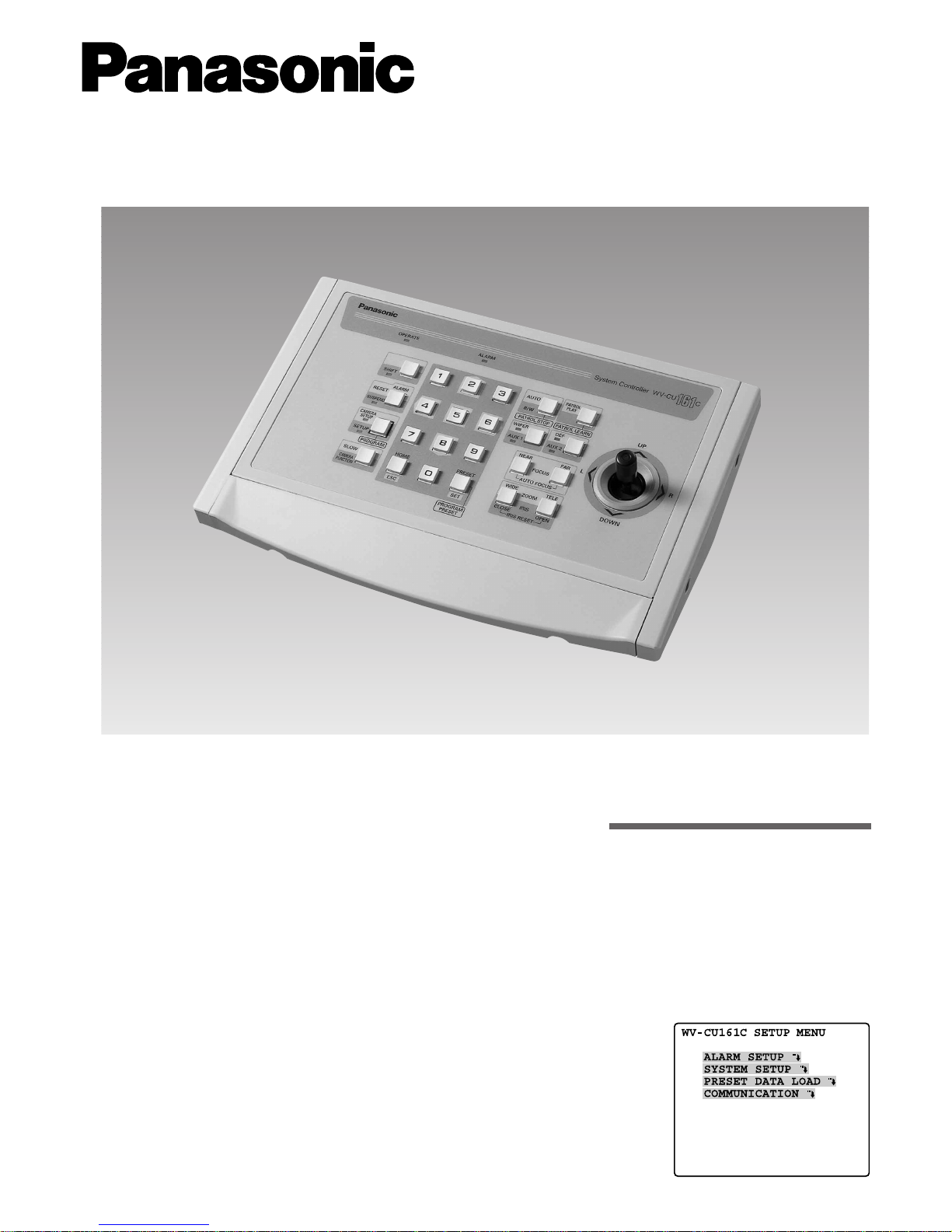

Panasonic WVCU161C - SYSTEM CONTROLLER Manuel utilisateur

System Controller

WV-CU161C

Closed Circuit Video Equipment

Panasonic introduces the WV-CU161C system controller.

When combined with the WV-CS850A Series new Super

Dynamic II Colour Dome Camera, the WV-CU161C enables

remote control of various functions for the WV-CS850A

Series. The WV-CS850A Series is a highly advanced and

unitized device. Features include 64 preset positions, 300

degree/sec. panning, 360 degree endless panning, 22x zoom

and 10x electronic zoom lens. Other features include Patrol

Learn Function, colour or selectable B/W mode and

progressive digital functions. WV-CU161C allows for direct

and accurate control of the WV-CS850A Series with user-

friendly operation. The WV-CU161C can control WV-

CS850A Series up to 1,200 m using RG-6/U (5C-2V).

With an Alarm input/output function and Alarm reset

input/output function, WV-CU161C can transfer an alarm

signal to an external equipment, such as motion detector.

The WV-CU161C is an integral part of any high

performance surveillance system.

CONTROLS PRESET POSITION, PAN/TILT, ZOOM/FOCUS,

DIGITAL CAMERA FUNCTIONS AND RECEIVER/HOUSING.

An Example of Setup Menu

Key Features

•Preset Control : 64 positions function, focus, zoom ratio,

rotation mode, etc.

•Lens control : zoom ratio, focus, iris

•Pan/tilt control : manual pan, manual tilt, auto-pan

•Receiver control : wiper, defroster, AUX 1-2

•Camera control : home position, camera setting, patrol function

•Preset control interlocked to alarm signal

•Built-in alarm recover input/reset output

•Built-in RS-485 terminal

•Built-in joystick positioner

•Preset data : up/download

function, maximum 8 cameras

Power Source 220 - 240 V AC 50 Hz

Power Consumption 7 W

Camera Input Composite Video Signal 1.0 V[p-p] / 75Ω

Alarm Input Max. 4 input

Video Output Composite Video Signal 1.0 V[p-p] / 75Ω, multiplexed video and control data

Alarm Output Open Collector Output 16 V DC, 100 mA max.

RS-485 Terminal RS-485, full (4 line) or half (2 line) switchable

Lens Control Zoom Tele / Wide (Electronic zoom WV-CS850A Series only)

Focus Near / Far / Auto Focus

Iris Open / Close / Reset

Pan / Tilt Control Manual Selectable at variable speed control

Auto Pan On / Off

Housing Control Wiper On / Off

Defroster On / Off

AUX 1.2 On / Off

Camera Control Position Select Selectable 1 to 64 (max.)

Home Position Possible

Camera Setup Possible

Patrol Learn Function Available on WV-CS850A Series only

B/W, Colour Mode Selectable on WV-CS850A Series only

Memory

Camera Preset Data Upload / Download (Max. 8 cameras)

Alarm Alarm Buzzer On / Off

Alarm Display On / Off

Auto Reset / Manual Reset

Possible

Alarm Suspend Possible

Ambient Operating Temperature –10°C - +50°C

Ambient Operating Humidity Less than 90%

Dimensions (W) x (H) x (D) 330 x 74.5 x 221 mm

Weights (approx.) 2.4 kg

System Controller WV-CU C

1 2 3

4 6

7 8 9

SHIFT

OPERATE ALARM

RESET

SLOW

SUSPEND

CAMERA

SETUP

PATROL

PLAY

PROGRAM

PRESET

CAMERA

FUNCTION

SETUP

ESC

HOME

SET

PRESET WIDE TELE

NEAR

AUX1

B/W

AUTO

PATROL STOP PATROL LEARN

WIPER

AUX2

DEF

DOWN

FAR

FOCUS

IRIS

ZOOM

CLOSS OPEN

PROGRAM

ALARM

IRIS RESET

AUTO FOCUS

Operate indicator

Alarm indicator

Joystick Controller

Patrol Play/Patrol Learn button

Defroster/Auxiliary 2 button

Auto Panning/Black and White

Selectable/Patrol Stop button

Wiper/Auxiliary 1 button

Focus buttons

Zoom/Iris buttons

Numeric buttons

Preset/Set/Program Preset button

Home/Escape button

Shift button

Slow/Camera

Function button

Camera Setup/Setup/

Program button

Alarm Reset/

Suspend button

POWER

OFF

SIGNAL GND

CAMERA

VIDEO

OUT

RS485ALARM DATA

TERM

RESET OUT

ARARM IN

RECOVERIN

ALARMOUT

ALARM IN

LINE

COAX

RS485

OFF

12G34

RT ABABG

Alarm Input Terminal

Alarm Output Terminal

Ground

Terminal

Recover Input Terminal

Reset Output Terminal

Alarm Switch

RS485 Terminal Termination Switch

Line Selection Switch

Signal Ground

Terminal

Power Switch

Power Cord

Camera Input Connector

Video Output Connector

Data Selection Switch

107.5

72 2.5

221

177

330

300

System Controller WV-CU C

123

4 6

789

SHIFT

OPERATE ALARM

RESET

SUSPEND

CAMERA

SETUP

PATROL

PAY

PROGRAM

PRESET

CAMERA

FUNCTION

SERUP

ESC

HOME

SET

PRESET WIDE TELE

NEAR

AUX1

B/W

AUTO

WIPER

AUX2

DEF

DOWN

FAR

FOCUS

IRIS

CLOSS OPEN

PROGRAM

ALARM

IRIS RESET

AUTO FOCUS

SPECIFICATIONS

APPEARANCE

Unit : mm

Sensor Alarm

Digital Disk Recorder

WJ-HD100

Colour

Monitor

WV-CS850A

Series

WV-CS850A

Series

Video Switcher

WJ-SW208

Camera Housing

Camera

Receiver

System Controller

WV-CU161C

System Controller

WV-CU161C

Digital Disk Recorder

WJ-HD100

Colour

Monitor

SystemController WV-CU C

123

4 6

789

SHIFT

OPERATE ALARM

RESET

SUSPEND

CAMERA

SETUP

PATROL

PLAY

PROGRAM

PRESET

CAMERA

FUNCTION

SETUP

ESC

HOME

SET

PRESET WIDE TELE

NEAR

AUX1

B/W

AUTO

WIPER

AUX2

DEF

DOWN

FAR

FOCUS

IRIS

CLOSS OPEN

PROGRAM

ALARM

AUTOFOCUS

IRISRESET

SystemController WV-CU C

1 2 3

4 6

7 8 9

SHIFT

OPERATE ALARM

RESET

SUSPEND

CAMERA

SETUP

PATROL

PLAY

PROGRAM

PRESET

CAMERA

FUNCTION

SETUP

ESC

HOME

SET

PRESET WIDE TELE

NEAR

AUX1

B/W

AUTO

WIPER

AUX2

DEF

DOWN

FAR

FOCUS

IRIS

CLOSS OPEN

PROGRAM

ALARM

AUTOFOCUS

IRISRESET

SYSTEM EXAMPLESMAJOR OPERATING CONTROLS

Basic Connection

Application Connection with the Passive Video Switcher

OPTIONAL COMPONENTS & ACCESSORIES

Receiver Rack Mount Angle

WV-RC100 / WV-RC150 / WV-RC170 WV-Q62

Super Dynamic II Dome Cameras

WV-CS850A Series

•64-position presettable

•Digital motion detector

•Electronic sensitivity up

•Automatic focus

•Max. 300 / second panning

•Privacy zone masking

•Patrol learn function

•B/W, colour mode selectable

•22x zoom / 10x electronic zoom

• Weights and dimensions are approximate. • Specifications are subject to change without notice. • These products may be subject to export control regulations.

DISTRIBUTED BY:

Panasonic is the brandname of Matsushita Electric.

Printed in Japan

WV-JKCU161CT(2N-662B)
