Panasonic AW-HHD100E Manuel utilisateur

Operating Instructions

SDI Output Card

Model No. AW-HHD100E

Before operating this product, please read the instructions carefully and save this manual for future use.

VQTB0341-3

FRANÇAIS DEUTSCH ENGLISHITALIANOESPAÑOL



1 (E)

indicates safety information.

Safety precautions

WARNING:

• TO REDUCE THE RISK OF FIRE OR ELECTRIC

SHOCK, DO NOT EXPOSE THIS APPARATUS TO

RAIN OR MOISTURE.

• THE APPARATUS SHALL NOT BE EXPOSED TO

DRIPPING OR SPLASHING AND THAT NO

OBJECTS FILLED WITH LIQUIDS, SUCH AS

VASES, SHALL BE PLACED ON THE

APPARATUS.

CAUTION:

TO REDUCE THE RISK OF FIRE OR SHOCK

HAZARD AND ANNOYING INTERFERENCE, USE

THE RECOMMENDED ACCESSORIES ONLY.

CAUTION:

TO REDUCE THE RISK OF FIRE OR SHOCK

HAZARD, REFER CHANGES OF SWITCH

SETTINGS INSIDE THE UNIT TO QUALIFIED

SERVICE PERSONNEL.

ENGLISH VERSION

wDO NOT REMOVE PANEL COVERS BY

UNSCREWING.

To reduce the risk of electric shock, do not remove

the covers. No user serviceable parts inside.

Refer servicing to qualified service personnel.

2 (E)

ENGLISH

Information on Disposal for Users of Waste Electrical & Electronic Equipment (private households)

This symbol on the products and/or accompanying documents means that used electrical and electronic

products should not be mixed with general household waste.

For proper treatment, recovery and recycling, please take these products to designated collection points,

where they will be accepted on a free of charge basis. Alternatively, in some countries you may be able to

return your products to your local retailer upon the purchase of an equivalent new product.

Disposing of this product correctly will help to save valuable resources and prevent any potential negative

effects on human health and the environment which could otherwise arise from inappropriate waste handling.

Please contact your local authority for further details of your nearest designated collection point.

Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.

For business users in the European Union

If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for further information.

Information on Disposal in other Countries outside the European Union

This symbol is only valid in the European Union.

If you wish to discard this product, please contact your local authorities or dealer and ask for the correct method of disposal.

3 (E)

Contents

Accessory ........................................................................... 3

Preface ............................................................................... 3

Warning/caution for safety .................................................. 4

Precautions ......................................................................... 5

Major operating controls and their functions ....................... 6

Mounting ............................................................................. 7

Appearance ........................................................................ 8

Specifications ..................................................................... 9

Accessory

Operating Instructions ............................ 1

Preface

pThis product is an option card which can be installed in

the option slot of the AW-HE100E HD integrated camera.

pIt is made for HD-SDI/SD-SDI signal output and is

equipped with two BNC output jacks (dual channel).

pAW-HE100E settings can be used to switch between

HD-SDI and SD-SDI output.

The AW-HHD100E can be installed only to the

AW-HE100E.

Note

4 (E)

ENGLISH

Warning/Caution for safety

WARNING

pRefer all servicing to qualified personnel

To reduce the risk of electric shock, don’t remove cover

or back, unless you are a qualified personnel. Refer all

mountings, connections, servicing to qualified service

personnel.

pNo water or moisture inside

Do not let water or moisture into the product, or expose it

to moisture, to prevent a fire and electric shock.

pIf you see smoke or smell an odor from the product, if

water or other foreign matter gets inside, if it is damaged

by dropping, or if you find anything wrong with it,

immediately stop using it.

pDo not disassemble or modify the product to prevent

a fire and electric shock.

CAUTION

pDo not drop the product, do not expose it to strong shock,

or do not step on it, to prevent a fire and injuries.

pDo not install the product at a place full of moisture and

dust, which may cause a fire and electric shock.

5 (E)

Precautions

pPower off before connecting or disconnecting cables

Before plugging or unplugging the cables, be sure to

switch power off.

pHandle carefully.

Do not drop the product, or subject it to strong shock or

vibration. This is important to prevent trouble.

pAvoid humidity and dust.

Avoid using the product at a humid, dusty place because

much humidity and dust will cause damage to the parts

inside.

pOperating temperature range

Avoid using the product at a cold place below 0 °C or at

a hot place above +40 °C because extremely low or high

temperature will adversely affect the parts inside.

When the SDI output card is to be discarded at the

end of its service life, ask a specialized contractor

to dispose of it properly in order to protect the

environment.

Caution

6 (E)

ENGLISH

Major operating controls and their functions

SDI output connector [SDI OUT1, SDI OUT2]

Serial digital component signal can be output.

7 (E)

Mounting

pBe sure to ask your dealer, where you purchased the

product, for mounting.

pUnplug the AW-HE100E power cord and all the cables

before performing the installation work.

pBefore handling the card, touch a metal part of the

camera to discharge the static from the human body.

An anti-static wrist strap is recommended for added

safety.

If you touch the card while you are still charged with

static, it may cause trouble.

pKeep the metal parts of the card free of contact with

other metal parts.

Notes

Remove the 2 screws from the option slot cover.

Remove the option slot cover.

Line up the card with the guide rails and insert it.

(Make sure that it is inserted all the way.)

Fasten the card in place with the 2 setscrews.

Card setscrews

Option slot cover

SDI Output Card

AW-HHD100E

HD Integrated Camera

AW-HE100E

8 (E)

ENGLISH

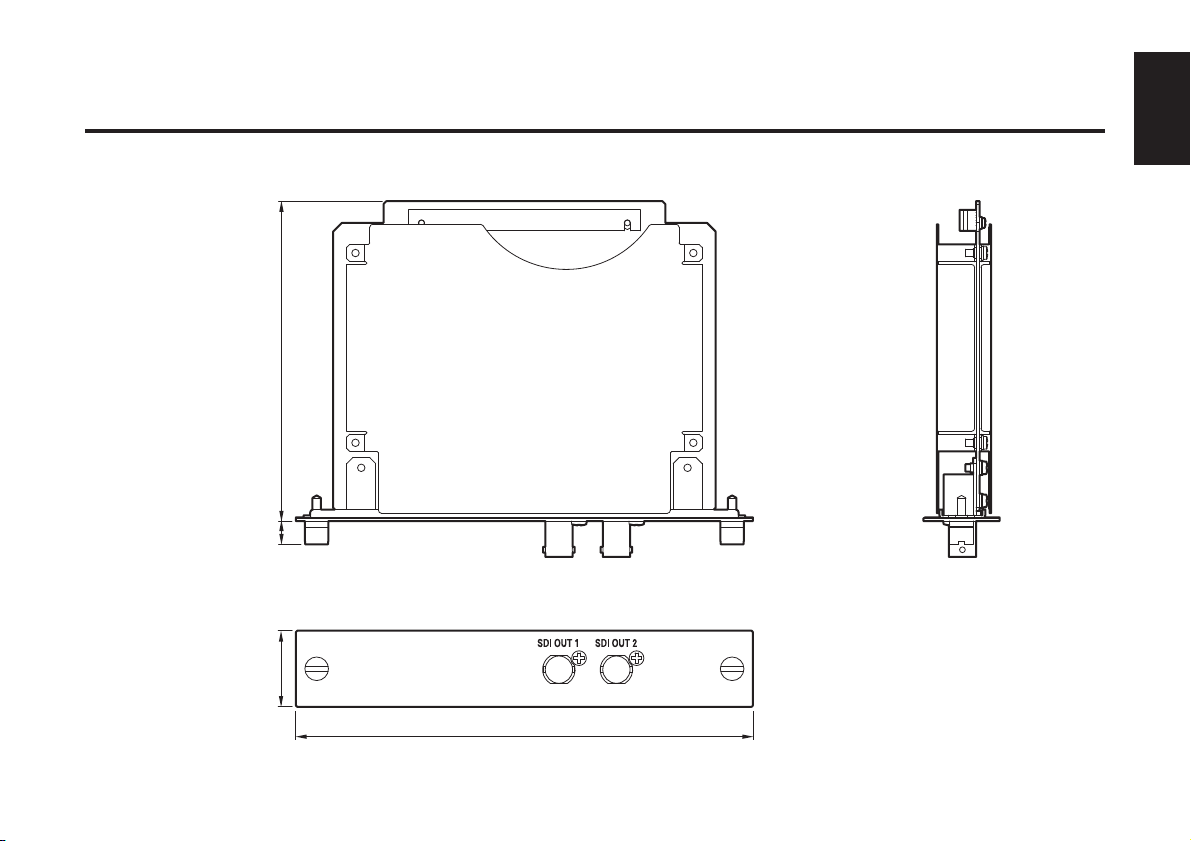

Appearance

Unit: mm

159

26.5 8 111

9 (E)

Specifications

Power requirements: 12 V DC (supplied from camera)

Power consumption: Approx. 1.5 W

indicates safety information.

Operating temperature: 0 °C to +40 °C

Storage temperature: –20 °C to +50 °C

Allowable humidity ranges: 85 % or less (without condensation)

Weight: Approx. 230 g

Dimensions (W VD VH): 159 C111 C26.5 mm (excluding protrusions)

Output connectors: SDI OUT1, SDI OUT2 connector (BNC)

HD: Compliant with the SMPTE292M (BTA S-004B)

SD: Compliant with the SMPTE259M

Weight and dimensions indicated are approximate.

Specifications are subject to change without notice.
