Operating Instructions EB-GD90
Digital Cellular Telephone Main Kit
Before operating this equipment please read these instructions
completely.
The Serial Number can be found on the outside of the phone
under the battery. For your convenience we recommend that you
note the following details as a record of your purchase.
Part Number
Serial Number
Dealer Name
Purchase Date
Printed in UK
www.muck.panasonic.co.uk 216
Contents
Introduction........................1
Symbols Used ......................1
Using This Manual....................1
Safety ...........................3
Getting Started ......................4
Fitting/Removing the SIM ................4
Fitting/Removing the Battery ..............5
Charging the Battery ..................6
Low Battery Warning ..................6
Location of Controls ...................7
Display..........................8
Basic Operation .....................9
Power On/Off ......................9
Making a Call ......................9
Automatic Redial ....................1
Ending a Call ......................1
Answering a Call ....................1
Volume Control.....................11
Vibration Alert .....................12
Key Guard .......................12
Phone Clock ......................12
Phone Security .....................15
Phone Lock ......................15
PIN...........................16
Changing Security Codes ...............16
Advanced Operation ..................17
Voice Memo ......................17
DTMF Tones ......................18
Alert Profile.......................18
Call Hold and Call Waiting ...............19
Call Transfer ......................2
Multi-party Calls ....................2
Phonebook Basics ...................22
Storing a Number ...................22
Browsing Phonebooks by Name or Location .....23
Retrieving a Number ..................23
Editing Phonebook Entries ...............24
Hot Key Phone Numbers................25
Advanced Phonebook .................26
Note Pad ........................26
Recent Numbers ....................26
Fixed Dial .......................27
Service Dial ......................28
Short Text Messages ..................29
Setting your Phone for Short Text Messages .......29
Sending a Short Text Message ............29
Receiving Short Text Messages ............3
Cell Broadcasts ....................31
Alpha Entry .......................32
Menu Structures.....................33
Key Guard .......................33
Phonebook .......................33
Messages .......................34
Call Service ......................35
Call Divert .......................36
Security ........................36
Network ........................37
Personalise.......................38
Care and Maintenance .................40
Glossary of Terms ...................41
Trouble Shooting ....................43
Important Error Messages ...............45
Specifications ......................46
EU Warranty .......................47
Notes...........................54
Introduction
Thank you for purchasing this Panasonic GD9 digital cellular
phone. This phone is designed to operate on the Global System
for Mobile Communications (GSM), GSM9 or GSM18 .
These operating instructions detail use of the equipment
contained in the Main Kit.
Some services are network dependent or may only be available
on a subscription basis. Some functions are SIM dependent.
For more information contact your Service Provider.
Symbols Used
FShows that you should press the following key(s).
,Text-Shows that the display text will be flashing.
Shows that the information is a Quick Tip.
Using This Manual
This manual is designed in sections to guide you through the
many functions of this phone. Listed below is a brief outline of
each section, to help you find the information you need.
Getting Started: Details how to fit the battery, insert the SIM
card, introduces the controls and display of the phone.
Basic Operation: Details how to make and receive calls,
change the phone volume, use Vibration Alert and Key Guard
the Clock/Alarm.
Phone Security: Details how to use the Phone Lock and PIN
Security features as well as how to change security codes.
Advanced Operation: Details how to record using Voice
Memo, send DTMF tones, create Alert Profiles, use Call
Waiting, Call Transfer and Multi-party.
Phonebook Basics: Details how to create, store, retrieve, and
browse a number in a Phonebook as well as the more
advanced Phonebook features.
Advanced Phonebook: Details the operation of the Note Pad,
Recent Number recall and limiting the numbers available using
Fixed Dialling.
1
Introduction
Short Text Messages: Details how to set up your phone to
receive and send Short Text Messages and to receive Cell
Broadcasts.
Alpha Entry: Details how to access alternative characters with
the keypad.
Menu Structures: Details the features that can be accessed
from the phone menu.
The remaining sections details how to take care of your phone,
lists terms used in this manual, a Troubleshooting and Error
Message section and the Specifications.
2
Introduction
Safety
This equipment is intended for use when supplied
with power from the built-in charger or Dual Charger
(EB-CRD9 ) through the AC Adaptor
(EB-CAD7 Vxx)*. Other usage will invalidate any
approval given to this apparatus and may be
dangerous. The use of approved accessories is
recommended to ensure optimum performance and
avoid damage to your phone.
Switch off your cellular phone when in an aircraft. The
use of cellular phones in an aircraft may be
dangerous to the operation of the aircraft, disrupt the
cellular network and may be illegal. Failure to observe
this instruction may lead to the suspension or denial
of cellular phone services to the offender, or legal
action or both.
You are advised not to use the equipment at a
refueling point. You are reminded of the need to
observe restrictions on the use of radio equipment in
fuel depots, chemical plants or where blasting
operations are in progress. Never expose the battery
pack to extreme temperatures (in excess of 6 °C) or
charge the battery pack for much longer than
recommended.
You MUST exercise proper control of your vehicle at
all times. Do not use a hand held phone or
microphone while you are driving. Find a safe place to
stop first. Do not speak into a hands free microphone
if it will take your mind off the road. Acquaint yourself
thoroughly with restrictions concerning the use of
cellular phones within the country you are driving and
observe them at all times.
Care must be taken when using the phone in close
proximity to personal medical devices, such as
pacemakers and hearing aids.
* Where xx identifies the specific AC Adaptor region, eg CN, EU, HK, TW, UK.
3
Safety
Getting Started
Fitting/Removing the SIM
The SIM is fitted into a holder at the back of the phone
underneath the battery.
Fitting the SIM
Removing the SIM
To remove the SIM follow the above steps in reverse.
4
Getting Started
3
1

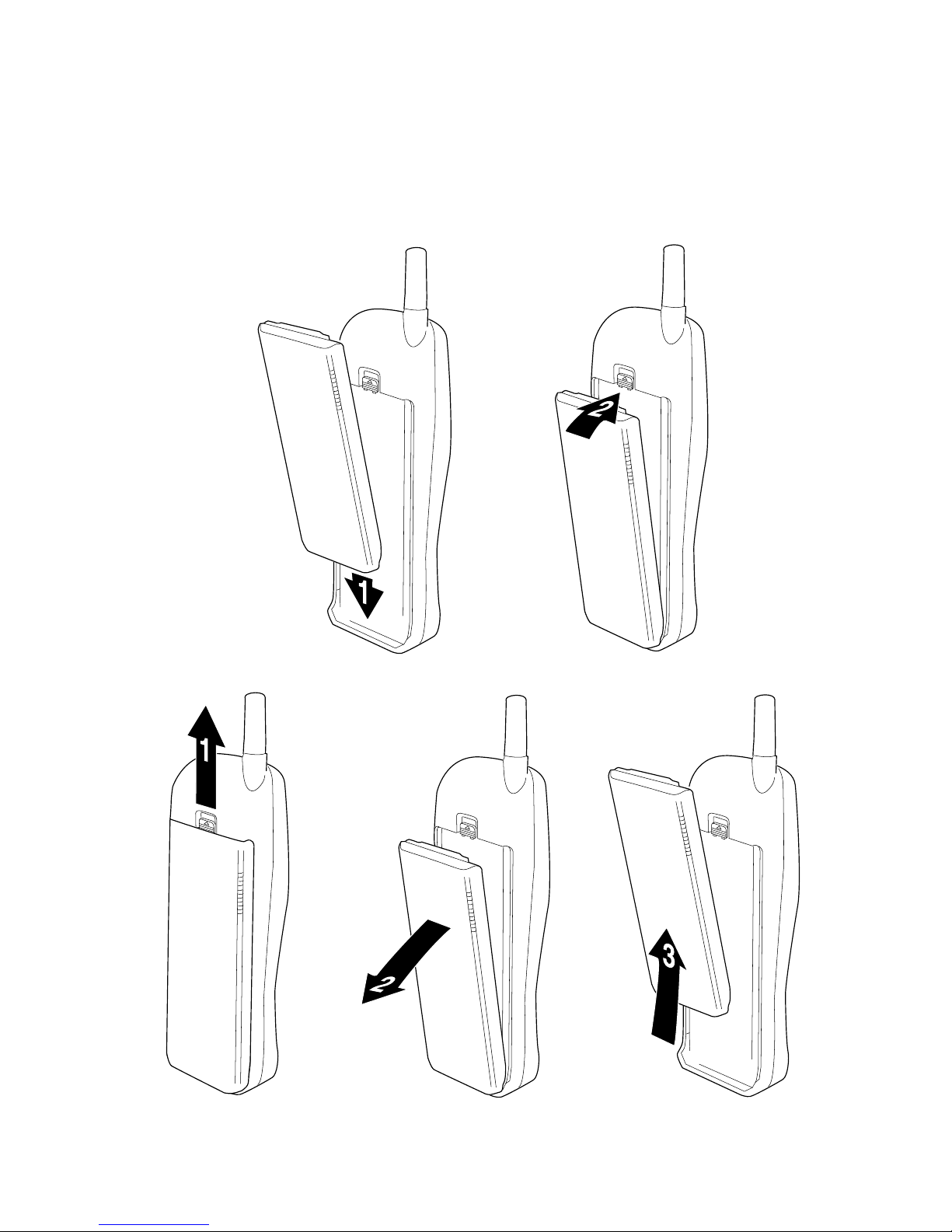

Fitting/Removing the Battery
Fit a fully charged battery pack. If the battery pack is not fully
charged then it must be charged as shown in “Charging the
Battery”.
Fitting the Battery
Removing the Battery
5
Getting Started
Charging the Battery
The battery pack must be attached to the phone before the AC
Adaptor.
DO NOT force the connector as this may damage the phone and/or
the AC Adaptor.
When charging is complete remove the AC Adaptor.
NOTE: If the Battery Pack is deeply discharged, the phone may
take some time to detect which type of Battery Pack it is
charging. During this period leave the phone connected to the
charger until the charge LED and Battery Level Indicator
appears and charging is complete.
Operation of Battery Level Indicator
While charging Charging complete
Telephone on KH
Telephone off KIndicator off
Low Battery Warning
When the battery power is low a warning tone
will sound and a LOW BATTERY message will
flash. The power will automatically shut off
shortly after the warning tone. Fully charge the
battery pack or replace it with a fully charged
one. During conversation finish your call immediately.
6
Getting Started
ABC DEF
GHI JKL
TUV
+
WXYZ
MNO
PQRS
MEMO
ABC DEF
GHI JKL
TUV
+
WXYZ
MNO
PQRS
MEMO
2
1
5
4
4
3
LOW
BATTERY
