Panasonic PV-GS80P Manuel utilisateur

rights reserved. Unauthorized copying and

distribution is a violation of law.

PV-GS80P

PV-GS83P

PV-GS85P

PV-GS80PC

PV-GS85PC

Vol. 1

Colours

(S)...................Silver Type

Digital Video Camcorder

ORDER NO. MKE0701401CE

B21

1 Safety Precautions 3

1.1. General Guidelines 3

2 Warning 4

2.1. Prevention of Electro Static Discharge (ESD) to

Electrostatically Sensitive (ES) Devices 4

2.2. How to Recycle the Lithium Battery 4

2.3. How to Replace the Lithium Battery 5

3 Service Navigation 6

3.1. Introduction 6

3.2. About Lead Free Solder (PbF) 6

4 Specifications 7

5 Service Mode 8

5.1. Error Display 8

5.2. Service Menu 8

6 Service Fixture & Tools 10

6.1. Service Fixture and Tools 10

6.2. Service Position 12

6.3. Removal/Installation of F.P.C. From Non ZIF (Zero

Insertion Force) Connector 14

6.4. Method for Loading/Unloading of Mechanism 15

6.5. EEPROM Data 15

6.6. Special Note 16

6.7. Model No. Identification Mark 16

7 Disassembly and Assembly Instructions 17

7.1. Cabinet Section 17

7.2. Mechanism Section 35

8 Measurements and Adjustments 37

8.1. Mechanical Adjustment 37

8.2. Electrical Adjustment 39

9 Maintenance 41

9.1. Cleaning Lens, Viewfinder and LCD Panel 41

9.2. How to use the DVC Head Cleaning Tape / VFK1451 41

10 Block Diagrams 43

11 Schematic Diagrams 45

11.1. SCHEMATIC DIAGRAM & CIRCUIT BOARD LAYOUT

NOTES 45

11.2. FRONT SCHEMATIC DIAGRAM 46

11.3. LCD BACKLIGHT SCHEMATIC DIAGRAM 47

11.4. EVF BACKLIGHT / EVF FPC / BATTERY CASE

SCHEMATIC DIAGRAMS 48

11.5. CCD / SIDE L OPERATION / LCD SW SCHEMATIC

DIAGRAMS 49

11.6. INTERCONNECTION SCHEMATIC DIAGRAM 50

12 Printed Circuit Board 51

12.1. FRONT P.C.B. 51

12.2. LCD BACKLIGHT P.C.B. 52

13 Exploded Views 53

13.1. MAIN PARTS SECTION 53

13.2. FRONT AND BOTTOM CASE SECTION 54

13.3. SIDE R SHAFT UNIT AND LCD SECTION 55

13.4. CCD AND LENS SECTION 56

13.5. EVF SECTION 57

13.6. MECHANISM SECTION 58

13.7. PACKING PARTS AND ACCESSORIES SECTION 59

14 Replacement Parts Lists 60

14.1. REPLACEMENT NOTES 60

14.2. MECHANICAL REPLACEMENT PARTS LIST 61

14.3. ELECTRICAL REPLACEMENT PARTS LIST 62

15 Voltage Chart 65

CONTENTS

Page Page

PV-GS80P / PV-GS83P / PV-GS85P / PV-GS80PC / PV-GS85PC

1 Safety Precautions

1.1. General Guidelines

1. IMPORTANT SAFETY NOTICE

There are special components used in this equipment

which are important for safety. These parts are marked by

in the Schematic Diagrams, Circuit Board Layout,

Exploded Views and Replacement Parts List. It is essential

that these critical parts should be replaced with

manufacturer’s specified parts to prevent shock, fire, or

other hazards. Do not modify the original design without

permission of manufacturer.

2.An Isolation Transformer should always be used during the

servicing of AC Adaptor whose chassis is not isolated from

the AC power line. Use a transformer of adequate power

rating as this protects the technician from accidents

resulting in personal injury from electrical shocks. It will also

protect AC Adaptor from being damaged by accidental

shorting that may occur during servicing.

3.When servicing, observe the original lead dress. If a short

circuit is found, replace all parts which have been

overheated or damaged by the short circuit.

4.After servicing, see to it that all the protective devices such

as insulation barriers, insulation papers shields are properly

installed.

5.After servicing, make the following leakage current checks

to prevent the customer from being exposed to shock

hazards.

PV-GS80P / PV-GS83P / PV-GS85P / PV-GS80PC / PV-GS85PC

2 Warning

2.1. Prevention of Electro Static Discharge (ESD) to Electrostatically

Sensitive (ES) Devices

Some semiconductor (solid state) devices can be damaged easily by static electricity. Such components commonly are called

Electrostatically Sensitive (ES) Devices. Examples of typical ES devices are integrated circuits and some field-effect transistors and

semiconductor "chip" components. The following techniques should be used to help reduce the incidence of component damage

caused by electro static discharge (ESD).

1.Immediately before handling any semiconductor component or semiconductor-equipped assembly, drain off any ESD on your

body by touching a known earth ground. Alternatively, obtain and wear a commercially available discharging ESD wrist strap,

which should be removed for potential shock reasons prior to applying power to the unit under test.

2.After removing an electrical assembly equipped with ES devices, place the assembly on a conductive surface such as

aluminum foil, to prevent electrostatic charge buildup or exposure of the assembly.

3.Use only a grounded-tip soldering iron to solder or unsolder ES devices.

4.Use only an antistatic solder removal device. Some solder removal devices not classified as "antistatic (ESD protected)" can

generate electrical charge sufficient to damage ES devices.

5.Do not use freon-propelled chemicals. These can generate electrical charges sufficient to damage ES devices.

6.Do not remove a replacement ES device from its protective package until immediately before you are ready to install it. (Most

replacement ES devices are packaged with leads electrically shorted together by conductive foam, aluminum foil or comparable

conductive material).

7.Immediately before removing the protective material from the leads of a replacement ES device, touch the protective material

to the chassis or circuit assembly into which the device will be installed.

CAUTION :

Be sure no power is applied to the chassis or circuit, and observe all other safety precautions.

8.Minimize bodily motions when handling unpackaged replacement ES devices. (Otherwise harmless motion such as the

brushing together of your clothes fabric or the lifting of your foot from a carpeted floor can generate static electricity (ESD)

sufficient to damage an ES device).

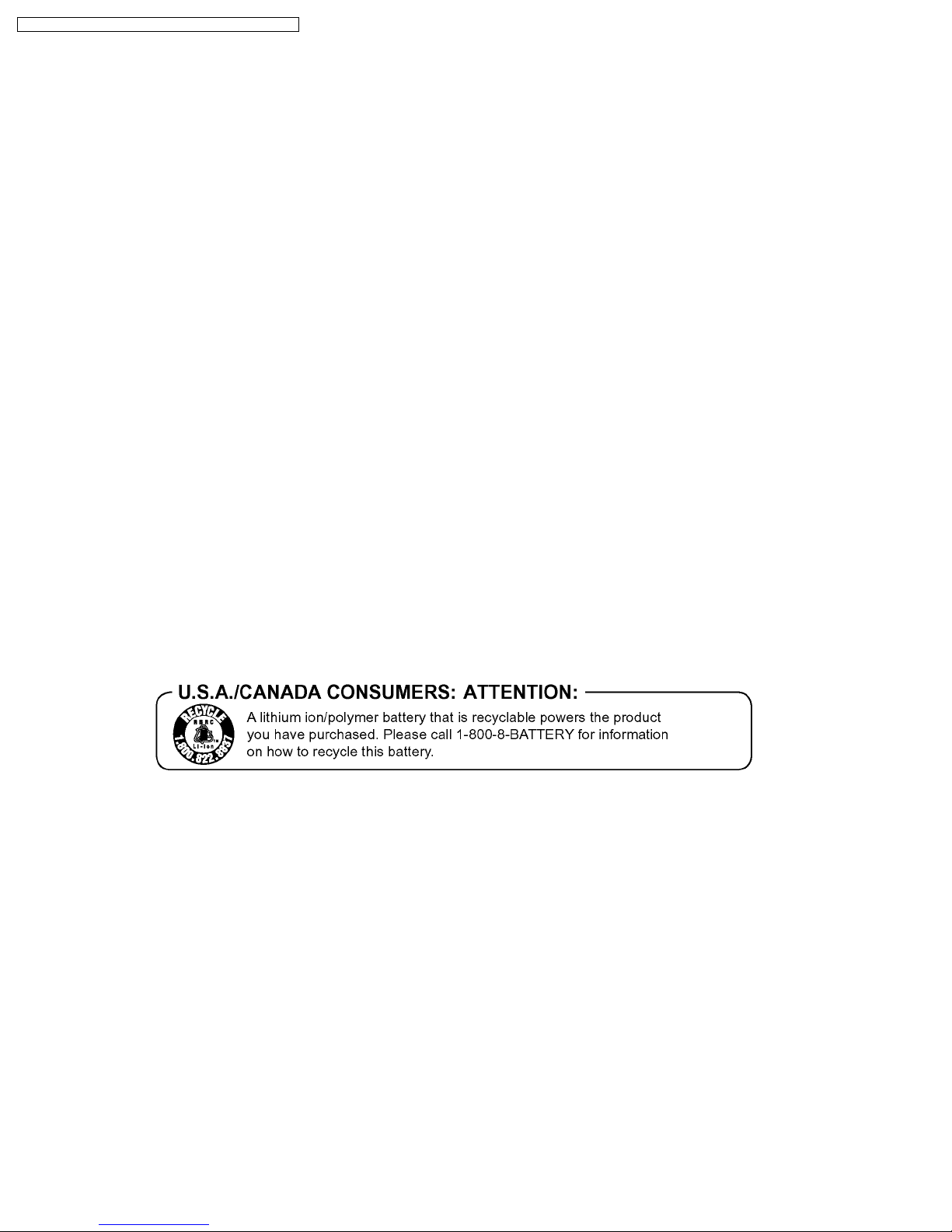

2.2. How to Recycle the Lithium Battery

PV-GS80P / PV-GS83P / PV-GS85P / PV-GS80PC / PV-GS85PC

2.3. How to Replace the Lithium Battery

The lithium battery (CGR-F/202AW) is not supplied as a service part and must be replaced as part of the Side R Shaft Unit. (Refer

to "Disassembly and Assembly Instructions.")

NOTE:

This Lithium battery is a critical component. (Type No.: CGR-F/202AW Manufactured by Panasonic.) (Not supplied)

It must never be subjected to excessive heat or discharge.

It must therefore only be fitted in equipment designed specifically for its use.

Replacement batteries must be of the same type and manufacture.

They must be fitted in the same manner and location as the original battery, with the correct polarity contacts observed.

Do not attempt to re-charge the old battery or re-use it for any other purpose.

It should be disposed of in waste products destined for burial rather than incineration.

PV-GS80P / PV-GS83P / PV-GS85P / PV-GS80PC / PV-GS85PC

3 Service Navigation

3.1. Introduction

This service manual contains technical information which will allow service personnel´s to understand and service this model.

Please place orders using the parts list and not the drawing reference numbers.

If the circuit is changed or modified, this information will be followed by supplement service manual to be filed with original service

manual.

Note 1:

AC Adaptor used on these movie camera is PV-DAC14D. However, DE-974FB is supplied as a replacement part for PV-

DAC14D. This AC Adaptor is supplied only as a unit.

3.2. About Lead Free Solder (PbF)

PV-GS80P / PV-GS83P / PV-GS85P / PV-GS80PC / PV-GS85PC

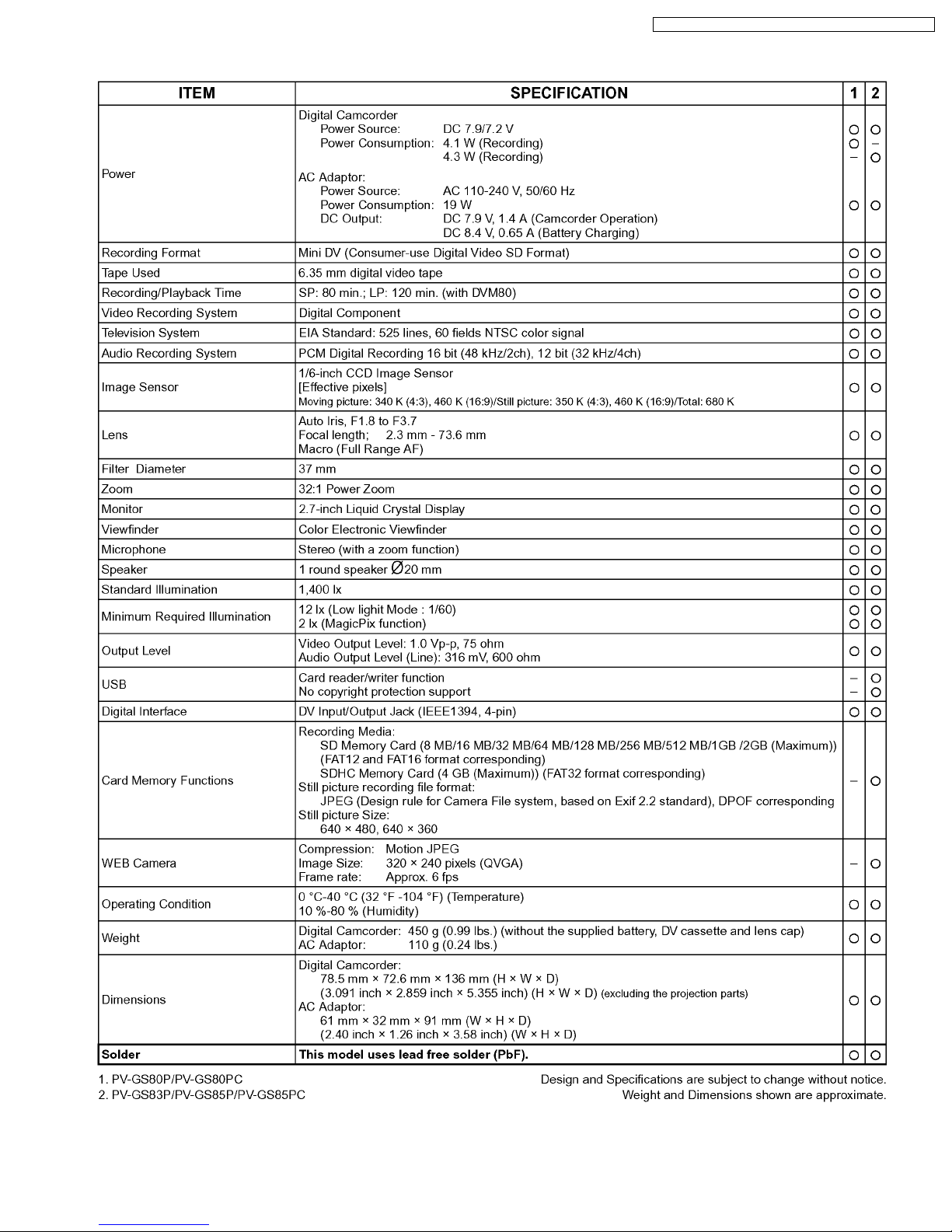

4 Specifications

PV-GS80P / PV-GS83P / PV-GS85P / PV-GS80PC / PV-GS85PC

5 Service Mode

5.1. Error Display

"PUSH THE RESET SWITCH" is displayed automatically on the EVF or the LCD Monitor when an undesirable condition has

occurred.

Fig. 1

Note:

When "PUSH THE RESET SWITCH" is displayed repeatedly, service is required. Check the Error Code which is listed in the

Service Menu.

5.2. Service Menu

When abnormal detection contents are confirmed, do the following operation. Automatic diagnosis code will be displayed. (Service

Menu)

To enter the Service Menu

Push the [PHOTO SHOT], [JOYSTICK CONTROL LEFT] and [RECORDING START/STOP] simultaneously for 3 seconds (with

no SD Card inserted).

Note:

If a tape or SD Card is inserted, the above operation will not work.

Fig. 2-1

PV-GS80P / PV-GS83P / PV-GS85P / PV-GS80PC / PV-GS85PC

To perform the factory setting

After repairing, perform this operation to clear the Mechanism lock code and Lens motor lock code.

1.Set to Service Menu.

2.Press [JOYSTICK CONTROL UP/DOWN] to select item [1].

3.Press [JOYSTICK CONTROL RIGHT] to display [NO/YES] screen.

4.Press [JOYSTICK CONTROL UP/DOWN] to select [YES].

5.Press [JOYSTICK CONTROL CENTER] to end.

To reset the Cylinder elapsed time

After replacing the Cylinder unit, perform this operation to clear the Cylinder elapsed time.

1.Set to Service Menu.

2.Press [JOYSTICK CONTROL UP/DOWN] to select item [8].

3.Press [JOYSTICK CONTROL RIGHT] to display [NO/YES] screen.

4.Press [JOYSTICK CONTROL UP/DOWN] to select [YES].

5.Press [JOYSTICK CONTROL CENTER] to end.

To confirm the error, lock code, or elapsed time

1.Set to Service Menu.

2.Press [JOYSTICK CONTROL UP/DOWN] to select item [3].

3.Press [JOYSTICK CONTROL RIGHT] to display [NO/YES] screen.

4.Press [JOYSTICK CONTROL UP/DOWN] to select [YES].

5.Press [JOYSTICK CONTROL CENTER] to end.

Fig. 2-2

To exit the Service Menu

Unplug the AC Cord.

PV-GS80P / PV-GS83P / PV-GS85P / PV-GS80PC / PV-GS85PC

6 Service Fixture & Tools

6.1. Service Fixture and Tools

PV-GS80P / PV-GS83P / PV-GS85P / PV-GS80PC / PV-GS85PC
