Panasonic PV-GS19P Manuel utilisateur

distribution is a violation of law.

PV-GS19P

PV-GS31P

PV-GS32P

PV-GS35P

PV-GS19PC

PV-GS31PC

PV-GS34PC

PV-GS35PC

Colours

(S)...................Silver Type

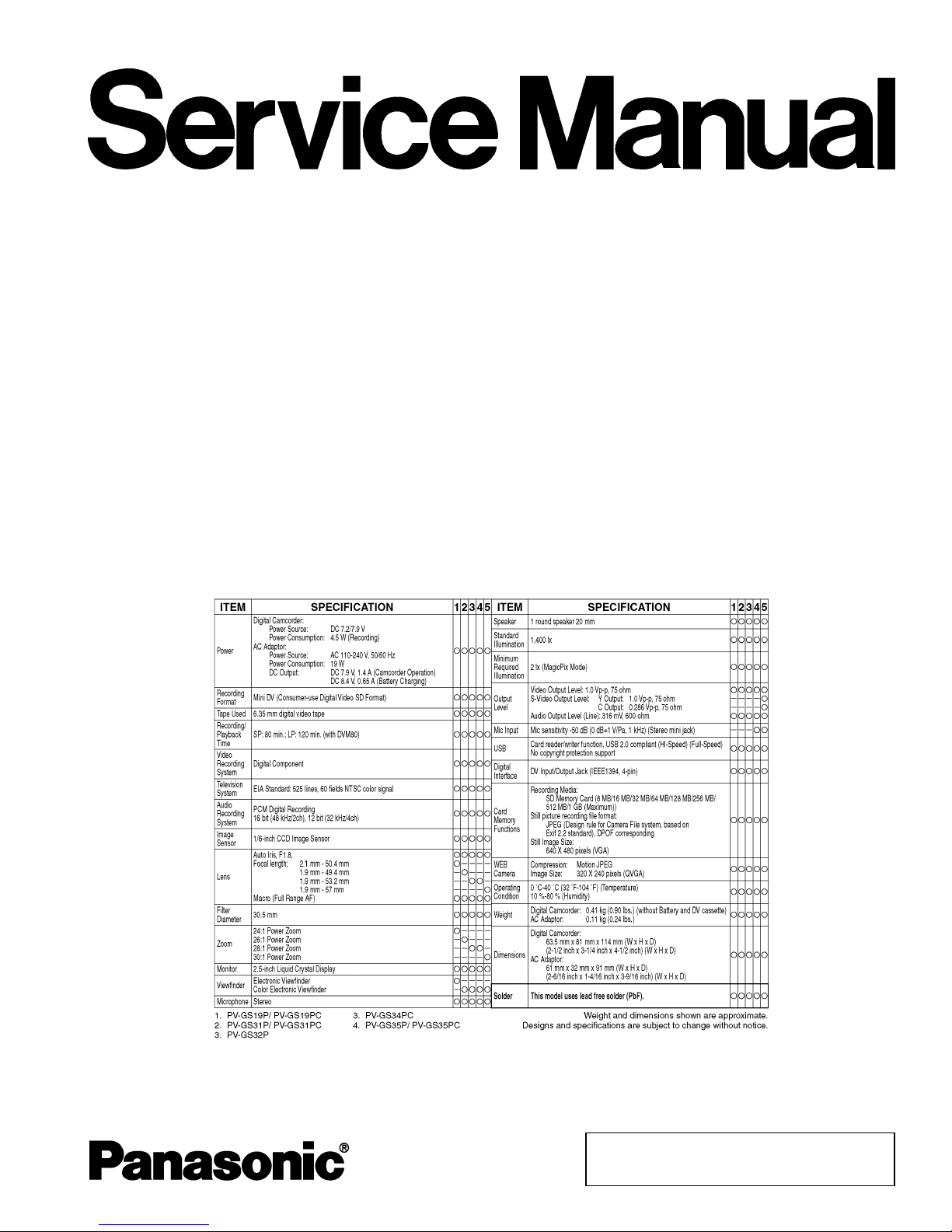

Digital Video Camcorder

ORDER NO. MKE0501401C1

B21

1 SAFETY PRECAUTIONS 3

2 PREVENTION OF ELECTRO STATIC DISCHARGE (ESD) TO

ELECTROSTATICALLY SENSITIVE (ES) DEVICES 4

3 ABOUT LEAD FREE SOLDER (PbF) 5

4 HOW TO REPLACE THE LITHIUM BATTERY 6

5 HOW TO RECYCLE THE LITHIUM BATTERY 7

6 SERVICE NOTES (PLEASE READ) 8

6.1. SERVICE NOTES 8

7 DISASSEMBLY ASSEMBLY PROCEDURES 25

7.1. CABINET SECTION 25

7.2. MECHANISM SECTION 44

8 ADJUSTMENT PROCEDURES 48

8.1. SERVICE FIXTURES & TOOLS 48

8.2. MECHANICAL ADJUSTMENT 50

8.3. ELECTRICAL ADJUSTMENT 51

9 SCHEMATIC DIAGRAMS 57

9.1. SCHEMATIC DIAGRAM & CIRCUIT BOARD LAYOUT

NOTES 57

9.2. MAIN SCHEMATIC DIAGRAMS 58

9.3. FRONT SCHEMATIC DIAGRAM 73

9.4. JACK SCHEMATIC DIAGRAM 74

9.5. LCD BACKLIGHT SCHEMATIC DIAGRAM 75

9.6. EVF BACKLIGHT / CASSETTE COVER SCHEMATIC

DIAGRAMS 76

9.7. CCD / SIDE CASE R / LCD SW SCHEMATIC DIAGRAMS

9.8. INTERCONNECTION SCHEMATIC DIAGRAM 78

9.9. VOLTAGE CHART 79

10 CIRCUIT BOARD LAYOUT 83

10.1. MAIN C.B.A. 83

10.2. FRONT C.B.A. 85

10.3. JACK C.B.A. 86

10.4. LCD BACKLIGHT C.B.A. 87

11 BLOCK DIAGRAMS 89

12 EXPLODED VIEWS 101

12.1. MAIN PARTS SECTION 101

12.2. FRONT AND BOTTOM CASE SECTION 102

12.3. SIDE CASE R AND LCD SECTION 103

12.4. CCD AND LENS SECTION 104

12.5. EVF SECTION 105

12.6. MECHANISM SECTION 106

12.7. PACKING PARTS AND ACCESSORIES SECTION 107

13 REPLACEMENT PARTS LISTS 108

13.1. REPLACEMENT NOTES 108

13.2. MECHANICAL REPLACEMENT PARTS LIST 109

13.3. ELECTRICAL REPLACEMENT PARTS LIST 110

CONTENTS

Page Page

PV-GS19P / PV-GS31P / PV-GS32P / PV-GS35P / PV-GS19PC / PV-GS31PC / PV-GS34PC / PV-GS35PC

3 ABOUT LEAD FREE SOLDER (PbF)

PV-GS19P / PV-GS31P / PV-GS32P / PV-GS35P / PV-GS19PC / PV-GS31PC / PV-GS34PC / PV-GS35PC

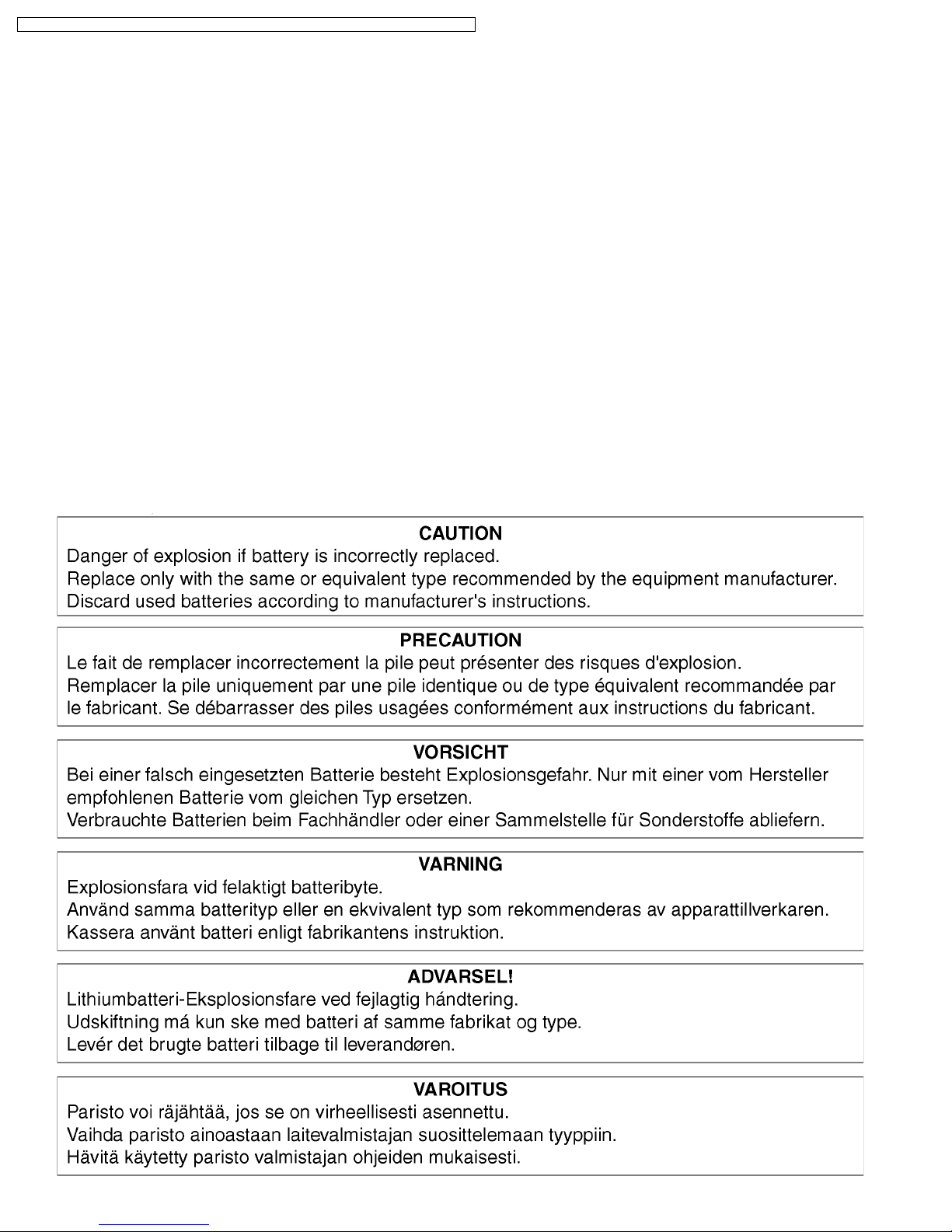

4 HOW TO REPLACE THE LITHIUM BATTERY

Remove the Jack C.B.A. (Refer to “DISASSEMBLY ASSEMBLY PROCEDURES.”)

Unsolder the Lithium Battery “ML-621SF9DE” and then replace the new one.

NOTE:

This Lithium battery is a critical component. (Type No.: ML-621SF9DE Manufactured by Panasonic.)

It must never be subjected to excessive heat or discharge.

It must therefore only be fitted in equipment designed specifically for its use.

Replacement batteries must be of the same type and manufacture.

They must be fitted in the same manner and location as the original battery, with the correct polarity contacts observed.

Do not attempt to re-charge the old battery or re-use it for any other purpose.

It should be disposed of in waste products destined for burial rather than incineration.

PV-GS19P / PV-GS31P / PV-GS32P / PV-GS35P / PV-GS19PC / PV-GS31PC / PV-GS34PC / PV-GS35PC

6 SERVICE NOTES (PLEASE READ)

6.1. SERVICE NOTES

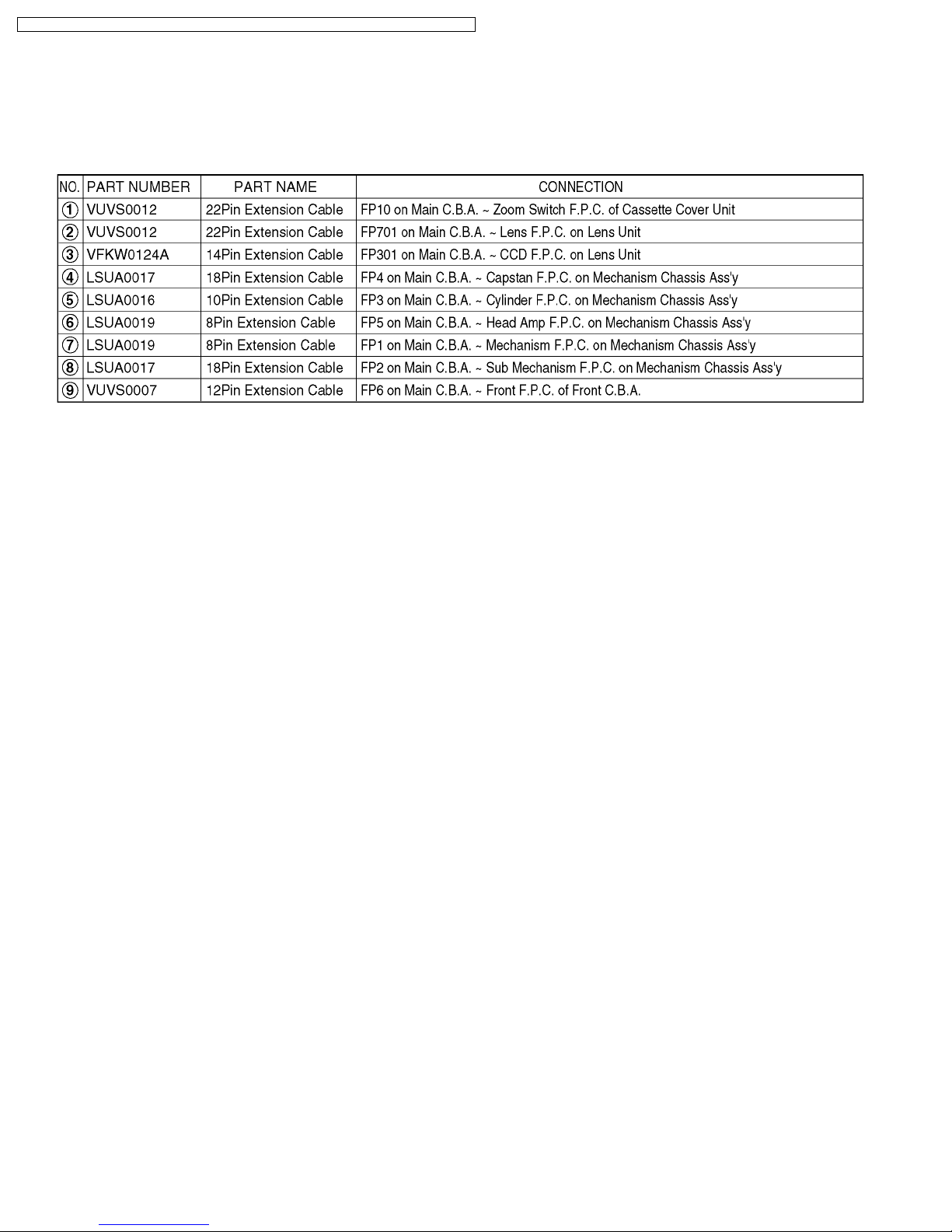

6.1.1. EXTENSION CABLES FOR SERVICE POSITION

Using the following Extension Cables, place the unit as shown for check and service.

Note :

1.The LCD open/close SW. is for changing between LCD Display or EVF Display. When turning on EVF Display, place some

paper or tape, etc. on LCD open/close SW. so that this SW. stays ON.

2.To eject the Mechanism, hold down the Eject Switch on the Jack C.B.A. for a short time.

3.Use a grounded ESD wrist strap while disassembling the Lens portion.

4.Connect the F.P.C.s to the connectors, verifying the direction of F.P.C as shown.

5.Use extreme care when unplugging or plugging in connectors.

PV-GS19P / PV-GS31P / PV-GS32P / PV-GS35P / PV-GS19PC / PV-GS31PC / PV-GS34PC / PV-GS35PC

Fig. 1

PV-GS19P / PV-GS31P / PV-GS32P / PV-GS35P / PV-GS19PC / PV-GS31PC / PV-GS34PC / PV-GS35PC

6.1.2. SERVICE MODE

6.1.2.1. ERROR DISPLAY

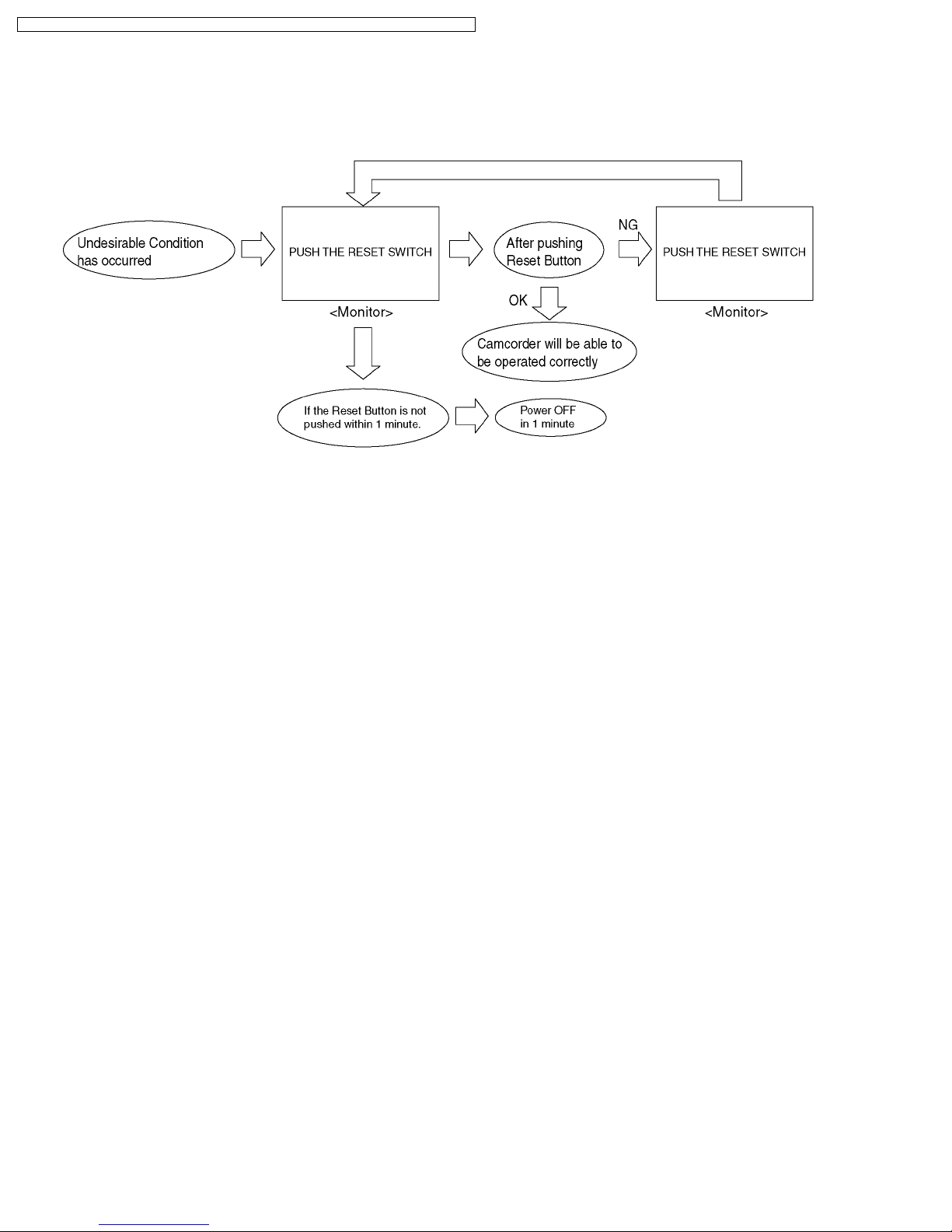

"PUSH THE RESET SWITCH" is displayed automatically on the EVF or the LCD Monitor when an undesirable condition has

occurred.

Fig. 2

Note:

When "PUSH THE RESET SWITCH" is displayed repeatedly, service is required. Check the Error Code which is listed in the

Service Menu.

6.1.2.2. SERVICE MENU

When abnormal detection contents are confirmed, do the following operation. Automatic diagnosis cord will be displayed.

(Service menu)

To enter the Service Menu

Push the [QUICK START], [JOYSTICK CONTROL LEFT] and [PHOTO SHOT] simultaneously for 3 seconds (with no SD Card

inserted).

Note:

If a tape or SD Card is inserted, the above operation will not work.

This operation displays the following Service Menu items.

*1 ... Cylinder elapsed time clear.

After replacing the Cylinder Unit, clear the Cylinder elapsed time to 0.

Set to Service Menu.

Press the [JOYSTICK CONTROL UP/DOWN] to select item [8].

Press the [JOYSTICK CONTROL RIGHT] to display [NO/YES] screen.

Press the [JOYSTICK CONTROL UP/DOWN] to select [YES].

Press the [JOYSTICK CONTROL CENTER] button.

*2 ... Cylinder elapsed time

This item displays the Cylinder elapsed time (in Base 16).

Set to Service Menu.

Press the [JOYSTICK CONTROL UP/DOWN] to select item [3].

Press the [JOYSTICK CONTROL RIGHT] to display [OFF/ON] screen.

Press the [JOYSTICK CONTROL UP/DOWN] to select [ON].

Press the [JOYSTICK CONTROL CENTER] button.

PV-GS19P / PV-GS31P / PV-GS32P / PV-GS35P / PV-GS19PC / PV-GS31PC / PV-GS34PC / PV-GS35PC

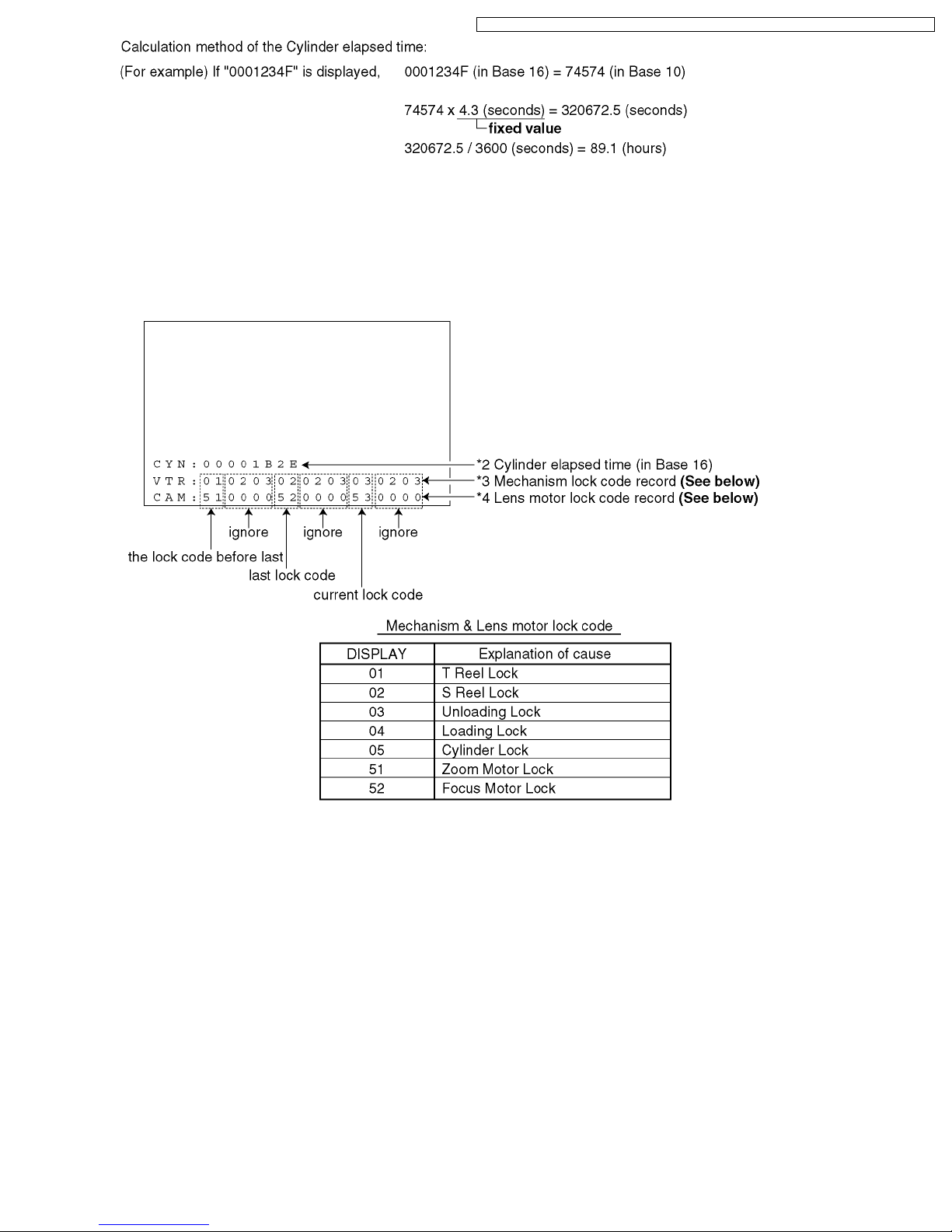

*3 ... Mechanism lock code record

The current lock code, the last lock code and the lock code before last are displayed in the Item [3] screen.

*4 ... Lens motor lock code record

The current lock code, the last lock code and the lock code before last are displayed in the Item [3] screen.

Cylinder elapsed time and lock code (Item [3] screen)

Fig. 3

To exit the Service Menu

Unplug the AC Cord.

CLEAR METHOD

If a Card or Tape is inserted, remove before Service Mode operation.

To place the mode dial of this machine into PC connection mode, push the [QUICK START], [JOYSTICK CONTROL LEFT] and

[RECORDING START/STOP] simultaneously for 3 seconds.

Note:

Only perform items 3 and 8 of items 1~8 in the Service Menu.

PV-GS19P / PV-GS31P / PV-GS32P / PV-GS35P / PV-GS19PC / PV-GS31PC / PV-GS34PC / PV-GS35PC

6.1.3. REMOVAL/INSTALLATION OF

F.P.C. FROM NON ZIF (Zero

Insertion Force) CONNECTOR

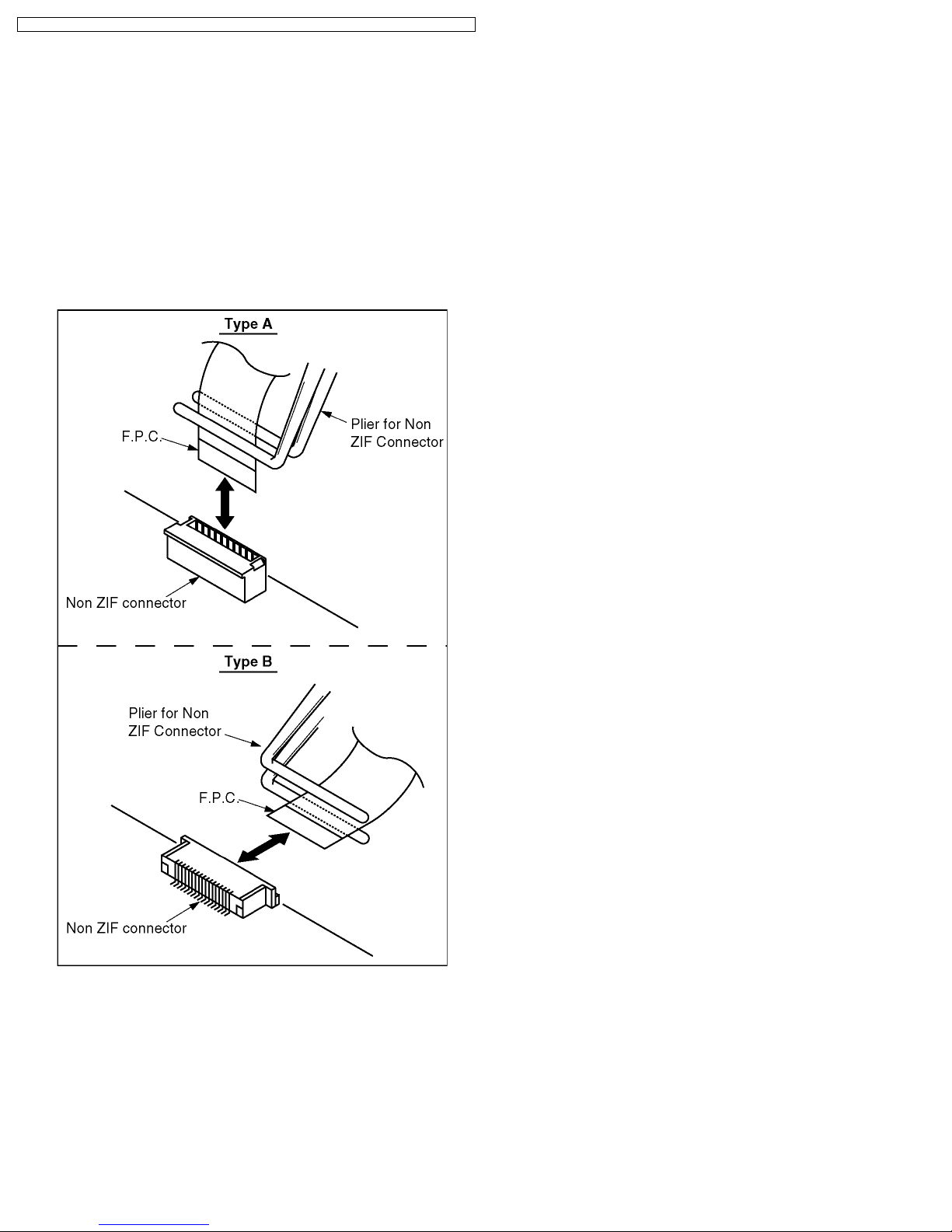

Removal/Installation of F.P.C. from the Non ZIF (Zero

Insertion Force) connector:

1.The Non ZIF connectors and the ZIF connectors are used

on the unit. And there are 2 types (Type A, Type B) of Non

ZIF connectors.

2.To remove the F.P.C. from the Non ZIF connector, use the

Plier for Non ZIF Connector (LSVQ0028) to pull out the

F.P.C. as shown. The same Plier for Non ZIF Connector

(LSVQ0028) should also be used to install the F.P.C. to the

Non ZIF Connector.

Fig. 4-1

3.Connect the F.P.C.s to the Non ZIF connectors, verifying

the direction of F.P.C as shown.

Fig. 4-2

6.1.4. METHOD FOR

LOADING/UNLOADING OF

MECHANISM

CAUTION:

If loading does not start after DC Power Supply is applied,

DO NOT continue to apply DC Power.

Apply +3 VDC Power Supply to the Loading Motor terminals.

Loading:

DC (-) to Portion "a," DC (+) to Portion "b"

Unloading:

DC (+) to Portion "a," DC (-) to Portion "b"

Fig. 5

PV-GS19P / PV-GS31P / PV-GS32P / PV-GS35P / PV-GS19PC / PV-GS31PC / PV-GS34PC / PV-GS35PC

6.1.5. EEPROM DATA

CAUTION:

Be sure to save the EEPROM data using PC-EVR

Adjustment Program before service and adjustment in

order to make sure to avoid an accidental data loss, etc.

using PC-EVR Adjustment Program by first.

PV-GS19P / PV-GS31P / PV-GS32P / PV-GS35P / PV-GS19PC / PV-GS31PC / PV-GS34PC / PV-GS35PC
