Panasonic KX-TGA914EX Manuel utilisateur

Please read these Operating Instructions before using the unit and save for

future reference.

Contents/Inhalt/Table des matières Page/Seite/Page

English instructions 1 – 20

Deutsche Anleitung (1) – (20)

Instructions en français <1> – <20>

This cordless camera is an accessory unit for use with Panasonic Digital

Cordless Phone:

KX-TG9120/KX-TG9140/KX-TG9150

You must register this cordless camera with your base unit before it can

be used.

Cordless Camer

Model No. KX-TGA914E

Operating Instructions

Indoor Use Only

TGA914EX_1(e).book Page 1 Tuesday, August 8, 2006 2:21 PM

Table of Contents

Introduction

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Accessory information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Important information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Preparation

Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Setting up the cordless camera . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Symbols used in these operating instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Registering the cordless camera . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Camera Monitoring

Camera monitoring using a handset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Useful Information

Wall mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

TGA914EX_1(e).book Page 2 Tuesday, August 8, 2006 2:21 PM

Introduction

Thank you for purchasing the cordless camera.

For your future reference

Attach or keep original receipt to assist with any repair under warranty.

Feature highlight

Camera monitoring using the handset

Important:

LIn these operating instructions, the term “handset” is used to refer to the KX-TGA910EX.

You can monitor the room where the cordless camera is located when:

– you access the cordless camera using the handset (page 11).

– the cordless camera pages the handset when it detects sound (page 12).

– the cordless camera user pages the handset using the call button (page 12).

Serial No. (found on the bottom of the unit)

Date of purchase

Name and address of dealer

TGA914EX_1(e).book Page 3 Tuesday, August 8, 2006 2:21 PM

Introduction

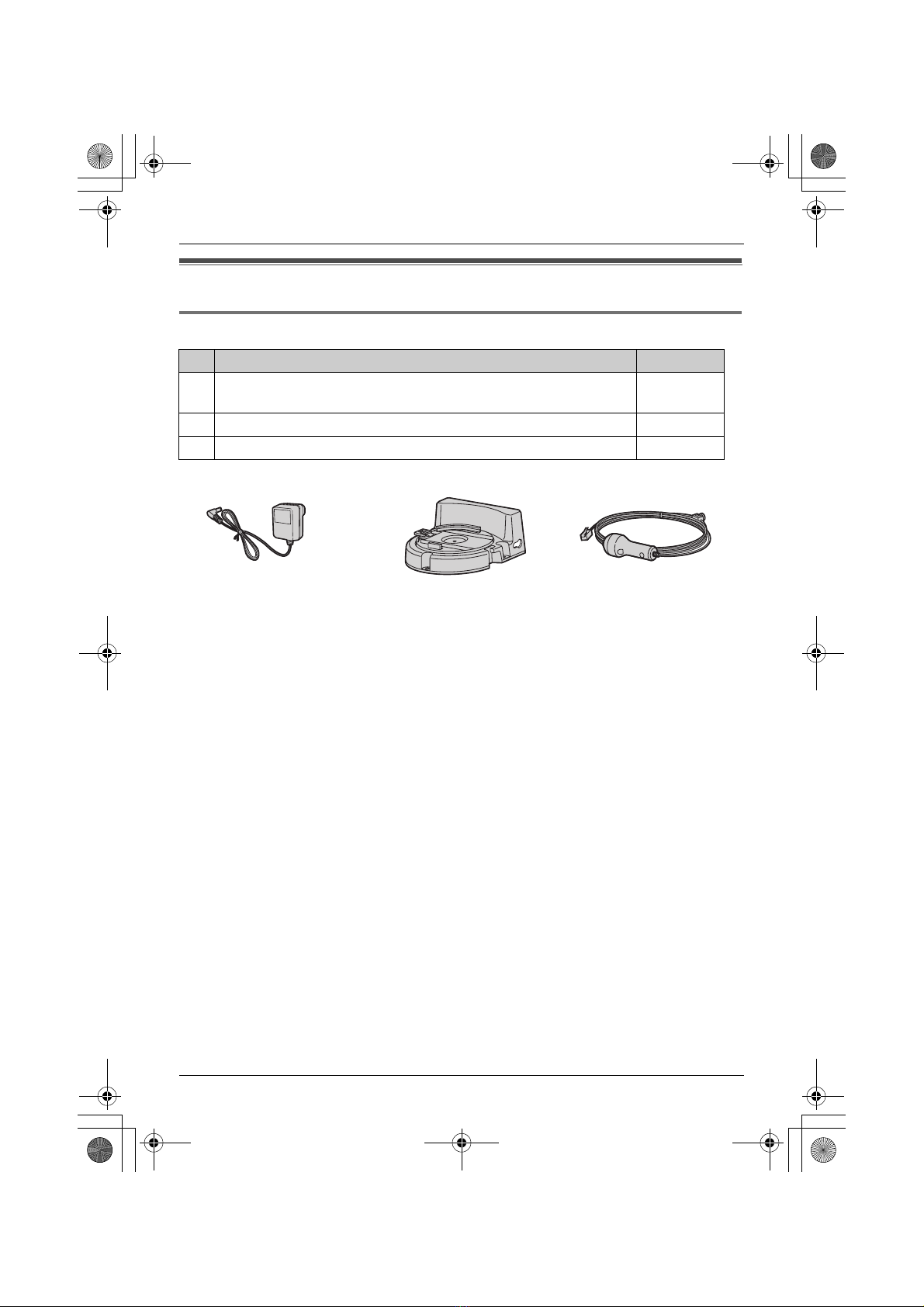

Accessory information

Included accessories

No. Accessory item Quantity

1AC adaptor

Part No. PQLV209CE

2Wall-mounting adaptor 1

3Call button 1

123

TGA914EX_1(e).book Page 4 Tuesday, August 8, 2006 2:21 PM

Introduction

Important information

General

LUse only the AC adaptor included with this

product, noted on page 4.

LDo not connect the AC adaptor to any AC

outlet other than a standard 220–240 V

AC outlet.

LThis product should not be used near

emergency/intensive care medical

equipment and should not be used by

people with pacemakers.

LCare should be taken that objects do not

fall onto, and liquids are not spilled into,

the unit. Do not subject this product to

excessive smoke, dust, mechanical

vibration or shock.

Environment

LDo not use this product near water.

LThis product should be kept away from

heat sources such as radiators, cookers,

etc. It should also not be placed in rooms

where the temperature is less than 5 °C or

greater than 40 °C.

LThe AC adaptor is used as the main

disconnect device. Ensure that the AC

outlet is installed near the product and is

easily accessible.

Warning:

LTo prevent the risk of electrical shock, do

not expose this product to rain or any

other type of moisture.

LUnplug this product from power outlets if it

emits smoke, an abnormal smell, or

makes unusual noise. These conditions

can cause fire or electric shock. Confirm

that smoke has stopped emitting and

contact an authorised service centre.

Routine care

LAfter cleaning away the dust on the lens,

wipe the lens with a cotton bud.

Conditions for using the cordless

camera

LThe cordless camera is intended for

indoor use only. Prolonged exposure to

direct sunlight or halogen light may

damage the camera lens.

LUse the cordless camera in a bright place

such as under daylight or a well-lit room.

LDo not use the cordless camera in the

following places:

– near incandescent lamps.

– near any electrical appliance that emits

a strong radio signal.

– where the subject of the picture is

against a light source or in front of a

mirror.

– in places where temperature varies

greatly, such as near an air conditioner

or heater.

– any place exposed to oil or steam such

as a kitchen.

– where an object such as glass can

cause temperature change due to

reflection.

LWhen using the cordless camera, please

take into consideration the rights of others

with regard to privacy.

TGA914EX_1(e).book Page 5 Tuesday, August 8, 2006 2:21 PM

Preparation

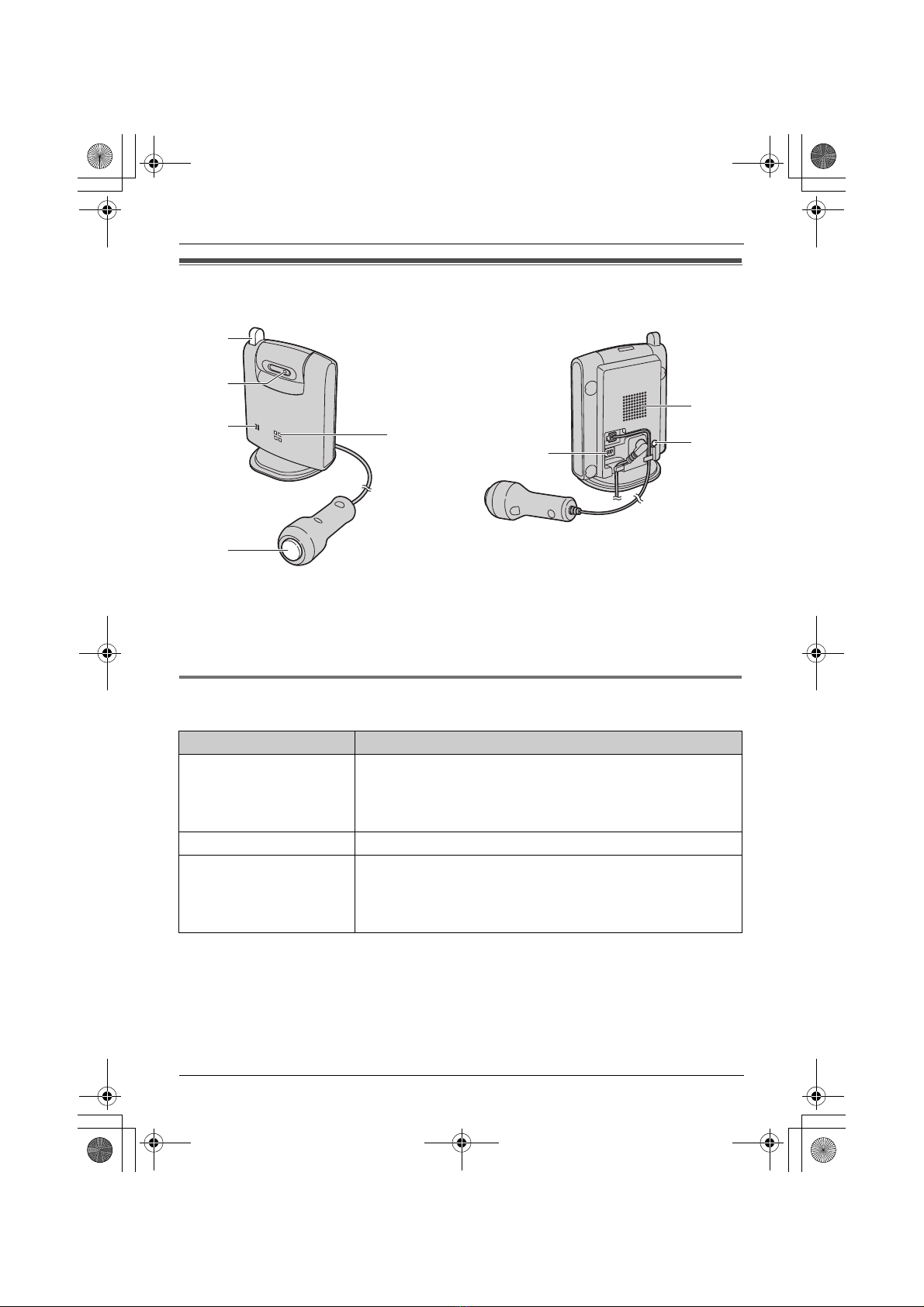

Controls

Understanding the cordless camera indicator

The cordless camera indicator shows the status as follows.

AAntenna

BCamera lens

CMIC (Microphone)

DCall button

EIndicator

FDIP switches

GSpeaker

HPROG. (Program)

Status Description

Red (flashing rapidly) LThe cordless camera is not registered. Register the

cordless camera (page 10).

LThe cordless camera is out of range. Locate the cordless

camera near the base unit.

Yellow-green LThe cordless camera is registered and in standby mode.

Yellow-green (flashing) LThe camera sensor is responding and the cordless camera

is paging the handset.

LThe cordless camera is connected and sending live images

to the handset.

TGA914EX_1(e).book Page 6 Tuesday, August 8, 2006 2:21 PM

Preparation

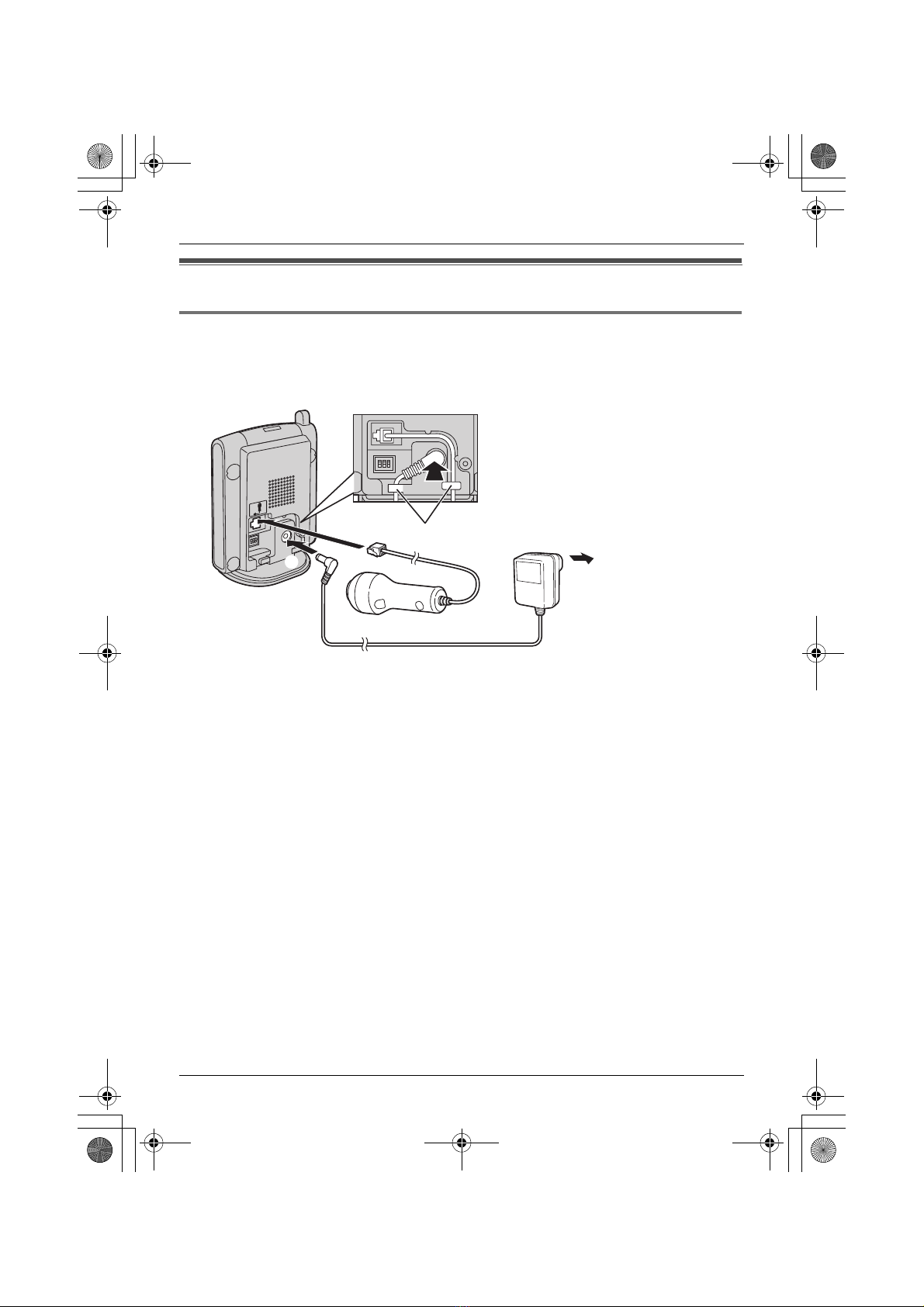

Setting up the cordless camera

Connecting the AC adaptor and the call button

Connect the AC adaptor cord by pressing the plug firmly (A). Connect the call button cord

until it clicks into the unit (B).

LUse only the included AC adaptor.

Note:

LWhen the AC adaptor is connected, the indicator lights in red then starts flashing.

LThe AC adaptor must remain connected at all times. (It is normal for the adaptor to feel

warm during use.)

LThe AC adaptor should be connected to a vertically oriented or floor-mounted AC outlet. Do

not connect the AC adaptor to a ceiling-mounted AC outlet, as the weight of the adaptor

may cause it to become disconnected.

(220–240 V, 50 Hz)

Hooks

TGA914EX_1(e).book Page 7 Tuesday, August 8, 2006 2:21 PM

Preparation

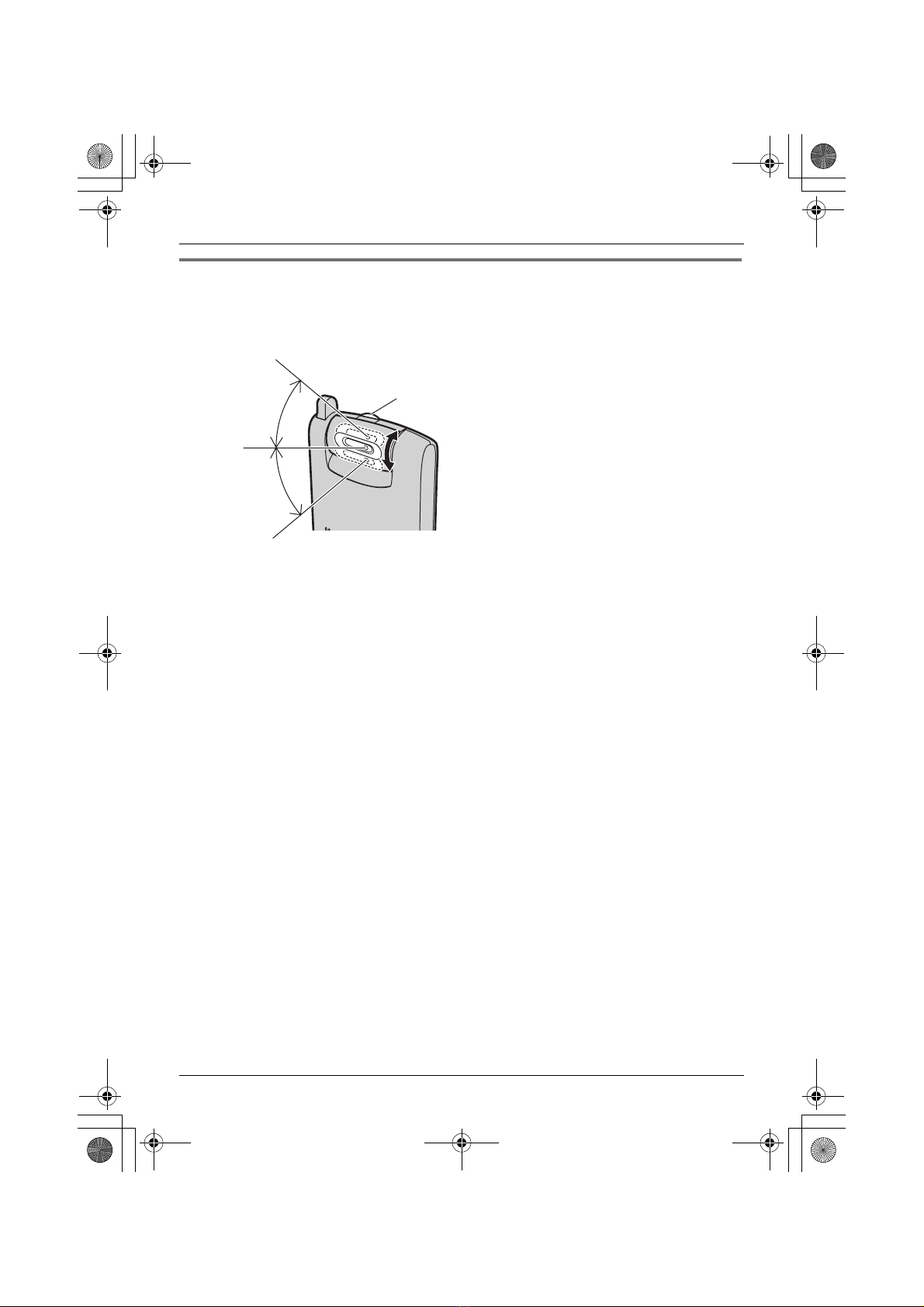

Adjusting the cordless camera lens angle

Aim the camera lens by pushing the tab (A) and rotating the lens up or down.

LUsing the handset, confirm that the area you want to monitor from the cordless camera is

displayed (page 11).

Note:

LDo not touch the camera lens (page 6).

Approx.

40°

Approx.

40°

TGA914EX_1(e).book Page 8 Tuesday, August 8, 2006 2:21 PM

Preparation

Setting the DIP switches

You can set the following functions by using DIP switches 2 and 3.

DIP switch 1 is not used for any settings.

Slide each switch with a pointed object such as a pen as necessary.

*1 Slide the switch down.

Displaying the image upside down (DIP switch 2)

To turn the camera image upside down, set to OFF. This feature is useful when you mount the

cordless camera upside down (page 15).

Selecting the cordless camera speaker volume (DIP switch 3)

If you want to lower the speaker volume, set to OFF (LOW).

DIP switch Function ON (default) OFF*1

1–––

2 Image orientation Normal Upside down

3 Speaker volume Normal Low

DIP switches

(Default position: ON)

OFF*1

TGA914EX_1(e).book Page 9 Tuesday, August 8, 2006 2:21 PM

Preparation

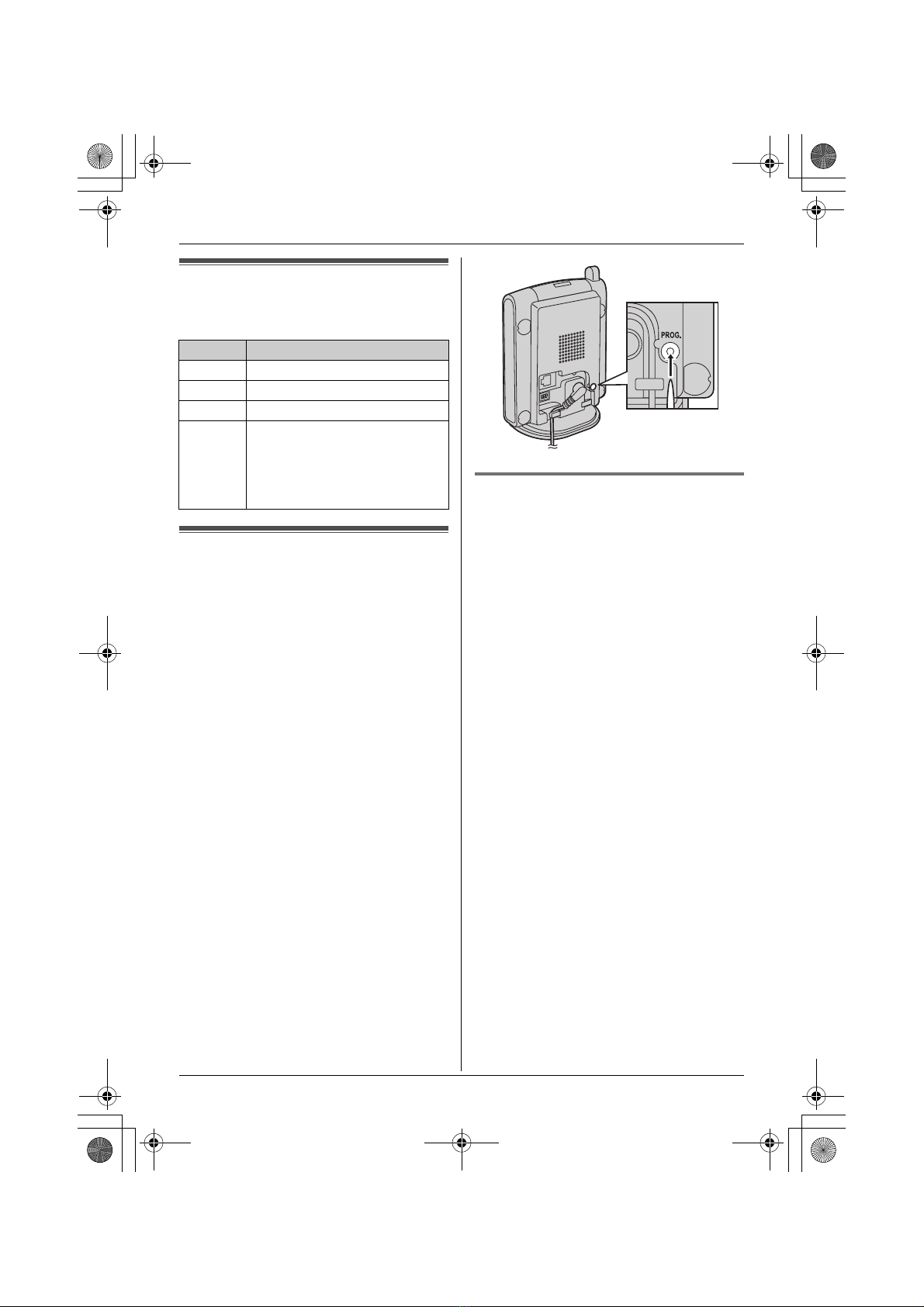

Symbols used in these

operating instructions

Registering the cordless

camera

TG9120/KX-TG9140/KX-TG9150 base unit.

1Base unit:

Press and hold {x} on the base unit for

about 3 seconds, until the registration

tone sounds.

2Camera:

Press PROG. (program) on the back side

of the cordless camera with a pointed

object such as a pen until a beep sounds.

LWhen registration is completed

successfully, the cordless camera

beeps and the indicator stops flashing

red but remains lit in yellow-green

(page 6).

LIf all registered handset start ringing in

step 2, press {x} to stop. Start again

from step 1.

Cancelling the cordless camera

Using a handset registered to the same

base unit, you can cancel the registration of

a registered cordless camera.

1J(centre of joystick) iLiL

2Enter “335”.

3“Cancel Handset” iL

4Select the cordless camera you want to

cancel. it

LA Qis displayed with the selected item.

LTo cancel a selected item, select it

again. it

5Li“Yes” iL

L“Please Wait...” will be displayed

and a long beep will sound.

6{ih}

Symbol Meaning

JPress J(centre of joystick).

iProceed to the next operation.

LPress L(centre of joystick).

“ ” Select the words in quotations

shown on the display (e.g.,

“Cancel Handset”) by

pushing the joystick up or

down.

TGA914EX_1(e).book Page 10 Tuesday, August 8, 2006 2:21 PM
