Panasonic HDC-MDH1 Manuel utilisateur

Operating Instructions

High Definition Video Camera

Model No. HDC-MDH1

Before use, please read these instructions completely.

VQT2Z66

until

2010/8/30

HDC-MDH1GC-VQT2Z66_mst.book 1 ページ２０１０年８月４日　水曜日　午前９時２９分

VQT2Z66

Information for Your Safety

WARNING:

TO REDUCE THE RISK OF FIRE,

ELECTRIC SHOCK OR PRODUCT

DAMAGE,

≥DO NOT EXPOSE THIS APPARATUS

TO RAIN, MOISTURE, DRIPPING OR

SPLASHING AND THAT NO

OBJECTS FILLED WITH LIQUIDS,

SUCH AS VASES, SHALL BE

PLACED ON THE APPARATUS.

≥USE ONLY THE RECOMMENDED

ACCESSORIES.

≥DO NOT REMOVE THE COVER (OR

BACK); THERE ARE NO USER

SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED

SERVICE PERSONNEL.

CAUTION!

≥DO NOT INSTALL OR PLACE THIS

UNIT IN A BOOKCASE, BUILT-IN

CABINET OR IN ANOTHER

CONFINED SPACE. ENSURE THE

UNIT IS WELL VENTILATED. TO

PREVENT RISK OF ELECTRIC

SHOCK OR FIRE HAZARD DUE TO

OVERHEATING, ENSURE THAT

CURTAINS AND ANY OTHER

MATERIALS DO NOT OBSTRUCT

THE VENTILATION VENTS.

≥DO NOT OBSTRUCT THE UNIT’S

VENTILATION OPENINGS WITH

NEWSPAPERS, TABLECLOTHS,

CURTAINS, AND SIMILAR ITEMS.

≥DO NOT PLACE SOURCES OF

NAKED FLAMES, SUCH AS

LIGHTED CANDLES, ON THE UNIT.

≥DISPOSE OF BATTERIES IN AN

ENVIRONMENTALLY FRIENDLY

MANNER.

HDC-MDH1GC-VQT2Z66_mst.book 2 ページ２０１０年８月４日　水曜日　午前９時２９分

VQT2Z66

Use only the recommended accessories.

≥Do not use any other AV cables,

component cables and USB cables except

the supplied one.

≥Keep the Memory Card out of reach of

children to prevent swallowing.

∫Product identification marking

The socket outlet shall be installed near

the equipment and easily accessible.

The mains plug of the power supply cord

shall remain readily operable.

To completely disconnect this apparatus

from the AC Mains, disconnect the power

supply cord plug from AC receptacle.

Warning

Risk of fire, explosion and burns. Do not

disassemble, heat above 60 oC or

incinerate.

Product Location

High Definition

Video Camera Bottom

AC adaptor Bottom

How to replace the fuse

The location of the fuse differ according

to the type of AC mains plug (figures A

and B).

Confirm the AC mains plug fitted and

follow the instructions below.

Illustrations may differ from actual AC

mains plug.

1) Open the fuse cover with a

screwdriver.

2) Replace the fuse and close or attach

the fuse cover.

HDC-MDH1GC-VQT2Z66_mst.book 3 ページ２０１０年８月４日　水曜日　午前９時２９分

VQT2Z66

-If you see this symbol- ∫Indemnity about recorded

content

Panasonic does not accept any

responsibility for damages directly or

indirectly due to any type of problems that

result in loss of recording or edited content,

and does not guarantee any content if

recording or editing does not work properly.

Likewise, the above also applies in a case

where any type of repair is made to the unit.

∫Cards that you can use with

this unit

SD Memory Card, SDHC Memory Card

and SDXC Memory Card

≥4 GB or more Memory Cards that do not

have the SDHC logo or 48 GB or more

Memory Cards that do not have the SDXC

logo are not based on SD Memory Card

Specifications.

≥Refer to page 19 for more details on SD

cards.

∫For the purposes of these

operating instructions

≥SD Memory Card, SDHC Memory Card

and SDXC Memory Card are referred to

as the “SD card”.

≥Functions that can be used for motion

picture recording/motion picture playback

are indicated by in these

operating instructions.

≥Functions that can be used for still picture

recording (including the still picture

recording in motion picture recording

mode)/still picture playback are indicated

by in these operating

instructions.

≥Pages for reference are indicated by an

arrow, for example: l00

Information on Disposal in other

Countries outside the European

Union

This symbol is only valid

in the European Union.

If you wish to discard

this product, please

contact your local

authorities or dealer

and ask for the correct

method of disposal.

HDC-MDH1GC-VQT2Z66_mst.book 4 ページ２０１０年８月４日　水曜日　午前９時２９分

VQT2Z66

PreparationBasicAdvancedCopy/DubbingWith a PCOthers

Information for Your Safety.....................2

Accessories..............................................7

Preparation

Before using

[1] Parts identification and

handling ........................................ 8

About the supplied accessories ... 12

Setup

[1] Power supply.............................. 15

Charging the battery .................... 15

Inserting/removing the battery ..... 16

Charging and recording time........ 17

Connecting to the AC outlet ......... 18

[2] Recording to a card ................... 19

Cards that you can use

with this unit ................................. 19

Inserting/removing an SD card .... 20

[3] Turning the unit on/off ............... 21

Turning the unit on and off

with the power switch................... 21

[4] Selecting a mode ....................... 22

[5] About the LCD monitor/

viewfinder ................................... 23

How to use the touch screen ....... 23

Viewfinder adjustment.................. 24

Recording showing the contents

to a partner................................... 24

[6] Setting date and time................. 25

Basic

Recording/Playback

[1] Before recording........................ 26

[2] Recording motion pictures ....... 28

[3] Recording still pictures ............. 30

Recording still pictures in motion

picture recording mode ................ 31

[4] Intelligent auto mode................. 32

[5] Motion picture/Still picture

playback ..................................... 34

Setup

[1] Using the menu screen ............. 37

[2] Using the Setup Menu ............... 38

Advanced

Recording (Advanced)

[1] Zoom in/out function ................. 43

Extra optical zoom ....................... 43

[2] Image stabilizer function........... 44

Optical image stabilizer lock ........ 45

[3] Power LCD.................................. 46

[4] Recording functions of

operation icons .......................... 47

Operation icons............................ 47

[5] Recording functions of

menus ......................................... 51

[6] Manual recording ....................... 61

White balance .............................. 62

Manual shutter speed/iris

adjustment ................................... 63

[7] Recording with manual focus... 64

Contents

HDC-MDH1GC-VQT2Z66_mst.book 5 ページ２０１０年８月４日　水曜日　午前９時２９分

VQT2Z66

Playback (Advanced)

[1] Playback Operations ................. 65

Motion picture playback using

operation icon .............................. 65

Creating still picture from motion

picture .......................................... 66

Time frame index ......................... 67

Repeat playback .......................... 67

Resuming the previous

playback....................................... 68

[2] Various playback functions ...... 69

Playing back motion pictures/

still pictures by date ..................... 69

Changing the playback settings

and playing back

the slide show .............................. 70

Editing

[1] Deleting scenes/still pictures ... 72

Dividing a scene to partially

delete ........................................... 74

Protecting scenes/still pictures..... 75

With a TV

[1] Watching Video/Pictures

on your TV .................................. 76

Connecting with a HDMI cable..... 79

Connecting with the component

cable ............................................ 79

[2] Playback using VIERA Link

(HDAVI Control™) ....................... 80

Copy/Dubbing

With this unit/other products

[1] Dubbing images onto other

video devices ............................. 83

With a PC

Before using

[1] What you can do with a PC....... 84

End User License Agreement...... 86

[2] Operating environment ............. 87

Setup

[1] Installation .................................. 90

[2] Connecting to a PC.................... 92

About the PC display ................... 94

Using with a PC

[1] Starting HD Writer AE 2.5S ....... 95

Reading the operating instructions

of the software applications ......... 95

[2] If using Mac ................................ 96

Others

Indications

[1] Indications.................................. 97

[2] Messages.................................... 99

About recovery............................. 99

Troubleshooting ..................................100

Cautions for use ..................................106

About copyright ................................... 111

Recording modes/approximate

recordable time .................................... 112

Approximate number of recordable

pictures................................................. 113

Specifications ...................................... 114

Optional accessories ..........................119

HDC-MDH1GC-VQT2Z66_mst.book 6 ページ２０１０年８月４日　水曜日　午前９時２９分

VQT2Z66

Accessories

Check the accessories before using this unit.

Keep the accessories out of reach of children to prevent swallowing.

Product numbers correct as of Aug. 2010. These may be subject to change.

Battery pack

VW-VBG260

AC adaptor

VSK0698

AC cable

AK2CT39A00002

BK2CQ29A00002

AHong Kong Special Administrative

Region of China and Saudi Arabia

BAreas Other than Hong Kong Special

Administrative Region of China and

Saudi Arabia

DC cable

K2GJYDC00004

AV cable

K2KA6CA00001

Component cable

K1HY10YY0005 or

K1HY10YY0009

USB cable

K1HY04YY0032

Stylus pen

VGQ0C14

Lens cap

VKF3305

Shoulder strap

VFC3877

External stereo

microphone

VW-VMS2A/1

Battery

R03NWC/BK

CD-ROM

Software

HDC-MDH1GC-VQT2Z66_mst.book 7 ページ２０１０年８月４日　水曜日　午前９時２９分

VQT2Z66

Preparation

Before using 1Parts identification and

handling

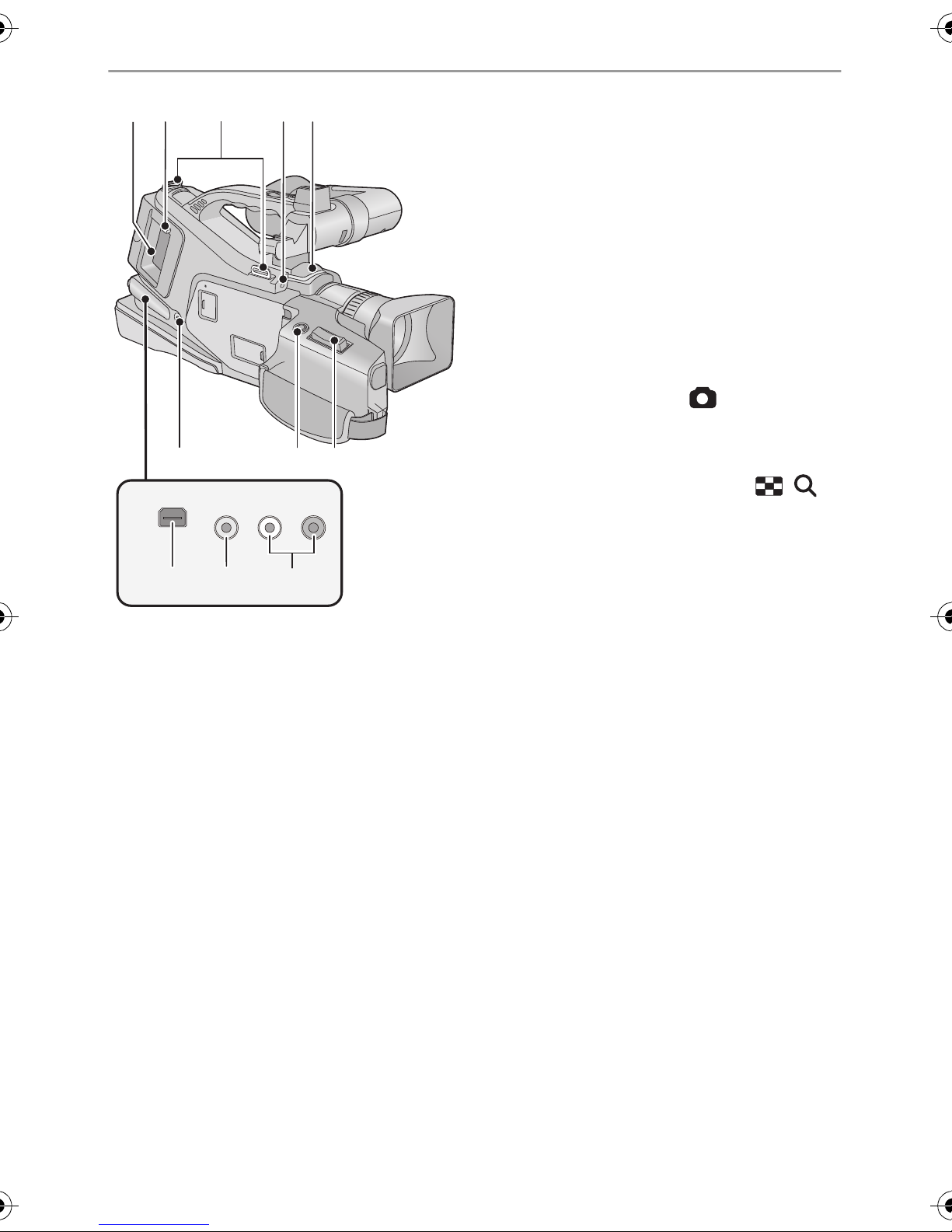

1 LCD monitor (Touch screen) (l23)

≥It can open up to 90o.

≥It can rotate up to 180oAtowards the lens

or 90o B towards the opposite direction.

2 Viewfinder (l24)

3 Eyecup

4 Sub recording start/stop button (

26)

≥This button functions in the same manner

as the recording start/stop button.

5 Sub zoom lever (l43)

≥This lever functions in the same manner

as the zoom lever.

6 Speaker

7 Sub menu button [MENU] (l37)

≥This button functions in the same manner

as the menu button.

8 Mode switch (l22)

9 Intelligent auto/Manual/Manual focus

switch [iA/MANUAL/FOCUS]

(l32, 61, 64)

10 Cursor button

11 Power LCD button [POWER LCD] (

46)

12 Menu button [MENU] (l37)

POWER

LCD MENU

MANUAL

FOCUS

910

3 6

Due to limitations in LCD production

technology, there may be some tiny bright

or dark spots on the LCD monitor screen.

However, this is not a malfunction and

does not affect the recorded picture.

Due to limitations in LCD production

technology, there may be some tiny bright

or dark spots on the viewfinder screen.

However, this is not a malfunction and

does not affect the recorded picture.

HDC-MDH1GC-VQT2Z66_mst.book 8 ページ２０１０年８月４日　水曜日　午前９時２９分

VQT2Z66

13 Focus ring (l64)

14 Accessory shoe (l13, 119)

15 Recording lamp (l40)

16 Lens

17 Lens hood

≥This will reduce the extra light entering the

lens in blight sunlight or backlight etc.,

making it possible to take clearer pictures.

18 Lens hood attachment knob

≥When you remove the lens hood, first of

all, loosen the lens hood attachment knob.

≥When you attach the lens hood back, unite

the mark Aand fasten the lens hood

attachment knob.

≥If you use the filter kit (optional) or the

conversion lens (optional), remove the

lens hood. (l119)

19 Eyepiece corrector knob (l24)

20 Tripod receptacle

15 16 1817

13 14

HDC-MDH1GC-VQT2Z66_mst.book 9 ページ２０１０年８月４日　水曜日　午前９時２９分

VQT2Z66

21 Battery holder (l16)

22 Battery release button [PUSH] (l16)

23 Shoulder strap fixture (l12)

24 External microphone terminal

[EXT MIC] (l13)

25 Internal microphones

26 Headphone terminal [PHONES]

(l50)

≥Excessive sound pressure from

earphones and headphones can cause

hearing loss.

≥Listening at full volume for long periods

may damage the user’s ears.

27 Photoshot button [ ] (l30)

28 Zoom lever [W/T] (In motion picture

recording mode or still picture

recording mode) (l43)

Thumbnail display switch [ / ]/

Volume lever [sVOLr] (In playback

mode) (l36)

29 Component connector

[COMPONENT] (l76)

≥Use the component cable (only the

supplied cable).

30 Video output connector [VIDEO OUT]

(l76, 83)

≥Use the AV cable (only the supplied

cable).

31 Audio output connector

[AUDIO OUT] (l76, 83)

≥Use the AV cable (only the supplied

cable).

2521

26 2827

242322

VIDEO OUT

AUDIOL– –R

OUT

COMPONENT

29 30 31

HDC-MDH1GC-VQT2Z66_mst.book 10 ページ２０１０年８月４日　水曜日　午前９時２９分

Table des matières

Autres manuels Panasonic caméscope

Panasonic

Panasonic AG-DVX100A - Pro 3-CCD MiniDV Proline... Manuel utilisateur

Panasonic

Panasonic AG-CX6 Manuel utilisateur

Panasonic

Panasonic Palmcorder PalmSight PV-L658 Manuel utilisateur

Panasonic

Panasonic AG-DVX102B Manuel utilisateur

Panasonic

Panasonic Palmcorder MultiCam PV-L453 Manuel utilisateur

Panasonic

Panasonic NV-RX6EN Manuel utilisateur

Panasonic

Panasonic HC-X1E Manuel utilisateur

Panasonic

Panasonic Palmcorder Palmsight PV-DV710 Manuel utilisateur

Panasonic

Panasonic AWE600 - COLOR CAMERA Manuel utilisateur

Panasonic

Panasonic Lumix DMC-G5K Caractéristiques techniques

Panasonic

Panasonic AJHDC27H - DVCPRO HD CAMERA Manuel utilisateur

Panasonic

Panasonic VDR-D160GC Manuel utilisateur

Panasonic

Panasonic Palmcorder PV-A386 Manuel utilisateur

Panasonic

Panasonic AJ-HPM110MC Manuel utilisateur

Panasonic

Panasonic NV-GS11 Manuel utilisateur

Panasonic

Panasonic AVCCAM AG-AC160 Manuel utilisateur

Panasonic

Panasonic NV-GS300EG Manuel utilisateur

Panasonic

Panasonic AG-HVX202AEN Manuel utilisateur

Panasonic

Panasonic NV-GS50EG Manuel utilisateur

Panasonic

Panasonic P2HD AG-HPX250EJ Manuel utilisateur

Panasonic

Panasonic Palmcorder PV-DV53 Manuel utilisateur

Panasonic

Panasonic AG- DVC 15P Manuel utilisateur

Panasonic

Panasonic VDR-D100EB Manuel utilisateur

Panasonic

Panasonic HX-WA03PP Manuel utilisateur

Manuels caméscope populaires d'autres marques

Toshiba

Toshiba CAMILEO Z100 Manuel utilisateur

Canon

Canon RC 260 Manuel utilisateur

Sony

Sony Handycam DCR-DVD7E Manuel utilisateur

Brinno

Brinno TimeLapse TLC200 Manuel utilisateur

JVC

JVC GR-SXM68AC Guide de démarrage rapide

Insignia

Insignia NS-DCC5HB09 - Camcorder - 720p Manuel utilisateur

MYDLINK

MYDLINK DCS-6100LH Manuel utilisateur

Sony

Sony video Hi8 Handycam CCD-TR555 Manuel utilisateur

SECURECOM

SECURECOM V-5014B Manuel utilisateur

Sharper Image

Sharper Image U-VIDEO Manuel utilisateur

JVC

JVC AA-V15EG Manuel utilisateur

Canon

Canon LEGRIA HV40 Manuel utilisateur

Sony

Sony Handycam DCR-VX2000 Manuel utilisateur

RCA

RCA CC616 Manuel utilisateur

ATIK Cameras

ATIK Cameras Horizon Manuel utilisateur

Sony

Sony Handycam HDR-CX580V Manuel utilisateur

Sharp

Sharp ViewcamZ VL-Z8H Manuel utilisateur

Philips

Philips M620/21 Manuel utilisateur
