Panasonic Broadcast

Mechanical Parts List

Model No.: AJ-HPX2700G/MC

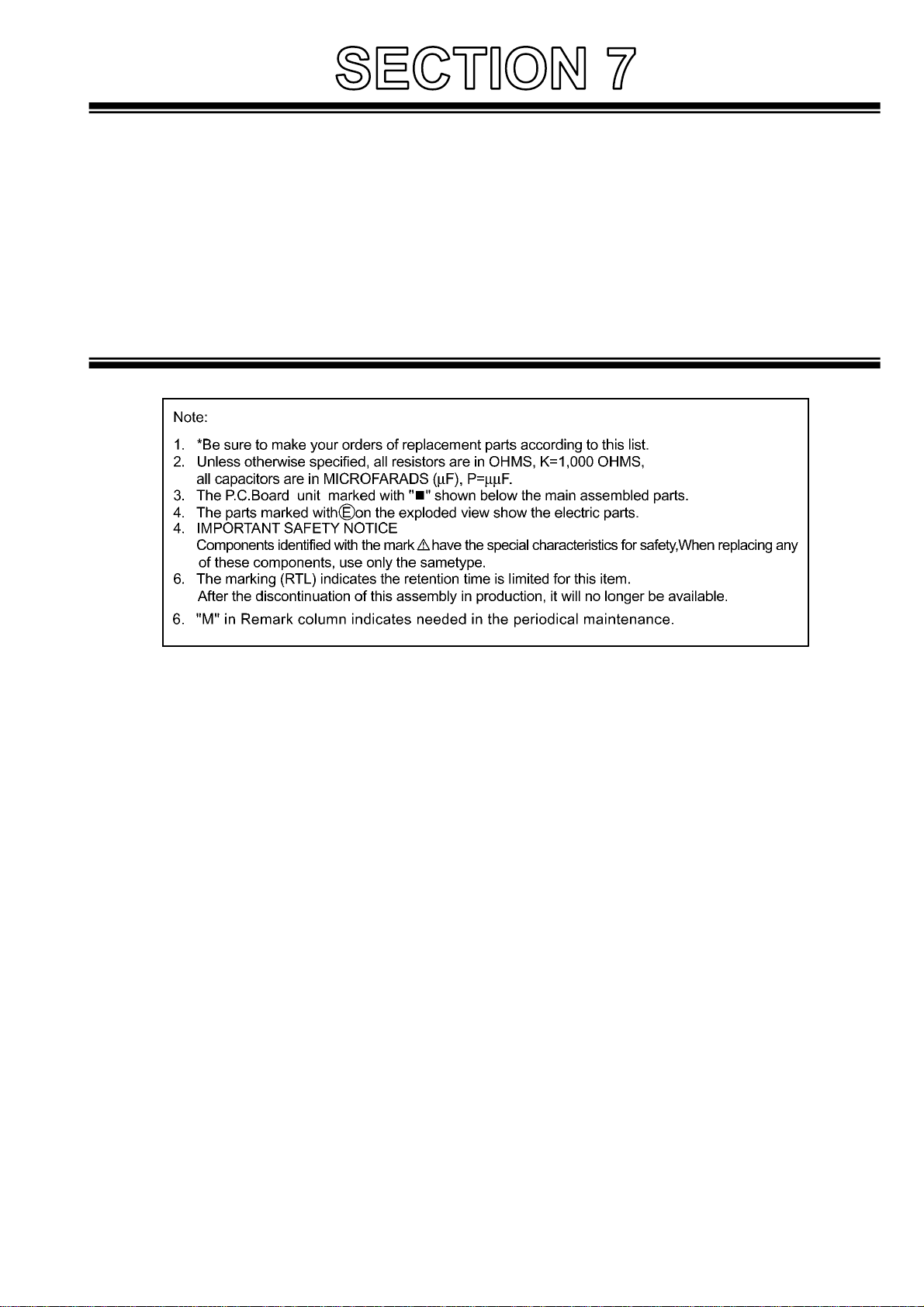

CONTENTS

CASING & FRAME PARTS ASSEMBLY OVERALL SECTION (1)................................................ MPL-1

OVERALL SECTION (2) ................................................................................................................. MPL-3

CAMERA PARTS ASSEMBLY(1)................................................................................................... MPL-5

CAMERA PARTS ASSEMBLY(2)................................................................................................... MPL-7

CAMERA PARTS ASSEMBLY(3)................................................................................................... MPL-9

TOP CASE & HANDLE PARTS ASSEMBLY.................................................................................. MPL-11

SIDE CASE (R) PARTS ASSEMBLY.............................................................................................. MPL-13

CARD GUIDE PARTS ASSEMBLY ................................................................................................ MPL-15

REAR JACK PARTS ASSEMBLY................................................................................................... MPL-17

BACK CASE PARTS ASSEMBLY .................................................................................................. MPL-19

LCD PARTS ASSEMBLY................................................................................................................ MPL-21

PACKING PARTS ASSEMBLY....................................................................................................... MPL-23

510

E16

102

104

107

105

106

105

105 105

103

E17

107

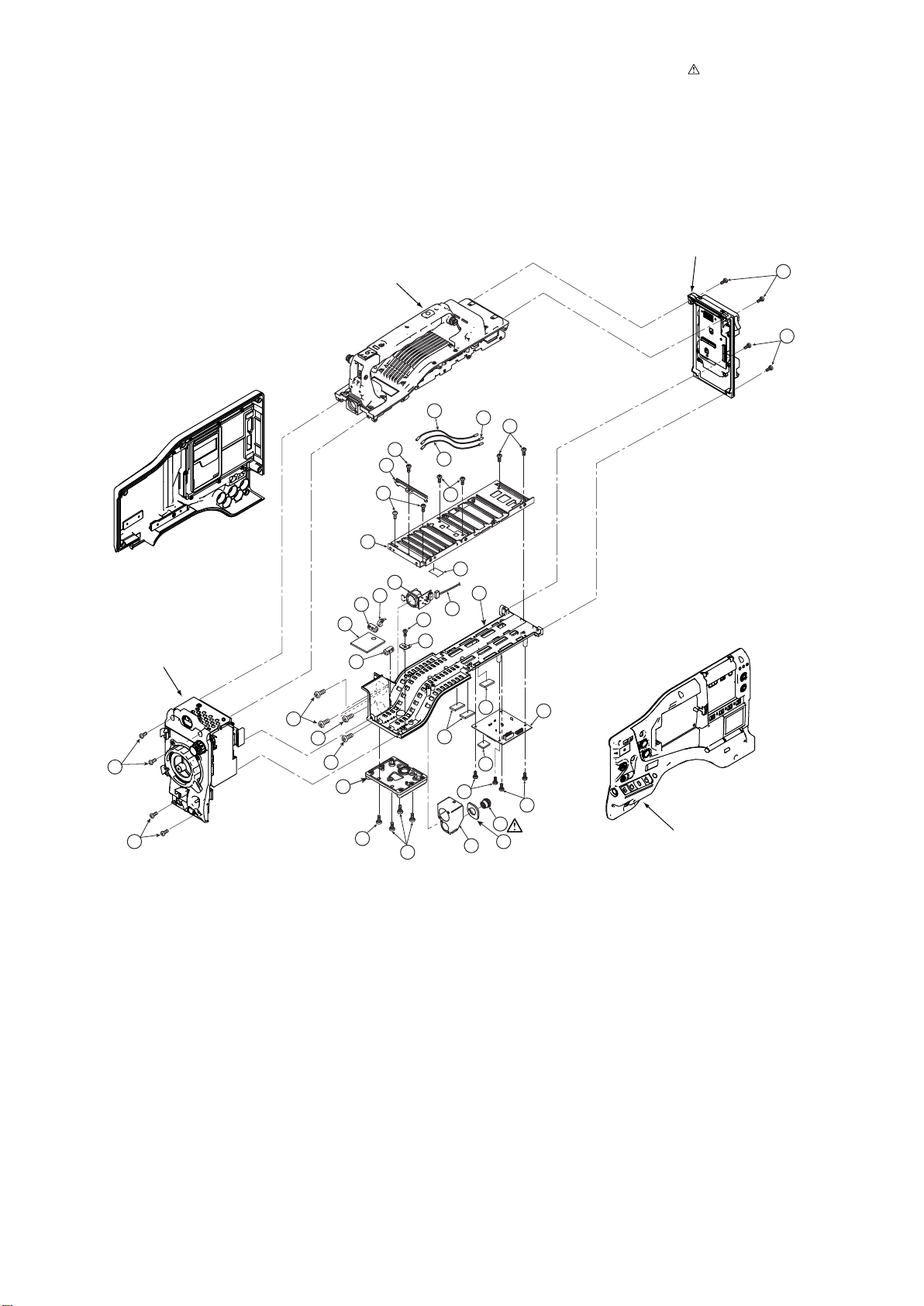

CASING & FRAME PARTS ASSEMBLY

OVERALL SECTION (1)

MPL-1

(Page MPL-11)

TOP CASE & HANDLE ASS'Y (Page MPL-19)

(BACK CASE ASS'Y)

SIDE CASE (R) ASS'Y

(Page MPL-13)

LCD ASS'Y

(Page MPL-21)

(Page MPL-5,7,9)

CAMERAASS'Y

Components identified with the mark have the special characteristics for safety.

When replacing any of these components, use only the same type.

NOTE:

This connector is the connector ASS'y.

Refer to CABLE PARTSASSEMBLY with part number.

Ref.No. Part No. Part Name & Description

Remarks Ref.No. Part No. Part Name & Description

Remarks

1 VYK2B02 BOTTOM CASE U 1

2 VMP4853 LENS CONNECTOR PLATE 1

3 VYQ4196 FOOT BASE U 1

4 VKC0560 HINGE 1

5 VJF1559 CLAMPER 1

6 VEE1E65 JUMPER CABLE 1

7 VSC5875 MIC SHEILD CASE 1

8 VMP8764 PB GUIDE ANGLE BOTTOM 1

9 VGQ8103 PB GUIDE 2 1

10 VEE1E66 JUMPER CABLE 1

11 VMT0779 GASKET 1

12 VLP0123 FERRITE CORE 2

13 K1TZB9A00031 COAXIAL CABLE (BLACK) 1

14 K1TZB9A00052 COAXIAL CABLE (RED) 1

15 K1TZB9A00038 COAXIAL CABLE (BLUE) 1

16 J0KG00000011 FERRITE CORE 1

17 VWB0123 CORD CLAMPER 1

18 VMT1848 GASKET 2

19 VMT1849 GASKET 1

20 VMZ3766 BARRIER 1

102 XYN26+A8FJK SCREW 2

103 XSS3+8FJK SCREW 4

104 XTN3+10JFJK SCREW 2

105 XYN26+J6FJ SCREW 11

106 VHD1774 SCREW 1

107 XSB3+8FJK SCREW 8

E16 VEP84406A REAR AUDIO P.C.BOARD 1

E17 VEP80C55B STEREO MIC P.C.BOARD 1

OVERALL SECTION (1)

MPL-2

E18

33 32

29 31

E19

E21

106

101

103

102

107

105

102

106

108

106

110

106

109

104

106

E4 E5

E40

E9-1

E10

E11

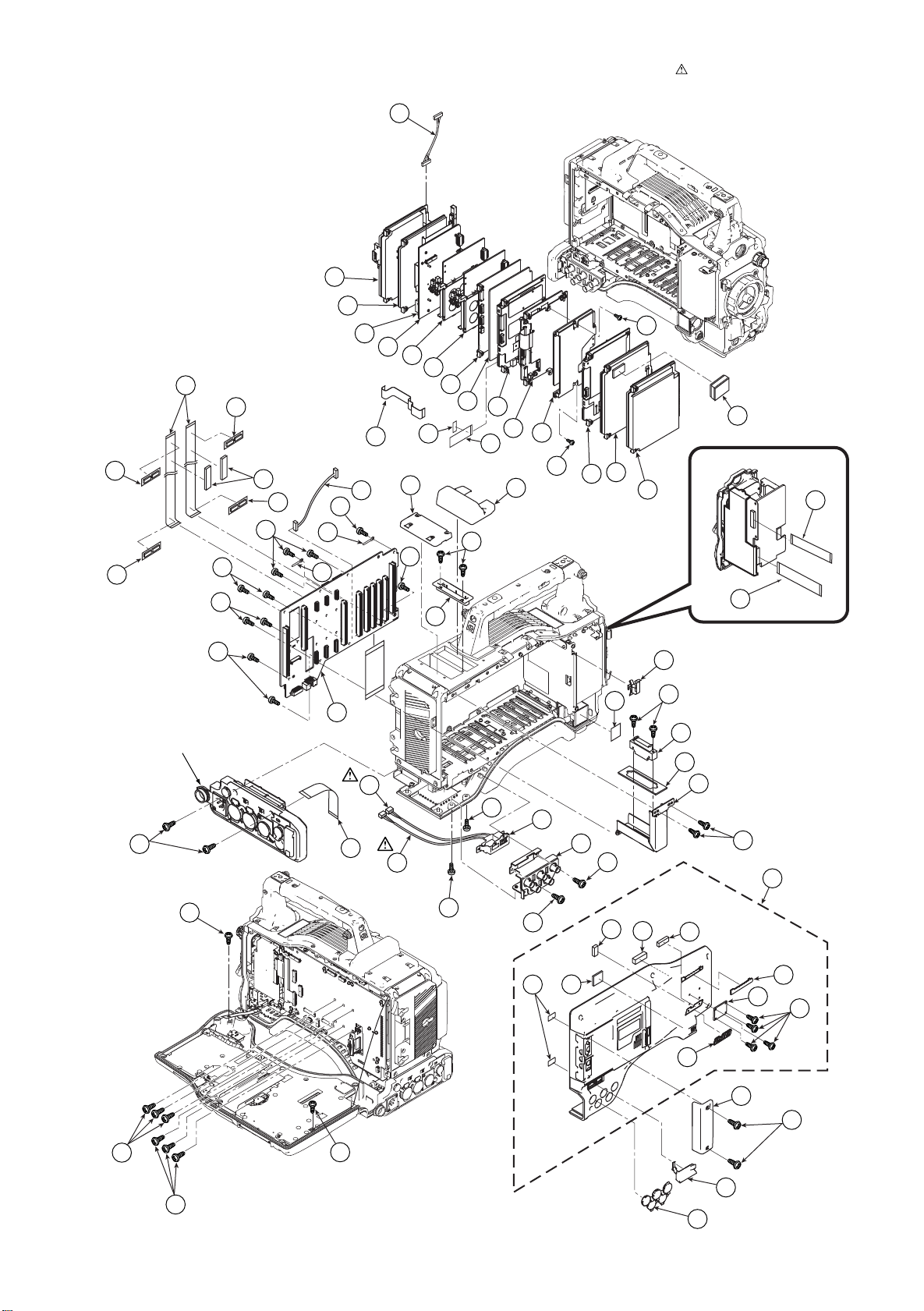

OVERALL SECTION (2)

MPL-3

* The part number of card holder is written in

Electric Parts List of each P.C.Board.

(Page MPL-17)

REAR JACK ASS'Y

Components identified with the mark have the special characteristics for safety.

When replacing any of these components, use only the same type.

Ref.No. Part No. Part Name & Description

Remarks Ref.No. Part No. Part Name & Description

Remarks

1 VMP8767 RECEIVER BOX 1

2 VYF3042 RECEIVER COVER U 1

3 VEE1E62 JUMPER CABLE 1

4 VWJ16G8100L0 FFC 1

5 VWJ40G7145L0 FFC 1

6 VWJ30G7125L0 FFC 1

7 VEE1E87 JUMPER CABLE 1

8 VWJ40H2210L0 FFC 2

9 VWJ30G6060L0 FFC 1

10 VEE1E61 JUMPER CABLE 1

11 VEE1C61 JUMPER CABLE 1

12 VEE1D52 USB CABLE 1

13 VGK3027 LAN CARD BASE 1

14 VJF1535 COATING CLIP 2

15 VJF1559 CLAMPER 1

16 VWJ50G6060L0 FFC 1

17 VGQ9384 CONDUCTIVE TAPE 1

18 VYP9267 SIDE L U 1

19 VMG1642 GUARD 1

20 VMG1767 USB CAP 1

21 VMG1768 BNC CAP(A) 1

22 VGB0677 P2HD BADGE 1

23 VGB0625 PANA BADGE 1

24 VQL1N04 FCC/DOC LABEL 1 FOR AJ-HPX2700G

25 VYF3041 LAN COVER U TW 1

26 J0KD00000114 FERRITE CORE 4

27 VGB0588 VARICAM BADGE 1

28 VMT1036 DUSTPROOF CUSHION 2

29 VMT1848 GASKET 1

30 VMT1865 GASKET 1

31 VMT1813 GASKET 1

32 VMT1855 GASKET 1

33 VMT1580 GASKET 2

34 VYQ4544 M RAM SHEET U 1

35 VMT1265 CONNECTOR CUSHION 1

101 XYN2+F6FJ SCREW 2

102 XYN2+J6FJ SCREW 9

103 VHD1774 SCREW 1

104 XSB3+4FJKT SCREW 2

105 XSB2+6FJK SCREW 2

106 XYN26+J6FJ SCREW 14

107 XSB3+16FJK SCREW 2

108 XYN3+J6FJ SCREW 1

109 VHD1462 SCREW 2

110 XQN14+A2FJK SCREW 4

E1 VEP81255A CAM POWER P.C.BOARD 1

E2 VEP23680A CAM SYS P.C.BOARD 1

E3 VEP23681A CAM DSP1 P.C.BOARD 1

E4 VEP23682A CAM DSP2 P.C.BOARD 1

E5 VEP23683A CAM DSP2 SUB P.C.BOARD 1

E6 VEP83673C SPDSYS MSC P.C.BOARD 1

E7 VEP86369A SPD CPU P.C.BOARD 1

E8 VEP80E17A SPD CARD1 P.C.BOARD 2

E9 VEP80E18A SPD CARD2 P.C.BOARD 1

E9-1 VEP80C91A SD CARD SUB P.C.BOARD 1 FOR VEP80E18C

E10 VEP84400C SPD AUDIO P.C.BOARD 1

E11 VEP81254C SPD POWER P.C.BOARD 1

E18 VEP80E31A SPD P.C.BOARD 1

E19 VEP80E39A USB A CN P.C.BOARD 1

E21 VEP80E35A L SIDE BNC P.C.BOARD 1

E40 VEP83674A H.264 P.C.BOARD 1

OVERALL SECTION (2)

MPL-4

2222

107

101

111

109

111

E15

111

111 111

111

113

111

E13

E14

109

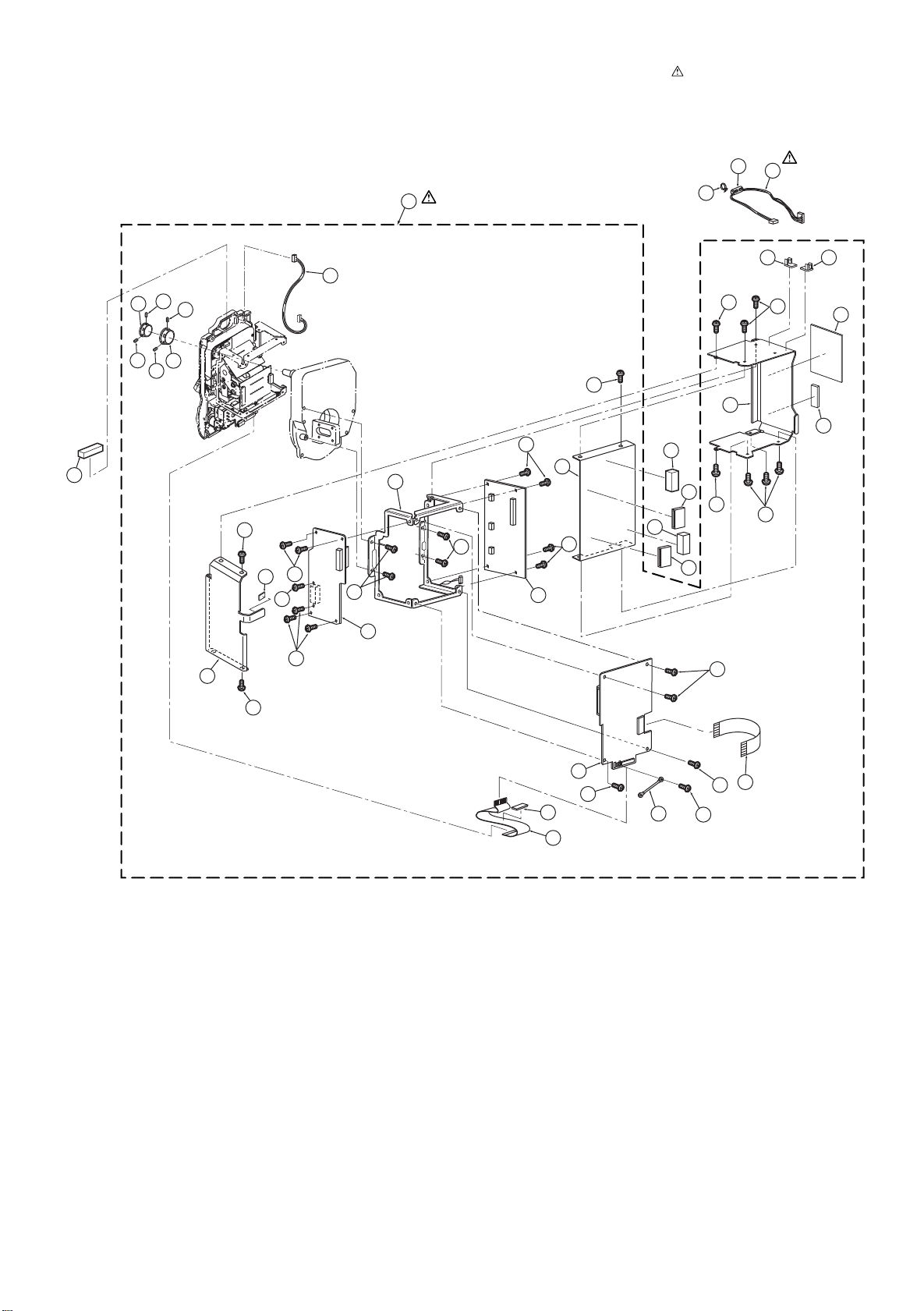

CAMERA PARTS ASSEMBLY(1)

MPL-5

Components identified with the mark have the special characteristics for safety.

When replacing any of these components, use only the same type.

Ref.No. Part No. Part Name & DescriptionPcs Remarks Ref.No. Part No. Part Name & DescriptionPcs Remarks

1 VEQ4557 CAMERA U 1

2 VWJ14G8065L0 FRONT-PULSE FCC 1

3 VMP8967 OPTICAL BLOCK ANGLE 1

4 VWJ10G8037L1 SENSOR FFC 1

5 VSC6018 SHIELD CASE DRIVE 1

6 VSC5865 SHIELD CASE PULSE 1

7 VSC6019 SHIELD CASE PREAMP 1

8 VGU0B21 FILTER KNOB (ND) 1

9 VEE1E85 JUMPER CABLE 1

10 VEE1E86 JUMPER CABLE 1

11 J0KD00000070 FERRITE CORE 2

12 VLP0123 FERRITE CORE 1

13 VEE1E63 JUMPER CABLE 1

14 J0KD00000114 FERRITE CORE 1

15 VMT1815 GASKET 2

16 VMT1821 GASKET 1

17 VJF1559 CLAMPER 1

18 VGU0B22 FILTER KNOB (CC) 1

19 VMT1879 SHIELD CASE CUSHION 1

20 J0ZZZ0000066 ELECTRIC ABSORPTION SHEET 1

21 VMT1897 SOFT HIGH SHIELD GASKET 1

22 VJF1152 CLAMPER 2

101 XQN2+B25FJ SCREW 2

107 XQN2+C4FJ SCREW 2

109 XXE26W3FP HEX SCREW 4

111 XYN26+J5FJ SCREW 24

113 XYN3+J6FJ SCREW 1

E13 VEP23650A DRIVE P.C.BOARD 1

E14 VEP23653C PULSE P.C.BOARD 1

E15 VEP23652C PRE AMP P.C.BOARD 1

CAMERA PARTS ASSEMBLY (1)

MPL-6

E24

105

106

108

108 106

105

104

101

105

E12

MPL-7

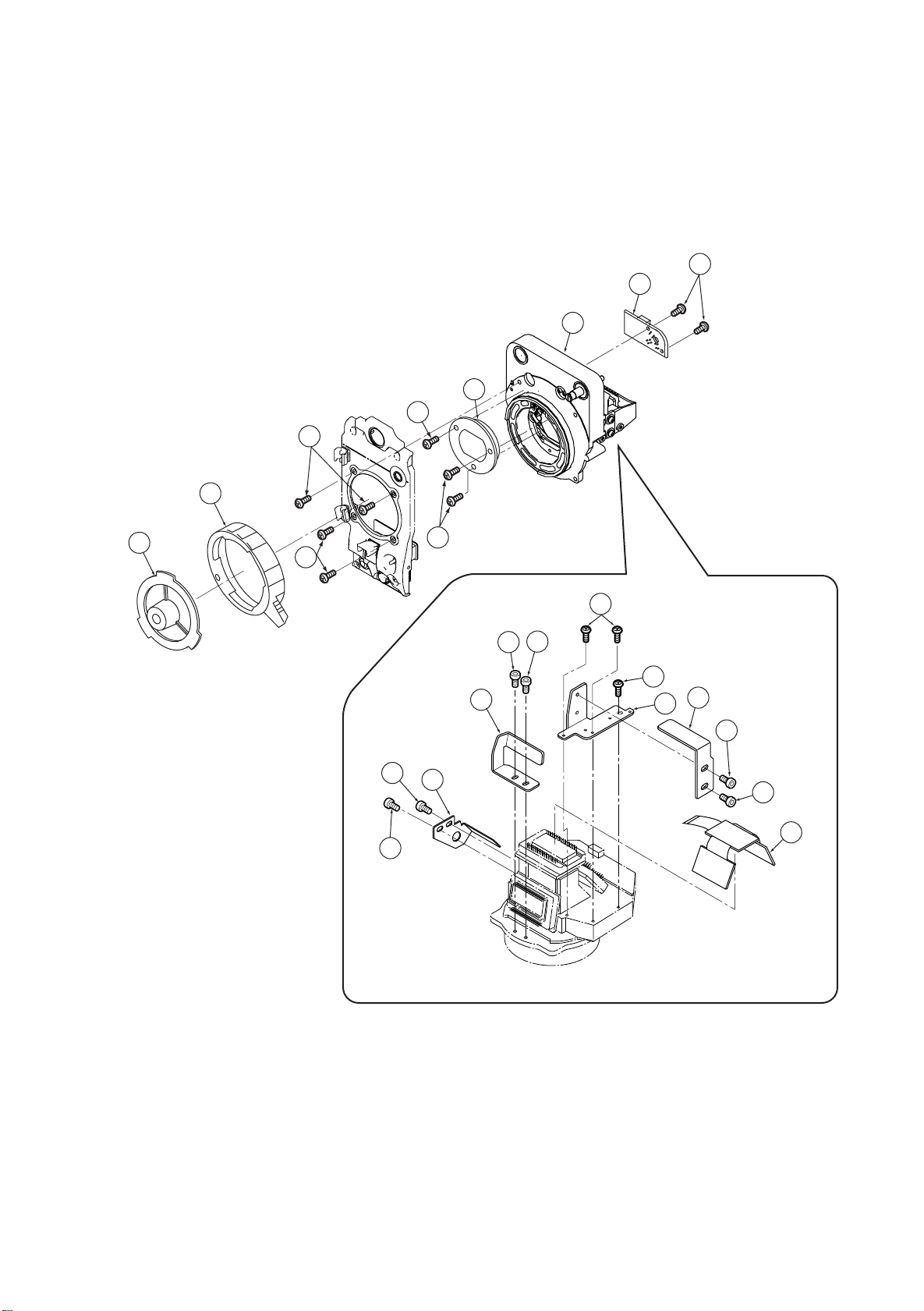

CAMERA PARTS ASSEMBLY(2)

Ref.No. Part No. Part Name & Description

Remarks Ref.No. Part No. Part Name & Description

Remarks

1 VYQ4391 OPTICAL U 1

2 VMA0T71 HEAT SINK (R) 1

3 VMA0T72 HEAT SINK (G) 1

4 VMA0T73 HEAT SINK (B) 1

5 VMA0V41 HEAT SINK BASE 1

6 VXQ1642 O.LPF U 1

7 VDW1228 MOUNT RING 1

8 VKF4294 MOUNT CAP 1

101 XQN2+C4FJ SCREW 3

104 XYN3+C6FJ SCREW 2

105 XYN26+F6FJ SCREW 6

106 XQS2+A4FJK SCREW 3

108 VHD1950 SCREW 4

E12 VEP20B25E CCD SENSOR P.C.BOARD 1

E24 VEP80D28B SENSOR P.C.BOARD 1

CAMERA PARTS ASSEMBLY (2)

MPL-8

10 17

105

103

102

101

106

E23

E22

107

106

MPL-9

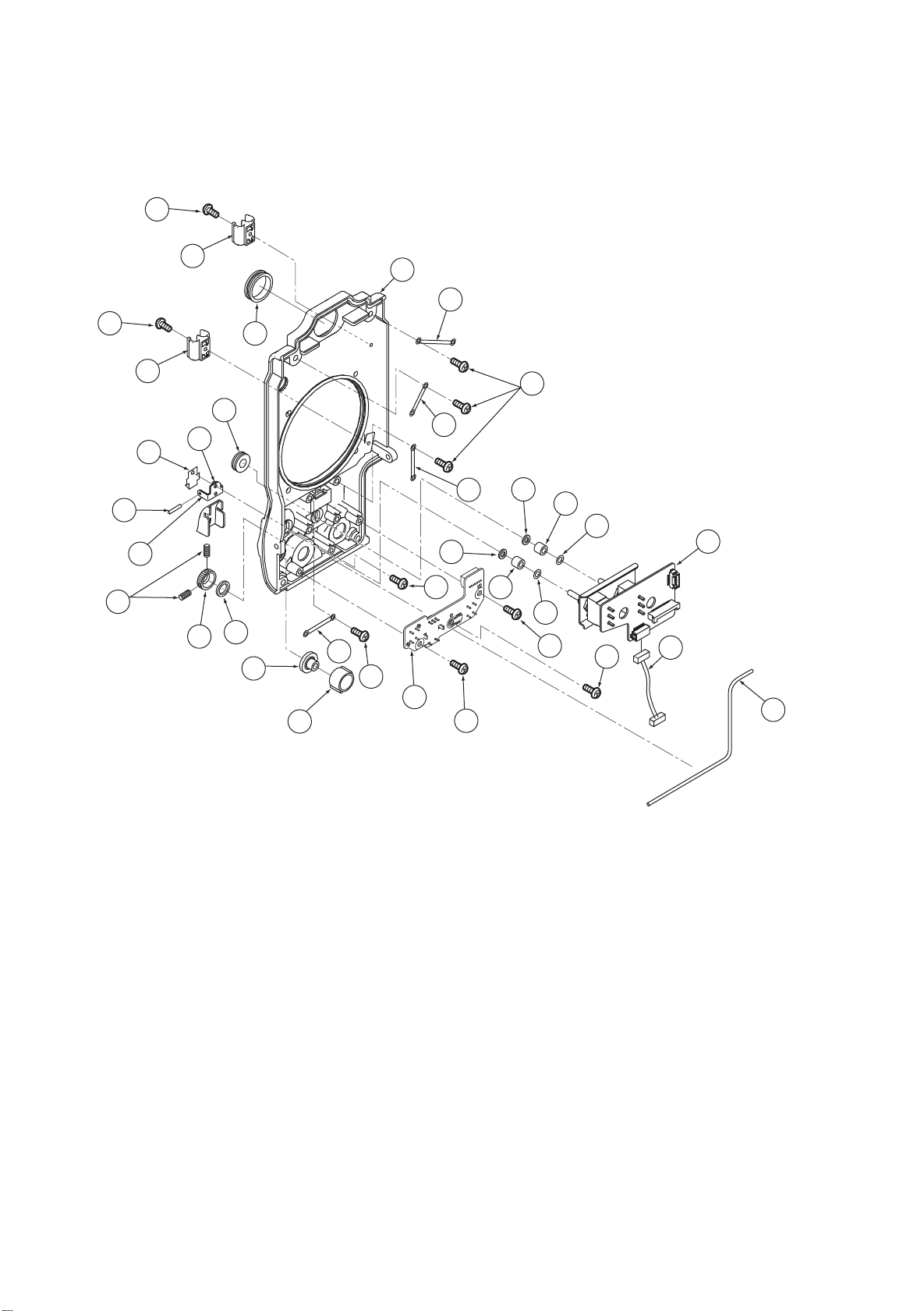

CAMERA PARTS ASSEMBLY(3)
