Thank you for purchasing this product.

Please read these instructions carefully before using this product, and save this manual for future use.

Model number suffix “EB” denotes UK model.

Blu-ray Disc™ Recorder

Model No. DMR-BWT850

Software (Firmware) Update

To support the latest features, it’s very important you install the latest updates to

maintain proper operation of your unit.

For details, refer to “Software (Firmware) Update” (>81) or

http://panasonic.jp/support/global/cs/ (This site is in English only.)

until

2015/09/26

DMR-BWT850EB_eng.book 1 ページ２０１５年９月１１日　金曜日　午後５時４０分

SQT1119

Small object

• Keep the Memory Card out of reach of children

to prevent swallowing.

Unit

• Do not place sources of naked flames, such as

lighted candles, on this unit.

• This unit may receive radio interference caused

by mobile telephones during use. If such

interference occurs, please increase separation

between this unit and the mobile telephone.

• This unit is intended for use in moderate climates.

Safety precautions

WARNING

Unit

• To reduce the risk of fire, electric shock or

product damage,

- Do not expose this unit to rain, moisture,

dripping or splashing.

- Do not place objects filled with liquids, such as

vases, on this unit.

- Use only the recommended accessories.

- Do not remove covers.

- Do not repair this unit by yourself. Refer

servicing to qualified service personnel.

- Do not let metal objects fall inside this unit.

- Do not place heavy items on this unit.

AC mains lead

• To reduce the risk of fire, electric shock or

product damage,

- Ensure that the power supply voltage

corresponds to the voltage printed on this unit.

- Insert the mains plug fully into the socket

outlet.

- Do not pull, bend, or place heavy items on the

lead.

- Do not handle the plug with wet hands.

- Hold onto the mains plug body when

disconnecting the plug.

- Do not use a damaged mains plug or socket

outlet.

• The mains plug is the disconnecting device.

Install this unit so that the mains plug can be

unplugged from the socket outlet immediately.

CAUTION

• This unit utilizes a laser. Use of controls or

adjustments or performance of procedures other

than those specified herein may result in

hazardous radiation exposure.

Placement

• Place this unit on an even surface.

• To reduce the risk of fire, electric shock or

product damage,

- Do not install or place this unit in a bookcase,

built-in cabinet or in another confined space.

Ensure this unit is well ventilated.

- Do not obstruct this unit’s ventilation openings with

newspapers, tablecloths, curtains, and similar items.

- Do not expose this unit to direct sunlight, high

temperatures, high humidity, and excessive vibration.

Batteries

• Danger of explosion if battery is incorrectly

replaced. Replace only with the type

recommended by the manufacturer.

• Mishandling of batteries can cause electrolyte

leakage and may cause a fire.

- Do not mix old and new batteries or different

types at the same time.

- Do not heat or expose to flame.

- Do not leave the battery(ies) in a car exposed

to direct sunlight for a long period of time with

doors and windows closed.

- Do not take apart or short circuit.

- Do not recharge alkaline or manganese batteries.

- Do not use batteries if the covering has been

peeled off.

- Remove batteries if you do not intend to use

the remote control for a long period of time.

Store in a cool, dark place.

• When disposing of the batteries, please contact

your local authorities or dealer and ask for the

correct method of disposal.

DMR-BWT850EB_eng.book 2 ページ２０１５年９月１１日　金曜日　午後５時４０分

SQT1119 3

(For the AC mains plug of three pins)

For your safety, please read the following text

carefully.

This appliance is supplied with a moulded three

pin mains plug for your safety and convenience.

A 5-ampere fuse is fitted in this plug.

Should the fuse need to be replaced please

ensure that the replacement fuse has a rating of

5-ampere and that it is approved by ASTA or BSI

to BS1362.

Check for the ASTA mark Ï or the BSI mark Ì

on the body of the fuse.

If the plug contains a removable fuse cover you

must ensure that it is refitted when the fuse is

replaced.

If you lose the fuse cover the plug must not be

used until a replacement cover is obtained.

A replacement fuse cover can be purchased from

your local dealer.

Before use

Remove the connector cover.

How to replace the fuse

The location of the fuse differ according to the

type of AC mains plug (figures A and B). Confirm

the AC mains plug fitted and follow the

instructions below.

Illustrations may differ from actual AC mains plug.

1. Open the fuse cover with a screwdriver.

2. Replace the fuse and close or attach the fuse

cover.

Please check and identify the supplied

accessories.

(Product numbers are correct as of August 2015.

These may be subject to change.)

• Do not use AC mains lead with other equipment.

Insert batteries

Insert so the poles (i and j) match those in the

remote control.

Caution for AC Mains

Lead

Fuse cover

Figure A Figure B

Figure A Figure B Fuse

(5 ampere)

Fuse

(5 ampere)

Supplied accessories

Remote control (N2QAYB001058):1pc.

Batteries for remote control: 2 pcs.

AC mains lead (K2CT2YY00098):1pc.

RF coaxial cable (K2KYYYY00247):1pc.

HDMI cable (K1HY19YY0011): 1 pc.

About descriptions in these operating

instructions

• Pages to be referred to are indicated as “>±±”.

• Images are for illustration purpose, contents may change

without notice.

R6/LR6, AA

(Alkaline or manganese batteries)

DMR-BWT850EB_eng.book 3 ページ２０１５年９月１１日　金曜日　午後５時４０分

SQT1119

Table of contents

Safety precautions . . . . . . . . . . . . . . . . . . . . 2

Caution for AC Mains Lead. . . . . . . . . . . . . 3

Supplied accessories . . . . . . . . . . . . . . . . . . 3

Getting started

HDD and media information . . . . . . . . . . . . 6

Unit care . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Control reference guide. . . . . . . . . . . . . . . 12

Connection. . . . . . . . . . . . . . . . . . . . . . . . . . 14

Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

FUNCTION MENU screen . . . . . . . . . . . . 21

Watching broadcasts

Watching broadcasts . . . . . . . . . . . . . . . . . 22

Freeview Play . . . . . . . . . . . . . . . . . . . . . . . 25

Recording

Recording TV programmes. . . . . . . . . . . . 27

Timer recording. . . . . . . . . . . . . . . . . . . . . . 29

Playing back video

Playing titles on the HDD . . . . . . . . . . . . . 34

Playing titles on the media . . . . . . . . . . . . 37

Operation during play. . . . . . . . . . . . . . . . . 39

Editing video

Deleting/Editing titles . . . . . . . . . . . . . . . . . 42

Copying video

Copying titles. . . . . . . . . . . . . . . . . . . . . . . . 46

Photo and Music

Playing photos. . . . . . . . . . . . . . . . . . . . . . . 54

Editing photos . . . . . . . . . . . . . . . . . . . . . . . 56

Copying photos . . . . . . . . . . . . . . . . . . . . . . 57

Playing music . . . . . . . . . . . . . . . . . . . . . . . 58

Copying/Deleting music. . . . . . . . . . . . . . . 59

Network

Smart Home Networking (DLNA). . . . . . . 60

TV Anywhere . . . . . . . . . . . . . . . . . . . . . . . . 64

Enjoying Network Service . . . . . . . . . . . . . 64

With Other Equipment

Copying the HD Video (AVCHD) . . . . . . . 65

Registering

the external HDD (USB HDD) . . . . . . . . . 65

Convenient functions

VIERA Link functions . . . . . . . . . . . . . . . . . 67

Playback menu . . . . . . . . . . . . . . . . . . . . . . 68

Basic Settings . . . . . . . . . . . . . . . . . . . . . . . 70

4K Networking. . . . . . . . . . . . . . . . . . . . . . . 81

Software (Firmware) Update . . . . . . . . . . 81

Other operations. . . . . . . . . . . . . . . . . . . . . 82

Troubleshooting

Troubleshooting guide. . . . . . . . . . . . . . . . 86

Reference

Specifications . . . . . . . . . . . . . . . . . . . . . . . 92

Reference . . . . . . . . . . . . . . . . . . . . . . . . . . 94

Licenses . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98

DMR-BWT850EB_eng.book 4 ページ２０１５年９月１１日　金曜日　午後５時４０分

Getting started

Watching broadcasts

Recording

Playing back video

Editing video

Copying video

Photo and Music

Network

With Other Equipment

Convenient functions

Troubleshooting

Reference

SQT1119 5

DMR-BWT850EB_eng.book 5 ページ２０１５年９月１１日　金曜日　午後５時４０分

Getting started

SQT1119

HDD and media information

Getting started

For more details, refer also to the specifications. (>92)

(–: Impossible)

Recordable/playable contents

Media type Standard symbol Recordable contents Playable contents

Built-in hard disk drive

(HDD) [HDD]

•Video

• AVCHD/AVCHD 3D

•MKV

•MP4

• MPEG2

•Xvid

•JPEG

•MPO

(3D photo)

• AAC

•ALAC

•DSD

•FLAC

•MP3

•WAV

•WMA

External hard disk drive

(USB HDD)

(>9)

[USB_HDD]

•Video

§1

–

• AVCHD/AVCHD 3D§2, 3

•MKV

•MP4

• MPEG2

• Xvid

•JPEG

•MPO

(3D photo)

• AAC

•ALAC

•DSD

•FLAC

•MP3

•WAV

•WMA

BD-Video

[BD-V] –

•Video

BD-RE

BD-RE DL

[BD-RE]

•Video

• AVCHD/AVCHD 3D

•JPEG

• MPO (3D photo)

BD-R

BD-R DL

[BD-R]

•Video

• AVCHD/AVCHD 3D§2

–

• MKV • Xvid

DVD-Video§4

[DVD-V] –

•Video

DVD-RAM

[RAM]

•Video

•JPEG

• MPO (3D photo)

–• AVCHD§2

DVD-R

DVD-R DL

[DVD-R]

•Video

• AVCHD§2

–

•MKV

• Xvid

•JPEG

•MPO

(3D photo)

• AAC

•ALAC

•DSD

•FLAC

•MP3

•WAV

•WMA

DMR-BWT850EB_eng.book 6 ページ２０１５年９月１１日　金曜日　午後５時４０分

Getting started

SQT1119 7

(–: Impossible)

•[+RW] This unit cannot record to 8X Speed +RW disc.

• With certain recording states and folder structures, the play order may differ or playback may not be possible.

• It may not be possible to play the above media in some cases due to the type of media, the condition of the recording, the

recording method, and how the files were created.

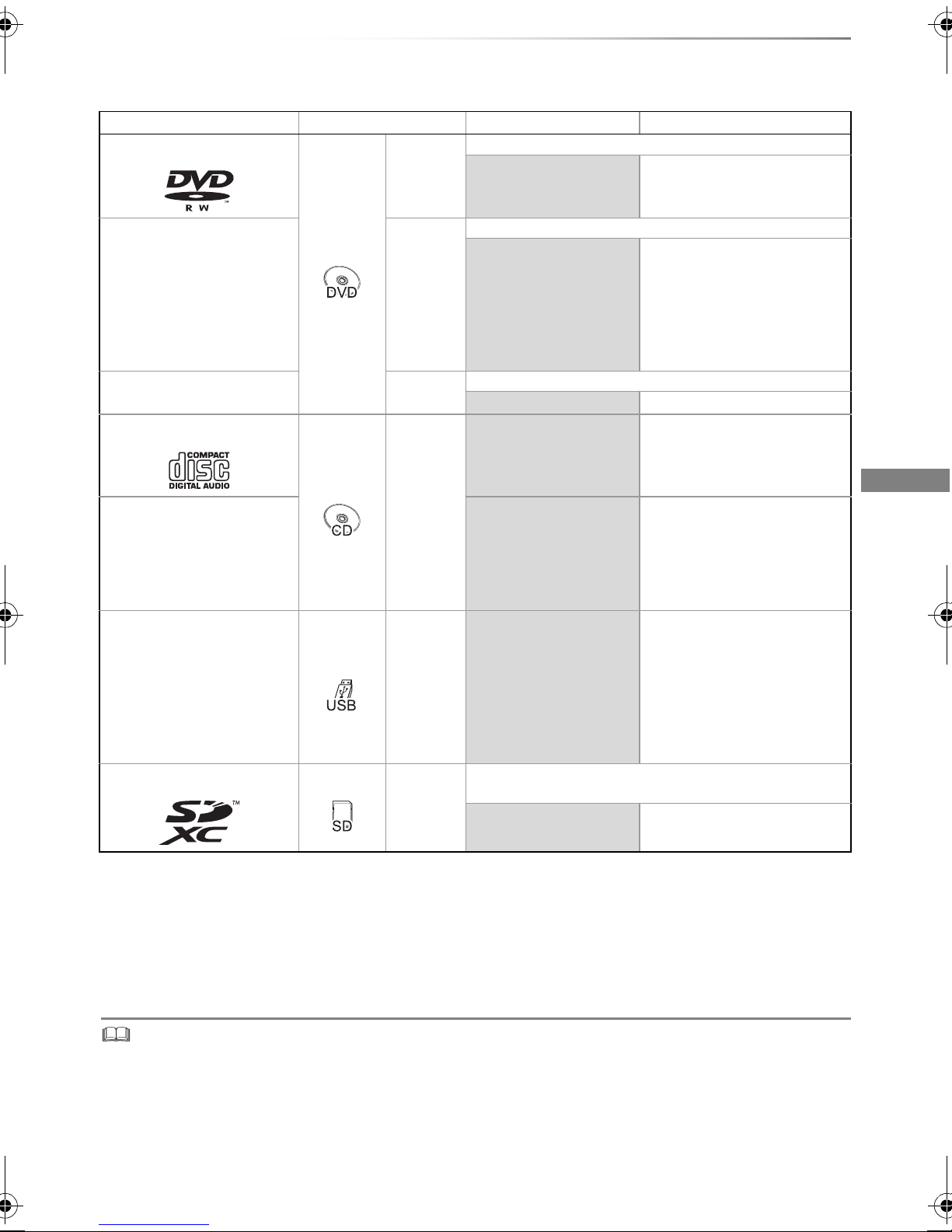

Media type Standard symbol Recordable contents Playable contents

DVD-RW

[DVD-RW]

•Video

–

• AVCHD§2

+R/+R DL [+R]

•Video

–

• AVCHD§2

•MKV

• Xvid

• JPEG

•MPO

(3D photo)

•AAC

•ALAC

•DSD

•FLAC

•MP3

•WAV

•WMA

+RW [+RW] •Video

–• AVCHD§2

Audio CD (CD-DA)

[CD]

–

•Music

(including CD-R/RW) –

•MKV

• Xvid

• JPEG

•MPO

(3D photo)

•AAC

•ALAC

•FLAC

•MP3

•WAV

•WMA

USB memory [USB] –

• AVCHD/AVCHD 3D§2, 3

•MKV

•MP4

• MPEG2

• Xvid

• JPEG

•MPO

(3D photo)

•AAC

•ALAC

•DSD

•FLAC

•MP3

•WAV

•WMA

SD Cards

[SD]

•MP4

•MPEG2

• JPEG

• MPO (3D photo)

–• AVCHD/AVCHD 3D§2

§1It cannot be recorded directly. (Only compatible with copying from the built-in HDD)

§2Recorded with AVCHD format compatible devices (Panasonic video camera, etc.). It may not be

able to play back, add, or edit depending on the device.

§3It cannot be played back directly from the USB HDD or USB memory. Playback is possible by

copying to the built-in HDD. (>65)

§4Includes finalised DVD-R, DVD-R DL, DVD-RW, +R and +R DL.

DMR-BWT850EB_eng.book 7 ページ２０１５年９月１１日　金曜日　午後５時４０分

Getting started

SQT1119

HDD and media information

∫Broadcast Recordings

Numbers of titles that can be recorded:

• Maximum numbers of titles are including recordings of

HD CAMCORDER.

∫HD CAMCORDER Recordings

MPEG-4 AVC/H.264 (based on AVCHD)

Numbers of titles that can be recorded:

• Maximum numbers of titles are including recordings of

Broadcast.

∫Photo files

Compatible pixels:

Between 34k34 and 8192k8192 pixels

Sub sampling: 4:2:2, 4:2:0

(Motion JPEG is not supported.)

Maximum numbers of contents:

∫Video files/Audio files

Numbers of contents that can be copied to

internal HDD:

USB device:

• Each folder can store up to 1000 files.

• We recommend that you limit the depth of

folder trees to about five levels.

• Bit rate up to 100 Mbps/resolution up to

3840k2160 25p/30p, 4096k2160 24p. (MP4

only)

• The video file and subtitle text files are inside the same folder, and the file names are the same except for the file extensions.

• Some files may not be played back even if they have these extensions.

Information about contents

Media Maximum

titles

HDD 3000

BD-RE, BD-R 200

DVD-RAM, DVD-R, DVD-RW 99

+R, +RW 49

Media Maximum

titles

HDD 3000

BD-RE, BD-R 200

Media Folders Files

HDD – 20000

BD-RE, DVD-RAM,

DVD-R, +R,

CD-R, CD-RW,

USB device, SD

500 10000

Contents Maximum numbers of

folders and files

Video 20000

Audio 20000

About extension of files

MKV: “.mkv”

Subtitle text files: “.srt” “.sub” “.txt”

MP4: “.mp4” “.mov”

MPEG2: “.mpg” “.mpeg” “.m2ts” “.mts” “.ts”

Xvid: “.avi”

Subtitle text files: “.srt” “.sub” “.txt”

JPEG: “.jpg”

MPO: “.mpo”

AAC: “.m4a”

ALAC: “.m4a”

DSD: “.dsf” “.dff”

FLAC: “.flac”

MP3: “.mp3”

WAV: “.wav”

WMA: “.wma”

DMR-BWT850EB_eng.book 8 ページ２０１５年９月１１日　金曜日　午後５時４０分

Getting started

SQT1119 9

§1FR (Flexible Recording Mode):

The unit automatically selects the best possible recording rate between XP mode and EP mode.

§2The SD quality programme cannot be converted to HD quality.

§3You cannot select during play whether it activates or deactivates.

§4You cannot select during play whether it appears or disappears.

Approximate recording times

Refer to “Recording modes and approximate recording times”. (>92)

You can use an external HDD (USB HDD) in the

following two ways (A single HDD cannot handle

those two ways simultaneously), and a USB

memory for data files.

• For recorded titles

Moving titles in the built-in HDD to a USB HDD

to save the capacity of the built-in HDD.

• The USB HDD must first be registered on this

unit. (>65)

• The USB HDD over 3 TB is not usable.

• For data files

Playing back MP4, JPEG, MP3, etc. in a

USB device with this unit.

• The USB device must be formatted in FAT12,

FAT16, FAT32 or NTFS file system.

• The USB device over 2 TB is not usable.

• This unit supports USB 2.0 High Speed.

• Although this unit can use USB 3.0 devices as USB 2.0

devices.

• This unit does not recognise USB HDDs other than those in

which the size of one sector is 512-bytes or 4096-bytes.

(For details, consult the dealer of your USB HDD.)

• This unit supports USB mass storage device class.

• This unit does not guarantee connection with all USB

devices.

Recording mode

Recording Mode DR HG/HX/HE/HL/HM XP/SP/LP/EP/FR§1

Feature Programmes can be

recorded in a nearly

perfect broadcasted state.

Recording can be done

with reduced recording

volume in High definition

(HD) quality§2.

Recording can be done

with reduced recording

volume in Standard

definition (SD) quality.

Recordable

media

Multiple audio Record all multiple audio Record only one audio§3

Audio

Description

Can be recorded Can be recorded§3

Subtitles Can be recorded Can be recorded (only one subtitle)§4

Surround audio Surround audio as the

broadcast

Stereo audio

Notes

Notes for the USB device

DMR-BWT850EB_eng.book 9 ページ２０１５年９月１１日　金曜日　午後５時４０分

Getting started

SQT1119

HDD and media information

• Region management information

The unit can play back BD-Video/DVD-Video

discs of the following regions codes, including

“ALL”:

• Disc recorded on another device

• It may be necessary to finalise the disc, create

Top Menu or close the session on the

equipment used for recording to play on this

unit.

•[DVD-RW] Recorded in DVD Video Recording

(DVD-VR) format

- This unit can play back and copy to HDD.

- This unit does not support editing or

recording.

- It is possible to record and edit with

DVD-Video (DVD-V) format by formatting

discs with this unit.

• Recording may not be possible to discs which

were used for recording on other equipment.

• Play on other players

•[BD-RE] [BD-R] When these discs cannot be

played back on other Blu-ray Disc players, etc.

(e.g., title recorded with HE-AAC audio

format), convert the recording mode to play

them back. (>44, File Conversion)

•[DVD-R] [DVD-RW] [+R] Finalisation is needed.

(>83)

•[+RW] If the disc failed to play on other

equipment, we recommend you create a Top

Menu (>83).

•[DVD-R] The disc created in AVCHD format can

only be played back on AVCHD compatible

equipment.

• Regarding 8 cm Disc

This unit cannot record or edit the 8 cm disc.

Only playback or copy to the HDD is possible.

• Discs that cannot be played

- DVD-RAM in a cartridge

- 2.6 and 5.2 GB DVD-RAM, 12 cm

- DVD-Audio

- Super Video CD, Super Audio CD, Video CD

• Operation and sound quality of CDs that do not conform to

CD-DA specifications (copy control CDs, etc.) cannot be

guaranteed.

• If the SD card is formatted on other equipment, the time

necessary for recording may be longer or the card may not

be able to be used on this unit. In these cases, format the

card on this unit.

• Do not touch the recorded surface of the discs

or the terminal surface of the SD cards.

• Wipe with a damp cloth and then wipe dry.

Notes for the disc

e.g., BD-Video DVD-Video

Notes for the SD cards

• Compatible SD card

- SD Memory Card

(from 8 MB to 2 GB, FAT12 and FAT16

formats)

- SDHC Memory Card

(from 4 GB to 32 GB, FAT32 format)

- SDXC Memory Card

(48 GB, 64 GB, exFAT format)

• Using miniSD card or microSD card

Mini-type and micro-type cards can also be

used, but must be used with adaptor cards

(optional).

Media handling

• Do not attach labels or stickers to discs.

• Do not use disc cleaning sprays, benzine,

thinner, static electricity prevention liquids or

any other solvent.

• Do not use the following discs:

- Discs with exposed adhesive from removed

stickers or labels (rental discs, etc.).

- Discs that are badly warped or cracked.

- Irregularly shaped discs, such as heart

shapes.

• Do not expose the terminals of the SD card to

water, garbage or other strange things.

DO DO NOT

DMR-BWT850EB_eng.book 10 ページ２０１５年９月１１日　金曜日　午後５時４０分

Table des matières

Autres manuels Panasonic Lecteur Blu-ray

Panasonic

Panasonic DMP-B15 - Portable Blu-ray Player Manuel utilisateur

Panasonic

Panasonic DMPBDT300 - 3D BLU-RAY DISC PLAYER Manuel utilisateur

Panasonic

Panasonic DMP-BBT01 Manuel utilisateur

Panasonic

Panasonic DMR-BW780EB Manuel utilisateur

Panasonic

Panasonic DMP-BD30 Manuel utilisateur

Panasonic

Panasonic DMP-BDT385 Caractéristiques techniques

Panasonic

Panasonic DMPBDT100 - 3D BLU-RAY DISC PLAYER Manuel utilisateur

Panasonic

Panasonic DMP-DSB100 Manuel utilisateur

Panasonic

Panasonic DP-UB420 Instructions d'installation et d'entretien

Panasonic

Panasonic DMR-BW500EF Manuel utilisateur

Panasonic

Panasonic Diga DMR-PWT635 Manuel utilisateur

Panasonic

Panasonic DMP-BDT380 Caractéristiques techniques

Panasonic

Panasonic DMP-BBT01 Caractéristiques techniques

Panasonic

Panasonic DMP-B15K Manuel utilisateur

Panasonic

Panasonic DMR-BWT945 Manuel utilisateur

Panasonic

Panasonic DMP-BDT384 Manuel utilisateur

Panasonic

Panasonic DMR-PWT550GL Manuel utilisateur

Panasonic

Panasonic DMP-BD65 Manuel utilisateur

Panasonic

Panasonic DMP-BD75 Manuel utilisateur

Panasonic

Panasonic DMP-BD77 Manuel utilisateur

Panasonic

Panasonic DMP-BD60GN Manuel utilisateur

Panasonic

Panasonic DMP-BDT210 Manuel utilisateur

Panasonic

Panasonic Diga DMR-PWT420 Manuel utilisateur

Panasonic

Panasonic Diga DMR-PWT520 Manuel utilisateur

Manuels Lecteur Blu-ray populaires d'autres marques

Samsung

Samsung BD-F5900 Manuel utilisateur

Philips

Philips BDP3380K Manuel utilisateur

Samsung

Samsung BD-P4600 Manuel utilisateur

Sharp

Sharp BD-HP17U - AQUOS 1080p Blu-ray DiscTM Player Manuel utilisateur

Pioneer

Pioneer BDP-140 Manuel d'installation et d'exploitation

Samsung

Samsung BD-D8200A Manuel utilisateur

LG HLX50W Manuel utilisateur

Sony

Sony BDP-S300 - Blu-Ray Disc Player Manuel utilisateur

Marantz

Marantz UD9004 Manuel utilisateur

LG BD611 Manuel utilisateur

Marantz

Marantz BD7004 Guide de démarrage rapide

Kogan

Kogan KABRP3DWFIA Manuel utilisateur

Toshiba

Toshiba BDX2700 Manuel utilisateur

Samsung

Samsung BD-E5400 Manuel utilisateur

Samsung

Samsung BD-F5100 Manuel utilisateur

Philips

Philips BDP7100 Manuel utilisateur

LG UBK80.DUSALLK Manuel utilisateur
