ORDER NO. DSD1203005CE

Blu-ray Disc Player

Model No. DMP-BD87PX

DMP-BD77PH

DMP-BD77PU

DMP-BD77GA

DMP-BD77GC

DMP-BD77GJ

DMP-BD77GN

DMP-BD77GT

DMP-BD77GW

Colour

(K)...........Black Type

TABLE OF CONTENTS

PAGE PAGE

1 Safety Precautions -----------------------------------------------3

1.1. General Guidelines ----------------------------------------3

1.2. Leakage Current Cold Check ---------------------------3

1.3. Leakage Current Hot Check (See Figure 1.) --------3

2Warning--------------------------------------------------------------4

2.1. Prevention of Electrostatic Discharge (ESD)

to Electrostatically Sensitive (ES) Devices ----------4

2.2. Caution for AC Cord (For GC) --------------------------5

2.3. Precaution of Laser Diode -------------------------------6

2.4. Static Electricity Protection Measures ----------------7

2.5. Ground for electrostatic breakdown

prevention----------------------------------------------------7

3 Service Navigation------------------------------------------------8

3.1. Service Information ----------------------------------------8

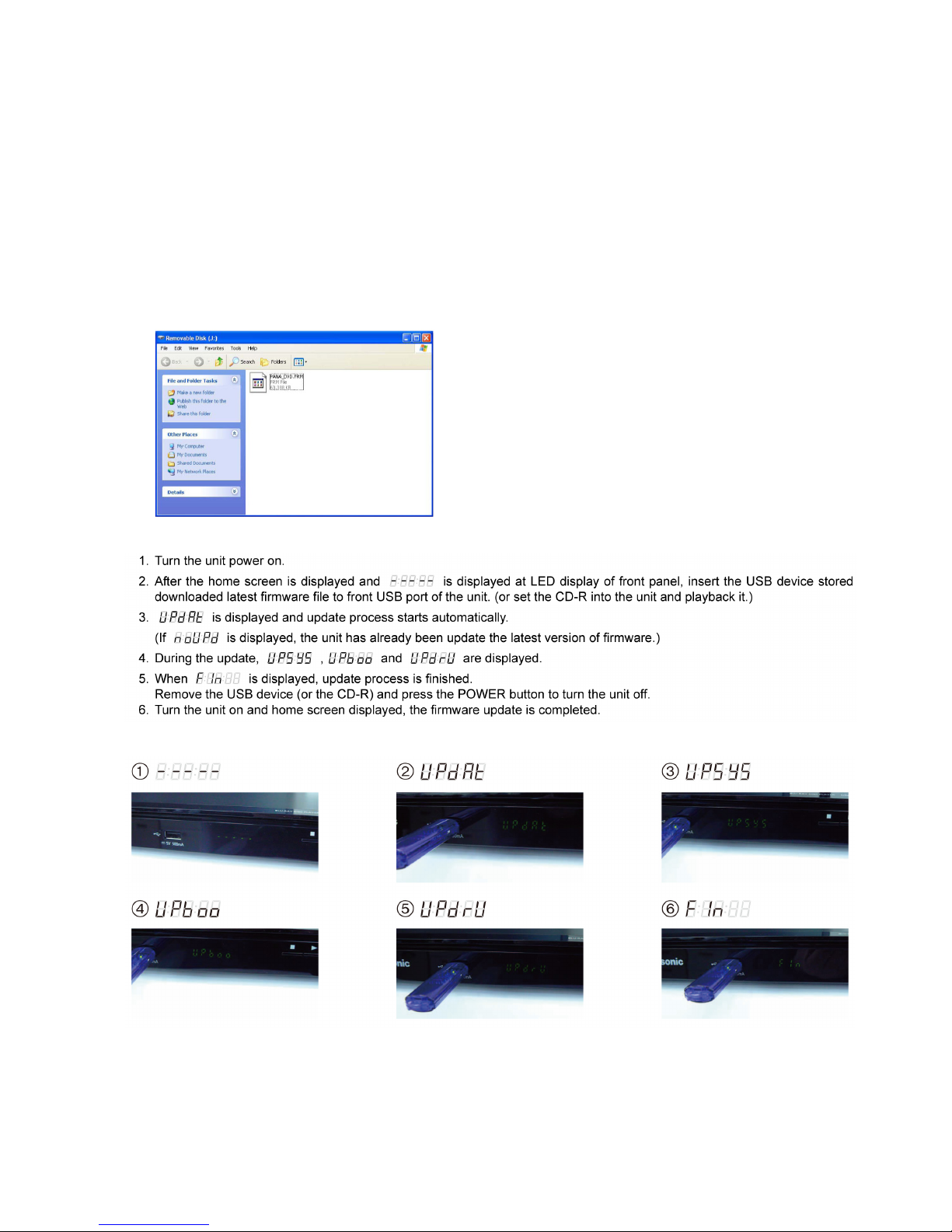

3.2. How to Update Firmware---------------------------------8

3.3. Caution for DivX (For PH/PU/GA/GC/GJ/GN/

GT/GW) ----------------------------------------------------- 10

4 Specifications ---------------------------------------------------- 11

4.1. Others (Licenses) ---------------------------------------- 12

5 Location of Controls and Components------------------ 15

6 Operating Instructions ---------------------------------------- 16

6.1. Taking out the Disc from Drive Unit when the

Disc cannot be ejected by OPEN/CLOSE

button-------------------------------------------------------- 16

7 Multiple Pressing Function ---------------------------------- 17

7.1. About the Multiple Pressing of the Unit’s

Remote Control------------------------------------------- 17

7.2. How to enter the Special Modes using the

Multiple Pressing Function of the Unit’s

Remote Control------------------------------------------- 17

8 Service Mode ----------------------------------------------------- 20

8.1. About the Service Mode-------------------------------- 20

8.2. Service Mode List ---------------------------------------- 21

9 Troubleshooting Guide---------------------------------------- 24

9.1. About Operation of Set --------------------------------- 24

9.2. About Circuit----------------------------------------------- 25

10 Wiring Connection and Voltage Data --------------------- 29

11 Disassembly and Assembly Instructions --------------- 30

11.1. Unit----------------------------------------------------------- 30

11.2. When Replacing the Mechanism Unit and/or

Digital P.C.B. ---------------------------------------------- 34

12 Exploded View and Replacement Parts List ----------- 35

12.1. Casing Parts & Mechanism Section----------------- 35

12.2. Packing & Accessories Section ---------------------- 36

12.3. Replacement Parts List--------------------------------- 37

1 Safety Precautions

1.1. General Guidelines

1. IMPORTANT SAFETY NOTICE

There are special components used in this equipment

which are important for safety. These parts are marked by

in the Schematic Diagrams, Circuit Board Layout,

Exploded Views and Replacement Parts List. It is essen-

tial that these critical parts should be replaced with manu-

facturer’s specified parts to prevent X-RADIATION,

shock, fire, or other hazards. Do not modify the original

design without permission of manufacturer.

2. An Isolation Transformer should always be used during

the servicing of AC Adaptor whose chassis is not isolated

from the AC power line. Use a transformer of adequate

power rating as this protects the technician from acci-

dents resulting in personal injury from electrical shocks. It

will also protect AC Adaptor from being damaged by acci-

dental shorting that may occur during servicing.

3. When servicing, observe the original lead dress. If a short

circuit is found, replace all parts which have been over-

heated or damaged by the short circuit.

4. After servicing, see to it that all the protective devices

such as insulation barriers, insulation papers shields are

properly installed.

5. After servicing, make the following leakage current

checks to prevent the customer from being exposed to

shock hazards.

1.2. Leakage Current Cold Check

1. Unplug the AC cord and connect a jumper between the

two prongs on the plug.

2. Measure the resistance value, with an ohmmeter,

between the jumpered AC plug and each exposed metal-

lic cabinet part on the equipment such as screwheads,

connectors, control shafts, etc. When the exposed metal-

lic part has a return path to the chassis, the reading

should be between 1 MΩand 5.2 MΩ. When the exposed

metal does not have a return path to the chassis, the

reading must be infinity.

1.3. Leakage Current Hot Check

(See Figure 1.)

1. Plug the AC cord directly into the AC outlet. Do not use

an isolation transformer for this check.

2. Connect a 1.5 kΩ, 10 W resistor, in parallel with a 0.15 μF

capacitor, between each exposed metallic part on the set

and a good earth ground, as shown in Figure 1.

3. Use an AC voltmeter, with 1 kΩ/V or more sensitivity, to

measure the potential across the resistor.

4. Check each exposed metallic part, and measure the volt-

age at each point.

5. Reverse the AC plug in the AC outlet and repeat each of

the above measurements.

6. The potential at any point should not exceed 0.75 V RMS.

A leakage current tester (Simpson Model 229 or equiva-

lent) may be used to make the hot checks, leakage cur-

rent must not exceed 1/2 mA. In case a measurement is

outside of the limits specified, there is a possibility of a

shock hazard, and the equipment should be repaired and

rechecked before it is returned to the customer.

Figure. 1

2Warning

2.1. Prevention of Electrostatic Discharge (ESD) to Electrostatically

Sensitive (ES) Devices

Some semiconductor (solid state) devices can be damaged easily by static electricity. Such components commonly are called Elec-

trostatically Sensitive (ES) Devices.

The following techniques should be used to help reduce the incidence of component damage caused by electrostatic discharge

(ESD).

1. Immediately before handling any semiconductor component or semiconductor-equipped assembly, drain off any ESD on your

body by touching a known earth ground. Alternatively, obtain and wear a commercially available discharging ESD wrist strap,

which should be removed for potential shock reasons prior to applying power to the unit under test.

2. After removing an electrical assembly equipped with ES devices, place the assembly on a conductive surface such as alumi-

num foil, to prevent electrostatic charge buildup or exposure of the assembly.

3. Use only a grounded-tip soldering iron to solder or unsolder ES devices.

4. Use only an antistatic solder removal device. Some solder removal devices not classified as "antistatic (ESD protected)" can

generate electrical charge sufficient to damage ES devices.

5. Do not use freon-propelled chemicals. These can generate electrical charges sufficient to damage ES devices.

6. Do not remove a replacement ES device from its protective package until immediately before you are ready to install it. (Most

replacement ES devices are packaged with leads electrically shorted together by conductive foam, aluminum foil or compara-

ble conductive material).

7. Immediately before removing the protective material from the leads of a replacement ES device, touch the protective material

to the chassis or circuit assembly into which the device will be installed.

CAUTION :

Be sure no power is applied to the chassis or circuit, and observe all other safety precautions.

8. Minimize bodily motions when handling unpackaged replacement ES devices. (Otherwise harmless motion such as the

brushing together of your clothes fabric or the lifting of your foot from a carpeted floor can generate static electricity (ESD) suf-

ficient to damage an ES device).

2.2. Caution for AC Cord

(For GC)

2.2.1. Information for Your Safety

IMPORTANT

Your attention is drawn to the fact that recording of pre-

recorded tapes or discs or other published or broadcast

material may infringe copyright laws.

WARNING

To reduce the risk of fire or shock hazard, do not expose

this equipment to rain or moisture.

CAUTION

To reduce the risk of fire or shock hazard and annoying

interference, use the recommended accessories only.

FOR YOUR SAFETY

DO NOT REMOVE THE OUTER COVER

To prevent electric shock, do not remove the cover. No user

serviceable parts inside. Refer servicing to qualified service

personnel.

2.2.2. Caution for AC Mains Lead

For your safety, please read the following text carefully.

This appliance is supplied with a moulded three-pin mains plug

for your safety and convenience.

A 5-ampere fuse is fitted in this plug.

Should the fuse need to be replaced please ensure that the

replacement fuse has a rating of 5 amperes and it is approved

by ASTA or BSI to BS1362

Check for the ASTA mark or the BSI mark on the body of the

fuse.

If the plug contains a removable fuse cover you must ensure

that it is refitted when the fuse is replaced.

If you lose the fuse cover, the plug must not be used until a

replacement cover is obtained.

A replacement fuse cover can be purchased from your local

Panasonic Dealer.

If the fitted moulded plug is unsuitable for the socket outlet in

your home then the fuse should be removed and the plug cut

off and disposed of safety.

There is a danger of severe electrical shock if the cut off plug is

inserted into any 13-ampere socket.

If a new plug is to be fitted please observe the wiring code as

shown below.

If in any doubt, please consult a qualified electrician.

2.2.2.1. Important

The wires in this mains lead are coloured in accordance with

the following code:

As the colours of the wires in the mains lead of this appliance

may not correspond with the coloured markings identifying the

terminals in your plug, proceed as follows:

The wire which is coloured BLUE must be connected to the ter-

minal in the plug which is marked with the letter N or coloured

BLACK.

The wire which is coloured BROWN must be connected to the

terminal in the plug which is marked with the letter L or coloured

RED.

Under no circumstances should either of these wires be con-

nected to the earth terminal of the three pin plug, marked with

the letter E or the Earth Symbol.

2.2.2.2. Before Use

Remove the Connector Cover as follows.

2.2.2.3. How to Replace the Fuse

1. Remove the Fuse Cover with a screwdriver.

2. Replace the fuse and attach the Fuse cover.

Blue Neutral

Brown Live

2.3. Precaution of Laser Diode

2.4. Static Electricity Protection Measures

• The laser diode in the traverse unit (optical pick-up) may break down due to potential difference caused by static electricity of

clothes or human body.

So, be careful of electrostatic breakdown during repair of the traverse unit (optical pick-up).

2.5. Ground for electrostatic breakdown prevention

• As for parts that use optical pick-up (laser diode), the optical pick-up is destroyed by the static electricity of the working environ-

ment.

Repair in the working environment that is grounded.

2.5.1. Work table grounding

• Put a conductive material (sheet) or steel sheet on the area where the traverse unit (optical pick-up) is placed, and ground the

sheet.

2.5.2. Human body grounding

• Use the anti-static wrist strap to discharge the static electricity from your body.

2.5.3. When exchange the Drive

• Before remove the ESD prevention bag, make sure to use the anti-static wrist strap to discharge the static electricity when

replace the Drive.

Note:

The ESD prevention bag is used to replace the original short-circuit point.

It can be removed while placing the Drive.

3 Service Navigation

3.1. Service Information

This service manual contains technical information, which allow service personnel's to understand and service this model.

Please place orders using the parts list and not the drawing reference numbers.

If the circuit is changed or modified, the information will be followed by service manual to be controlled with original service manual.

Note:

The replacement parts of this model is supplied as block unit.

Please use Troubleshooting Guide for your reference of the repair.

3.2. How to Update Firmware

The firmware of the unit may be renewed to improve the quality including operational performance and playability.

Make sure to refer the following procedure when performing version-up.

3.2.1. Confirmation of the Firmware Version

Perform following steps to checking the firmware version currently installed in the unit.

1. Turn the unit on and wait the Home screen is displayed.

2. Select [Setup] →[Player Settings] →[System] →[System Information] →[Firmware Version Information].

3. Firmware Version Information screen is displayed.

3.2.2. Updating Firmware

This unit has 2 updating method, one way to update via the internet, the other way to update using CD-R or USB device which is

stored pre-downloaded firmware update file.

3.2.2.1. Updating firmware via the internet

3.2.2.2. Updating firmware using the USB device

When updating firmware using USB device, perform following procedures.

(When using CD-R instead of USB device, perform same procedures)

1. Download the latest firmware file of the unit

The latest firmware required for version-up can be downloaded from “Support Information from NWBG/VDBG-PAVC” web-site

in “TSN system”

Click file name to download.

After download, click file to decompress. (Total: 1 file).

2. Decompress the downloaded file.

The decompressed file will be named as follows.

File Name: PANA_DVD.FRM

Copy the file to root folder of the USB device.

(If using CD-R instead of USB device, burn the file to a blank CD-R by writing software.)

3. Update the unit.

3.3. Caution for DivX (For PH/PU/GA/GC/GJ/GN/GT/GW)

Please will always pass the customer “Warning for Customers Who Use the DivX Video-on-Demand content.” with the product and

get it when you unavoidably exchange DIGITAL P.C.B. including FLASH ROM (When the product is exchanged, it is the same.).

You must use print attached to service part (DIGITAL P.C.B. including FLASH ROM) or must use copy of print below as “Warning for

Customers Who Use the DivX Video-on-Demand content.”

Information needed without fail for the customer for whom it is used continuing DivX Video-on-Demand Service to “Manual for the

customer” is recorded.

Appendix:

*Parts that memorize user’s information are only FLASH ROM.

*The registration of Registration Code is possible for half a year up to 6 recorders up to 10 recorders a year.

Registration Code is memorized in FLASH ROM (Digital P.C.B.).

If exchange above P.C.B. or FLASH ROM, new registration Code differ from previous Registration Code will be generated.

In this case if your customer uses DivX Video-on-Demand service, he/she will no longer be able to play any content that he/she pur-

chased under that same registration code.

Therefore your customer will need to obtain and register the new registration code.

*Copy this page and cut on the dotted line and give the lower half to your customer.

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Warning for Customers Who Use the DivX Video-on-Demand content.

1. The registration code has been changed for the repair of the product or the product exchange.

2. Obtain and register a new registration code, otherwise you will no longer be able to play DivX Video-on-Demand content.

3. Follow the procedure on the DivX Video-on-Demand web site to register at http://vod.divx.com/.

*If you do not use the DivX Video-on-Demand content, please ignore this warning.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Panasonic Lecteur Blu-ray

Panasonic

Panasonic UltraHD DP-UB450 Manuel utilisateur

Panasonic

Panasonic DMR-BWT720EB Manuel utilisateur

Panasonic

Panasonic DMP-BD10K Manuel utilisateur

Panasonic

Panasonic DMP-BD75P Manuel utilisateur

Panasonic

Panasonic DMP-BDT320 Manuel utilisateur

Panasonic

Panasonic Diga DMR-PWT500 Manuel utilisateur

Panasonic

Panasonic DMP-BDT310 Manuel utilisateur

Panasonic

Panasonic DMP-BD70V - Blu-ray Disc/VHS Multimedia... Manuel utilisateur

Panasonic

Panasonic DMP-DSB100 Manuel utilisateur

Panasonic

Panasonic DMP-BD65 Caractéristiques techniques

Panasonic

Panasonic DMP-BDT380 Caractéristiques techniques

Panasonic

Panasonic DMR-BWT460 Manuel utilisateur

Panasonic

Panasonic DMP-BD813EG Caractéristiques techniques

Panasonic

Panasonic DMP-BD73 Caractéristiques techniques

Panasonic

Panasonic DMP-UB404 Manuel utilisateur

Panasonic

Panasonic UltraHD DP-UB824 Manuel utilisateur

Panasonic

Panasonic DMR-BS785EG Manuel utilisateur

Panasonic

Panasonic DMP-BD75GA Manuel utilisateur

Panasonic

Panasonic DMPBD79 Caractéristiques techniques

Panasonic

Panasonic DMP-BD55; DMP-BD35 Manuel utilisateur

Panasonic

Panasonic DMP-BDT320 Manuel utilisateur

Panasonic

Panasonic DMP-BDT260 Caractéristiques techniques

Panasonic

Panasonic DMP-BDT180 Caractéristiques techniques

Panasonic

Panasonic DMP-BDT460 Manuel utilisateur

Manuels Lecteur Blu-ray populaires d'autres marques

Samsung

Samsung BD-F5900 Manuel utilisateur

Philips

Philips BDP3380K Manuel utilisateur

Samsung

Samsung BD-P4600 Manuel utilisateur

Sharp

Sharp BD-HP17U - AQUOS 1080p Blu-ray DiscTM Player Manuel utilisateur

Pioneer

Pioneer BDP-140 Manuel d'installation et d'exploitation

Samsung

Samsung BD-D8200A Manuel utilisateur

LG HLX50W Manuel utilisateur

Sony

Sony BDP-S300 - Blu-Ray Disc Player Manuel utilisateur

Marantz

Marantz UD9004 Manuel utilisateur

LG BD611 Manuel utilisateur

Marantz

Marantz BD7004 Guide de démarrage rapide

Kogan

Kogan KABRP3DWFIA Manuel utilisateur

Toshiba

Toshiba BDX2700 Manuel utilisateur

Samsung

Samsung BD-E5400 Manuel utilisateur

Samsung

Samsung BD-F5100 Manuel utilisateur

Philips

Philips BDP7100 Manuel utilisateur

LG UBK80.DUSALLK Manuel utilisateur
