Panasonic KX-TG2322B Manuel utilisateur

2.4GHz Digital Cordless Answering System

Operating Instructions

Model No. KX-TG2322

Pulse-or-tone dialing capability

PLEASE READ BEFORE USE AND SAVE.

Panasonic World Wide Web address: http://www.panasonic.com

for customers in the USA or Puerto Rico

Charge the battery for 6 hours before initial use.

Thank you for purchasing your new Panasonic cordless

telephone.

Please read the IMPORTANT SAFETY INSTRUCTIONS on

page 37 before use. Read and understand all instructions.

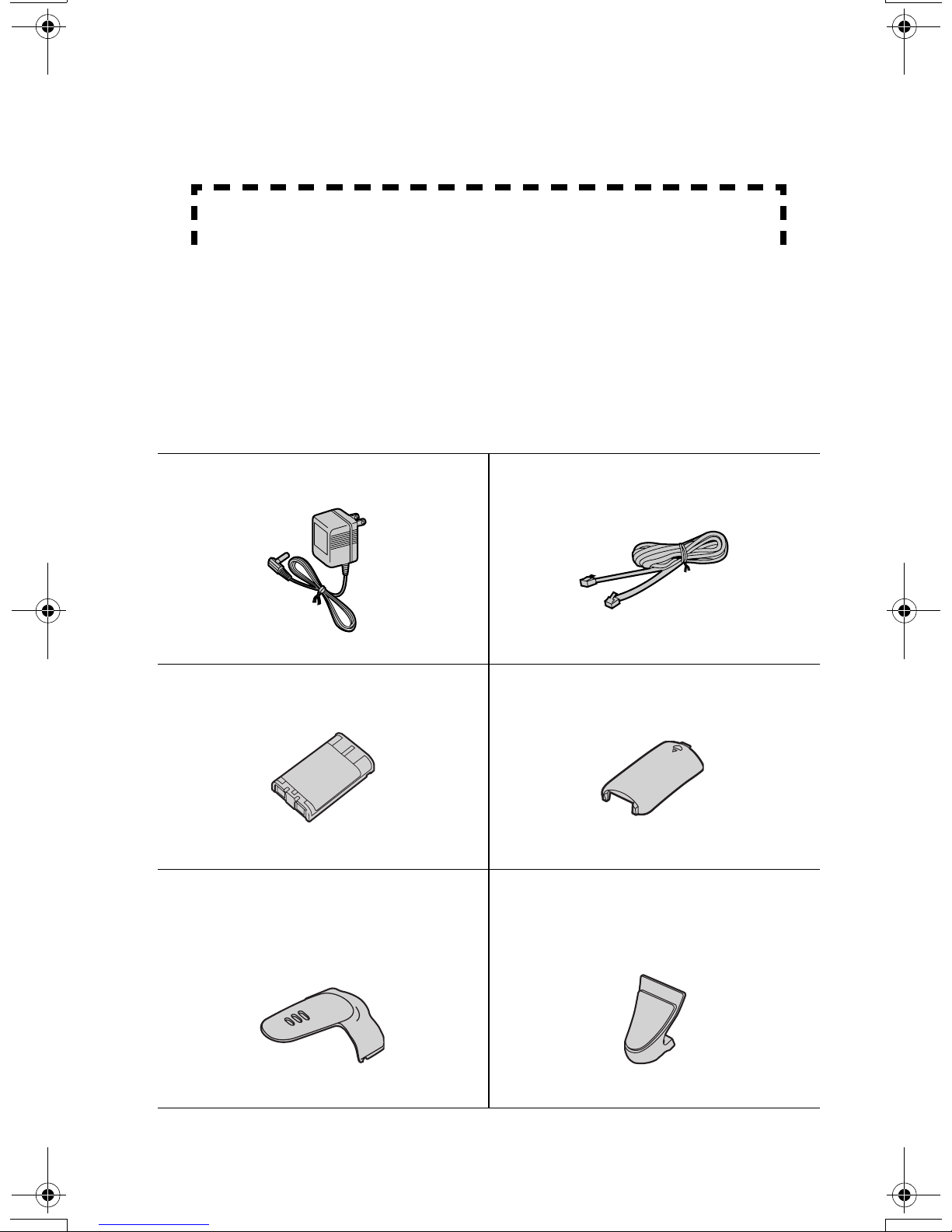

Accessories (included)

For extra orders, call 1-800-332-5368.

For hearing or speech impaired TTY users, call 1-866-605-1277.

AAC Adaptor (p. 9)

Order No. PQLV1Z (PQLV1)

one

ATelephone Line Cord (p. 9)

Order No. PQJA10075Z

one

ABattery (p. 10)

Order No. HHR-P104

one

AHandset Cover (p. 10)

Order No. PQKK10140Z2

one

ABelt Clip (p. 32)

Order No. PQKE10375Z2

one

AShoulder Rest

Attachment (p. 32)

Order No. PQKE10364Z1

one

Attach your purchase receipt here.

For assistance, please call: 1-800-211-PANA(7262)

For Best Performance

Battery Charge

The handset is powered by a rechargeable

Nickel-Metal Hydride (Ni-MH) battery. Charge

the battery for 6 hours before initial use

(p. 10).

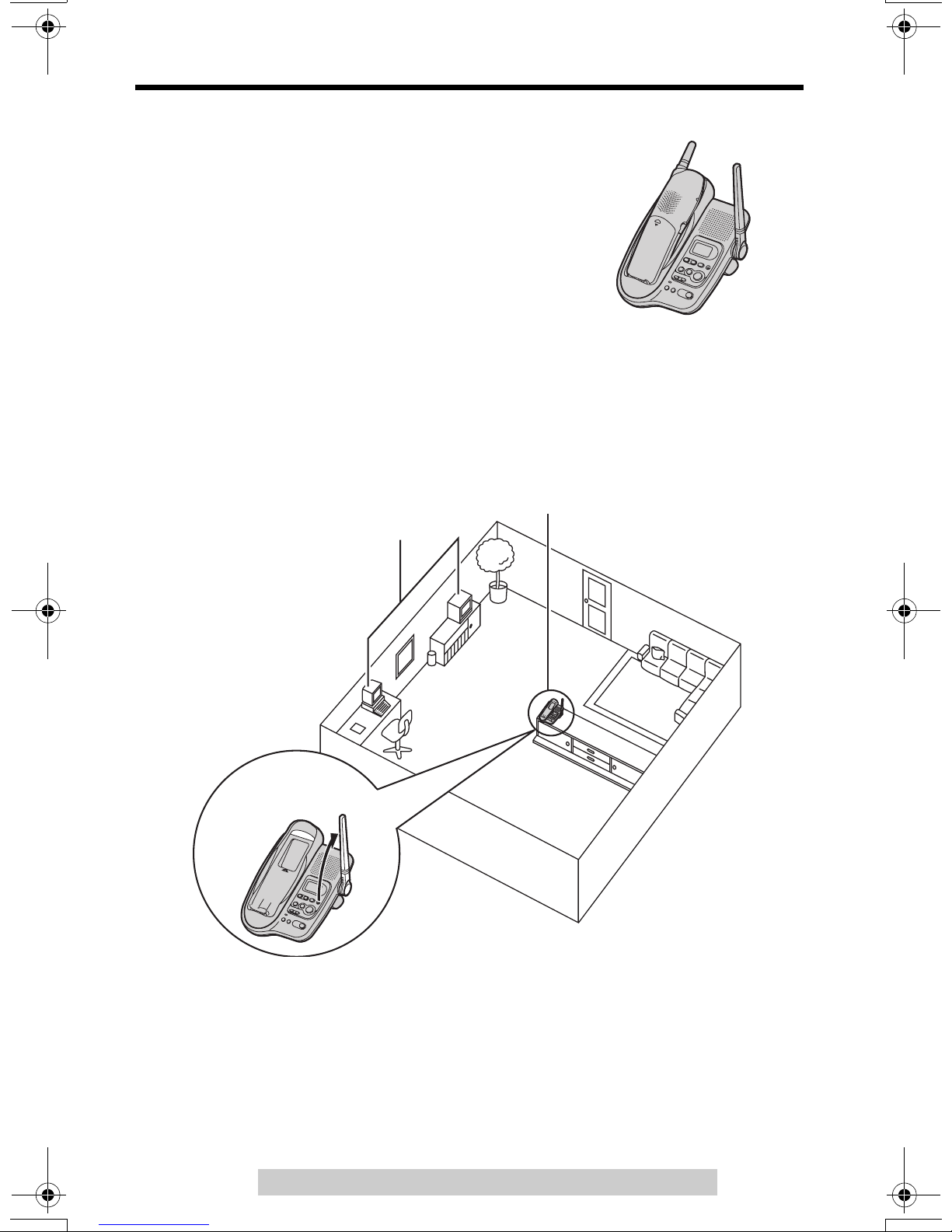

Base Unit Location/Noise

Calls are transmitted between the base unit and handset using wireless

radio waves. For maximum distance and noise-free operation, the

recommended base unit location is:

Note:

• If you use the handset near a microwave oven which is being used, noise

may be heard from the receiver or the speaker. Move away from the

microwave oven and closer to the base unit.

• If you use the handset near another cordless phone’s base unit, noise

may be heard. Move away from the other cordless phone’s base unit and

closer to your base unit.

Raise the

antenna.

Away from electrical appliances

such as a TV, personal computer

or another cordless phone.

In a HIGH and CENTRAL location

with no obstructions such as walls.

Contents

Location of Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Installing the Battery in the Handset . . . . . . . . . . . . . . . . . . . . . . . . 10

Battery Charge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Programmable Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Programmable Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Time and Day . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Dialing Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Ringer Volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Ringer Tone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Preparing the Answering System . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Greeting Message . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Number of Rings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Remote Code . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Making Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Answering Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Special Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Handset Locator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Temporary Tone Dialing (For Rotary or Pulse Service Users) . . . 22

For Call Waiting Service Users . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

FLASH Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Re-registering the Handset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Preparation

Telephone System

For assistance, please call: 1-800-211-PANA(7262) 5

Contents

Preparation Useful InformationAnswering SystemTelephone System

Automatic Answering Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Setting the Unit to Answer Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Monitoring Incoming Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Listening to Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Erasing Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Remote Operation from a Touch Tone Phone . . . . . . . . . . . . . . . . . 28

Voice Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Direct Remote Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Wall Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Belt Clip . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Shoulder Rest Attachment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Optional Headset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Important Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

FCC and Other Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Answering System

Useful Information

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Important:

Throughout these Operating Instructions, and are

used to indicate with which unit an operation can be performed.

: Perform with the handset.

: Perform with the base unit.

: Perform with the handset and base unit together.

Handset Base Unit

Handset

Base Unit

Handset & Base Unit

Location of Controls

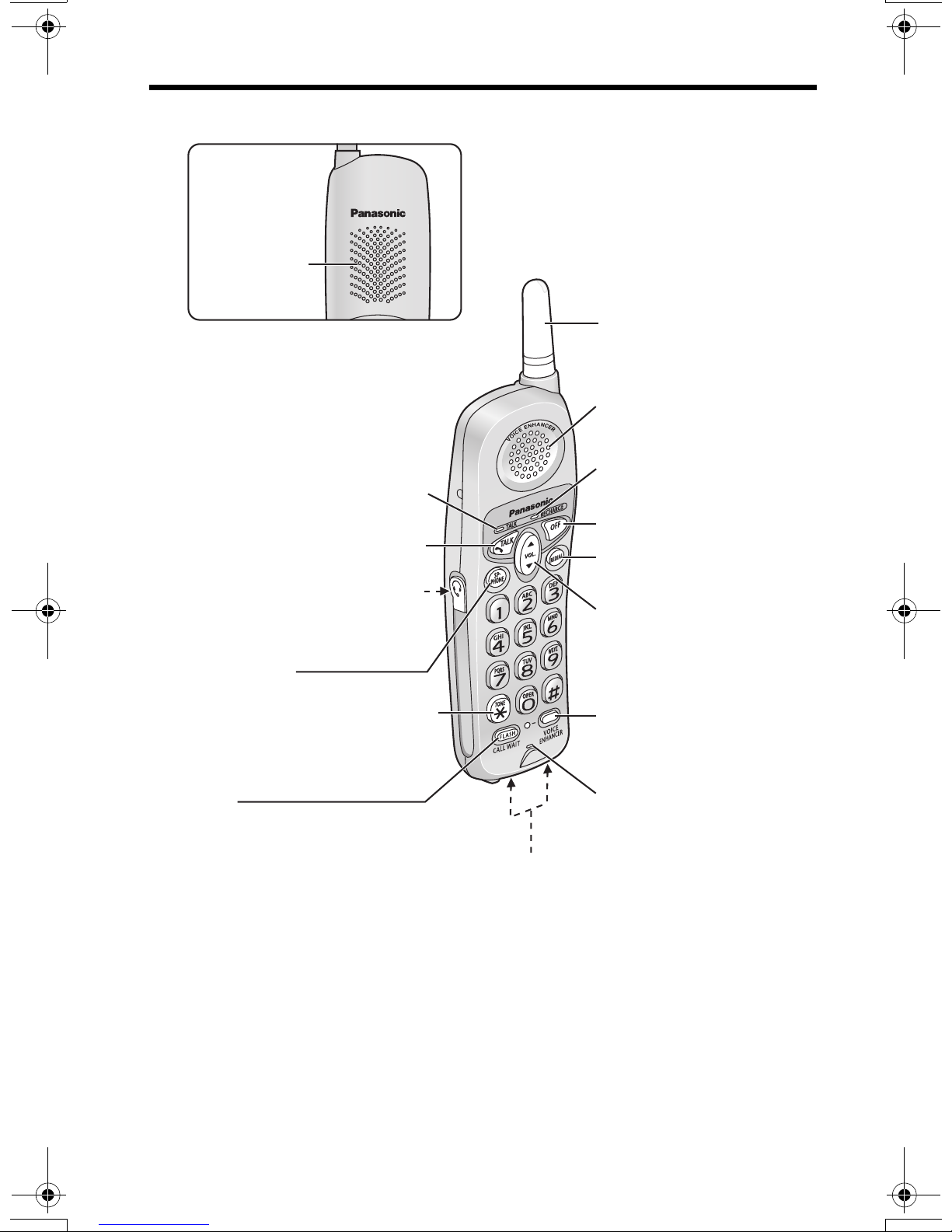

Handset

[OFF] Button (p. 12, 19)

VOL. (VOLUME) Key

([

],[

]) (p. 14, 20)

Back side

Speaker

Headset Jack (p. 33)

[C](TALK) Button (p. 19)

[*](TONE) Button (p. 22)

[FLASH/CALL WAIT] Button

(p. 22)

[REDIAL] Button

(p. 20)

Charge Contacts (p. 11)

Microphone (p. 19)

Antenna

Receiver

RECHARGE Indicator

(p. 11)

[VOICE ENHANCER]

Button and Indicator

(p. 12, 20)

TALK Indicator (p. 19)

[SP-PHONE] (Speakerphone)

Button (p. 19)

Preparation

For assistance, please call: 1-800-211-PANA(7262) 7

Location of Controls

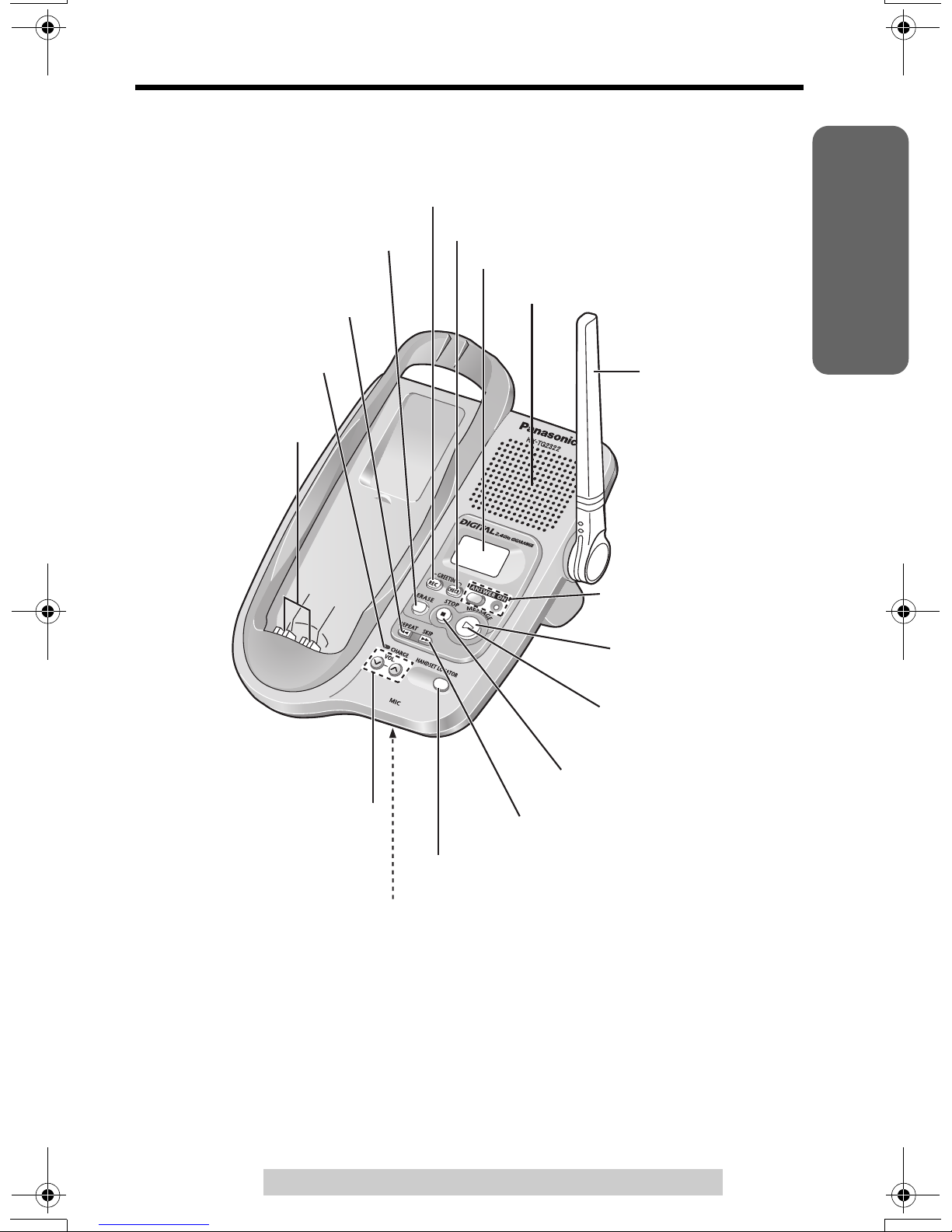

Base unit

Display (p. 7)

NEW MESSAGE

Indicator (p. 24)

MIC (Microphone) (p. 15)

[STOP] Button

(p. 15, 24)

[ERASE] (p. 16, 25)

[LOCATOR/INTERCOM] (p. 16)

VOL. (VOLUME) [ ], [ ]

(p. 16, 15)

Charge Contacts

(p. 11)

[GREETING REC] (Record) (p. 15)

[REPEAT] (p. 24)

[SKIP] Button (p. 24)

[GREETING CHECK] (p. 16)

CHARGE Indicator

(p. 10)

CHARGE Indicator

(p. 10)

VOL. (VOLUME) Button

[<], [>](p. 16)

MIC (Microphone) (p. 16)

[HANDSET LOCATOR] Button (p. 22)

NEW MESSAGE

Indicator (p. 26)

Charge Contacts

(p. 11)

Antenna (p. 3)

Display (p. 8)

[ANSWER ON] Butto

and Indicator (p. 24)

[SKIP] Button (p. 26)

[GREETING REC] (Record) Button (p. 16)

[STOP] Button (p. 16, 26)

[GREETING CHECK] Button (p. 17)

[REPEAT] Button (p. 26)

[ERASE] Button (p. 17, 27)

[MESSAGE] Button

(p. 26)

Speaker

Location of Controls

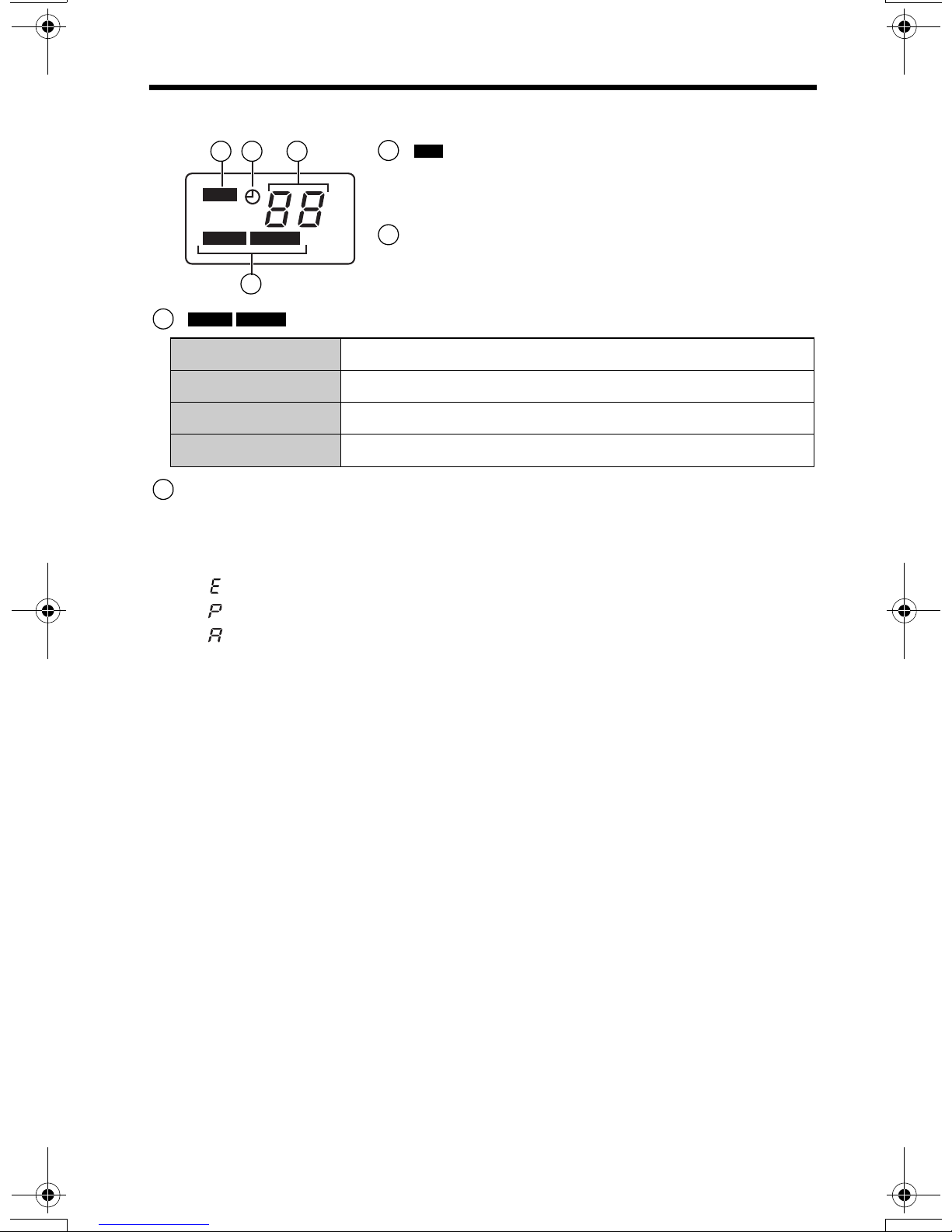

Base unit display

“ ” flashes when no new messages can be

recorded. Erase unnecessary messages

(p. 27).

“E” flashes until you set the time and day, and

flashes after a power failure. If it is flashing,

set the time and day (p. 13).

“ ” functions as follows.

Message counter shows:

—the total number of recorded messages (p. 26).

—the selected volume level while you are adjusting the speaker volume

(p. 16).

—“ ” when your greeting message was not recorded correctly (p. 16).

—“ ” during programming (p. 12).

—“ ” when [0] is pressed for Toll Saver mode when selecting the

number of rings (p. 18).

Off (invisible) The line is free.

On The line is being used.

Flashing Answering System is answering a call (p. 24).

Flashing rapidly A call is being received.

FULL

RINGER

OFF

LINE

IN USE

241

FULL

LINE IN USE

For assistance, please call: 1-800-211-PANA(7262)

Preparation

Installation

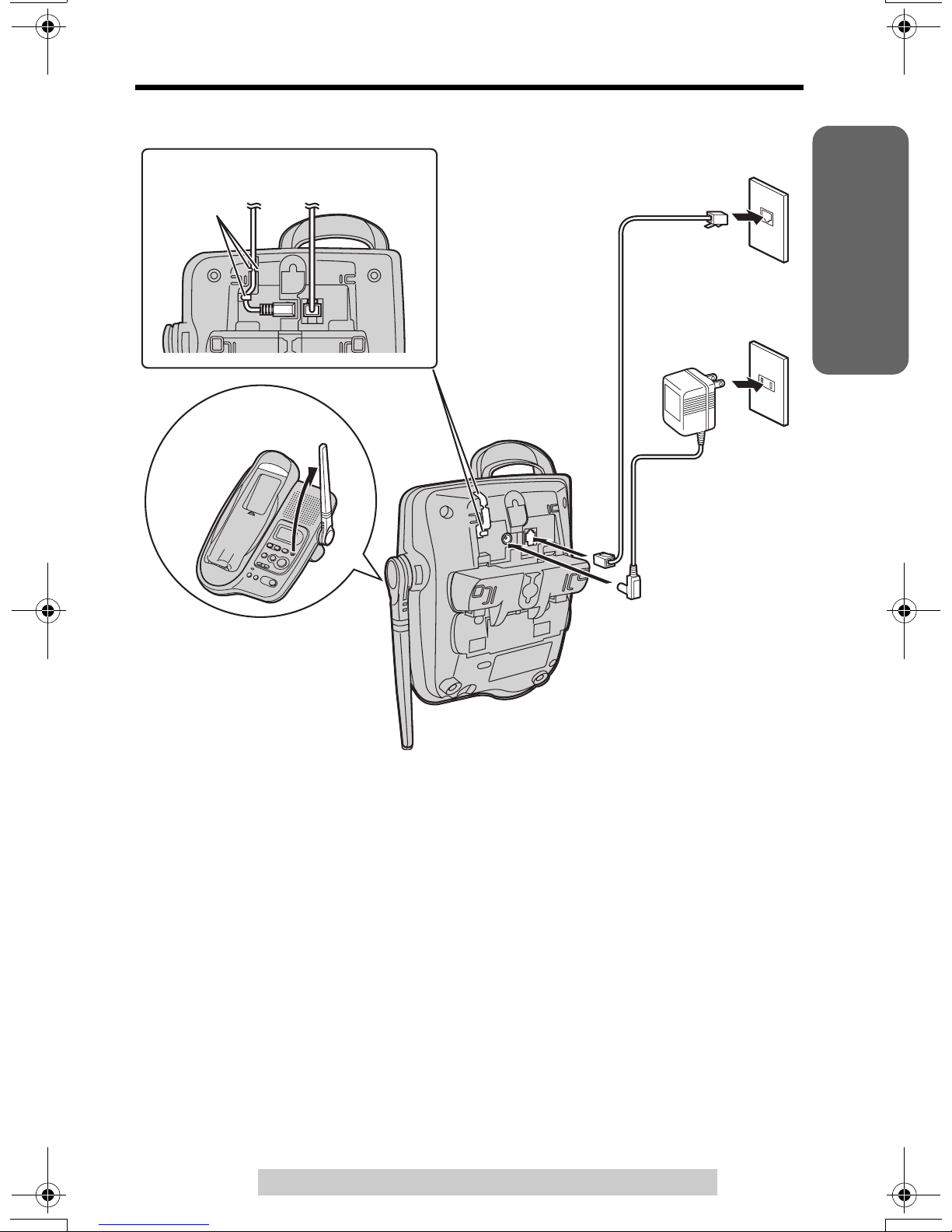

Connections

• USE ONLY WITH Panasonic AC ADAPTOR PQLV1 (Order No. PQLV1Z).

• The AC adaptor must remain connected at all times. (It is normal for the

adaptor to feel warm during use.)

• The unit will not work during a power failure. We recommend connecting

a standard telephone to the same telephone line or to the same telephone

jack using the Panasonic KX-J66 T-adaptor.

Hooks

Fasten the AC adaptor cord.

Raise the

antenna.

AC Adaptor

Telephone Line

Cord Power Outlet

(AC 120 V, 60 Hz)

Single-Line Telephone Jack

(RJ11C)

Installation

Installing the Battery in the Handset

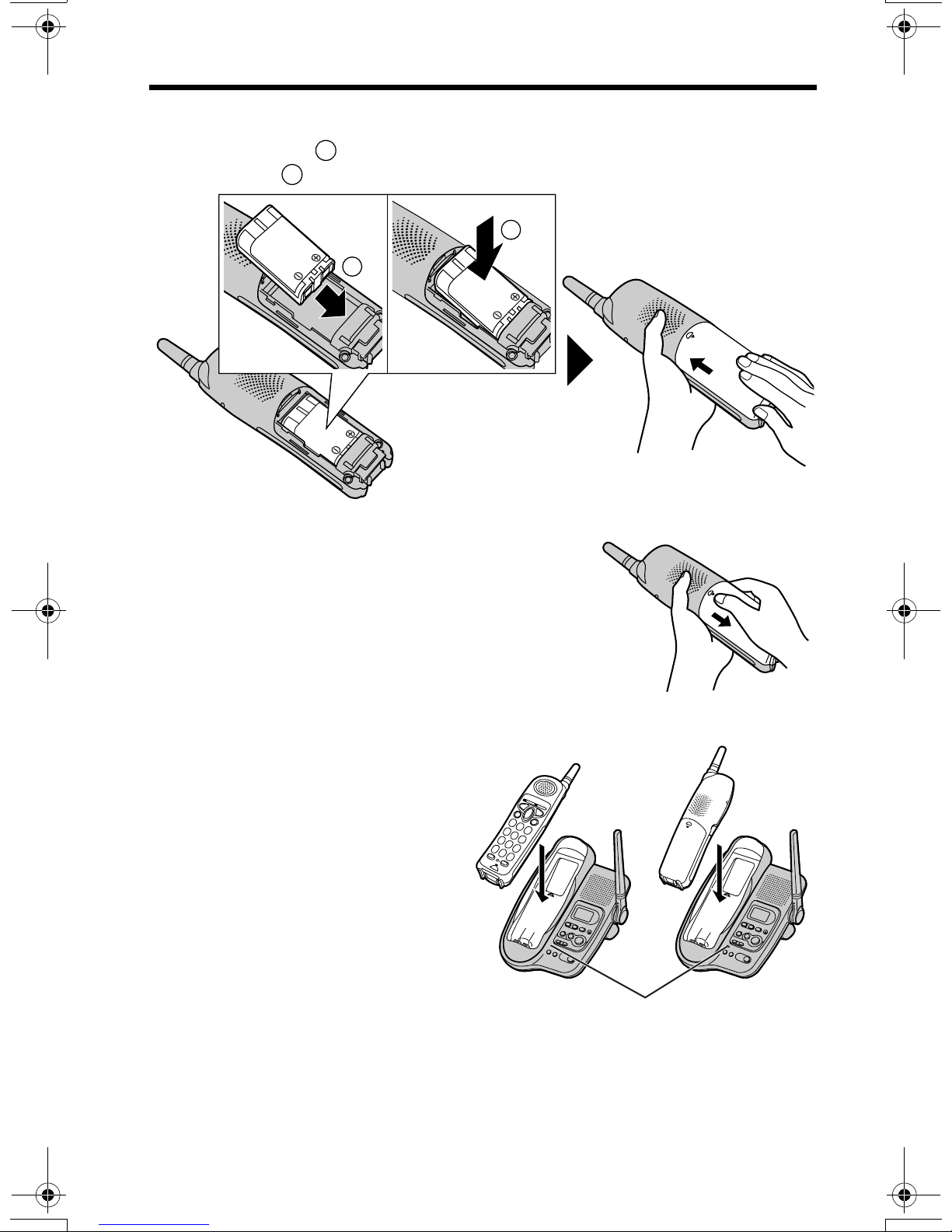

Insert the battery ( ), and press it down until it snaps into the

compartment ( ). Close the cover.

To replace the battery:

Press the notch on the cover firmly and slide it as

indicated by the arrow. Replace the old battery

with a new one (p. 11). Close the cover and

charge the battery for 6 hours.

Battery Charge

Place the handset on the base

unit. Charge for 6 hours before

initial use.

• The unit beeps once and the

CHARGE indicator lights.

CHARGE Indicator
