Panasonic KX-TC1733B Manuel utilisateur

Caller ID Compatible I

PLEASE READ BEFORE USE AND SAVE.

Charge the battery for about 15 hours before initial use.

Panasonic World Wide Web address: http://www.panasonic.com

for customers in the USA or Puerto Rico

Before InitialUse

Please read IMPORTANT SAFETY

INSTRUCTIONS on page 76 before use.

Read and understand all instructions,

Thank you for purchasing your new Panasonic cordless

telephone.

Caller ID and Call Woiting Service, where available, are telephone

company services. After subscribing to Caller ID, this phone will display

acaller's name and phone number. Call Waiting Caller ID, which

displays a second caller's name and phone number while the user is on

another call, requires a subscriptionto both Caller ID and Call Waiting.

Attach your purchase receipt here. |1

For your future reference

Serial No.

(foundon thebottomof theunit)

Name and address of dealer

Date of purchase

Accessories (included)

For extra orders, call 1-800-332-5368.

[] AC Adaptor (p. 12_

Order No.

KX-TCA1oG

one

[] Wall Mounting Adaptor (p. 66)

Order No.

PQKL10035Z1 _

one

[] Telephone Line Cord (p. 12)

one

[] Belt Clip (p. 68)

Order No.

PQKE10130Z1

one

For Best Performance

Battery Charge

A rechargeable Ni-Cd battery powers the

handset. Charge the battery for about

15 hours before initial use (p. 13).

Base Unit Location/Noise

Calls are transmitted between the base unit and the handset using

wireless radio waves. For maximum distance and noise-free

operation, the recommended base unit location is:

Away from electrical appliances

such as a TV, personal computer. In a HIGH and CENTRAL location

with no obstructions such as walls.

atise the

enna.

Contents

Location of Controls ................................. 6

Displays ........................................... 8

Settings ........................................... 12

Connections ....................................... 12

Battery Charge ..................................... 13

Selecting the Dialing Mode ............................ 15

Selecting the Line Mode .............................. 16

Programmable Functions ............................. 17

Setting the Auto Talk Feature .......................... 18

Selecting the Ringer Volume ........................... 19

Selecting the LCD Contrast ............................ 20

Preparing the Answering System ....................... 21

Greeting Message ................................... 21

Programming Summary for the Answering System .......... 23

Day and Time Adjustment ............................. 24

Selecting the Caller's Recording Time .................... 26

Selecting the Number of Rings ......................... 27

Making Calls ........................................ 28

Answering Calls ..................................... 32

Caller ID Service ..................................... 33

Using the Caller List ................................. 35

Viewing the Caller List ............................... 35

Calling Back from the Caller List ........................ 37

Editing the Caller's Phone Number ...................... 38

Storing Caller List Information in the Directory .............. 39

Erasing Caller List Information ......................... 40

Using the Directory .................................. 41

Storing Names and Numbers in the Directory .............. 41

Steps for Entering Names and Symbols .................. 43

Finding Items in the Directory .......................... 45

Dialing from the Directory ............................. 46

Editing an Item in the Directory ......................... 47

Erasing an Item from the Directory ...................... 48

Intercom ........................................... 49

Special Features ..................................... 50

Automatic Security Code Setting ........................ 50

Temporary Tone Dialing

(For Rotary or Pulse Service Users) ................... 50

For Call Waiting Service Users ......................... 51

How to Use the PAUSE Button

(For Analog PBX Line/Long Distance Service Users) ....... 51

FLASH Button ..... ................................. 52

Automatic Answering Operation ........................ 53

Setting the Unit to Answer Calls ........................ 53

Listening to Messages ................................ 54

Slow Talk Message Playback .......................... 54

From the Handset ................................... 56

Erasing Messages ................................... 57

Remote Operation from a Touch Tone Phone ............. 58

Setting the Remote Code ............................. 59

Voice Menu ........................................ 60

Direct Remote Operation ............................. 62

Remote Operation with the Handset ..................... 64

Wall Mounting ...................................... 66

Using the Belt Clip ................................... 68

Using an Optional Headset ............................ 68

Battery Replacement ................................. 89

Adding Another Phone ............................... 69

Before Requesting Help ............................... 70

Important Safety Instructions .......................... 76

FCC and Other Information ............................ 78

Location of Controls

Base unit

Button (p. 55)

RI_RE_ Button (p. 55)

/ANSWER ON/Button and Indicator

(p.53, 54, 57) I

Display (p. 11) I

Hook (p. 66)

/GREETING/Button (p. 21)

Button (p. 22, 57)

Antenna (p. 3, 12)

Charge Contacts

(p. 14)

IN USE/CHARGE/HOLD

Indicator (p. 13)

NEW MESSAGE/SLOW TALK/

Button (p. 54)

S_ Button (p. 21,55)

CALLER ID Indicator (p. 32, 33)

L_LOCATOR/INTERCOM/Button (p. 49)

VOLUME _v_, _ Buttons (p. 21)

MIC (Microphone)(p. 21,49)

Handset

Back side

Speaker

(p. 29) J

(Talk) Button

(P. •Display (p. 8)

Headset Jack

(p. 68) .....

_-J (Speakerphone)

Button (p.

,._ Button

(p. 28, 35)

Navigator Key

[_, _, EDIT_,

CH _(Channel)]

(p• 17, 23, 29, 30, 35, 42, 43)

HOLD/INTERCOM/CLEARI

Button (p• 30, 31,40, 48, 49)

Button (p. 50)

(REDIAL/PAUSE/FUNCTION/

Button (p. 17, 23, 29, 51)

;rophone (p. 29)

(FLASH/CALL WAIT/PLAYBACK_ '-';--

Button (p. 51,52, 56, 64) ........... Charge Contacts (p. 14)

Displays

Both the handset and the base unit show you instructions and information

on the displays. These display prompts are shown below.

Handset

The Caller List is empty or there are no stored

No items stored items in the directory.

Recharge The battery needs to be charged. Place the

handset on the base unit to charge the battery

,< (p.13).

The display shows the number of new calls and

12 new calls the battery strength (p. 13) while the handset is

(ill] 0n the base unit.

12 new calls

'A _=Directory

ROBINSON,TINA

1-000-222-3333

The display shows the number of new calls when

[_ or _ is pressed while the handset is off the

base unit.

To search from the most recent call, press _.

To search from the oldest call, press (_ (p. 35).

To go to the directory list, press EDIT

(Directorykey).

When the ringer volume is set to OFF (p. 19),

"Ringer off" will flash for about 45 seconds

before the unit returns to the standby mode

(p. 14).

When a call is received, the display shows the

caller's name and number after the first ring.

Talk

01-06-35 {111]

During a conversation, the display shows the

length of the call (ex. 1 hour, 6 minutes and

35 seconds). The battery strength is also

displayed (p. 13).

No link to base

Place on cradle

and try again.

SMITH,JACK

1-222-333-4444

II:20A JAN12 ×3

Ann

1234567890

Directory full

Save error

The handset has lost communication with the

base unit. Place the handset on the base unit

and try again.

This is a name from the Caller List.

The display shows:

--the caller's name,

---the caller's number,

--the time and date of the last call

(ex. Jan. 12, 11:20 AM), and

--the number of times called (ex. 3 times).

This is a name from the directory. The stored

name and phone number are displayed.

When trying to store an item or Caller List

information in the directory, the directory memory

is full (p. 39, 42).

During a programming procedure, the handset

has lost communication with the base unit.

Move closer to the base unit.

(continued _)

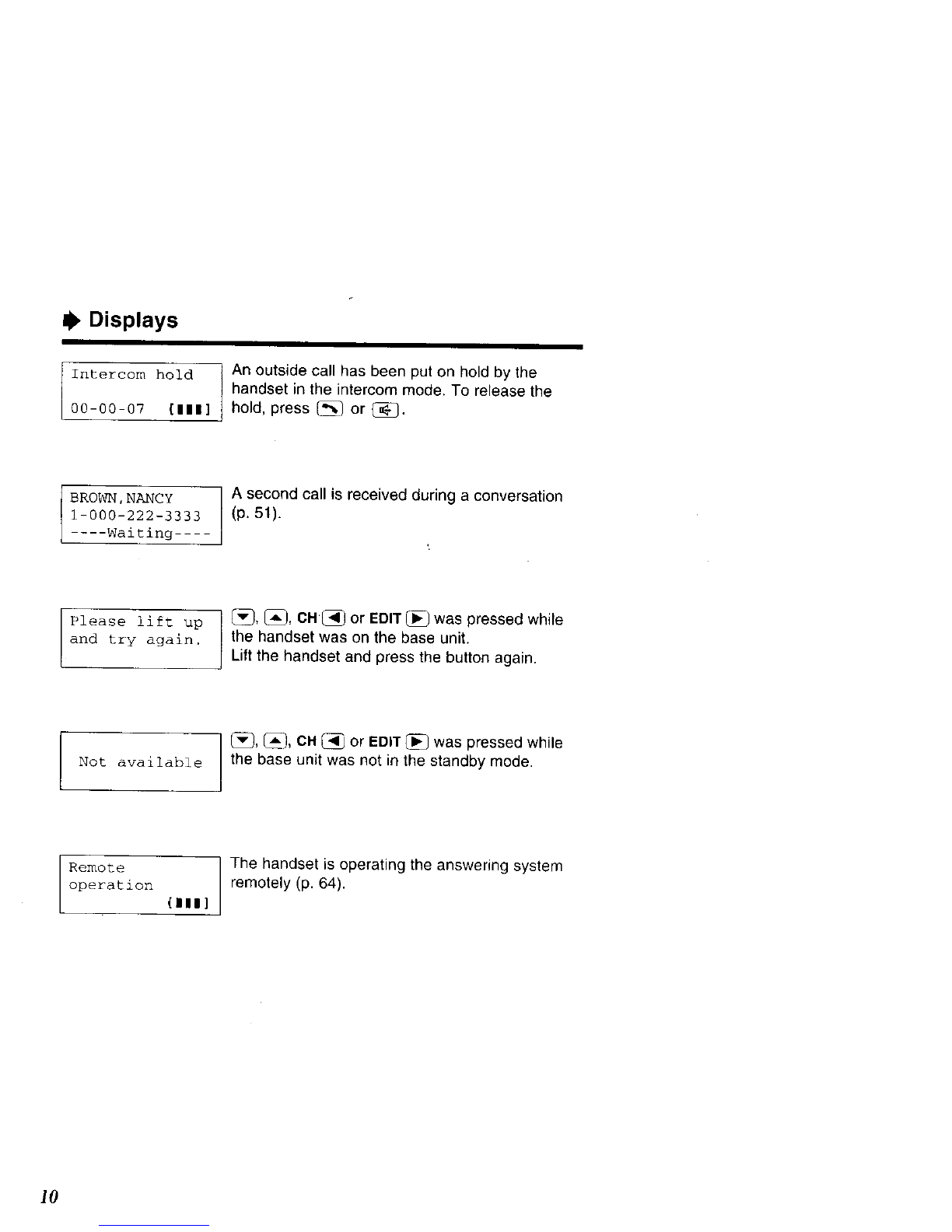

•Displays

Intercom hold tAn outside call has been put on hold by the

handset in the intercom mode. To release the

Q0-00-0v (11111] hold, press _ or (]_].

BROWN, NANCY A second call is received during a conversation

t 1-000-222-3333 (p. 51).

[ ---Waiting ....

Please lift up _[],[_j, CH_] or EDIT (]_ was pressed while

and try again, the handset was on the base unit.

Lift the handset and press the button again.

Not available

Remote

operation

(_, _, CH _ or EDIT [_ was pressed while

the base unit was not in the standby mode.

L(111]

The handset is operating the answering system

remotely (p. 64).
