ORDER NO. KMF0802552SE

Multi-Function printer

Model No. KX-MB262CX

KX-MB772CX

(for Asia and Middle Near East)

TABLE OF CONTENTS PAGE

1 REPLACEMENT PARTS LIST--------------------------------- 2

1.1. REFERENCE CHART------------------------------------ 2

1.2. ORIGINAL AND NEW PARTS

COMPARISON LISTS------------------------------------ 2

2 CORRECTIONS---------------------------------------------------- 3

2.1. Test Mode --------------------------------------------------- 3

2.2. Troubleshooting Guide----------------------------------- 4

2.3. Service Fixture & Tools----------------------------------- 4

2.4. TOP COVER SECTION --------------------------------- 5

3 ADDITION ----------------------------------------------------------- 6

3.1. ACCESSORIES AND PACKING MATERIALS----- 6

Please file and use this supplement manual together with the service manual for Model No.KX-MB262CX/

KX-MB772CX, Order No.KMF0711125CE.

KX-MB262CX/KX-MB772CX

1 REPLACEMENT PARTS LIST

1.1. REFERENCE CHART

1.2. ORIGINAL AND NEW PARTS COMPARISON LISTS

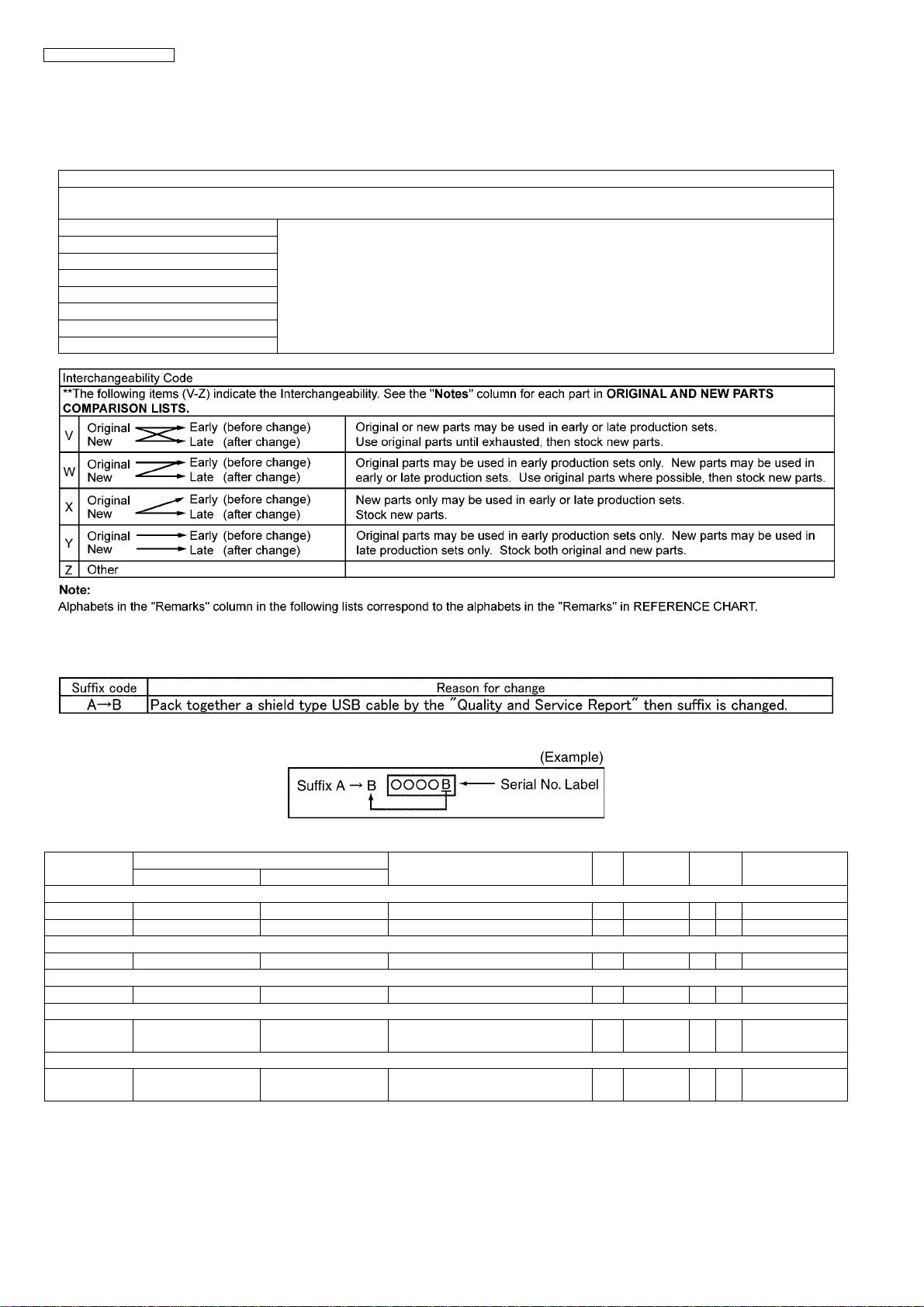

Change of the Suffix Code

Serial No.Label tells you the suffix code as follows.

Reason for Change

*The following items (1-8) indicate the reason for change. See the “Notes” column for each part in ORIGINAL AND NEW PARTS

COMPARISON LISTS.

1. Improve performance a:To enhance the quality.

c:To share the parts with other models.

2. Change of material or dimension

3. To meet approved specification

4. Standardization

5. Addition

6. Deletion

7. Correction

8. Other

Ref. No. Part No. Part Name & Description Pcs/

Set Remarks Notes Time of Change

Original (Old) New (Suffix)

TOP COVER SECTION

40 PFHE1304Z ZT2512-08 TAPE 1 c 1 V ---

41 PFHE1306Z --------- TAPE 0 c 6 - ---

GEAR SECTION(2)

388 PFUS1802Z PNUS1014Z TORSION SPRING 1 a 1 W ---

ACCESSORIES AND PACKING MATERIALS

A14 ---------- PFJA05D001Z CORD(KX-MB772CX) 1 a 5 X A to B

MAIN BOARD(KX-MB262CX)

IC402 PFWIMB262CX PFWIMB262CX1 IC(ROM)

[ProgramVer. GAR1CN→GAR1CP] 1a1W ---

MAIN BOARD(KX-MB772CX)

IC402 PFWIMB772CX PFWIMB772CX1 IC(ROM)

[ProgramVer. GAU1CN→GAU1CP] 1a1W ---

KX-MB262CX/KX-MB772CX

2 CORRECTIONS

2.1. Test Mode

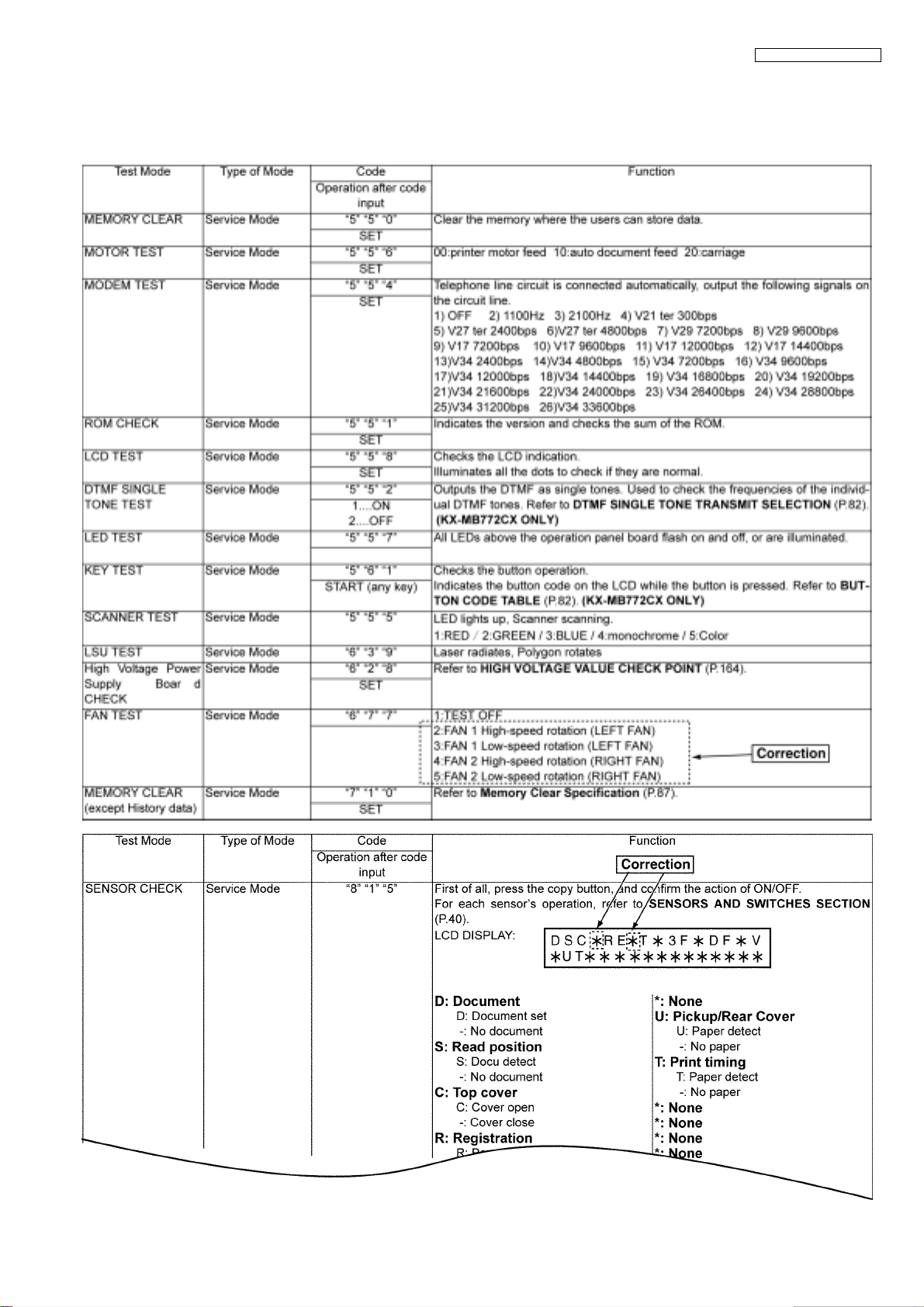

[Changed from original section “10.1.TEST FUNCTIONS”]

KX-MB262CX/KX-MB772CX

2.2. Troubleshooting Guide

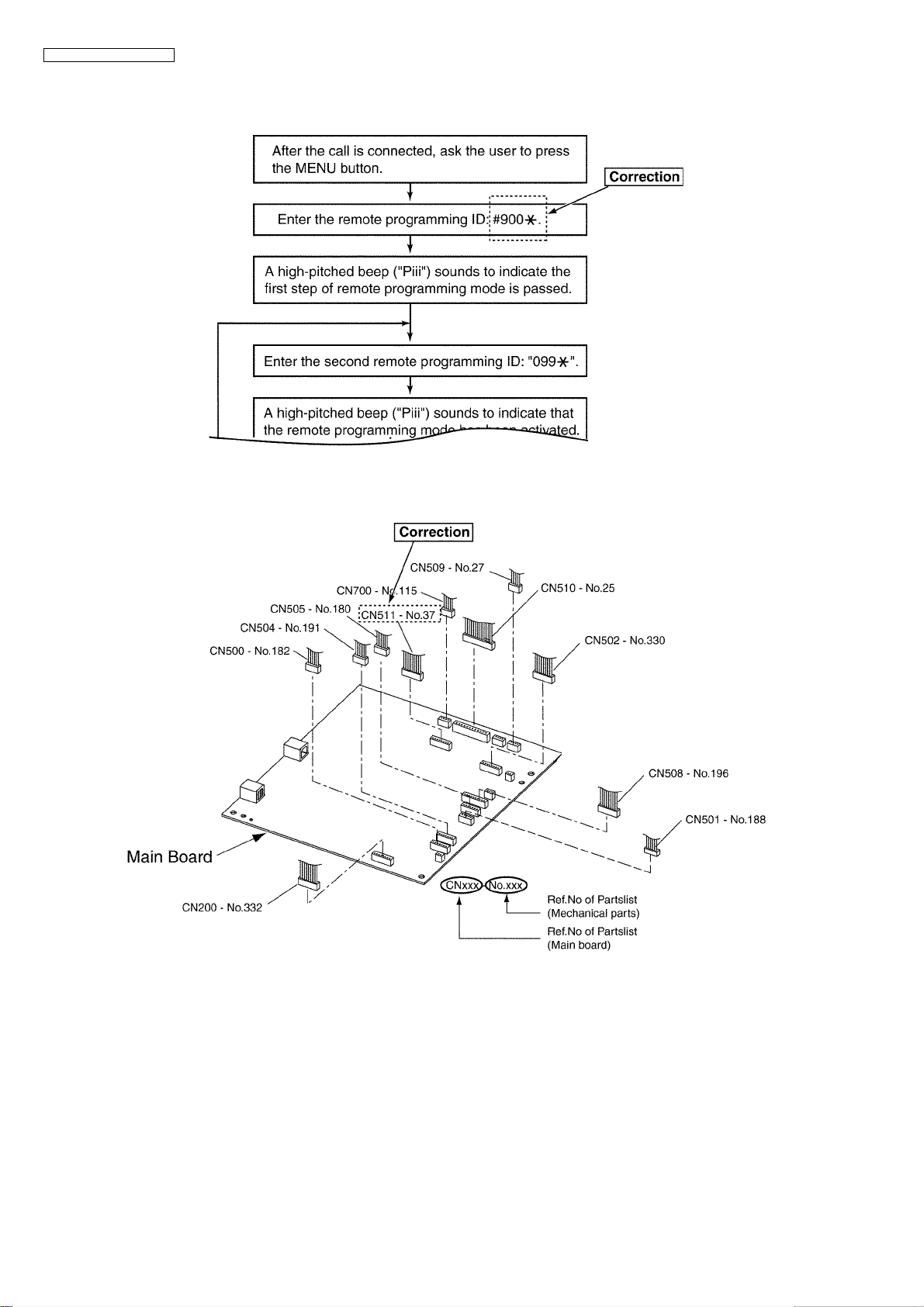

[Changed from original section “12.2.1.ENTERING THE REMOTE PROGRAMMING MODE AND CHANGING SERVICE

CODES”]

2.3. Service Fixture & Tools

[Changed from original section “13.Service Fixture &Tools”]

KX-MB262CX/KX-MB772CX

2.4. TOP COVER SECTION

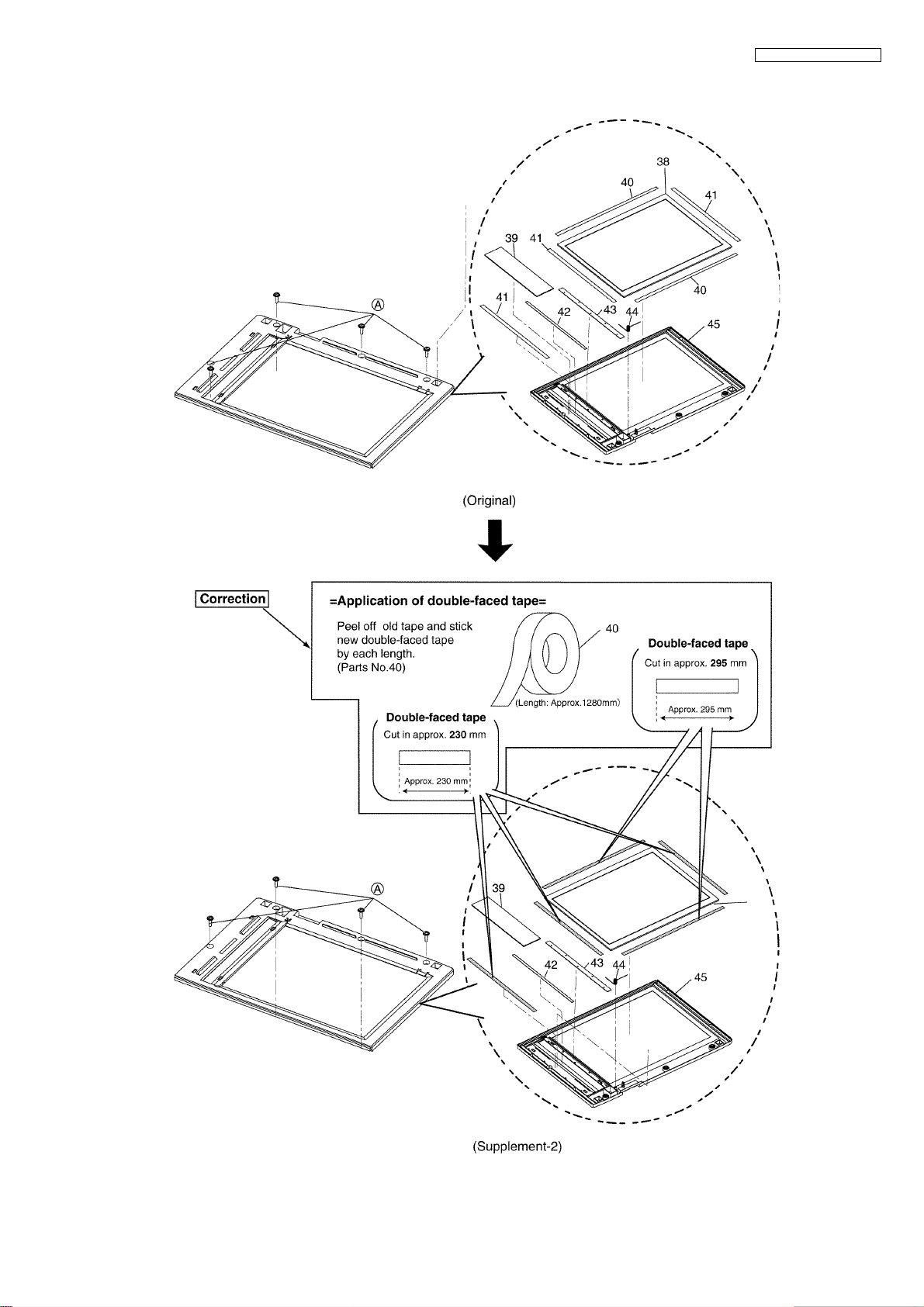

[Changed from original section “18.1.2.TOP COVER SECTION”]

KX-MB262CX/KX-MB772CX

3ADDITION

3.1. ACCESSORIES AND PACKING MATERIALS

[Changed from original section “18.1.13” ACCESSORIES AND PACKING MATERIALS]

M.B

KXMB262CX

KXMB772CX
