INSTALLATION AND OPERATING INSTRUCTIONS

Room Air Conditioner

Models:

CW-XC100HU, CW-XC120HU

Please read these operating instructions thoroughly

before using your air conditioner and keep for future reference.

For U.S. customers:

For assistance, please call: 1-800-211-PANA(7262) or

CW382820391K

Safety Precautions

About the Controls on the Air Conditioner

Features and Installation

Before you call for service...

FOR YOUR RECORDS

Write the model and serial numbers here:

Model #

Serial #

You can find them on a label on the side of the unit.

Dealer's Name

Date Purchased

Staple your receipt here for proof of purchase.

Inside you will find many helpful hints on how to use and

maintain your air conditioner properly. Just a little preventive

care on your part can save you a great deal of time and

money over the life of your air conditioner.

You'll find many answers to common problems in the chart

of troubleshooting tips. If you review our chart of

Troubleshooting Tips first, you may not need to call for

service at all.

READ THIS MANUAL

CAUTION

• Contact the authorized Service technician for repair or

maintenance of this unit.

• The air conditioner is not intended for use by young

children or infirm persons without supervision.

• Young children should be supervised to ensure that they

do not play with the air conditioner.

Safety Precautions

Safety Precautions.............3

About the Controls on

the Air Conditioner

Controls..............................5

Ventilation ..........................7

Air Direction........................7

How to Secure Drain Pipe..7

Care and Maintenance

Air Filter Cleaning...............8

How to Insert Batteries.......8

Features

Features.............................9

Installation

How to Install the Unit......10

Window Requirements.....10

Installation Kit Contents

.....11

Suggested Tool

Requirements...................11

Cabinet Installation...........12

Electrical Data..................14

Electrical Safety ...............15

Before you call for

service...

Normal Operation.............16

Abnormal Operation.........16

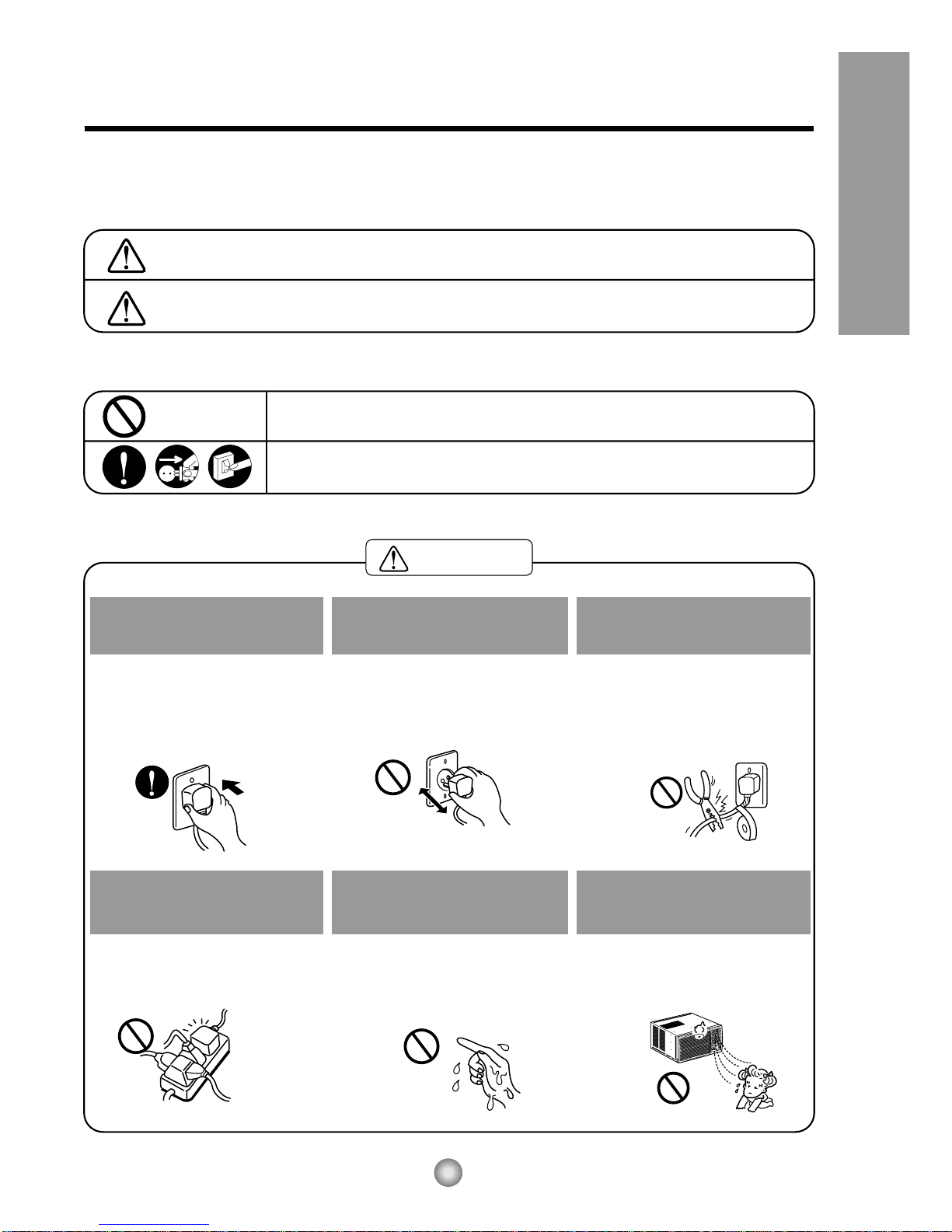

Safety Precautions

WARNING

Safety Precautions

To prevent injury to the user or other people and property damage, the following instructions must be

followed.

■Incorrect operation due to ignoring of instruction will cause harm or damage. The seriousness is classified

by the following indications.

WARNING : This symbol indicates the possibility of death or serious injury.

CAUTION :This symbol indicates the possibility of injury or damage to

property only.

■Meanings of symbols used in this manual are as shown below.

Be sure not to do this.

Be sure to follow the instructions.

Plug in the power plug

properly.

• Otherwise, it will cause electric

shock or fire due to heat

generation.

Do not operate or stop the

unit by inserting or pulling

out the power plug.

• It will cause electric shock or fire

due to heat generation.

Do not damage or use an

unspecified power cord.

• It will cause electric shock or fire.

•

If the power cord is damaged, it must

be replaced by the manufacturer or

an authorized service center or a

similarly qualified person in order to

avoid a hazard.

Do not modify power cord

length or share the outlet

with other appliances.

• It will cause electric shock or fire

due to heat generation.

Do not operate with wet

hands or in a damp

environment.

• It will cause electric shock.

Do not direct airflow at room

occupants.

• This could damage your health.

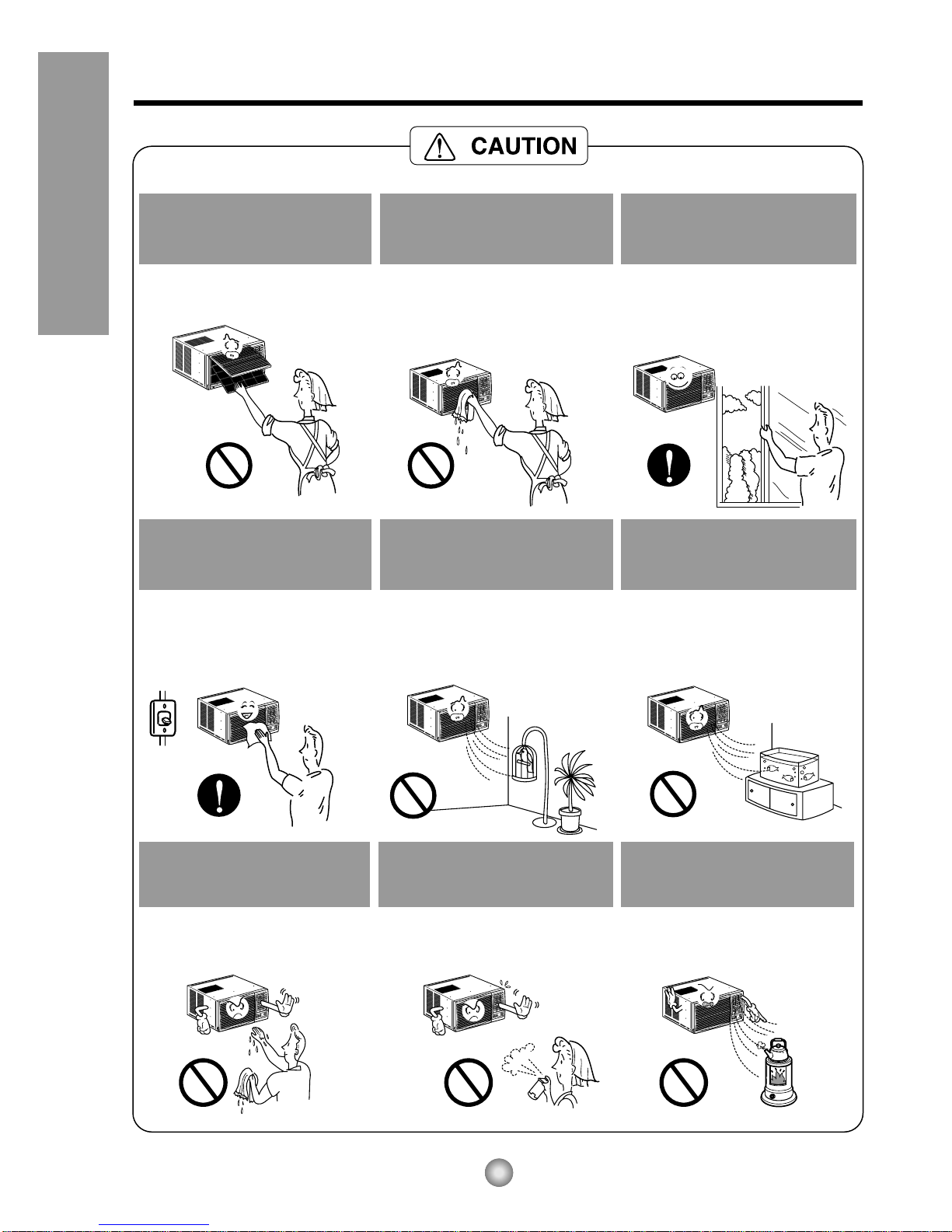

Safety Precautions

When the air filter is to be

removed, do not touch the

metal parts of the unit.

• It may cause an injury.

Do not clean the air

conditioner with water.

•Water may enter the unit and

degrade the insulation. It may

cause an electric shock.

Ventilate well when used

together with a stove, etc.

• An oxygen shortage may occur.

When the unit is to be

cleaned, switch off, and turn

off the breaker.

•Since the fan rotates at high

speed during operation, it may

cause an injury.

Do not put a pet or house

plant where it will be exposed

to direct air flow.

• This could injure the pets or

plants.

Do not use for special

purposes.

• Do not use this air conditioner to

preserve precision devices, food,

pets, plants, and art objects.

It may cause deterioration of

quality, etc.

Do not operate switches

with wet hands

• It may cause an electric shock.

Do not apply an insecticide

or flammable spray.

• It may cause a fire or deformation

of the cabinet.

Do not put a heater, etc.

where it is exposed to direct

air flow.

•

It may cause imperfect

combustion.

About the Controls on the Air Conditioner

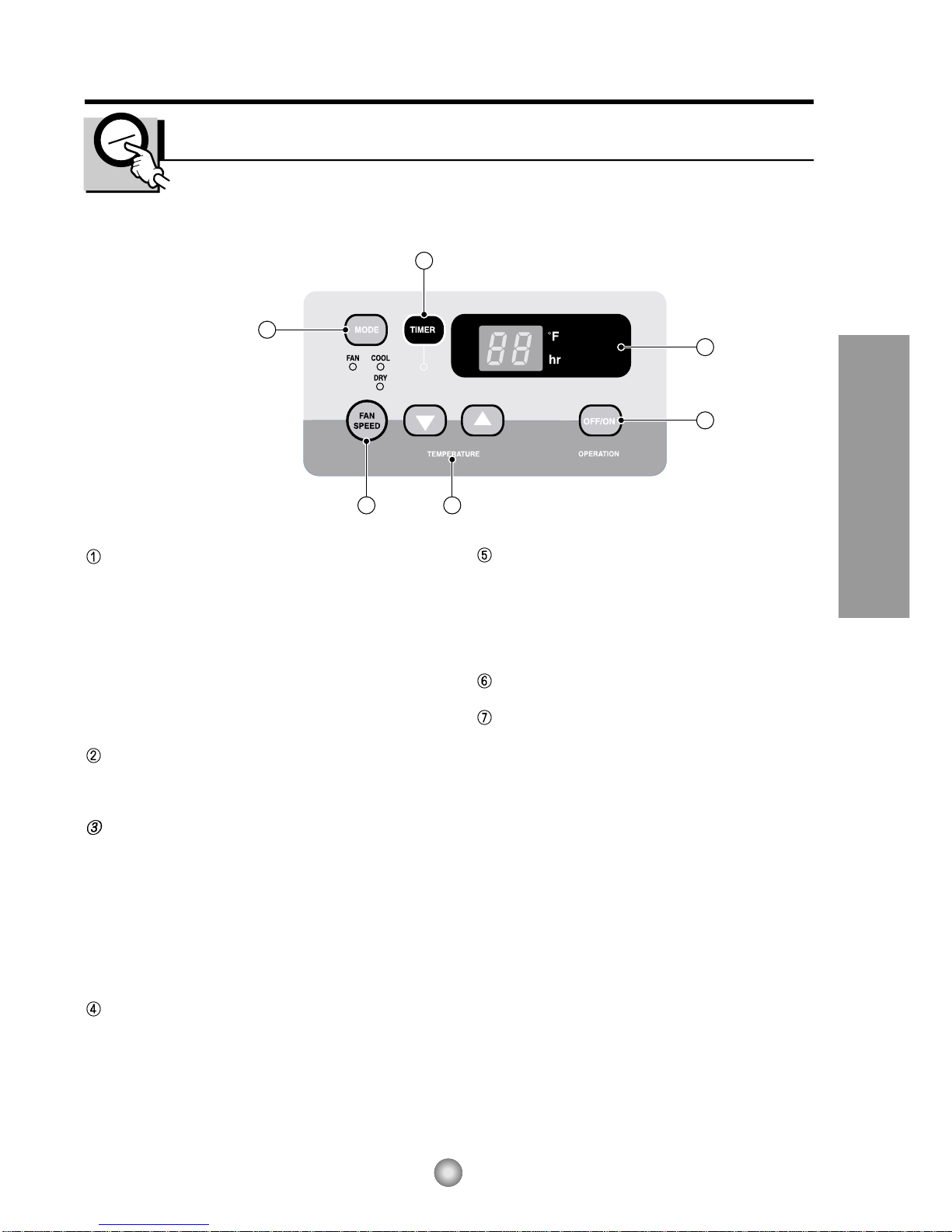

Controls

Models:CW-XC100HU

CW-XC120HU

OPERATION

•To turn the air conditioner ON, push the

OFF/ON button.

To turn the air conditioner OFF, push the

button again.

•This button takes priority over any other

buttons.

•When you first turn it on, the air conditioner is

on the High cool mode and the temp. at 72°F

(22°C).

MODE

•Every time you push this button, it will toggle

between COOL, FAN and DRY.

ON/OFF TIMER

•Every time you push the TIMER button, timer

is set as follows. (1Hour →2Hours →3Hours

→4Hours →5Hours 6Hours →7Hours →

8Hours →9Hours →10Hours 11Hours →

12Hours → 0)

•The Setting Temperature will be raised by 2°F

(1˚C) 30 min. later and by 2°F (1˚C) after

another 30 min.

FAN SPEED

•Every time you push this button it is set as

follows. {High(F3) →Low(F1) →Med(F2) →

High(F3)...}.

TEMPERATURE SETTING

•This button can automatically control the

temperature of the room. The temperature

can be set within a range of 60°F to 86°F by

1°F(16˚C to 30˚C by 1˚C). Select the lower

number for lower temperature of the room.

REMOTE CONTROL SIGNAL RECEIVER

DRY

•When this unit is in dry mode, the fan rotates

in low speed. The fan stops when the

compressor stops cooling.

Approximately every 3 minutes the fan will

turn on and the unit checks the room air

temperature to set itself.

About the Controls on the Air Conditioner

OPERATION

TEMP

TIMER

MODE FAN SPEED

2 4

Models: CW-XC100HU, CW-XC120HU

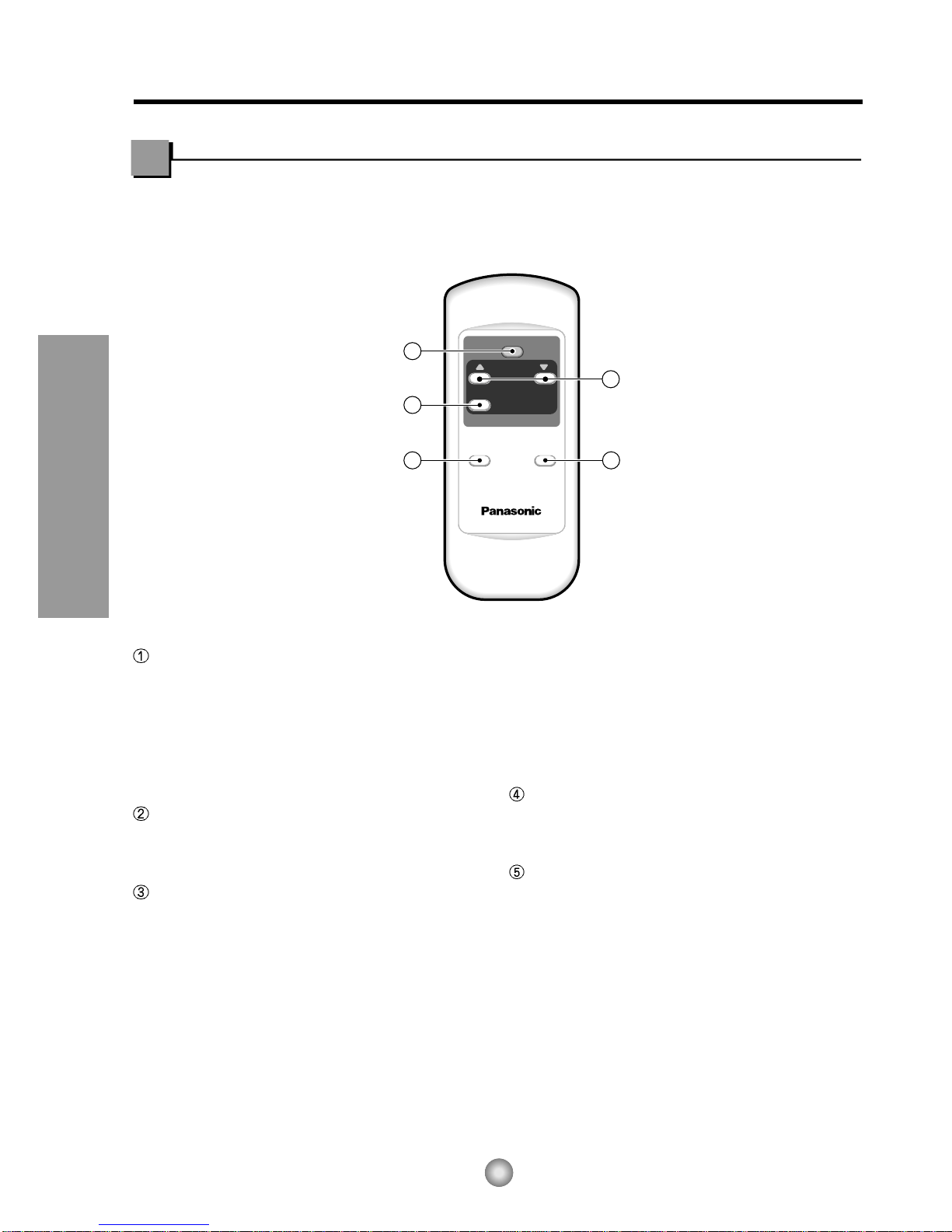

Remote controller

OPERATION

•To turn the air conditioner ON, push the button.

To turn the air conditioner OFF, push the button

again.

•This button takes priority over any other buttons.

•When you first turn it on, the air conditioner is on

the High cool mode and the temp. at 72°F(22˚C).

MODE

•Every time you push this botton,it will toggle

between COOL, FAN and DRY.

ON/OFF TIMER

- STOPPING OPERATION

•Every time you push this button, when the air

conditioner is operating, timer is set as follows.

(1Hour →2Hours →3Hours →4Hours →5Hours

→6Hours →7Hours →8Hours →9Hours →

10Hours →11Hours →12Hours →O).

•The Setting Temperature will be raised by

2°F (1°C) 30 min. later and by 2°F (1°C) after

another 30 min.

- STARTING OPERATION

•Every time you push this button, when the air

conditioner is not operating, timer is set as follows.

(1Hour →2Hours →3Hours →4Hours →5Hours

→6Hours →7Hours →8Hours →9Hours →

10Hours →11Hours →12Hours →O)

FAN SPEED

•Every time you push this button it is set as follows.

{High(F3) →Low(F1) →Med(F2) →High(F3)...}.

TEMPERATURE SETTING

•This button can automatically control the

temperature of the room.

The temperature can be set within a range of 60°F

to 86°F by 1°F(16˚C to 30˚C by 1˚C). Select the

lower number for lower temperature of the room.

Precaution:

The Remote Controller will not function properly if strong light strikes the sensor window of the

air conditioner or if there are obstacles between the Remote Controller and the air conditioner.

How to Secure the Drain Pipe

In humid weather, excess water may cause the BASE PAN to overflow. To drain the water, remove the

DRAIN CAP and secure the DRAIN PIPE to the rear hole of the BASE PAN. Press the drain pipe into the

hole by pushing down and away from the fins to avoid injury. (See Fig.1)

Optional (CW3H02502B)

1. Remove the rubber plug and slide the chassis out

from the cabinet. (See Fig. 2)

2. Install the drain pan over the corner of the cabinet

where you removed the plug with 4 (or 2) screws.

(See Fig.3)

3. Connect the drain hose to the outlet located at the

bottom of the drain pan. You can purchase the drain

hose or tubing locally to satisfy your particular

needs. (Drain hose is not supplied). (See Fig.3)

4. Select the most appropriate connection from among

the figures to the right (by considering the hole of the

unit) to fit drain pan to your own unit. (See Fig.3)

5. Slide the chassis back into the cabinet. Reinstall the

cabinet screws. Secure the cabinet to chassis by

using screws. (See Fig.4)

About the Controls on the Air Conditioner

VENTCLOSE OPEN

Part

Drain pipe

Drain cap

Controlled

manually

OFF/ON

OPERATION

TEMP/TIMER

COOL

FAN

HIGH

MED

LOW

MODE

FANSPEED

SET

TIMER

SET/

CANCEL

AIRSWING

ECONOMY

Wireless

RemoteControl

Remove the

rubber plug

OFF/ON

OPERATION

TEP/TI

COOL

FAN

HIGH

MED

LOW

MOE

FANSPEED

SET

TIMER

SET/

CNE

AIR

ECONOMY

Wireless

RemoteControl

Fig. 4

Fig. 3

Fig. 2

Fig. 1

Controlled

manually

DRAIN

PAN DRAIN HOSE

Inside diameter 17mm (5/8")

CABINET

SCREW

Additional controls and important information.

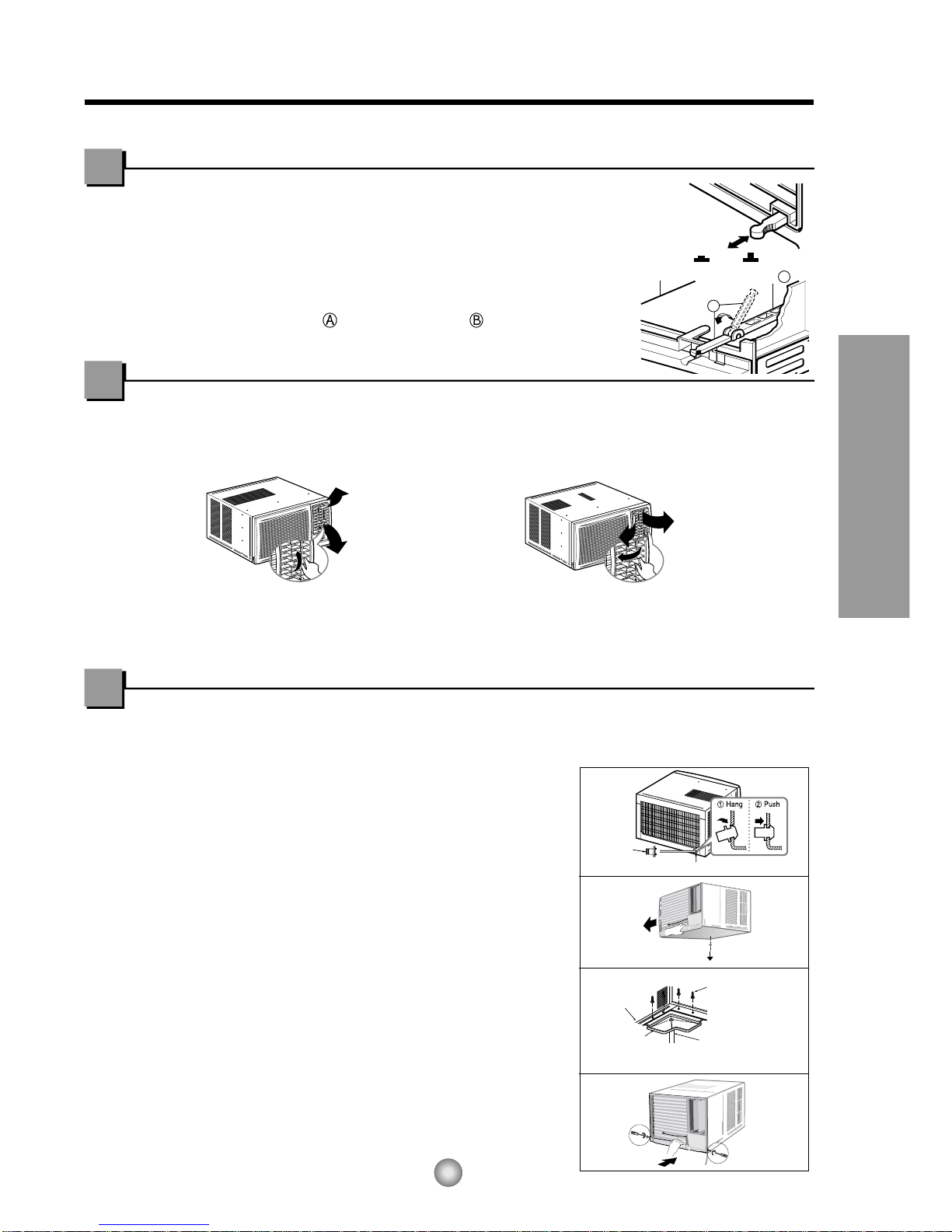

Ventilation

The ventilation lever must be in the CLOSE position in order to maintain the

best cooling conditions.

When fresh air is necessary in the room, set the ventilation lever to the OPEN

position.

The damper is opened and room air is drawn out.

NOTE: Before using the ventilation feature, and prior to installing the front

grille, pull down part until level with part .

Air Direction

The direction of air can be controlled wherever you want to cool by adjusting the horizontal

louver and the vertical louver.

The vertical air direction is adjusted

by rotating the horizontal louver

forward or backward manually.

The horizontal air direction is adjusted by

rotating the vertical louver right or left manually

or by Remote Controller.

•VERTICAL AIR-DIRECTION CONTROL

•

HORIZONTAL AIR-DIRECTION CONTROL

About the Controls on the Air Conditioner

Care and Maintenance

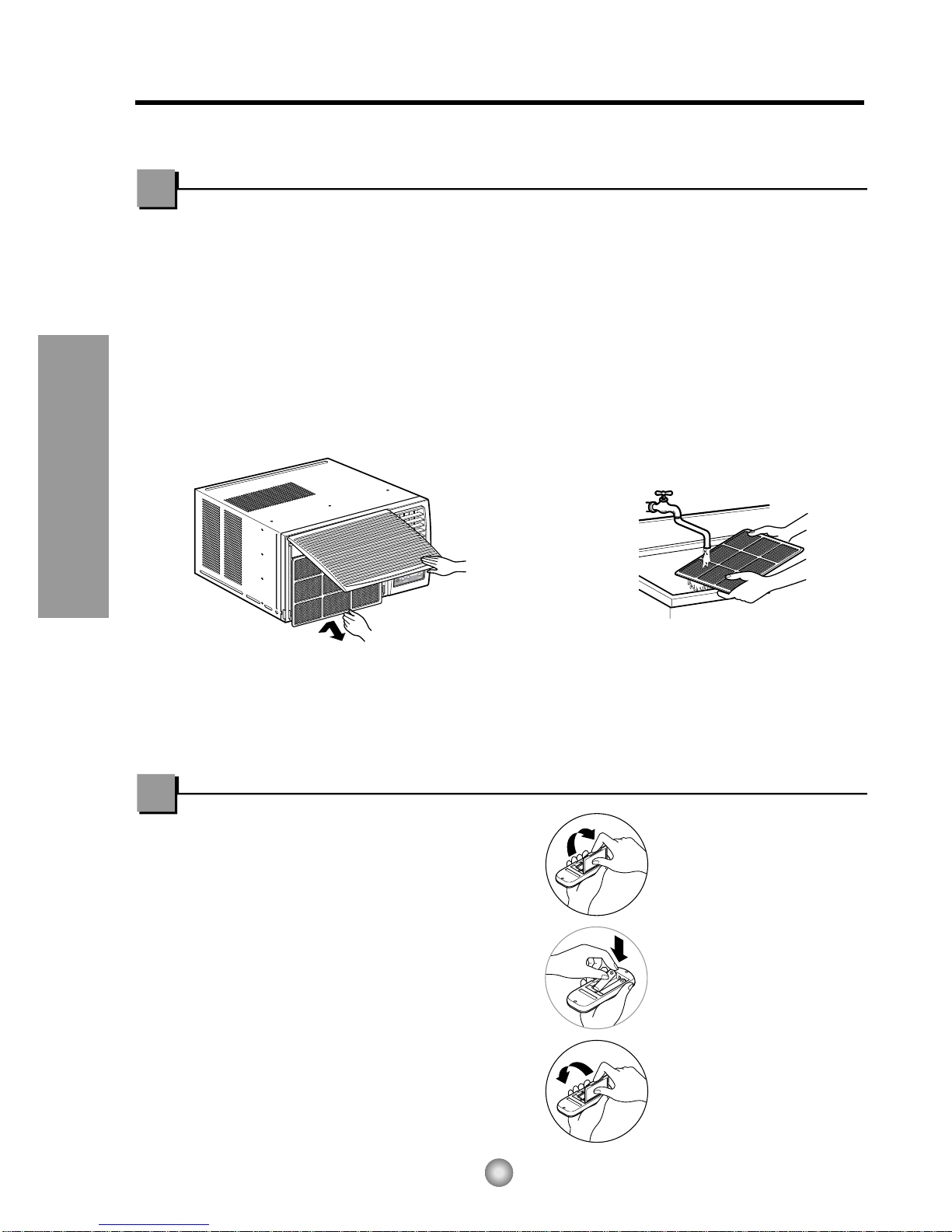

Air Filter Cleaning

The air filter behind the front grille should be checked and cleaned at least once every 2

weeks or more often if necessary.

TO REMOVE:

1. Open the inlet grille upward by pulling out the bottom of the inlet grille or downward by

pulling out the top of the inlet grille.

2. Using the tab, pull up slightly on the filter to release it and pull it down or up.

3. Clean the filter with warm, soapy water under 40°C (104°F).

4. Rinse and gently shake the water from the filter and let it dry before replacing it.

CAUTION: DO NOT operate the air conditioner without a filter because dirt and lint will

clog it and reduce performance.

TURN THE AIR CONDITIONER OFF AND REMOVE THE PLUG FROM THE POWER OUTLET.

1. Remove the cover from the back of the remote

controller.

2. Insert two AAA dry cell batteries.

•Be sure that the (+) and (-) directions are correct.

•Be sure that both batteries are new.

3. Re-attach the cover.

•Do not use

rechargeable batteries.

Such batteries

differ from standard dry

cells in shape,

dimensions, and

performance.

•Remove the batteries

from the remote

controller if the air

conditioner is not going

to be used for an

extended length of time.

HOW TO INSERT BATTERIES

Features and Installation

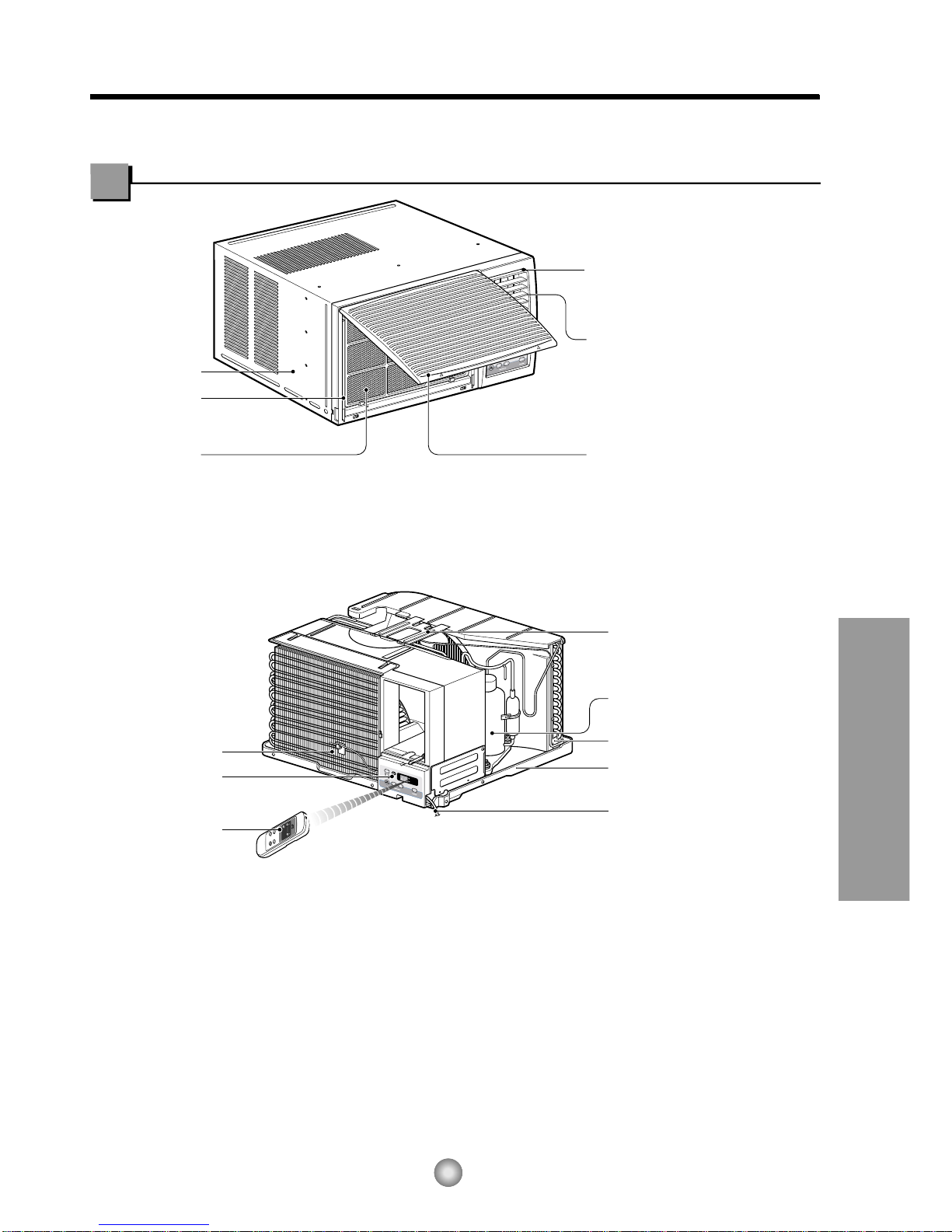

Features

Learning parts name prior to installation will help you understand the installation procedure.

Features

CABINET

FRONT GRILLE

AIR FILTER AIR INTAKE

(INLET GRILLE)

AIR DISCHARGE

VERTICAL AIR DEFLECTOR

(HORIZONTAL LOUVER)

EVAPORATOR

CONTROL BOARD

REMOTE

CONTROLLER

POWER CORD

BASE PAN

CONDENSER

COMPRESSOR

BRACE

Features and Installation

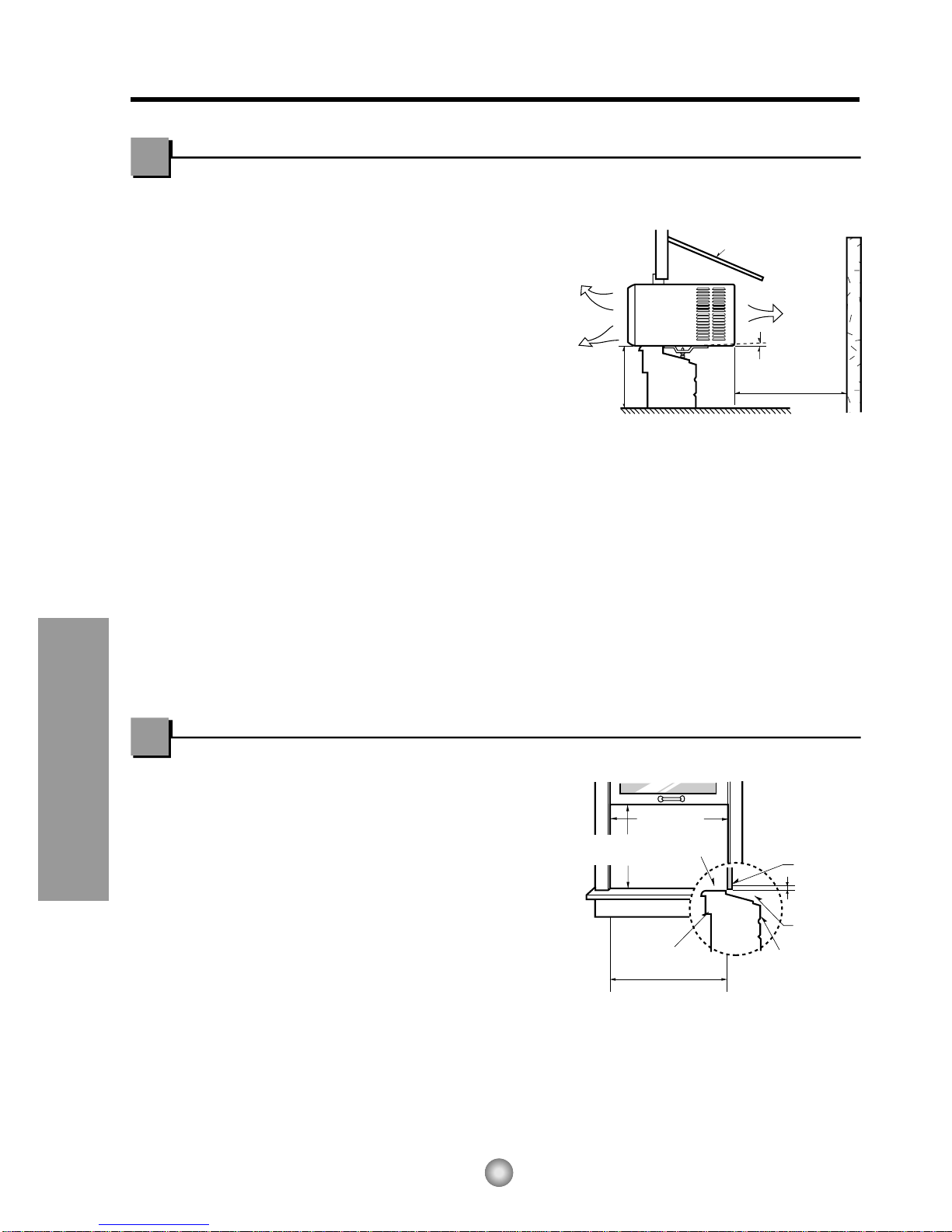

Installation

27" to 39"

(68.6~99.1cm)

Offset

1/2" to 11/4"

(12.7~31.8mm)

Sill

Exterior

Interior wall

" min.(60cm)

(Without frame curtain)

Stool

16" min (40.6cm)

(With frame curtain)

About

"(12.7mm)

30"~60"

(76.2~152.4cm)

Awning

Cooled air

Fence

Over 20"(50.8cm)

Heat

radiation

1. To prevent vibration and noise, make sure

the unit is installed securely and firmly

2. Install the unit where the sunlight does not

shine directly on the unit.

3. The outside of the cabinet must extend

outward for at least 12" (30.5cm) and there

should be no obstacles, such as a fence or

wall, within 20" (50.8cm) from the back of

the cabinet because it will prevent heat

radiation of the condenser.

Restriction of outside air will greatly reduce

the cooling efficiency of the air conditioner.

CAUTION: All side louvers of the cabinet must remain exposed to the outside of the

structure.

4. Install the unit a little slanted so the back is slightly lower than the front

(about 1/2"(12.7mm)).

This will force condensed water to flow to the outside.

5. Install the unit with the bottom about 30"~60"(76.2~152.4cm) above the floor level.

Window Requirements

NOTE: All supporting parts should be secured to firm wood, masonry, or metal.

This unit is designed for installation in standard

double hung windows with actual opening widths

from 27" to 39" (68.6~99.1cm).

The top and bottom window sash must open

sufficiently to allow a clear vertical opening of

16" (40.6cm) from the bottom of the upper sash

to the window stool.

How to Install the Unit

Ce manuel convient aux modèles suivants

Table des matières

Langues :

Autres manuels Panasonic Climatiseur

Panasonic

Panasonic CS-S18JKQ Manuel utilisateur

Panasonic

Panasonic CS-E12QB4RW Manuel utilisateur

Panasonic

Panasonic CUA95KH Manuel utilisateur

Panasonic

Panasonic CU-E18GFE-1 Manuel utilisateur

Panasonic

Panasonic CU-4E24RBU Manuel utilisateur

Panasonic

Panasonic CS-E24EKES Manuel utilisateur

Panasonic

Panasonic S-1821PT3H-8 Manuel utilisateur

Panasonic

Panasonic CSC9BKP - SPLIT A/C SYSTEM Manuel utilisateur

Panasonic

Panasonic CU-2TZ41TBE Manuel utilisateur

Panasonic

Panasonic S-12MT2U6 Manuel utilisateur

Panasonic

Panasonic CU-UE12ZKF-3 Manuel utilisateur

Panasonic

Panasonic CS-A18BB4P Manuel utilisateur

Panasonic

Panasonic CW-C180EG Manuel utilisateur

Panasonic

Panasonic CS-XE9WKUAW Manuel utilisateur

Panasonic

Panasonic CS-HE9JKE Manuel utilisateur

Panasonic

Panasonic CS-V12CTP Manuel utilisateur

Panasonic

Panasonic CU-5E34PBE Manuel utilisateur

Panasonic

Panasonic CS-E9JKEW Manuel utilisateur

Panasonic

Panasonic CS-A18HKD Manuel utilisateur

Panasonic

Panasonic CU-M1403KE Manuel utilisateur

Panasonic

Panasonic CS-UE12HKE Manuel utilisateur

Panasonic

Panasonic CW-XN1221VA Manuel utilisateur

Panasonic

Panasonic CS-UW9GKE Instructions de construction

Panasonic

Panasonic CS-PU24XKH-8M Manuel utilisateur

Manuels Climatiseur populaires d'autres marques

Spheros

Spheros CC 355 Manuel utilisateur

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE Manuel utilisateur

nedis

nedis ACMB1WT7 Manuel utilisateur

Samsung

Samsung AR KV Series Mode d’emploi

Daikin

Daikin FCFV50A Manuel utilisateur

Fujitsu

Fujitsu Inverter ASBA30JFC Manuel utilisateur

Toshiba

Toshiba RAS-M10SMUV-E Manuel utilisateur

Daikin

Daikin FXLQ20MAVE Manuel utilisateur

Hitachi

Hitachi RAS-E24CAK Manuel utilisateur

CIAT

CIAT Magister 2 Series Mode d’emploi

Bestron

Bestron AAC6000 Manuel utilisateur

Hisense

Hisense 7K Manuel technique

Frigidaire

Frigidaire FFRE0533S1E0 Manuel utilisateur

Samsung

Samsung AS09HM3N Manuel utilisateur

Frigidaire

Frigidaire CRA073PU11 Manuel du propriétaire

Soleus Air

Soleus Air GB-PAC-08E4 Manuel utilisateur

McQuay

McQuay MCK020A Manuel utilisateur

Webasto

Webasto Frigo Top 25 DS Manuel utilisateur
