9.1.1. Parts Identification.

9.1.1.1. Vertical Airflow Direction Vane.

Airflow direction adjustment Up-and-Down.

• The vertical airflow direction vane is

controlled by positioning the vane to

discharge the air upwards, downwards

or straight out.

9.1.1.2. Ventilation Lever.

When the slide lever is in the:

• “OPEN” position, the ventilation door

opens to allow air, smoke or odours to be

expelled from the room.

• “CLOSE” position, the ventilation door is

closed and the air will be circulated inside

the room and conditioned.

9.1.1.3. Recommended.

Use the air conditioner under the following conditions:

• Operating temperature range.

Indoor side Outdoor side

D.B.T. W.B.T. D.B.T. W.B.T.

Maximum

Temperature 32°C 23°C 43°C 26°C

Minimum

Temperature 21°C 15°C 21°C 15°C

D.B.T.: Dry Bulb Temperature

W.B.T.: Wet Bulb Temperature

Note: Humidity may exceed 90%.

− Continuous operation at over 90% high humidity may

create condensation and result in water drops on the

intake and outlet vanes.

9 Operating Instructions

9.1. CW-C170KR, CW-C200KR, & CW-C240KR (Cooling only).

CW-C170KR / CW-C200KR / CW-C240KR / CW-A170KR / CW-A200KR / CW-A240KR

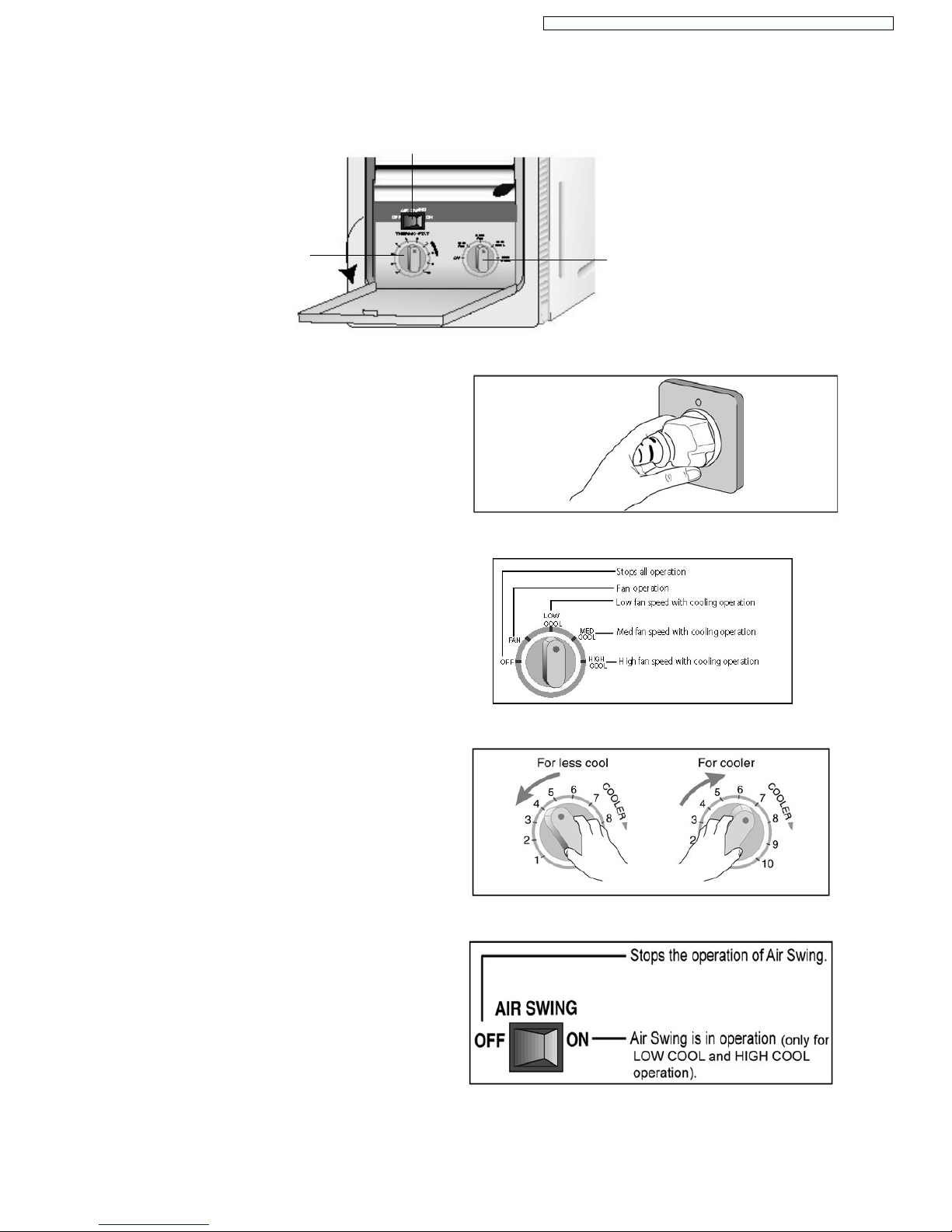

9.1.2. How to Operate.

(1) Open the Control Panel Cover.

Fig. 1

(2) Power Supply

Switch off the breaker and set the Main Control Knob to the

OFF position before connecting the power plug cord to an

independent power supply.

Fig. 2

(3) Main Control Knob

Set the Main Control Knob to either LOW COOL or HIGH

COOL as desired, FAN setting operates the fan only.

Caution: If the Main Control Knob is turned off or

changed to a fan setting from a cooling operation

setting, WAIT at least 3 minutes before resetting to

cooling operation.

Fig. 3

(4) Thermostat Control Knob

Turn the Thermostat Control Knob as shown in Fig. 4.

Usually “6” ~ “7” is the recommended setting position.

Note: When the Thermostat Control Knob is set to “10”,

moisture may freeze onto the evaporator fins and prevent

effective cooling. If this happens, turn the Main Control

Knob to HIGH FAN, and the Thermostat Control Knob

counterclockwise. This will quickly defrost the evaporator

fins so that normal cooling can be resumed. Fig.4

(5) Air Swing Switch

(Airflow direction adjustment side-to-side)

To obtain a fixed airflow direction, set the Air Swing Switch

to “ON” for the vanes to swing from side to side until the

desired flow direction is reached, then switch it to “OFF”.

For continuous side-to-side air circulation, set the Air Swing

Switch to “ON”.

Fig. 5

Main Control

knob

Thermostat

control knob

Air Swing Switch

CW-C170KR / CW-C200KR / CW-C240KR / CW-A170KR / CW-A200KR / CW-A240KR

9.2.1. Parts Identification.

9.2.1.1. Vertical Airflow Direction Vane.

Airflow direction adjustment Up-and-Down.

• The vertical airflow direction vane is

controlled by positioning the vane to

discharge the air upwards, downwards

or straight out.

9.2.1.2. Ventilation Lever.

When the slide lever is in the:

• “OPEN” position, the ventilation door

opens to allow air, smoke or odours to be

expelled from the room.

• “CLOSE” position, the ventilation door is

closed and the air will be circulated inside

the room and conditioned.

9.2.1.3. Recommended.

Use the air conditioner under the following conditions:

• Operating temperature range.

Indoor side Outdoor side

D.B.T. W.B.T. D.B.T. W.B.T.

Cooling Maximum Temperature 32°C 23°C 43°C 26°C

Minimum Temperature 21°C 15°C 21°C 15°C

Heating Maximum Temperature 27°C ---- 21°C 15°C

Minimum Temperature 20°C ---- -5°C -6°C

D.B.T.: Dry Bulb Temperature

W.B.T.: Wet Bulb Temperature

Note: Humidity may exceed 90%.

− Continuous operation at humidities of over 90% may

create condensation to form on the intake and outlet

vanes.

9.2. CW-A170KR, CW-A200KR, & CW-A240KR (Cooling and Heating).

CW-C170KR / CW-C200KR / CW-C240KR / CW-A170KR / CW-A200KR / CW-A240KR

9.2.2. How to Operate.

(1) Open the Control Panel Cover.

Fig. 1

(2) Power Supply

Switch off the breaker and set the Main Control Knob to the

OFF position before connecting the power plug cord to an

independent power supply.

Fig. 2

(3) Main Control Knob

Set the Main Control Knob to either LOW COOLING or

HIGH COOLING and LOW HEATING or HIGH HEATING

as desired, FAN setting operates the fan only.

Caution: If the Main Control Knob is turned off or

changed to a fan setting from a cooling or heating

operation setting, WAIT at least 3 minutes before

resetting to cooling or heating operation.

Fig. 3

(4) Thermostat Control Knob

Turn the Thermostat Control Knob as shown in Fig. 4.

Usually “6” ~ “7” is the recommended setting position for

cooling and “4” ~ “5” for heating.

Note: When the Thermostat Control Knob is set to “10”,

moisture may freeze onto the evaporator fins and prevent

effective cooling. If this happens, turn the Main Control

Knob to FAN, and the Thermostat Control Knob

counterclockwise. This will quickly defrost the evaporator

fins so that normal cooling can be resumed.

Fig.4

(5) Air Swing Switch

(Airflow direction adjustment side-to-side)

To obtain a fixed airflow direction, set the Air Swing Switch

to “ON” for the vanes to swing from side to side until the

desired flow direction is reached, then switch it to “OFF”.

For continuous side-to-side air circulation, set the Air Swing

Switch to “ON”.

Fig. 5

Main Control

knob

Thermostat

control knob

Air Swing Switch

CW-C170KR / CW-C200KR / CW-C240KR / CW-A170KR / CW-A200KR / CW-A240KR

10 How to Install

10.1. Before installing the air conditioner, please read the following:

10.1.1. Electrical Work.

• Always use at the rated voltage and with a specific air conditioning circuit.

• Power supply point shall be the place where there is ease for the power disconnection in case of emergency.

• Some installation locations may require installation of a short-circuit breaker.

• Time delay fuse or circuit breaker rating is 16 Ampere for CW-C170KR/CW-A170KR/CW-C200KR/CW-A200KR and 20

Ampere for CW-C240KR/CW-A240KR.

• Nominal cross sectional area of power supply wire must be 3 core x 2.5 mm2or above.

• The power supply must be from an independent circuit.

• All electrical installations must be made in accordance with local wiring and safety regulations wherever applicable.

• There must be a double pole switch with minimum of 3 mm contact gap in the fixed installation circuit.

10.1.2. Select the Best Location.

• Install the unit at the nearest power outlet.

• The air conditioner should be installed in a dry place where there are no draughts.

• Condensation from the air conditioner must be drained into an appropriate location.

• Do not install in a location where flammable gas leaks is a possibility.

• Usage in locations where the air is salty such as coastal areas or near hot spas, or where sulphurous gas is generated, may

lead to a malfunction.

• Do not install this appliance in a laundry room or other locations where water may drip from the ceiling, etc.

• Select an installation location which is rigid and strong enough to support or hold the unit and select a location for easy

maintenance.

10.2. Preparation for Installation.

• There should not be any obstacles surrounding the unit.

• Prepare an installation hole that is only slightly bigger than the cabinet size.

CW-C170KR / CW-C200KR / CW-C240KR / CW-A170KR / CW-A200KR / CW-A240KR

10.3.1. Remove the Chassis Locking

Bracket and screw.

• Unscrew and remove the Chassis Locking Bracket from the

front of the Cabinet.

10.3.2. Slide the Chassis out from the

Cabinet.

10.3.3. Place Cabinet into the installation

hole, then secure it with wood

screws or nails.

• Note: Tilt down for better drainage (max. 10 mm).

10.3.4. Slide the Chassis back into the

Cabinet.

10.3.5. Lock the Chassis to the Cabinet

reusing the Chassis Locking

Bracket and screw.

10.3.6. Attach the Front Grille to the

Cabinet and fasten it with screws.

• Note: Depending upon the location of the AC outlet, route

the AC cord to either the left or right side while installing the

Front Grille.

10.3. Installation Procedures.

CW-C170KR / CW-C200KR / CW-C240KR / CW-A170KR / CW-A200KR / CW-A240KR

10.3.7. Insert the Air Filter.

10.4.1. Remove the Front Intake Grille.

• Raise the Front Intake Grille by approximately 90°. Slide it

to the left to unhinge then pull outwards.

10.4.2. Remove the Air Filter.

• Lift the air filter by the holder and pull outwards.

10.3.8. Attach the Front Intake Grille.

• Slide the Front Intake Grille slightly to the right to attach it,

then push down to secure it.

10.4.3. Remove the Front Grille.

1. Open the Control Panel cover.

When performing the following steps, do not pull the bottom

edge of the Front Grille towards you more than 3 inches or

you may damage the top tabs.

2. Press inward on the Cabinet near the bottom right side of

the Front Grille while pulling the Front Grille to the right then

slightly towards you to release the right tab.

3. Press inward on the Cabinet near the bottom left side of the

Front Grille while pulling the Front Grille to the left then

slightly towards you to release the left tab.

4. Slide the Front Grille upwards to release the two top tabs.

10.4. Removal of the Front Grille.

CW-C170KR / CW-C200KR / CW-C240KR / CW-A170KR / CW-A200KR / CW-A240KR

10.5. Condensed Water Drainage.

This air conditioner employs a “Slinger-Up System” which is

designed to splash the condensed water on the condenser coil

for maximum cooling efficiency, thus producing a splashing

sound. If the splashing sound annoys you, you can provide an

outside drainage by using the following procedure which may,

however, cause a small loss of performance.

Note: If the unit is installed at coastal area, drainage of

condensed water is recommended to prevent the condenser

being corroded easily.

1. Slide the Chassis out from the Cabinet.

2. Remove the rubber plug from the Base Pan (If any).

3. Install the Drain Pan at the right corner of the Cabinet

with 2 screws.

4. Connect the drain hose to the outlet of Drain Pan bottom.

5. Slide the Chassis back into the Cabinet.

Note: Drain hose or tubing can be purchased locally to satisfy

your particular needs.

CW-C170KR / CW-C200KR / CW-C240KR / CW-A170KR / CW-A200KR / CW-A240KR

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Panasonic Climatiseur

Panasonic

Panasonic CS- U12WKY Series Manuel utilisateur

Panasonic

Panasonic CS-E15NKE3 Manuel utilisateur

Panasonic

Panasonic S-15MF3E5A Manuel utilisateur

Panasonic

Panasonic CS-C12UKF-2 Manuel utilisateur

Panasonic

Panasonic CS-A120K Series Manuel utilisateur

Panasonic

Panasonic CS-YU18ZKA Manuel utilisateur

Panasonic

Panasonic CS-MRE7PKE Manuel utilisateur

Panasonic

Panasonic CS-E9BKP Manuel utilisateur

Panasonic

Panasonic CS-TZ20WKEW Manuel utilisateur

Panasonic

Panasonic CS-V12CTP Manuel utilisateur

Panasonic

Panasonic CW-XN1821EA Manuel utilisateur

Panasonic

Panasonic CS-E18HKEA Manuel utilisateur

Panasonic

Panasonic CS-RE18SKUA Manuel utilisateur

Panasonic

Panasonic CS-NE9LKE Manuel utilisateur

Panasonic

Panasonic CS-C18PKF Manuel utilisateur

Panasonic

Panasonic CS-S18JKQ Manuel utilisateur

Panasonic

Panasonic CW-XC80HU Manuel utilisateur

Panasonic

Panasonic CS-RE9JKE Manuel utilisateur

Panasonic

Panasonic CS-XU10XKH Manuel utilisateur

Panasonic

Panasonic E18RB4U Manuel utilisateur

Panasonic

Panasonic CS-SA18CKP Manuel utilisateur

Panasonic

Panasonic S-15MY3E Manuel utilisateur

Panasonic

Panasonic CS-C12KKF-2 Manuel utilisateur

Panasonic

Panasonic CS-XE9SKUA Manuel utilisateur

Manuels Climatiseur populaires d'autres marques

Spheros

Spheros CC 355 Manuel utilisateur

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE Manuel utilisateur

nedis

nedis ACMB1WT7 Manuel utilisateur

Samsung

Samsung AR KV Series Mode d’emploi

Daikin

Daikin FCFV50A Manuel utilisateur

Fujitsu

Fujitsu Inverter ASBA30JFC Manuel utilisateur

Toshiba

Toshiba RAS-M10SMUV-E Manuel utilisateur

Daikin

Daikin FXLQ20MAVE Manuel utilisateur

Hitachi

Hitachi RAS-E24CAK Manuel utilisateur

CIAT

CIAT Magister 2 Series Mode d’emploi

Bestron

Bestron AAC6000 Manuel utilisateur

Hisense

Hisense 7K Manuel technique

Frigidaire

Frigidaire FFRE0533S1E0 Manuel utilisateur

Samsung

Samsung AS09HM3N Manuel utilisateur

Frigidaire

Frigidaire CRA073PU11 Manuel du propriétaire

Soleus Air

Soleus Air GB-PAC-08E4 Manuel utilisateur

McQuay

McQuay MCK020A Manuel utilisateur

Webasto

Webasto Frigo Top 25 DS Manuel utilisateur
