• Product

−

− −

− Microcomputer-controlled compressor operating

frequency.

−

− −

− Vertical and horizontal airflow directions.

−

− −

− Five modes of operation selection.

−

− −

− Air filter with function to reduce dust and smoke.

−

− −

− Catechin air purifying filter prevent the growth of

bacteria, viruses trapped, trap dust, tobacco smoke and

tiny particles.

−

− −

− Remote control self-illuminating button.

−

− −

− Ionizer control for generate negative ion in discharge air.

−

− −

− Quiet mode to provide quiet operation.

−

− −

− Oxygen mode to supply oxygen enrich air to indoor

room.

−

− −

− 24-hour timer setting.

−

− −

− Long installation piping up to 15 meter.

•

• •

• Quality Improvement

−

− −

− Random auto restart after power failure for safety restart

operation.

−

− −

− Gas leakage detection.

−

− −

− Blue Coated Condenser for high resistance to corrosion.

•

• •

• Serviceability

−

− −

− Removeable and washable front panel.

−

− −

− Breakdown self diagnosis function.

•

• •

• Environmental Protection

−

− −

− Non-ozone depletion substances refrigerant (R410A).

18.3. PRINT PATTERN INDOOR UNIT PRINTED CIRCUIT

BOARD (POWER) 108

18.4. PRINT PATTERN INDICATOR DISPLAY 108

18.5. PRINT PATTERN OUTDOOR UNIT PRINTED CIRCUIT

BOARD (MAIN)

109

18.6. PRINT PATTERN OUTDOOR UNIT PRINTED CIRCUIT

BOARD (OXYGEN)

110

1 Features

CS-XE9CKE CU-XE9CKE / CS-XE12CKE CU-XE12CKE

2 Functions

Remote Control

Operation OFF / ON

OFF/ON

Room Temperature Setting

TEMP

Operation Mode Selection

• Automatic Operation

•

HEAT

Heating Operation

•

COOL

Cooling Operation

•

DRY

Soft Dry Operation

•

FAN

Fan Operation

Time / Timer Setting

• Hours and minutes setting.

Clock Setting

• Current time setting.

Quiet Mode Operation OFF / ON

QUIET

Airflow Direction Control

• 24-hour, OFF / ON Real Timer Setting.

Timer Setting

Timer Operation Set / Cancel

• ON Timer and OFF Timer setting and

cancellation.

CLOCK

Oxygen Mode Operation OFF/ON

• Increase or decrease set temperature.

(16°C to 30°C)

Illuminable

buttons

• Vertical Automatic Airflow

Direction Control and Manual

Airflow Direction Control (5

stages of adjustment).

•Horizontal Automatic Airflow

Direction Control and Manual

Airflow Direction Control (5

stages of adjustment).

Indoor Fan Speed Selection

FAN SPEED

• Low

•Medium-

•Medium

•Medium+

•High

•

AUTO

Automatic Fan Speed

FAN

Check Point

Reset Point

RESET

TIMER

SET

CANCEL

CHECK

MODE

AIR SWING

• Breakdown self diagnosis function.

• Clear memory data.

Ion Mode Operation OFF / ON

OFF

∧

∨

CS-XE9CKE CU-XE9CKE / CS-XE12CKE CU-XE12CKE

Indoor Unit

Microcomputer-controlled Room

Temperature Control

Automatic and 5 Manual Vertical

Airflow Directions

Automatic and 5 Manual Horizontal

Airflow Directions

Automatic O

eration Butto

Press for < 5s to operate Automatic operation mode.

(Used when the remote control cannot be used.)

Press continuously for 5s or < 8s to operate Test

Run/Pump down. "Beep" sound will be heard.

(Used when test running or servicing.)

Press continuously for 8s or < 11s to operate Forced

Heating Operation. "Beep, beep" sound will be heard.

AUTO

OFF / ON

Operation Indication Lamps

(

LED

)

WER

(

Green

)

......... Lights up in operation,

blinks in Automatic

Operation Mode judging,

deice, ON Timer sampling

and Hot Start Operation.

Five Operation Modes

Heating, Cooling, Soft Dry, Fan and Automatic Mode.

Oxygen Operation

To supply oxygen enrich air.

Quiet Operation

To provide quiet operation.

Random Auto Restart

ontro

Operation is restarted randomly after power

failure at previous setting mode.

Delay ON Timer and OFF Timer

Press continuously for 11s or < 16s to change

different remote control setting (A ↔B mode),

or testify oxygen operation "Beep, beep, beep"

sound will be heard.

Press continuously for 16s or < 21s to omit or

resume the remote control signal receiving

sound or H14 Abnormality Detection mode.

QUIET (Orange)......... Lights up in Quiet Mode

Operation.

TIMER (Orange)......... Lights up in Timer

Setting. Blinks in Self

Diagnosis Control.

(

Green

)

....... Lights up in Oxygen

Mode Operation.

(

Green

)

............ Lights up in Ionizer

Mode Operation. Blinks

in Ionizer error.

Deodorizing Control

Indoor Power Relay Control

Anti-Dew Formation Control

Anti Freezing Control

Low Pressure Control

(Gas Leakeage Detection)

Breakdown Self Diagnosis

Function

Anti-Cold Draft Control

High Pressure Control

Hot Start

Intake Air Temperature Control

Deice Operation

Ionizer Control

Automatic and 5 Manual Indoor

Fan Speeds

Ionizer control for generate negative ion in

discharge air.

CS-XE9CKE CU-XE9CKE / CS-XE12CKE CU-XE12CKE

Outdoor Unit

30 seconds Forced Operation

Time Delay Safety Control

Overload Protection

Deice Operation

Compressor Overheating

Prevention Control

IPM (Power Transistor)

Overheating Protection Control

Total Running Current Control

Low Operation Frequency

Protection Control

Outdoor Air Temperature

Control

CS-XE9CKE CU-XE9CKE / CS-XE12CKE CU-XE12CKE

3 Product Specifications

Unit CS-XE9CKE CU-XE9CKE

Cooling Capacity kW

kcal/h

BTU/h

2.6 (0.60 - 3.00)

2,240 (520 - 2,580)

8,870 (2,050 - 10,200)

Heating Capacity kW

kcal/h

BTU/h

3.6 (0.60 - 5.00)

3,100 (520 - 4,300)

12,300 (2,050 - 17,100)

Moisture Removal l/h

Pint/h

1.6

(3.4)

Power Source Phase

Cycle

Single

230

Airflow Method OUTLET

INTAKE

SIDE VIEW TOP VIEW

Air Volume Indoor Air (Lo) m3/min (cfm) Cooling; 6.5 (231) —

Heating; 7.1 (249)

Indoor Air (Me) m3/min (cfm) Cooling; 8.1 (286) —

Heating; 8.8 (312)

Indoor Air (Hi) m3/min (cfm) Cooling; 9.9 (350) Cooling; 30.0 (1,060)

Heating; 10.6 (370)

dB (A) Cooling; High 39, Low 26 Cooling; 46

Heating; High 40, Low 27 Heating; 47

Noise Level

Power level dB Cooling; High 50 Cooling; High 59

Heating; High 51 Heating; High 60

Electrical Data Input W Cooling; 700 (115 - 880)

Heating; 900 (110 - 1,400)

Running Current ACooling; 3.3

Heating; 4.0

EER W/W (kcal/hw), BTU/hw Cooling; 3.71(3.20), 12.7

COP W/W (kcal/hw), BTU/hw Heating; 4.00 (3.44), 13.7

Starting Current A 4.00

Piping Connection Port

(Flare piping)

inch

G ; Half Union 3/8”

L ; Half Union 1/4”

G ; 3-way valve 3/8”

L ; 2-way valve 1/4”

Pipe Size

(Flare piping)

inch

G (gas side) ; 3/8”

L (liquid side) ; 1/4”

G (gas side) ; 3/8”

L (liquid side) ; 1/4”

CS-XE9CKE CU-XE9CKE / CS-XE12CKE CU-XE12CKE

Unit CS-XE9CKE CU-XE9CKE

Drain

Hose

Inner diameter mm 12 —

Length m 0.65 —

Power Cord Length

Number of core-wire

2.1 m

3 core wires × 1.0 mm2

—

Dimensions Height inch (mm) 10 - 26/32 (275) 21 - 9/32 (540)

Width inch (mm) 31 - 15/32 (799) 30 - 23/32 (780)

Depth inch (mm) 9 - 9/32 (236) 11 - 3/8 (289)

Net Weight lb (kg) 22 (10.0) 84 (38)

Compressor Type — Involute scroll

Motor Type —Brushless (4-pole)

Rated Output W — 700

Air Circulation Type Cross-flow Fan Propeller Fan

Material AS + Glass Fiber 20% P.P

Motor Type Transistor (8-poles) Induction (6-poles)

Input W — 61.3

Rate Output W 30 25

Fan Speed Lo (Cool/Heat) rpm 800 / 840 —

Me (Cool/Heat) rpm 1,000 / 1,040 —

Hi (Cool/Heat) rpm 1,200 / 1,270 770

Heat Exchanger Description Evaporator Condenser

Tube material Copper Copper

Fin material Aluminium (Pre Coat) Aluminium (Blue Coated)

Fin Type Slit Fin Corrugated Fin

Row / Stage (Plate fin configuration, forced draft)

2/15 1/20

FPI 21 19

Size (W × H × L) mm 610 × 315 × 25.4 732.1 × 508 × 22

Refrigerant Control Device — Capillary Tube

Refrigeration Oil (c.c) — RB68A (360)

Refrigerant (R410A) g (oz) — 840 (29.7)

Thermostat Electronic Control —

Protection Device Electronic Control Electronic Control

Length mm — C1, C2 ; 1,100, C3 ; 440

Capillary Tube Flow Rate l/min — C1, C2 ; 5.0, C3 ; 18.6

Inner Diameter mm — C1, C2 ; 1.2, C3 ; 1.7

Air Filter Material

Style

P.P.

Honeycomb

—

Fan Motor Capacitor µF, VAC — 1.8 µF, 400 VAC

•

• •

• Specifications are subject to change without notice for further improvement.

CS-XE9CKE CU-XE9CKE / CS-XE12CKE CU-XE12CKE

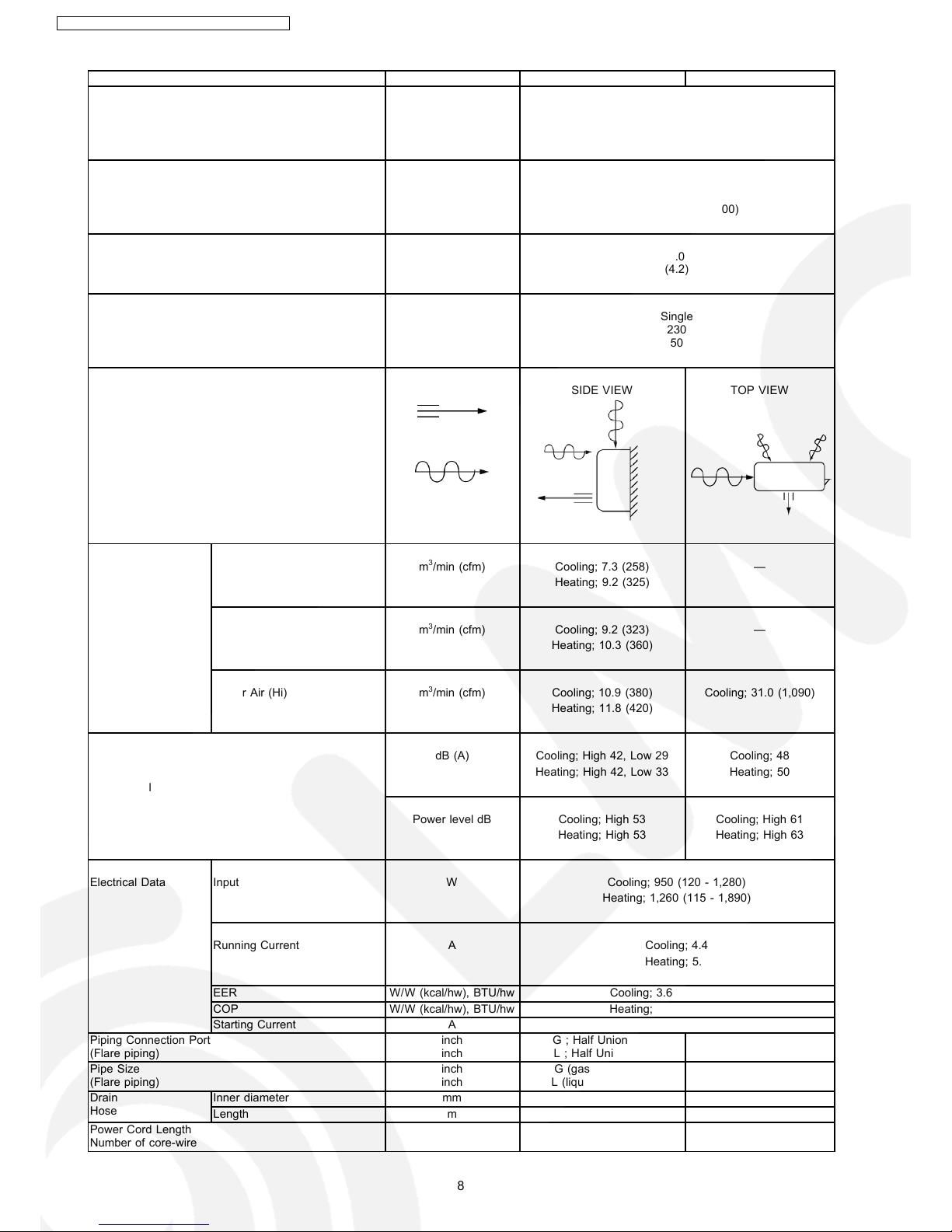

Unit CS-XE12CKE CU-XE12CKE

Cooling Capacity kW

kcal/h

BTU/h

3.45 (0.60 - 4.00)

2,970 (520 - 3,440)

11,800 (2,050 - 13,600)

Heating Capacity kW

kcal/h

BTU/h

4.80 (0.60 - 6.50)

4,130 (520 - 5,590)

16,400 (2,050 - 22,200)

Moisture Removal l/h

Pint/h

2.0

(4.2)

Power Source Phase

Cycle

Single

230

Airflow Method OUTLET

INTAKE

SIDE VIEW TOP VIEW

Air Volume Indoor Air (Lo) m3/min (cfm) Cooling; 7.3 (258) —

Heating; 9.2 (325)

Indoor Air (Me) m3/min (cfm) Cooling; 9.2 (323) —

Heating; 10.3 (360)

Indoor Air (Hi) m3/min (cfm) Cooling; 10.9 (380) Cooling; 31.0 (1,090)

Heating; 11.8 (420)

dB (A) Cooling; High 42, Low 29 Cooling; 48

Heating; High 42, Low 33 Heating; 50

Noise Level

Power level dB Cooling; High 53 Cooling; High 61

Heating; High 53 Heating; High 63

Electrical Data Input W Cooling; 950 (120 - 1,280)

Heating; 1,260 (115 - 1,890)

Running Current ACooling; 4.4

Heating; 5.6

EER W/W (kcal/hw), BTU/hw Cooling; 3.63 (3.13), 12.4

COP W/W (kcal/hw), BTU/hw Heating; 3.81 (3.28), 13.0

Starting Current A 5.60

Piping Connection Port

(Flare piping)

inch

G ; Half Union 1/2”

L ; Half Union 1/4”

G ; 3-way valve 1/2”

L ; 2-way valve 1/4”

Pipe Size

(Flare piping)

inch

G (gas side) ; 1/2”

L (liquid side) ; 1/4”

G (gas side) ; 1/2”

L (liquid side) ; 1/4”

Drain

Hose

Inner diameter mm 12 —

Length m 0.65 —

Power Cord Length

Number of core-wire

2.1 m

3 core wires × 1.0 mm2

—

CS-XE9CKE CU-XE9CKE / CS-XE12CKE CU-XE12CKE

Unit CS-XE12CKE CU-XE12CKE

Dimensions Height inch (mm) 10 - 26/32 (275) 21 - 9/32 (540)

Width inch (mm) 31 - 15/32 (799) 30 - 23/32 (780)

Depth inch (mm) 9 - 9/32 (236) 11 - 3/8 (289)

Net Weight lb (kg) 22 (10.0) 88 (40)

Compressor Type — Involute scroll

Motor Type —Brushless (4-pole)

Rated Output W — 700

Air Circulation Type Cross-flow Fan Propeller Fan

Material AS + Glass Fiber 20% P.P

Motor Type Transistor (8-poles) Induction (6-poles)

Input W — 65.9

Rate Output W 30 29

Fan Speed Lo (Cool/Heat) rpm 880 / 1,100 —

Me (Cool/Heat) rpm 1,100 / 1,230 —

Hi (Cool/Heat) rpm 1,310 / 1,410 830

Heat Exchanger Description Evaporator Condenser

Tube material Copper Copper

Fin material Aluminium (Pre Coat) Aluminium (Blue Coated)

Fin Type Slit Fin Corrugated Fin

Row / Stage (Plate fin configuration, forced draft)

2/15 2/24

FPI 21 17

Size (W × H × L) mm 610 × 315 × 25.4 703.8

735.0

× 504 × 36.4

Refrigerant Control Device — Capillary Tube

Refrigeration Oil (c.c) — RB68A (360)

Refrigerant (R410A) g (oz) — 1,020 (36.0)

Thermostat Electronic Control —

Protection Device Electronic Control Electronic Control

Length mm — C1, C2 ; 1,100, C3 ; 750

Capillary Tube Flow Rate l/min — C1, C2 ; 5.0, C3 ; 15.4

Inner Diameter mm — C1, C2 ; 1.2, C3 ; 1.7

Air Filter Material

Style

P.P.

Honeycomb

—

Fan Motor Capacitor µF, VAC — 2.0 µF, 400 VAC

•

• •

• Specifications are subject to change without notice for further improvement.

CS-XE9CKE CU-XE9CKE / CS-XE12CKE CU-XE12CKE

4 Dimensions

CS-XE9CKE CU-XE9CKE / CS-XE12CKE CU-XE12CKE

Autres manuels pour CS-XE9CKE

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Panasonic Climatiseur

Panasonic

Panasonic U-16GE2E5 Manuel d'utilisation et d'entretien

Panasonic

Panasonic CS-C73K Series Manuel utilisateur

Panasonic

Panasonic CU-E21HKEA Manuel utilisateur

Panasonic

Panasonic CS-E9PKA Manuel utilisateur

Panasonic

Panasonic CS-HE9NKD Manuel utilisateur

Panasonic

Panasonic CU-C18CKV Manuel utilisateur

Panasonic

Panasonic CS-U12UKY Manuel utilisateur

Panasonic

Panasonic CS-Z25YKEA Manuel utilisateur

Panasonic

Panasonic S-60PT2R5 Manuel utilisateur

Panasonic

Panasonic CS-E15GKR Manuel utilisateur

Panasonic

Panasonic CS-YE9MKE Manuel utilisateur

Panasonic

Panasonic S-22MU2E5A Manuel utilisateur

Panasonic

Panasonic CSA18CKPG - SPLIT A/C IN DOOR Manuel utilisateur

Panasonic

Panasonic CU-KS18NKU Manuel d'utilisation

Panasonic

Panasonic CS-E18JKR Manuel utilisateur

Panasonic

Panasonic CS-C18HKQ Manuel utilisateur

Panasonic

Panasonic CU-S9NKV-7 Manuel utilisateur

Panasonic

Panasonic CW-C241SE Manuel utilisateur

Panasonic

Panasonic CS-A18CKH Manuel utilisateur

Panasonic

Panasonic S-36PK1E5 Manuel utilisateur

Panasonic

Panasonic S-36PU1E5 Manuel utilisateur

Panasonic

Panasonic CS-XZ7SKEW Manuel utilisateur

Panasonic

Panasonic CS-UC12QKD Manuel utilisateur

Panasonic

Panasonic CU-KS30NKUA Manuel utilisateur

Manuels Climatiseur populaires d'autres marques

Spheros

Spheros CC 355 Manuel utilisateur

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE Manuel utilisateur

nedis

nedis ACMB1WT7 Manuel utilisateur

Samsung

Samsung AR KV Series Mode d’emploi

Daikin

Daikin FCFV50A Manuel utilisateur

Fujitsu

Fujitsu Inverter ASBA30JFC Manuel utilisateur

Toshiba

Toshiba RAS-M10SMUV-E Manuel utilisateur

Daikin

Daikin FXLQ20MAVE Manuel utilisateur

Hitachi

Hitachi RAS-E24CAK Manuel utilisateur

CIAT

CIAT Magister 2 Series Mode d’emploi

Bestron

Bestron AAC6000 Manuel utilisateur

Hisense

Hisense 7K Manuel technique

Frigidaire

Frigidaire FFRE0533S1E0 Manuel utilisateur

Samsung

Samsung AS09HM3N Manuel utilisateur

Frigidaire

Frigidaire CRA073PU11 Manuel du propriétaire

Soleus Air

Soleus Air GB-PAC-08E4 Manuel utilisateur

McQuay

McQuay MCK020A Manuel utilisateur

Webasto

Webasto Frigo Top 25 DS Manuel utilisateur
