1 Features 3

2 Functions 4

2.1. Remote Control 4

2.2. Indoor Unit 5

2.3. Outdoor Unit 6

3 Product Specifications 7

3.1. CS-V7DKE CU-V7DKE 7

and distribution is a violation of law.

CS-V7DKE CU-V7DKE

CS-V9DKE CU-V9DKE

CS-V12DKE CU-V12DKE

3.2. CS-V9DKE CU-V9DKE 9

3.3. CS-V12DKE CU-V12DKE 11

4 Dimensions 13

4.1. Indoor Unit & Remote Control 13

4.2. Outdoor Unit 14

5 Refrigeration Cycle Diagram 15

6 Block Diagram 16

Air Conditioner

CONTENTS

Page Page

Order No. MAC0412062C2

7 Wiring Diagram 17

8 Operation Details 18

8.1. Cooling Operation 18

8.2. Soft Dry Operation 19

8.3. Automatic Operation 20

8.4. Operation Control 20

8.5. Indoor Fan Speed Control 22

8.6. Outdoor Fan Speed Control 24

8.7. Vertical Airflow Direction Control 24

8.8. Horizontal Airflow Direction Control 25

8.9. Powerful Operation 25

8.10. Quiet Operation 25

8.11. Ionizer Operation 27

8.12. Timer Control 28

8.13. Random Auto Restart Control 28

8.14. Remote Control Signal Receiving Sound 28

9 Operating Instructions 29

10 Installation Instructions 35

10.1. Safety Precautions 35

10.2. Indoor Unit 38

10.3. Outdoor Unit 42

11 Installation And Servicing Air Conditioner Using R410A 45

11.1. Outline 45

11.2. Tools For Installing/Servicing Refrigerant Piping 46

11.3. Refrigerant Piping Work 50

11.4. Installation, Transferring, Servicing 52

12 Servicing Information 56

12.1. Distinction Of Lead Free (PbF) Printed Circuit Board 56

12.2. Indoor Electronic Controllers Removal Procedures 56

12.3. Indoor Fan Motor And Cross Flow Fan Removal

Procedures 57

12.4. Remote Control Reset 58

12.5. Auto OFF/ON Button 59

13 Troubleshooting Guide 60

13.1. Refrigeration Cycle System 60

13.2. Relationship Between The Condition Of The Air

Conditioner And Pressure And Electric Current 61

13.3. Diagnosis Methods Of A Malfunction Of A Compressor

14 Technical Data 62

14.1. Thermostat Characteristics 62

14.2. Sensible Capacity Chart 62

14.3. Operation Characteristics 63

15 Exploded View (Indoor Unit) 65

15.1. CS-V7DKE CS-V9DKE CS-V12DKE 65

16 Replacement Parts List (Indoor Unit) 66

16.1. CS-V7DKE CS-V9DKE CS-V12DKE 66

17 Exploded View (Outdoor Unit) 67

17.1. CU-V7DKE 67

17.2. CU-V9DKE CU-V12DKE 68

18 Replacement Parts List (Outdoor Unit) 69

18.1. CU-V7DKE 69

18.2. CU-V9DKE CU-V12DKE 70

19 Electronic Circuit Diagram 71

19.1. Indoor Unit & Outdoor Unit 71

19.2. Remote Control 77

19.3. Print Pattern Indoor Unit Printed Circuit Board 78

19.4. Print Pattern Indicator & Receiver Printed Circuit Board

CS-V7DKE CU-V7DKE / CS-V9DKE CU-V9DKE / CS-V12DKE CU-V12DKE

• High efficiency.

• Compact design.

• Wider range of horizontal discharge air.

• Air Filter with function to reduce dust and smoke.

• Long installation piping up to 15 meter (CS/CU-V12DKE),

10 meter (CS/CU-V7DKE & CS/CU-V9DKE).

• Supersonic Air Purifying System with Super Alleru-Buster.

− Inactive various harmful airbone elements including

allergens, viruses and bacteria.

− Generated supersonic waves enhance the ability to

collect dust and dirt in the air.

• Quality Improvement

− Random auto restart after power failure for safety restart

operation.

− Gas leakage detection.

− Prevent Compressor reverse cycle.

− OLP to protect Compressor.

− Noise prevention during soft dry operation.

− Blue coated Condenser for high resistance to corrosion.

− Anti-dew formation control (Cooling & Soft Dry).

• Operation Improvement

− Quiet mode to provide quiet operation.

− Powerful mode to reach the desired room temperature

quickly.

− Ionizer control for generating negative ion in discharge

air.

− 24-hour timer setting.

• Serviceability Improvement

− Removable and washable Front Panel.

• Environmental Friendly

− R410A, which does not contain chlorine, is used as its

refrigerant, so there is no danger of damage to the

ozone layer in Stratosphere.

1 Features

CS-V7DKE CU-V7DKE / CS-V9DKE CU-V9DKE / CS-V12DKE CU-V12DKE

2 Functions

2.1. Remote Control

Operation Start / Stop

OFF / ON IRoom Temperature Setting

TEMP.

Operation Mode Selection

•AUTO Automatic Operation

•COOL Cooling Operation

•DRY Soft Dry Operation

MODE

Time / Timer Setting

• Hours and minutes setting.

Clock Setting

• Current time setting.

Ionizer Operation Start / Stop

Indoor Fan Speed Selection

FAN SPEED

•Low Fan Speed

•Medium Fan Speed

•High Fan Speed

•AUTO Automatic Fan Speed

Vertical Airflow Direction Control

• 24-hour, OFF / ON Real Timer Setting.

ON-TIMER

OFF-TIMER Timer Operation Selection

SET

CANCEL Timer Operation Set / Cancel

• ON Timer and OFF Timer setting and

cancellation.

CLOCK

AIR SWING

•AUTO Automatic Vertical Airflow

Control.

• Manual Vertical Airflow

Control (5 stages of

adjustment).

Powerful Operation Start / Stop

POWERFUL

Quiet Operation Start / Stop

QUIET

Cooling, Soft Dry Operation.

• Increase or decrease set temperature

(16°C to 30°C)

Automatic Operation

•Operation with 2°C higher than

standard temperature.

• Operation with standard temperature.

•Operation with 2°C lower than

standard temperature.

CANCEL

OFF

TIMER

FAN

SPEED

AIR

SWING

AUTO

DRY

COOL

MODE

TIMER

123

OFF

CLOCK RESET

SET

CANCEL

TEMP

POWERFUL FAN SPEED

AIR SWING

OFF/ON

QUIET

▲

▼

CS-V7DKE CU-V7DKE / CS-V9DKE CU-V9DKE / CS-V12DKE CU-V12DKE

2.2. Indoor Unit

Automatic Operation Button

•Press for < 5 second to operate Automatic

operation mode. Used when the remote control

cannot be used.

•Press for ≥5 second to operate Cooling

operation mode and compressor force to on

(“beep”sound will heard). Used when test

running or servicing.

•Within 20 second of Cooling operation, press

continuously for 5 second to enter various

setting mode. “beep, beep”sound will be heard.

(Used to toggle remote control signal receiving

sound or select remote control transmission

code).

AUTO

OFF / ON

7 Minutes Time Save Control

•To reduce the built up humidity inside the room.

Anti-Dew Formation Control

•Anti-Dew Formation Control for indoor unit

discharge area.

Timer Operation

•Delay OFF/ON Timer control.

Powerful Operation

•Reaches the desired room temperature quickly.

Anti-Freezing Control

•To prevent indoor heat exchanger from freezing.

Random Auto Restart Control

•Unit will be restarted, when resume from power

failure, at previous setting.

Indoor Fan Speed Control

•Manual control fan speed (High, Medium and

Low).

•Automatic fan speed.

•Vertical airflow control can be adjusted

automatically or manually by remote control.

•Horizontal airflow can be manually adjusted by

hand.

Airflow Direction Control

Time Delay Safety Control

•Restarting is inhibited for appro. 3 minutes.

Starting Current Control

•To reduce the starting current.

Operation Mode

•Cooling, Soft Dry and Automatic Operation.

Quiet Operation

•To provide quiet operation.

Ionizer Operation

•Generate and discharge negative ion.

Operation Indication Lamps (LED)

•

POWER

(Green) ............. Lights up in operation,

blinks in Automatic

Operation judging.

•

TIMER

(Orange) ............ Lights up in Timer

Setting.

•

QUIET

(Orange) ............. Lights up in Quiet

Operation.

•

POWERFUL

(Orange) ...... Lights up in Powerful

Operation.

•

ION

(Green) .................. Lights up in Ionizer

Operation.

•

SUPER

ALLERU-BUSTER

(Blue) ... Lights up in operation.

CS-V7DKE CU-V7DKE / CS-V9DKE CU-V9DKE / CS-V12DKE CU-V12DKE

2.3. Outdoor Unit

•To protect compressor from reverse

rotation when there is a instantaneous

power failure.

60 Secs. Forced Operation Control

•Once the compressor is activated, it

does not stop within the first 60 secs.

However, it stops immediately with

remote control stop signal.

Overload Protector

•OLP to protect the compressor. Overload

Protector will trip when

–Temperature of compressor increases

to 120°C.

–High temperature or high current flows

to compressor.

(Refer circuit diagram for OLP

characteristic)

Compressor Reverse Rotation

Protection Control

Outdoor Fan Operation Control

•Temperature Fuse.

CS-V7DKE CU-V7DKE / CS-V9DKE CU-V9DKE / CS-V12DKE CU-V12DKE

3 Product Specifications

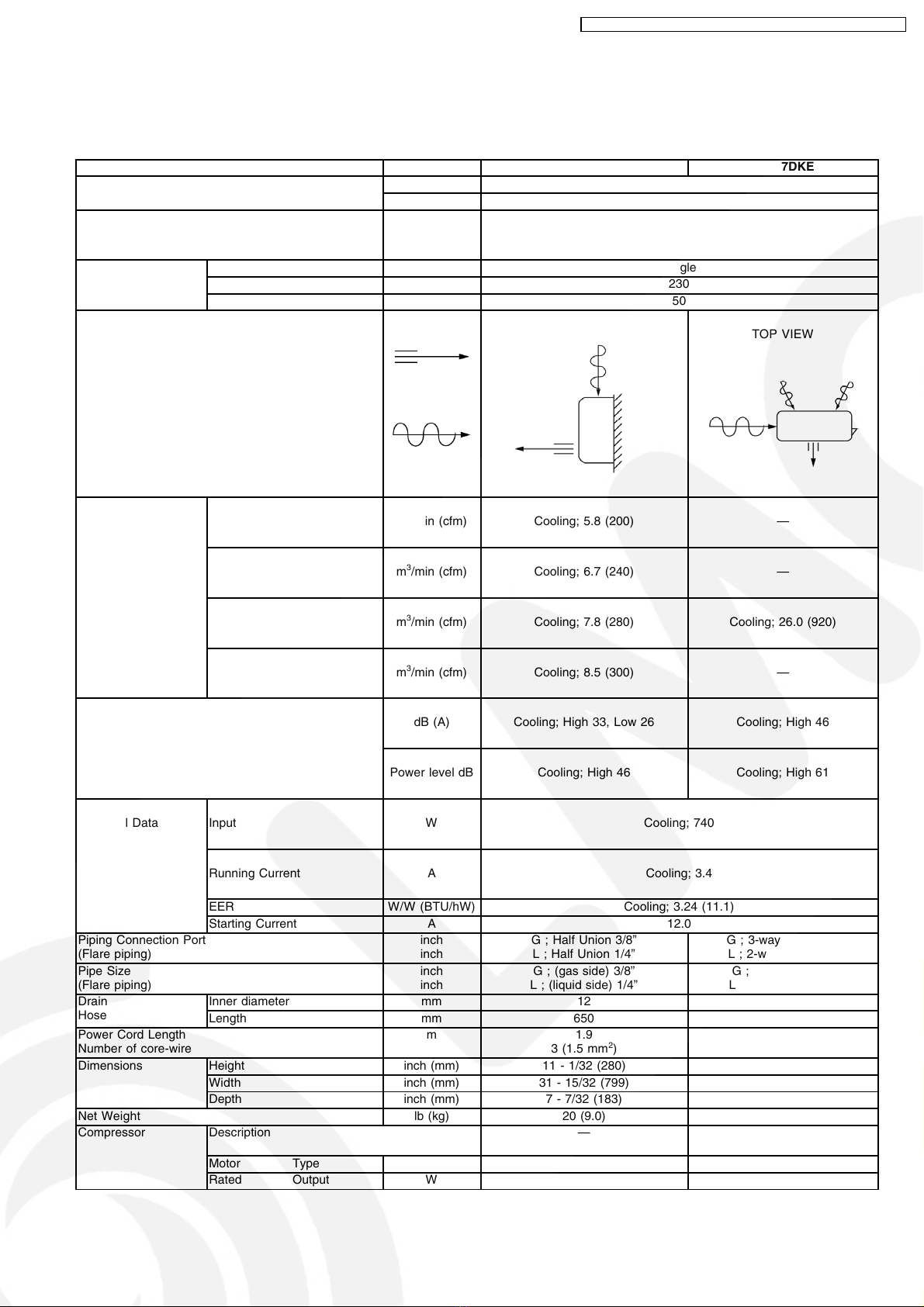

3.1. CS-V7DKE CU-V7DKE

Unit CS-V7DKE CU-V7DKE

Cooling Capacity kW (kcal/h) 2.40 (2,060)

BTU/h 8,180

Moisture Removal l/h (Pint/h) 1.5 (3.2)

Phase øSingle

Power Source Voltage V230

Cycle Hz 50

Airflow Method OUTLET

INTAKE

SIDE VIEW TOP VIEW

Air Volume Lo m3/min (cfm) Cooling; 5.8 (200) —

Me m3/min (cfm) Cooling; 6.7 (240) —

Hi m3/min (cfm) Cooling; 7.8 (280) Cooling; 26.0 (920)

SHi m3/min (cfm) Cooling; 8.5 (300) —

Noise Level dB (A) Cooling; High 33, Low 26 Cooling; High 46

Power level dB Cooling; High 46 Cooling; High 61

Electrical Data Input WCooling; 740

Running Current ACooling; 3.4

EER W/W (BTU/hW) Cooling; 3.24 (11.1)

Starting Current A12.0

Piping Connection Port

(Flare piping)

inch

G ; Half Union 3/8”

L ; Half Union 1/4”

G ; 3-way valve 3/8”

L ; 2-way valve 1/4”

Pipe Size

(Flare piping)

inch

G ; (gas side) 3/8”

L ; (liquid side) 1/4”

G ; (gas side) 3/8”

L ; (liquid side) 1/4”

Drain

Hose

Inner diameter mm 12 —

Length mm 650 —

Power Cord Length

Number of core-wire

m1.9

3 (1.5 mm2)

—

Dimensions Height inch (mm) 11 - 1/32 (280) 20 - 3/32 (510)

Width inch (mm) 31 - 15/32 (799) 25 - 19/32 (650)

Depth inch (mm) 7 - 7/32 (183) 9 - 1/16 (230)

Net Weight lb (kg) 20 (9.0) 55 (25)

Compressor Description —Rotary (1 cylinder)

rolling piston type

Motor Type —Induction (2-poles)

Rated Output W—600

CS-V7DKE CU-V7DKE / CS-V9DKE CU-V9DKE / CS-V12DKE CU-V12DKE

Unit CS-V7DKE CU-V7DKE

Air Circulation Description Cross-flow Fan Propeller Fan

Material ASG20k1 PP Resin

Motor Type Induction (4-poles) Induction (6-poles)

Input W47 63

Rated Output W15 30

Fan Speed Low rpm Cooling; 780 —

Medium rpm Cooling; 900 —

High rpm Cooling; 1,050 795

SuperHigh rpm Cooling; 1,140 —

Heat Exchanger Description Evaporator Condenser

Tube material Copper Copper

Fin material Aluminium (Pre Coat) Aluminium (Blue Coat)

Fin Type Slit Fin Corrugate Fin

Row / Stage (Plate fin configuration, forced draft)

2×15 2×20

FPI 21 17

Size (W × H × L) mm 610 × 315 × 25.4 594.7

574.7

× 483 × 25.4

Refrigerant Control Device —Capillary Tube

Refrigeration Oil (cm3) — FV50S (300)

Refrigerant (R-410A) g (oz) —890 (31.4)

Thermostat Electronic Control —

Protection Device —Overload Protector

Capillary Tube Length mm —Cooling; 570

Flow Rate l/min —Cooling; 6.5

Inner Diameter mm —Cooling; 1.2

Air Filter Material

Style

P.P.

Honeycomb

—

Capacity Control Capillary Tube

Compressor Capacitor µF, VAC —20 µF, 400VAC

Fan Motor Capacitor µF, VAC 1.5 µF, 440VAC 2.0 µF, 440VAC

• Specifications are subject to change without notice for further improvement.

CS-V7DKE CU-V7DKE / CS-V9DKE CU-V9DKE / CS-V12DKE CU-V12DKE

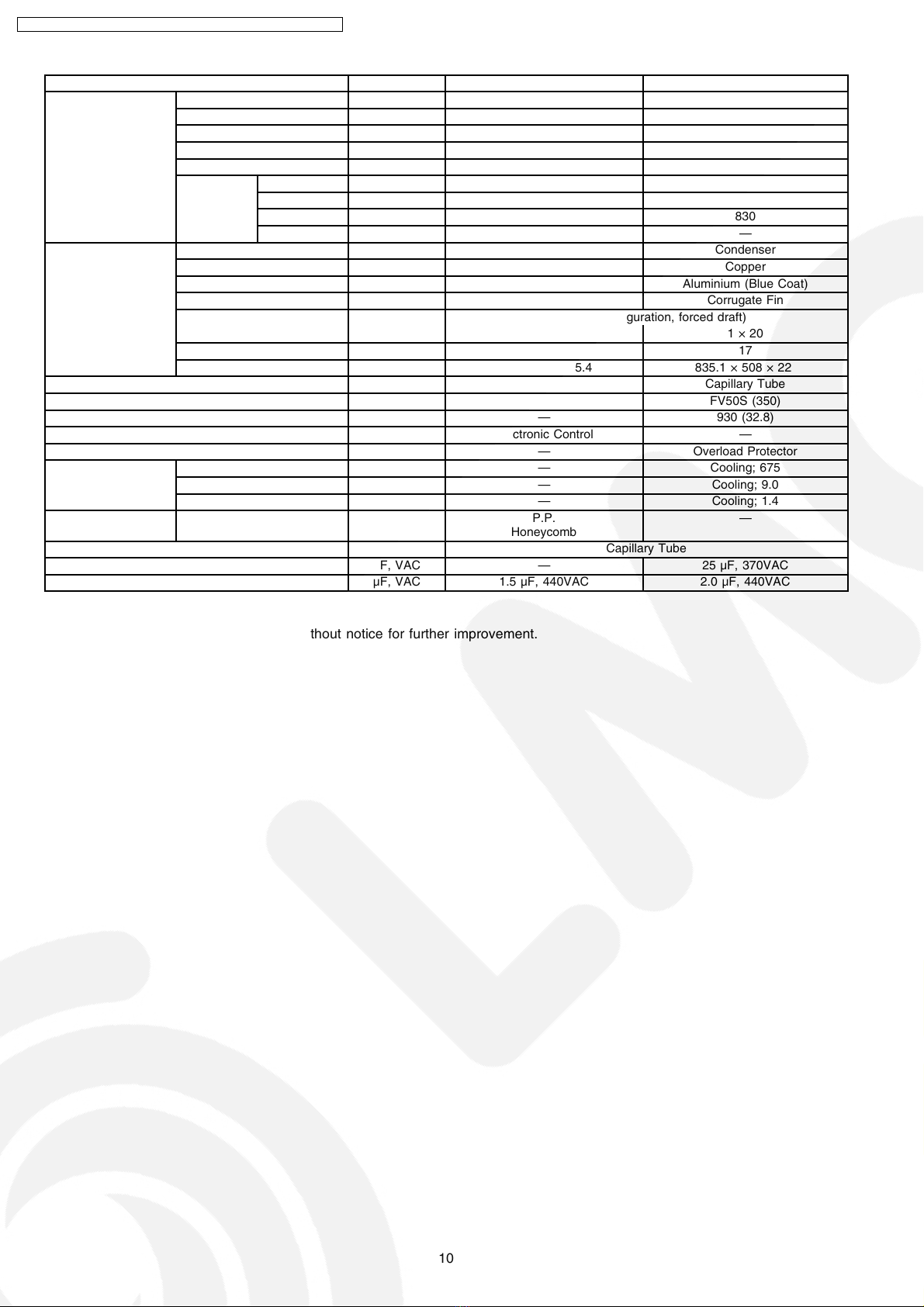

3.2. CS-V9DKE CU-V9DKE

Unit CS-V9DKE CU-V9DKE

Cooling Capacity kW (kcal/h) 3.00 (2,580)

BTU/h 10,230

Moisture Removal l/h (Pint/h) 1.7 (3.6)

Phase øSingle

Power Source Voltage V230

Cycle Hz 50

Airflow Method OUTLET

INTAKE

SIDE VIEW TOP VIEW

Air Volume Lo m3/min (cfm) Cooling; 5.7 (200) —

Me m3/min (cfm) Cooling; 7.2 (250) —

Hi m3/min (cfm) Cooling; 8.5 (300) Cooling; 33.0 (1,160)

SHi m3/min (cfm) Cooling; 9.6 (340) —

Noise Level dB (A) Cooling; High 35, Low 26 Cooling; High 48

Power level (dB) Cooling; High 48 Cooling; High 63

Electrical Data Input WCooling; 935

Running Current ACooling; 4.2

EER W/W (BTU/hW) Cooling; 3.21 (10.9)

Starting Current A20.3

Piping Connection Port

(Flare piping)

inch

G ; Half Union 3/8”

L ; Half Union 1/4”

G ; 3-way valve 3/8”

L ; 2-way valve 1/4”

Pipe Size

(Flare piping)

inch

G ; (gas side) 3/8”

L ; (liquid side) 1/4”

G ; (gas side) 3/8”

L ; (liquid side) 1/4”

Drain

Hose

Inner diameter mm 12 —

Length mm 650 —

Power Cord Length

Number of core-wire

m1.9

3 (1.5 mm2)

—

Dimensions Height inch (mm) 11 - 1/32 (280) 21 - 1/4 (540)

Width inch (mm) 31 - 15/32 (799) 30 - 23/32 (780)

Depth inch (mm) 7 - 7/32 (183) 11 - 3/8 (289)

Net Weight lb (kg) 20 (9.0) 68 (31)

Compressor Description —Rotary (1 cylinder)

rolling piston type

Motor Type —Induction (2-poles)

Rated Output W—750

CS-V7DKE CU-V7DKE / CS-V9DKE CU-V9DKE / CS-V12DKE CU-V12DKE

Unit CS-V9DKE CU-V9DKE

Air Circulation Description Cross-flow Fan Propeller Fan

Material ASG20k1 PP Resin

Motor Type Induction (4-poles) Induction (6-poles)

Input W47 69

Rated Output W15 30

Fan Speed Low rpm Cooling; 780 —

Medium rpm Cooling; 980 —

High rpm Cooling; 1,160 830

SuperHigh rpm Cooling; 1,310 —

Heat Exchanger Description Evaporator Condenser

Tube material Copper Copper

Fin material Aluminium (Pre Coat) Aluminium (Blue Coat)

Fin Type Slit Fin Corrugate Fin

Row / Stage (Plate fin configuration, forced draft)

2×15 1×20

FPI 21 17

Size (W ×H×L) mm 610 ×315 ×25.4 835.1 ×508 ×22

Refrigerant Control Device —Capillary Tube

Refrigeration Oil (cm3)—FV50S (350)

Refrigerant (R-410A) g (oz) —930 (32.8)

Thermostat Electronic Control —

Protection Device —Overload Protector

Capillary Tube Length mm —Cooling; 675

Flow Rate l/min —Cooling; 9.0

Inner Diameter mm —Cooling; 1.4

Air Filter Material

Style

P.P.

Honeycomb

—

Capacity Control Capillary Tube

Compressor Capacitor µF, VAC —25 µF, 370VAC

Fan Motor Capacitor µF, VAC 1.5 µF, 440VAC 2.0 µF, 440VAC

• Specifications are subject to change without notice for further improvement.

CS-V7DKE CU-V7DKE / CS-V9DKE CU-V9DKE / CS-V12DKE CU-V12DKE

Autres manuels pour CS-V7DKE

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Panasonic Climatiseur

Panasonic

Panasonic S-19PU1H5B Manuel utilisateur

Panasonic

Panasonic CS-RE18UKA Manuel utilisateur

Panasonic

Panasonic CS-F24DD2E5 Manuel utilisateur

Panasonic

Panasonic CS-PN9WKT Manuel utilisateur

Panasonic

Panasonic CS-Z25UB4RAW Manuel utilisateur

Panasonic

Panasonic CS-MC120KE Manuel utilisateur

Panasonic

Panasonic CS-E24MKES Manuel utilisateur

Panasonic

Panasonic CS-E12GFEW-2 Manuel utilisateur

Panasonic

Panasonic CS-YW7MKD Manuel utilisateur

Panasonic

Panasonic CW-XV715JA Manuel utilisateur

Panasonic

Panasonic CS-V9BKPG Manuel utilisateur

Panasonic

Panasonic CS-A182KR Manuel utilisateur

Panasonic

Panasonic U-72MF1U9 Manuel utilisateur

Panasonic

Panasonic CS-D24DB4H5 Manuel utilisateur

Panasonic

Panasonic CS-C9KKV Manuel utilisateur

Panasonic

Panasonic CU-2E18SBU Manuel utilisateur

Panasonic

Panasonic CU-E10HBEA Manuel utilisateur

Panasonic

Panasonic CS-KE18NKU Guide d'installation et d'utilisation

Panasonic

Panasonic CS-E9QD3RW Manuel utilisateur

Panasonic

Panasonic CS-F28DTE5 Instructions d'utilisation

Panasonic

Panasonic CS-E9SB4RW Manuel utilisateur

Panasonic

Panasonic CS-MZ20UB4EA Manuel utilisateur

Panasonic

Panasonic CS-ME 7CKPGCS-ME10CKPG Manuel utilisateur

Panasonic

Panasonic CS-HZ25WKE Manuel utilisateur

Manuels Climatiseur populaires d'autres marques

Spheros

Spheros CC 355 Manuel utilisateur

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE Manuel utilisateur

nedis

nedis ACMB1WT7 Manuel utilisateur

Samsung

Samsung AR KV Series Mode d’emploi

Daikin

Daikin FCFV50A Manuel utilisateur

Fujitsu

Fujitsu Inverter ASBA30JFC Manuel utilisateur

Toshiba

Toshiba RAS-M10SMUV-E Manuel utilisateur

Daikin

Daikin FXLQ20MAVE Manuel utilisateur

Hitachi

Hitachi RAS-E24CAK Manuel utilisateur

CIAT

CIAT Magister 2 Series Mode d’emploi

Bestron

Bestron AAC6000 Manuel utilisateur

Hisense

Hisense 7K Manuel technique

Frigidaire

Frigidaire FFRE0533S1E0 Manuel utilisateur

Samsung

Samsung AS09HM3N Manuel utilisateur

Frigidaire

Frigidaire CRA073PU11 Manuel du propriétaire

Soleus Air

Soleus Air GB-PAC-08E4 Manuel utilisateur

McQuay

McQuay MCK020A Manuel utilisateur

Webasto

Webasto Frigo Top 25 DS Manuel utilisateur
