Panasonic CS-PV9CKE Manuel utilisateur

1 Functions 2

2 Product Specifications 5

3 Dimensions 9

4 Refrigeration Cycle Diagram 11

5 Block Diagram 12

6 Wiring Diagram 13

7 Operation Details 14

8 Installation Instructions 21

9 Installation and Servicing Air Conditioner Using R410A 31

and distribution is a violation of law.

CS-PV9CKE CU-PV9CKE

CS-PV12CKE CU-PV12CKE

10 Servicing Information 42

11 Troubleshooting Guide 46

12 Technical Data 48

13 Exploded View 50

14 Replacement Parts List 51

15 Exploded View 52

16 Replacement Parts List 53

17 Electronic Circuit Diagram 54

18 Electronic Circuit Diagram (Remote Control) 57

Room Air Conditioner

CONTENTS

Page Page

Order Number: GMAC0311008C2

Panasonic ilmastointilaitteet korjaa ja huoltaa pääkaupunkiseudulla: Jäähdytinpalvelu RefGroup Oy

www.ilmalämpöpumput.com

1 Functions

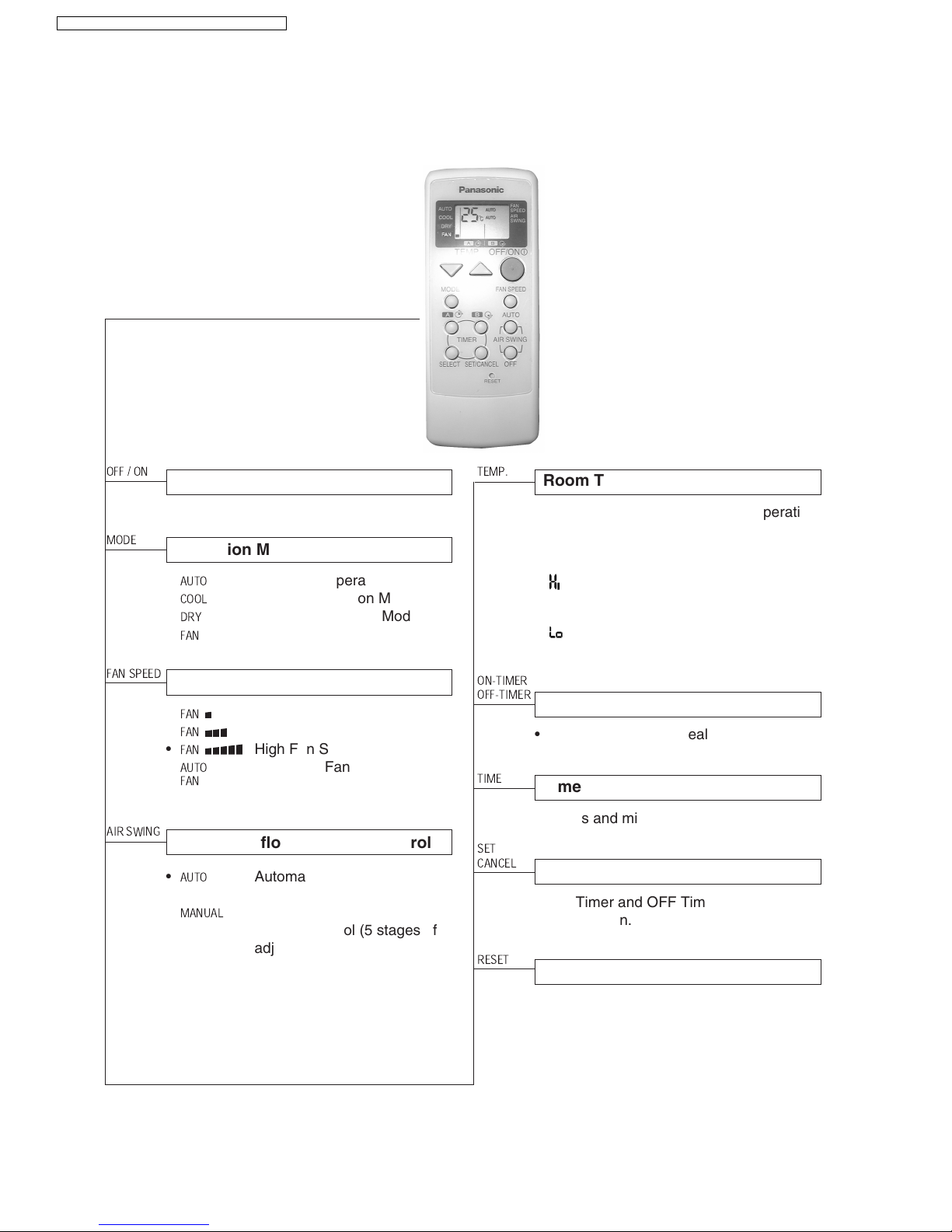

Remote Control

Operation OFF / ON

OFF/ON

Room Temperature Setting

TEMP.

Operation Mode Selection

•

AUTO

Automatic Operation Mode

•

COOL

Cooling Operation Mode

•

DRY

Soft Dry Operation Mode

•

FAN

Air Circulation Mode

MODE

TIME

Time / Timer Setting

• Hours and minutes setting.

Reset Point

• Press with a pin to clear the memory data.

Indoor Fan Speed Selection

FAN SPEED

•

FAN

Low Fan Speed

•

FAN

Medium Fan Speed

•

FAN

High Fan Speed

•

AUTO

Automatic Fan Speed

FAN

Vertical Airflow Direction Control

• 24-hour, OFF / ON Real Timer Setting.

ON-TIMER

OFF-TIMER

Timer Operation Selection

SET

CANCEL

Timer Operation Set / Cancel

• ON Timer and OFF Timer setting and

cancellation.

RESET

AIR SWING

•

AUTO

Automatic Vertical Airflow

Direction Control

•

MANUAL

Vertical Airflow Direction

Manual Control (5 stages of

adjustment)

Cooling, Soft Dry, Air Circulation Operation.

• Temperature Setting (16oC to 30oC)

Automatic Operation

•Operation with 2oC higher than

standard temperature.

• Operation with standard temperature.

•Operation with 2oC lower than

standard temperature.

CS-PV9CKE CU-PV9CKE / CS-PV12CKE CU-PV12CKE

Panasonic ilmastointilaitteet korjaa ja huoltaa pääkaupunkiseudulla: Jäähdytinpalvelu RefGroup Oy

www.ilmalämpöpumput.com

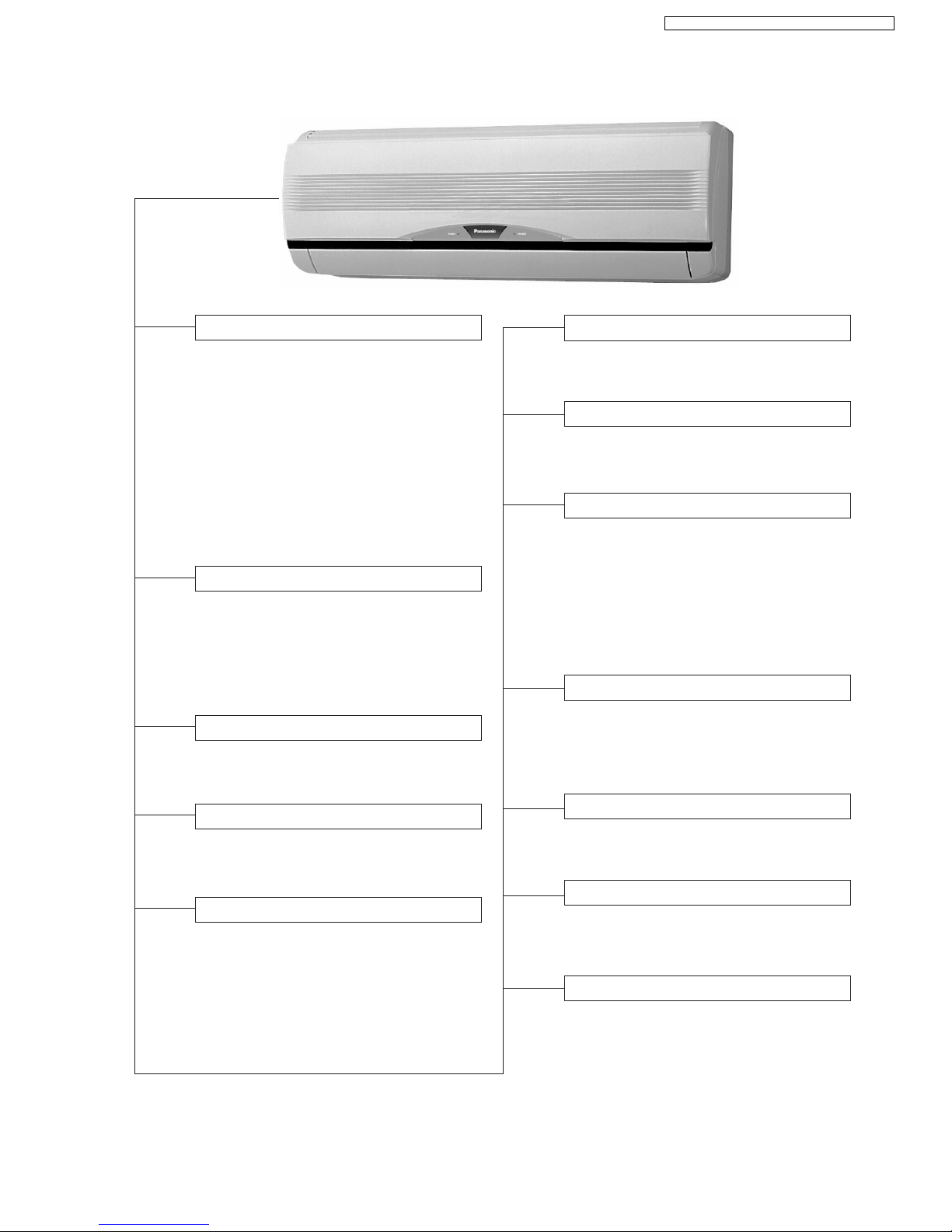

Indoor Unit

Indoor Fan Speed Control

•High, Medium and Low.

•Automatic Fan Speed Mode

–Cooling : Fan rotates at Hi, Me and SLo

speed. Deodorizing control is

available.

–Soft Dry : Fan rotates at Lo- speed.

Deodorizing control is

available.

•Automatic air swing and manual adjusted

by remote control for vertical airflow.

•Manually adjusted by hand for horizontal

airflow.

Airflow Direction Control

Automatic Operation Button

•Press for < 5s to operate Automatic

operation mode.

(Used when the remote control cannot be used.)

•Press continuously for 5s or < 10s to

operate Test Run/Pump down. “Beep”

sound will be heard at the 5th second.

(Used when test running or servicing.)

•Press continuously for 10s and above to

omit or resume the remote control signal

receiving sound. “Beep, beep”sound will

be heard at the 10th second.

AUTO

OFF / ON

Operation Indication Lamps (LED)

•POWER(Green) ......... Lights up in operation,

blinks in Automatic

Operation Mode judging.

•TIMER(Orange) ......... Lights up in Timer

Setting.

Operation Mode

•Cooling, Soft Dry, Air Circulation and

Automatic Mode.

Powerful Operation

•Reaches the desired room temperature

quickly.

Time Delay Safety Control

•Restarting is inhibited for appro. 3

minutes.

Starting Current Control

Quiet Operation

•To provide extra quiet operation.

7 Minutes Time Save Control

•Cooling Operation only.

•Fan motor is delayed for 1.6 seconds when

compressor starts simultaneously.

Random Auto Restart Control

•Operation is restarted randomly after power

failure at previous setting mode.

Anti-Freezing Control

•Anti-Freezing control for indoor heat

exchanger. (Cooling and Soft Dry)

CS-PV9CKE CU-PV9CKE / CS-PV12CKE CU-PV12CKE

Panasonic ilmastointilaitteet korjaa ja huoltaa pääkaupunkiseudulla: Jäähdytinpalvelu RefGroup Oy

www.ilmalämpöpumput.com

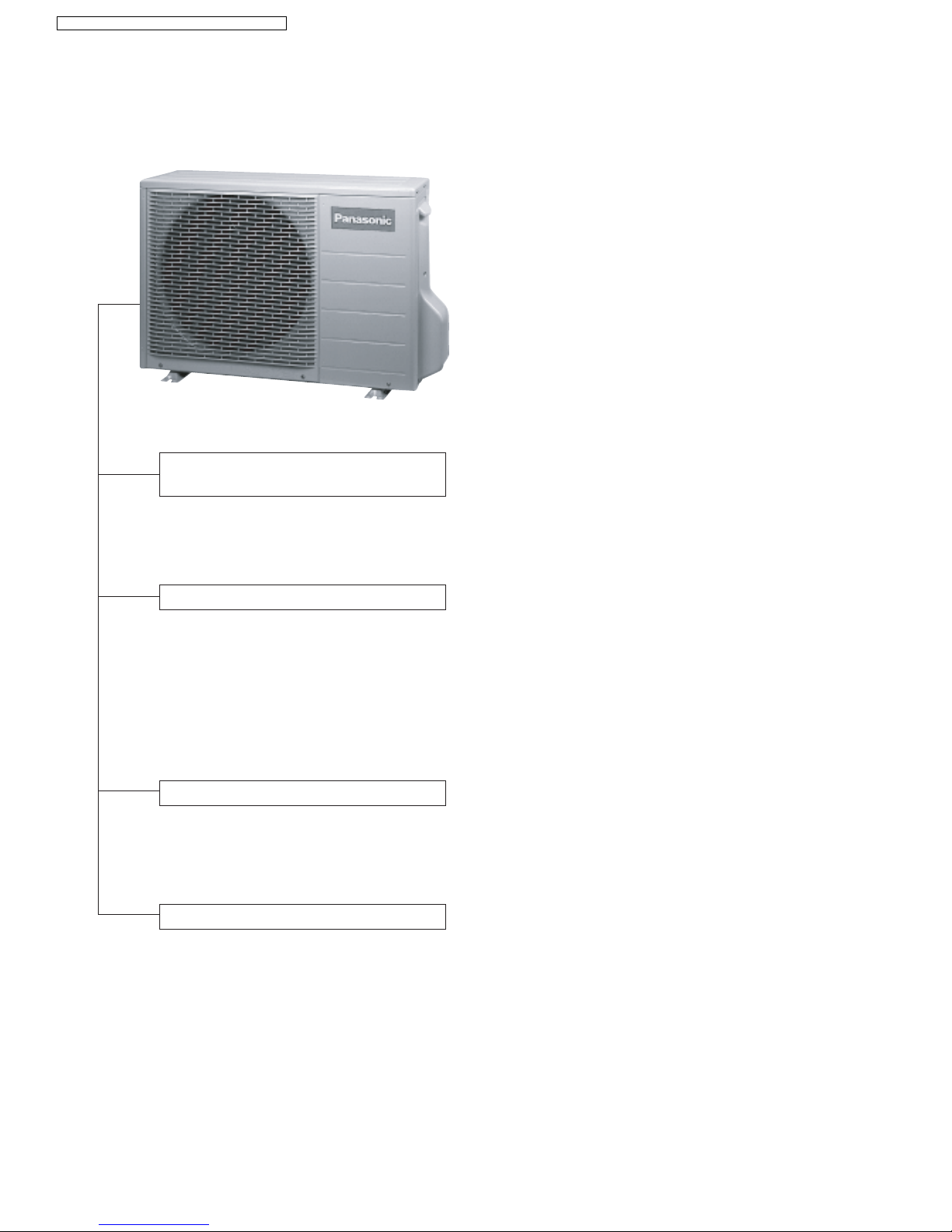

Outdoor Unit

•To protect compressor from reverse

rotation when there is a instantaneous

power failure.

60 Secs. Forced Operation Control

•Once the compressor is activated, it

does not stop within the first 60 secs.

However, it stops immediately with

remote control stop signal.

Overload Protector

•2-Stage OLP to protect the compressor.

Overload Protector will trip when

–Temperature of compressor increases

to 120C.

–High temperature or high current flows

to compressor.

(Refer circuit diagram for OLP

characteristic)

Compressor Reverse Rotation

Protection Control

Outdoor Fan Operation Control

•There is a service port inside the outdoor

unit. The port can be connected to a

device which controls the outdoor fan

motor when the cooling operation mode

is used in cold winter.

CS-PV9CKE CU-PV9CKE / CS-PV12CKE CU-PV12CKE

Panasonic ilmastointilaitteet korjaa ja huoltaa pääkaupunkiseudulla: Jäähdytinpalvelu RefGroup Oy

www.ilmalämpöpumput.com

2 Product Specifications

Unit CS-PV9CKE CU-PV9CKE

Cooling Capacity kW 2.65

Moisture Removal L/h 1.60

Power Source Phase

Cycle

Single

230

Airflow Method OUTLET

INTAKE

SIDE VIEW TOP VIEW

Air Circulation Indoor Air (low) m3/min 5.8 —

Indoor Air (medium) m3/min 6.7 —

Indoor Air (high) m3/min 7.8 —

Outdoor Air m3/min —34.5

Noise Level dB(A) High37, Low29 High50

Electrical Data Input W 820

Running Current A 3.60

EER W/W 3.23

Starting Current A 16.5

Piping Connection Port (Flare piping) Inch

Inch

G: half union 3/8"

L: half union 1/4"

G: 3-way valve 3/8"

L: 2-way valve 1/4"

Piping Size

(Flare piping)

Inch

G: gas side 3/8"

L: liquid side 1/4"

G: gas side 3/8"

L: liquid side 1/4"

Drain

Hose

Inner Diameter mm 12 —

Length m 0.6 —

Power Supply Cord Length (Number of core-wire) m 1.9

3 core-wire/1.5mm2

—

Dimensions Height mm 275 540

Width mm 799 780

Depth mm 210 289

Net Weight kg 9.0 31

Compressor Type —Rotary(1 cylinder)

Rolling piston type

Motor Type —Induction(2 pole)

Rated Output W —700

CS-PV9CKE CU-PV9CKE / CS-PV12CKE CU-PV12CKE

Panasonic ilmastointilaitteet korjaa ja huoltaa pääkaupunkiseudulla: Jäähdytinpalvelu RefGroup Oy

www.ilmalämpöpumput.com

Unit CS-PV9CKE CU-PV9CKE

Air Circulation Type Cross-flow fan Propeller fan

Motor Type Induction (4 pole) Induction (6 pole)

Input W 47.4 58.4

Rated Output W 15 30

Fan Speed Low rpm 940±30 —

Medium rpm 1080±30 —

High rpm 1260±30 820±30

Heat Exchanger Description Evaporator Condenser

Tube Material Copper Copper

Fin Material Slot Type Corrugation type

Rows / Stage (Plate fin configuration, forced draft)

2×10 1 ×20

FPI 21 18

Dimensions mm 610 ×210 ×25.4 841 ×504.6 ×12.7

Refrigerant Control Device —Capillary Tube

Refrigeration Oil (c.c) —SUNISO 4GDID or ATMOS M60

(270)

Refrigerant (R410A) g—600

Thermostat Electronic Control —

Protection Device —O.L.P.(230V20A/30A)

Capillary Length mm —803

Circulation L/min —8.5

Inner Diameter mm —1.4

Air Filter P.P Honeycomb —

Refrigerant Circulation Control Device Capillary

Compressor Capacitor µFV —30µF, 370V

Fan Motor Capacitor µFV 1.5µF, 400V 2µF, 400V

•

• •

• Specifications are subject to change without notice for further improvement

CS-PV9CKE CU-PV9CKE / CS-PV12CKE CU-PV12CKE

Panasonic ilmastointilaitteet korjaa ja huoltaa pääkaupunkiseudulla: Jäähdytinpalvelu RefGroup Oy

www.ilmalämpöpumput.com

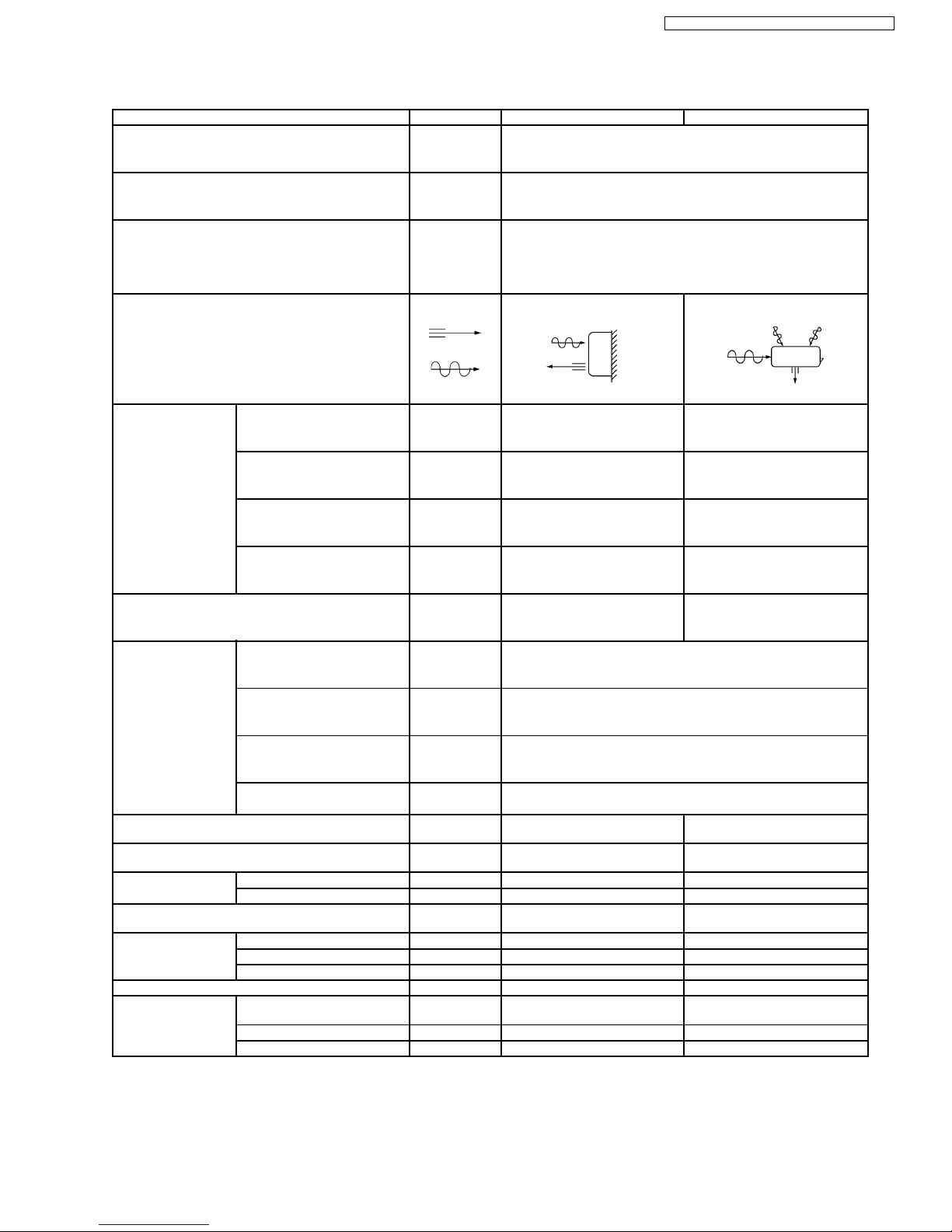

Unit CS-PV12CKE CU-PV12CKE

Cooling Capacity kW 3.52

Moisture Removal L/h 2.0

Power Source Phase

Cycle

Single

230

Airflow Method OUTLET

INTAKE

SIDE VIEW TOP VIEW

Air Circulation Indoor Air (low) m3/min 7.3 —

Indoor Air (medium) m3/min 8.7 —

Indoor Air (high) m3/min 10.2 —

Outdoor Air m3/min — —

Noise Level dB(A) High40, Low31 High51

Electrical Data Input W 1170

Running Current A 5.3

EER W/W 3.01

Starting Current A 21.1

Piping Connection Port

(Flare piping)

Inch

G: half union 1/2"

L: half union 1/4"

G: 3-way valve 1/2"

L: 2-way valve 1/4"

Piping Size

(Flare piping)

Inch

G: gas side 1/2"

L: liquid side 1/4"

G: gas side 1/2"

L: liquid side 1/4"

Drain

Hose

Inner Diameter mm 12 —

Length m 0.6 —

Power Supply Cord Length

(Number of core-wire)

m 1.9

3 core-wire/1.5mm2

—

Dimensions Height mm 275 540

Width mm 799 780

Depth mm 210 289

Net Weight kg 9.0 31

Compressor Type —Rotary(1 cylinder)

Rolling piston type

Motor Type —Induction(2 pole)

Rated Output W —900

CS-PV9CKE CU-PV9CKE / CS-PV12CKE CU-PV12CKE

Panasonic ilmastointilaitteet korjaa ja huoltaa pääkaupunkiseudulla: Jäähdytinpalvelu RefGroup Oy

www.ilmalämpöpumput.com

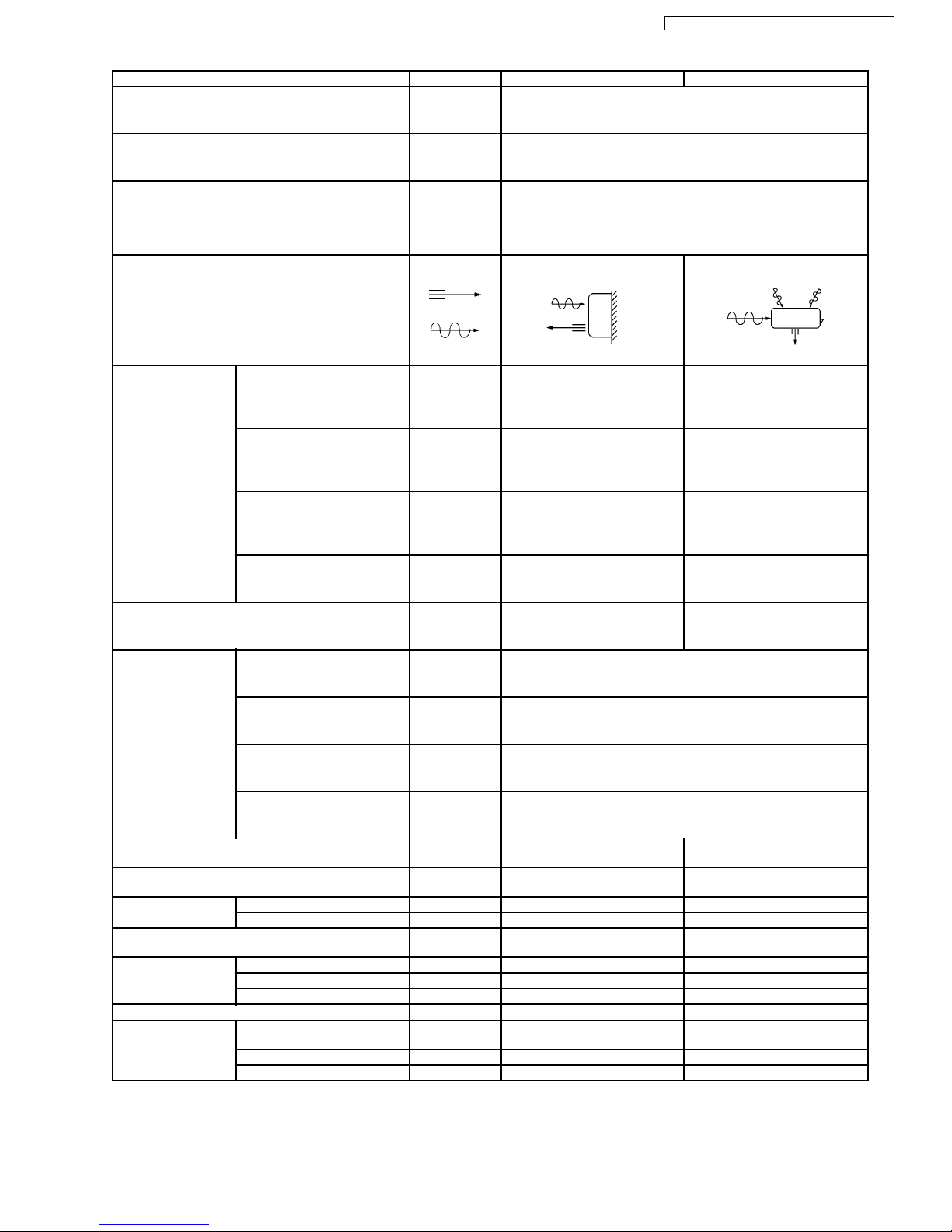

Unit CS-PV12CKE CU-PV12CKE

Air Circulation Type Cross-flow Fan Propeller fan

Motor Type Induction (4 pole) Induction (6 pole)

Input W 47.4 65.9

Rated Output W 15 30

Fan Speed Low rpm 900±30 —

Medium rpm 1080±30 —

High rpm 1260±30 830±30

Heat Exchanger Description Evaporator Condenser

Tube Material copper copper

Fin Type slot type Corrugation type

Rows / Stage (Plate fin configuration, forced draft)

2×15 1 ×20

FPI 21 17

Dimensions mm 610 ×315 ×25.4 735 ×508.6 ×22

Refrigerant Control Device —Capillary Tube

Refrigeration Oil (c.c) —SUNISO 4GDID or ATMOS M60

(430)

Refrigerant (R410A) g—890

Thermostat Electronic Control Overload Protector

Protection Device —

Capillary Length mm —845

Circulation L/min —9.9

Inner Diameter mm —1.5

Air Filter P.P Honeycomb —

Refrigerant Circulation Control Device Capillary

Compressor Capacitor µFV —25µF, 370V

Fan Motor Capacitor µFV 1.5µF, 400V 2µF, 400V

•

• •

• Specifications are subject to change without notice for further improvement.

CS-PV9CKE CU-PV9CKE / CS-PV12CKE CU-PV12CKE

Panasonic ilmastointilaitteet korjaa ja huoltaa pääkaupunkiseudulla: Jäähdytinpalvelu RefGroup Oy

www.ilmalämpöpumput.com

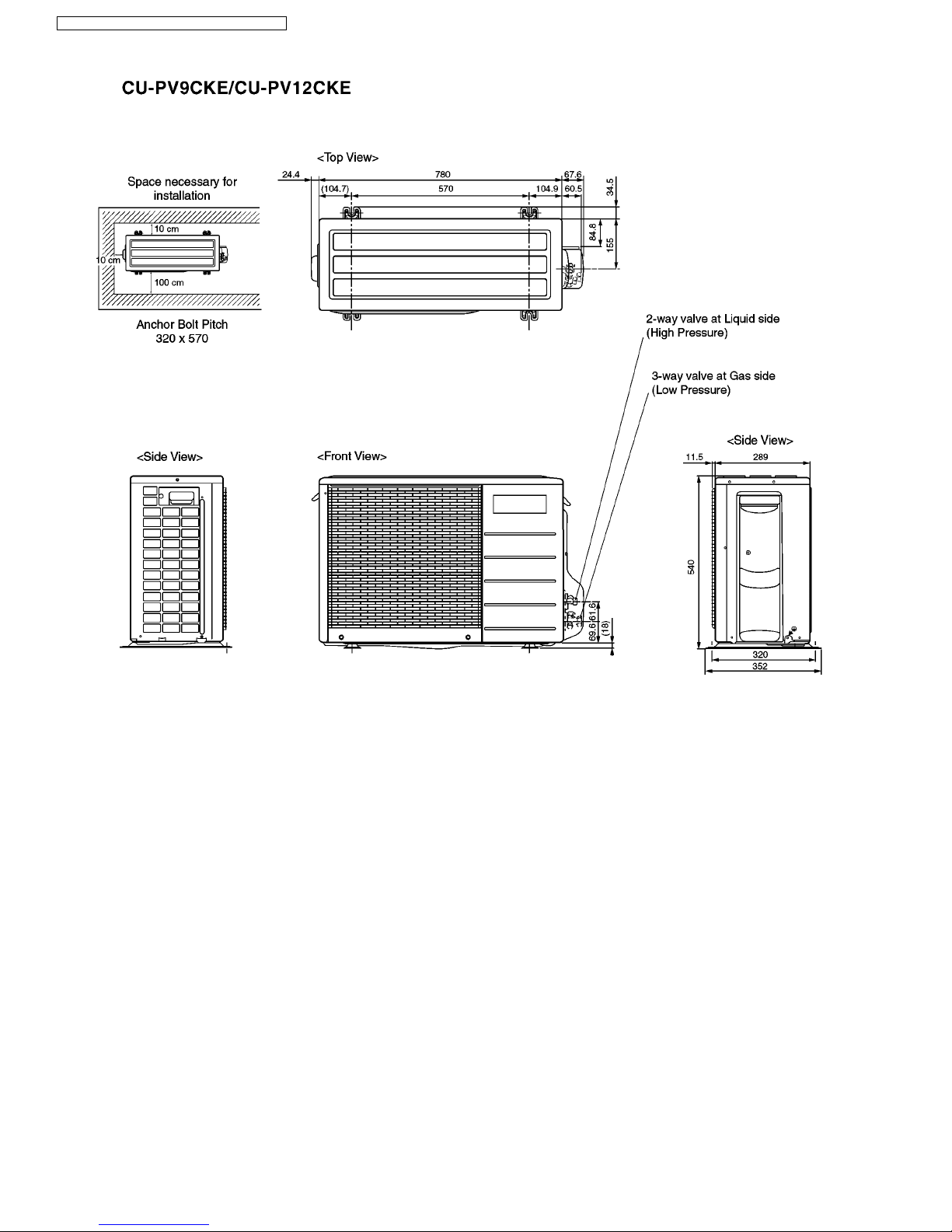

3 Dimensions

CS-PV9CKE CU-PV9CKE / CS-PV12CKE CU-PV12CKE

Panasonic ilmastointilaitteet korjaa ja huoltaa pääkaupunkiseudulla: Jäähdytinpalvelu RefGroup Oy

www.ilmalämpöpumput.com

CS-PV9CKE CU-PV9CKE / CS-PV12CKE CU-PV12CKE

Panasonic ilmastointilaitteet korjaa ja huoltaa pääkaupunkiseudulla: Jäähdytinpalvelu RefGroup Oy

www.ilmalämpöpumput.com

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Panasonic Climatiseur

Panasonic

Panasonic CS-W12CTP Manuel

Panasonic

Panasonic CU-3E19RBU Manuel utilisateur

Panasonic

Panasonic CS-KV30UKF-5 Series CU-KV30UKF-5 Series Manuel utilisateur

Panasonic

Panasonic CS-MKE24NKU Guide d'installation et d'utilisation

Panasonic

Panasonic S28MM1E5A Manuel utilisateur

Panasonic

Panasonic CS-A12ATP5 Manuel utilisateur

Panasonic

Panasonic S-18PU3HB Manuel utilisateur

Panasonic

Panasonic CS-KU18WKYF1 Series Manuel utilisateur

Panasonic

Panasonic Urban Multi Series Manuel utilisateur

Panasonic

Panasonic CS-F24DD1ES Manuel utilisateur

Panasonic

Panasonic CS-A7GKD Manuel utilisateur

Panasonic

Panasonic CS-SA9CKP Manuel utilisateur

Panasonic

Panasonic CS-XU9ZKH-8 Manuel utilisateur

Panasonic

Panasonic CS-MVG103KE Manuel utilisateur

Panasonic

Panasonic CU-S9NKV-7 Manuel utilisateur

Panasonic

Panasonic U-71PEY1E5 Manuel utilisateur

Panasonic

Panasonic CS-A73KR Manuel utilisateur

Panasonic

Panasonic CS-HZ25WKE Manuel utilisateur

Panasonic

Panasonic CS-E10HB4EA Manuel utilisateur

Panasonic

Panasonic CU-PC30JKF Manuel utilisateur

Panasonic

Panasonic KIT-UZ25-VKE Manuel utilisateur

Panasonic

Panasonic CS-BE25TKE Manuel utilisateur

Panasonic

Panasonic U-4LE1E5 Manuel utilisateur

Panasonic

Panasonic CS-E9BKP Manuel utilisateur

Manuels Climatiseur populaires d'autres marques

Spheros

Spheros CC 355 Manuel utilisateur

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE Manuel utilisateur

nedis

nedis ACMB1WT7 Manuel utilisateur

Samsung

Samsung AR KV Series Mode d’emploi

Daikin

Daikin FCFV50A Manuel utilisateur

Fujitsu

Fujitsu Inverter ASBA30JFC Manuel utilisateur

Toshiba

Toshiba RAS-M10SMUV-E Manuel utilisateur

Daikin

Daikin FXLQ20MAVE Manuel utilisateur

Hitachi

Hitachi RAS-E24CAK Manuel utilisateur

CIAT

CIAT Magister 2 Series Mode d’emploi

Bestron

Bestron AAC6000 Manuel utilisateur

Hisense

Hisense 7K Manuel technique

Frigidaire

Frigidaire FFRE0533S1E0 Manuel utilisateur

Samsung

Samsung AS09HM3N Manuel utilisateur

Frigidaire

Frigidaire CRA073PU11 Manuel du propriétaire

Soleus Air

Soleus Air GB-PAC-08E4 Manuel utilisateur

McQuay

McQuay MCK020A Manuel utilisateur

Webasto

Webasto Frigo Top 25 DS Manuel utilisateur
