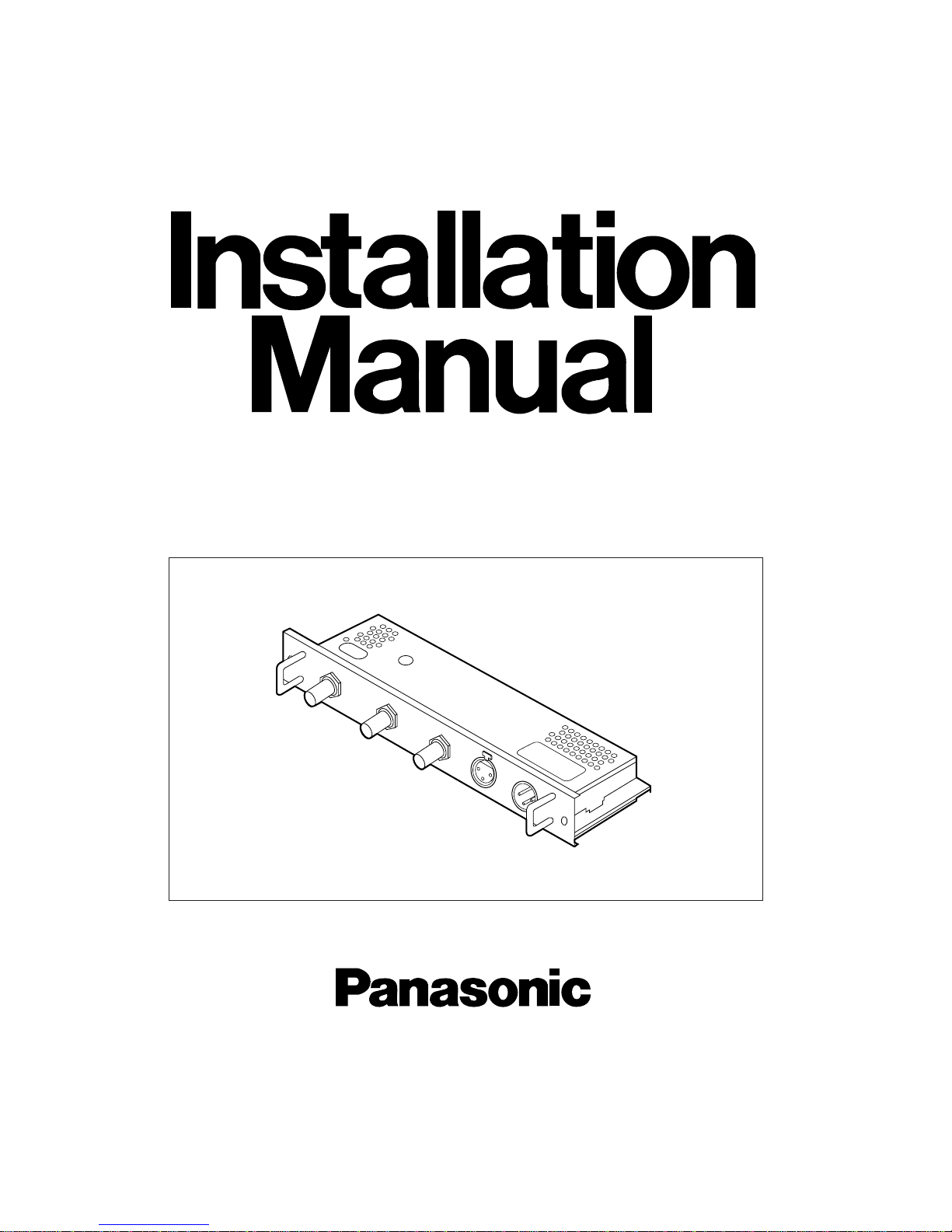

Panasonic AY-PB2002 Manuel utilisateur

Before attempting to connect or operate this product, please read these instructions completely

Nonlinear Editing System

Digital I/F Board

AY-PB2002



• You must have your dealer install the board.

• Before installing the board, set the power switch on the unit in which the board is to

be installed to the “OFF” position, and disconnect the unit's power plug from the

power outlet.

• Before handling the board, touch a metal part of the unit's body to discharge any

static which may have accumulated in your body. Wearing anti-static wrist straps is

even an more effective precautionary measure.

• When temporarily putting the board down or aside, place it on top of the anti-static

bag (which originally contained the board). Do not bring any metal parts on the

board into contact with any metal parts of any other boards.

PRECAUTIONS

FEATURES

• Audio/Video Digital Signal Editing is possible by installing this board to the nonlinear AV workstation unit (AY-NE2000).

• The video digital signals comply with the SMPTE259M standards, and the audio digital signals comply with the

AES/EBU standards.

BOARD SETUP

1. Turn off the computer. Unplug the power cord as well.

For the “computer system shutdown”, please refer to the AY-NE2000 Instruction Manual.

2. Remove the cover panel on the rear of the unit (AY-NE2000).

Remove 2 screws from the cover panel, and store the screws in a safe place.

3. Fit the Digital I/F Board into the place where the cover panel was removed.

Slide the board into the unit in line with the both sides of the guide rails.

4. Install the Digital I/F Board into the bottom of the unit securely.

5. Tighten 2 screws.

6. Confirm if the board is fixed up securely.

7. Plug the power cord and turn the power on.

Confirm that the system starts up.

For the “computer system startup”, please refer to the AY-NE2000 Instruction Manual.

SPECIFICATIONS

AY-NE2000 Rear Panel

‘

AC IN

IN1

IN2

LR RL

OUT1

OUT2

AUDIO

OUT

OUT1

OUT2

BALANCED

AUDIO OUT

IN1 IN2

BALANCED

AUDIO IN

LRR

CONTROL 1 CONTROL 2 JOG PAD

Y/C COMPOSITE

YPBPR

IN1

IN2

G/L IN

LOOP

Y/C COMPOSITE Y PBPRADV REF

OUT

OUT1

OUT2

TC IN

VIDEO

AUTO

VIDEO

OUT TC OUT

AUDIO

SEE MANUAL

KB MOUSE SEPIAL 1 SEPIAL 2 PRINTER S-VGA

SCSI AUDIO SCSI VIDEO 1 SCSI VIDEO 2 SCSI VIDEO 3

2. Remove the cover panel with

removing 2 screws.

3. Fit the Digital I/F Board into the

place where the cover panel was

removed.

Slide the board into the unit in line

with the both sides of the guide rails.

4. Install the Digital I/F Board

into the bottom of the unit

securely.

Guide rail

Digital I/F Board

Board side

5. Install the Digital I/F Board with

tightening 2 screws.

Video

Input Signal: Comply with the SMPTE259 standards,

BNC x 1 (with active loop-through)

Output Signal:

Comply with the SMPTE259 standards, BNC x 1

Audio

Input Signal:

Comply with the AES/EBU standards, XLR x 1

Output Signal:

Comply with the AES/EBU standards,

XLR

x 1

General

Power Supply: 5V DC, 12V

Ambient Operating Temperature: 5°C to 35°C

Ambient Operating Humidity: 10% to 90%

Dimensions (W x H x D): 236 x 35.5 x 67 mm

(95/16" x 13/8" x 25/8")

Weight: Approx. 340 g (12.0 oz.)

7J1A213B Printed in Japan

PANASONIC CANADA INC.

5770 Ambler Drive, Mississauga, Ontario L4W 2T3 (905)238-2115

PANASONIC SALES COMPANY

DIVISION OF MATSUSHITA ELECTRIC OF PUERTO RICO, INC.

San Gabriel Industrial Park, 65th Infantry Ave., KM9.5 Carolina, Puerto Rico 00630 (809)750-4300

PANASONIC BROADCAST & DIGITAL SYSTEMS COMPANY

DIVISION OF MATSUSHITA ELECTRIC CORPORATION OF AMERICA

Executive Office:

EASTERN ZONE:

Mid-Atlantic:

Southeast Region:

Central Region:

WESTERN ZONE:

Dallas Region:

No. CA/Northwest Region:

Government Marketing Department:

3330 Cahuenga Blvd W., Los Angeles, CA 90068

(323)436-3500

One Panasonic Way 4E-7, Secaucus, NJ 07094 (201)348-7621

1225 Northbrook Parkway, Ste 1-160 Suwanee, GA 30024

(770)338-6845

1707 N Randall Road E1-C-1, Elgin, IL 60123 (847)468-5200

3330 Cahuenga Blvd W., Los Angeles, CA 90068 (323)436-3500

6226 Abington Way, Houston, TX 77008 (713)802-2726

5870 Stoneridge, #3, Pleasanton, CA 94588 (925)416-5102

52 West GudeDrive, Rockville, MD 20850 (301)738-3840
