Palsonic TFTV386BK Manuel utilisateur
USER’S MANUAL
Model: TFTV386BK
D-SUB INPUT (VGA) 38cm LCD TV/Monitor
PALSONIC CORPORATION PTY LTD
1 JOYNTON AVENUE
WATERLOO NSW 2017 AUSTRALIA
TEL: (02) 9313 7111
FAX: (02) 9313 7555
www.palsonic.com.au
PALSONIC CUSTOMER SERVICE
TELEPHONE
AUSTRALIA: 1300 657 888
1
Contents
Chapter 1.
Chapter 2.
Chapter 3.
Chapter 4.
Chapter 5.
Chapter 6.
Chapter 7.
Important Safeguards ....................................
Specification ..................................................
Connecting Power .........................................
Remote Control ..............................................
Menu Operation .............................................
AVS - Video, Scart .........................................
Audio Menu ....................................................
Setup Menu ...................................................
VGA ...............................................................
TV ..................................................................
Image Menu ..................................................
TV Set Menu ..................................................
OSD Menu
General Trouble Shooting
2
5
6
9
10
10
10
11
12
12
13
13
14
15
CONTENTS
2

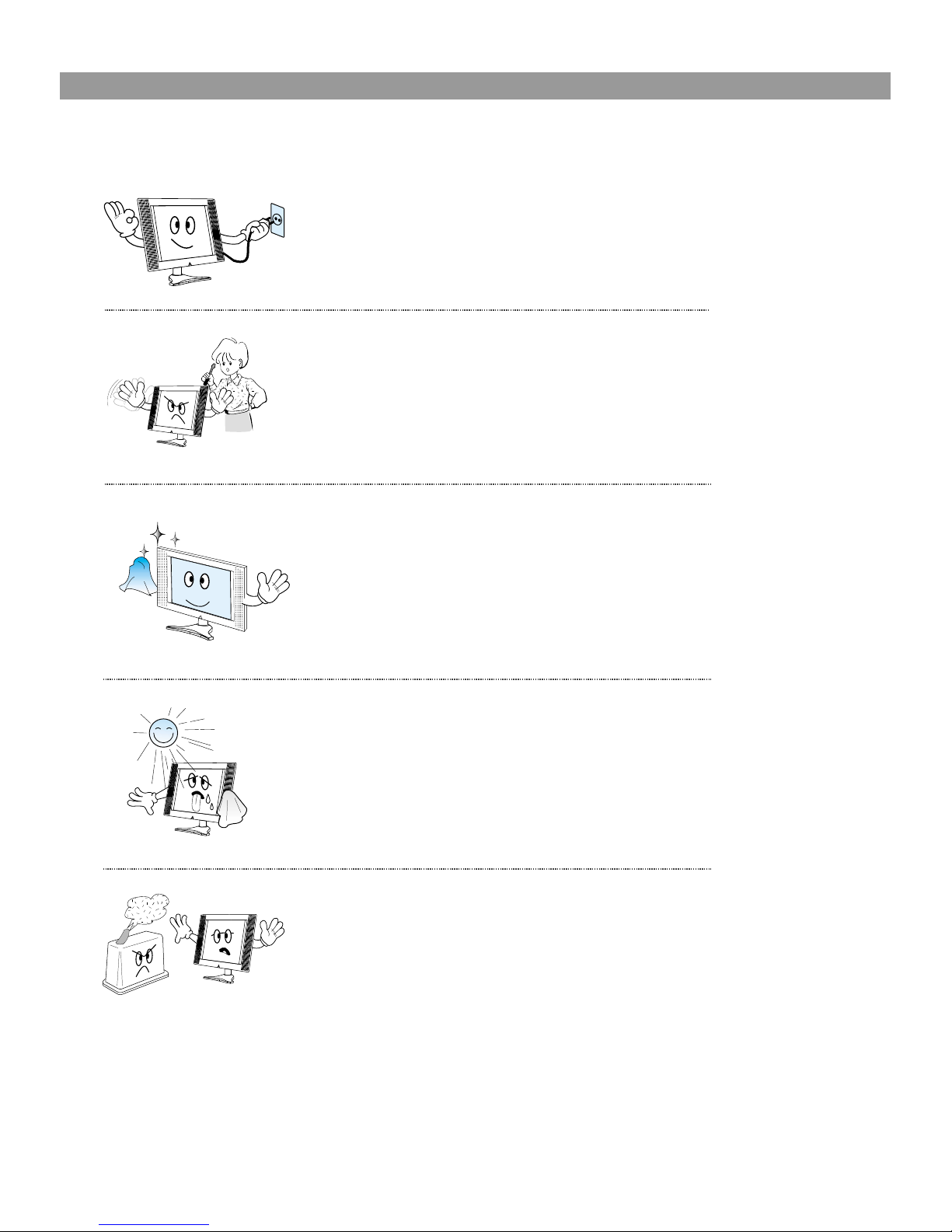

Chapter 1. Important Safeguards
Safety Precautions
Disconnect the Power cable when not using the TV for a
Long Time.
Do not open the TV. Contact your dealer if the TV is
not operating properly.
Do not press hard with your finger or scratch with sharp objects
on the surface of the LCD. Any damage on the surface of the
LCD may cause functional failure.
Do not place the TV in direct sunlight or close to any heat
source. Product malfunction or fire hazard may occur.
Do not connect multiple appliances to a single
multi-plug. Electrical shock or fire may result.
3
Chapter 1. Important Safeguards
Safeguards
When you clean the TV and the surface of LCD panel be sure
to pull the plug from the Wall outlet. Use a Soft Cloth instead
of using damp duster. Do not use any chemicals such as
industrial polisher, abrasive solution, wax, benzene, alcohol, or
cleaning detergents. Chemical cleaners may fade,dissolve,
or crack the TV surface.
Do not drop the unit or make any scratch on the panel. Any
scratch on the panel or dropping of the product may
cause functional failure.
If you find any water drops or stains on the display, wipe it with
a clean cloth.
Using the display with 100% brightness may reduce the life of the
LCD panel.
Install the TV at the specified position from the wall to ensure
adequate ventilation. A rise in temperature of the TV may cause
premature failure.
4
Chapter 1. Important Safeguards
Safety Precautions
Incase of any smoke or abnormal noise, immediately stop using
the product and pull the power cord from the wall outlet. Then
call your local dealer or service representative for assistance.
Optimal temperature conditions are 50~350, Humidity
30% - 80%.
If you wish to switch the TV to sleep mode (DPMS )during PC idle time, select Power
Settings options in the PC.
5
Chapter 2. Specifications
Specification
Display
Audio
PC Compatibility
Key Features
TFT-LCD
Aspect Ratio: 4:3
Resolution: 1024 x 768
Screen Size: 15 inch (diagonal)
Power Amp: 3 Watts x 2 (RMS)
Resolution: XGA (60Hz)1024x768
Auto Size and Position Adjustment
Brightness and Contrast Control
Phase Control
Sharpness Control
Display Modes: 4:3
Power Input: AC100-240V, 50/60Hz
Output: DC12V, 4.16A
On Working 31W, Standby 3W
Auto Power Off
VESA DPMS
Check for the following accessories along with the package. In case of any discrepancy
contact your vendor.
Power cord
AC/DC Adapter
AV Cable
Battery
Remote control
User Manual
Warranty Card
Note: This specification of the product might be changed without any notice.
6
Chapter 3. Connecting Power
VGA IN: Input VGA signal.
AUDIO IN: Audio signal in.
Audio Input RIGHT
Audio Input LEFT
VIDEO: Input VIDEO signal.
S-Video: Input S-Video signal.
RF: Input the RF TV signal.
DC IN: Power connection terminal,
connect the Power supply via
adapter to this port.
SCART: Input SCART signal.
Connect the AC Cord as follows:
1. Connect the AC Cord to the Adapter.
2. Connect the Adapter (DC12V) to the terminal (DC12V) of the Unit.
3. Connect the AC Cord to the wall socket.
4. Connect the Aerial lead to the TV RF input
5. Switch on the power to the Wall Socket and the TV by pressing standby on
the Remote Control or the TV.
Cautions:
Use only the supplied mains cable and AC adaptor. Please don't put the
adaptor in a confined space, certain space should be left for dissipation
of heat.
Note: It is a normal phenomenon and not a malfunction that the adaptor becomes
warm when operating.
7
Chapter 3. Connecting Power
Familiarizing Yourself with the Keys
TFT-LCD Display
Power Indication LED and Remote Sensor
INPUT: Change Input Mode (VGA/TV/SCART/CVBS/S-VIDEO)
MENU: OSD Menu Display/I Hide.
CH+: Up highlight bar to selection,
Channel increase.
CH-: Down highlight bar to selection.
Channel decrease.
VOL+: Volume increase.
Enter Sub-Menu.
VOL-: Volume decrease.
POWER: Power ON / OFF.
Speaker Grille
8
Chapter 4. Remote Control
POWER
Switch on LCD TV when at standby mode or vice
versa.
MUTE
Press to mute the sound. Press again or press
VOL+ to unmute.
Press this button to enter a program number for
multiple program channel such as 2-1, 100,etc.
Return to the last channel viewed.
CH+/-
Press to scan through channels. To scan quickly
channels, press and hold down either +/-button.
VOL+/-
Press to increase / decrease
the
sound level.
AUTO
Press to PC AUTO adjust.
SYSTEM
Press to select a corresponding sound system in
following sequence: I D/K B/G
DISPLAY
Press to display the source and channel's
information.
NUMBER BUTTONS
Press 0-9 to select a TV channel directly when
you are watching TV. The channel change after
2 seconds
9
Chapter 4. Remote Control
THUMBSTICK ( / ENTER)
Allows you to navigate the on-screen menus and
adjust the system settings to your preference.
EXIT
Clears all on-screen displays and returns to TV
viewing from any menu.
MENU
Brings up the main menu to the screen.
AV/TV
Press to cycle through the input source in following:
TV VIDEO S-VIDEO VGA
SCART
PMODE
Press repeatedly to cycle through the available video
picture modes: Normal Vivid Sports
SMODE
Press to cycle through the different sound settings:
Normal Vivid Movie
Lets you select amount of time before your TV turn
itself off automatically.
3Closed the cover.
Insert two 1.5V AA size batteries in
correct polarity. Dot mix old or used
batteries with new ones.
2
1
Installing Batteries
Open the battery compartment
cover on the back side.
+Point the remote towards the remote
control sensor of the wireless TV and
use it within 7 meters.
+Put the used batteries into the
recycling bin since it can negatively
affect the environment.
Nature
Nature
