Palmer FAB5 Manuel utilisateur

USER´S MANUAL

BEDIENUNGSANLEITUNG

MANUEL D`UTILISATION

MANUAL DE USUARIO

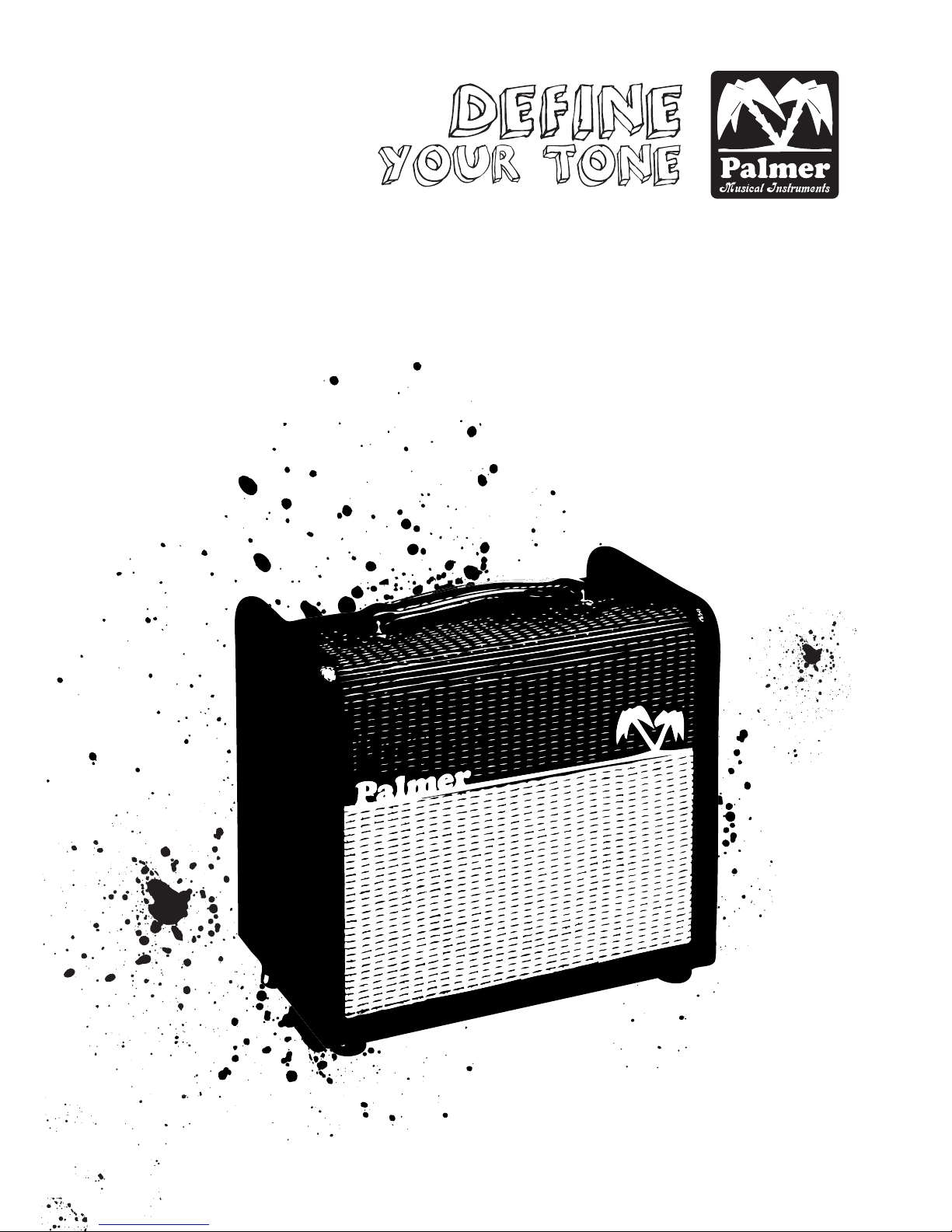

FAB5

5W All-Tube Guitar Combo

DEFINE

YOUR

TONE

INTRODUCTION

Thank you for choosing the Palmer FAB5.

Your new amp is an all-tube amplifier with a Class-A design that is espe-

cially prized by countless guitarists because of its direct response and

harmonious distortion and is frequently used to record guitar tracks in

the studio. Because of their seemingly low output, single-ended amplifi-

ers are usually pigeon-holed in the practice amp category. In conjunc-

tion with the powerful, built-in 10" Eminence Ragin Cajun speaker or an

external speaker cabinet, however, the FAB5's 5 watts reach volume levels

that are thoroughly band- and stage-compatible. Here, it is above all

at high volume levels that the power stage distortion and natural com-

pression preferred by tone aficionados come into their own. These can be

controlled conveniently by means of picking dynamics and with the guitar

volume control. The boost control lets you continually boost the volume

and distortion yet again. This function can be activated via an addition-

al footswitch for various rhythm and solo settings.

In keeping with the practice amp application, one special feature of FAB5

is a built-in power attenuator capable of reducing the volume to a level

acceptable in living rooms and bedrooms. This allows you to use the over-

drive of the amp even at drastically reduced levels without alarming your

neighbours or the police.

The FAB5 is built using high-quality components and specially selected

tubes that ensure maximum tone quality and reliable operation. The preamp

uses a 12AX7 (ECC83) tube and the output stage a 6V6; the rectifier is

an EZ81. If you should ever notice signs of wear such as high frequency

loss, reduced output, hum or microphonics, have the tubes replaced only

by a qualified technician.

We hope you have a lot of fun with your Palmer FAB5!

EN FRDE ES

DEFINE

YOUR

TONE

EN FRDE ES

SAFETY INFORMATION

1. Please read these instructions carefully.

2. Keep all information and instructions in a safe place.

3. Follow the instructions.

4. Observe all safety warnings. Never remove safety warnings or other

information from the equipment.

5. Use the equipment only in the intended manner and for the intended

purpose.

6. Use only sufficiently stable and compatible stands and/or mounts (for

fixed installations). Make certain that wall mounts are properly

installed and secured. Make certain that the equipment is installed

securely and cannot fall down.

7. During installation, observe the applicable safety regulations for

your country.

8. Never install and operate the equipment near radiators, heat regis-

ters, ovens or other sources of heat. Make certain that the equipment

is always installed so that is cooled sufficiently and cannot over-

heat.

9. Never place sources of ignition, e.g., burning candles, on the equip-

ment.

10. Ventilation slits must not be blocked.

11. Do not use this equipment in the immediate vicinity of water (does

not apply to special outdoor equipment - in this case, observe the

special instructions noted below. Do not expose this equipment to

flammable materials, fluids or gases.

12. Make certain that dripping or splashed water cannot enter the equip-

ment. Do not place containers filled with liquids, such as vases or

drinking vessels, on the equipment.

13. Make certain that objects cannot fall into the device.

14. Use this equipment only with the accessories recommended and intended

by the manufacturer.

15. Do not open or modify this equipment.

16. After connecting the equipment, check all cables in order to prevent

damage or accidents, e.g., due to tripping hazards.

17. During transport, make certain that the equipment cannot fall down

and possibly cause property damage and personal injuries.

18. If your equipment is no longer functioning properly, if fluids or

objects have gotten inside the equipment or if it has been damaged in

another way, switch it off immediately and unplug it from the mains

outlet (if it is a powered device). This equipment may only be re-

paired by authorized, qualified personnel.

19. Clean the equipment using a dry cloth.

20. Comply with all applicable disposal laws in your country. During dis-

posal of packaging, please separate plastic and paper/cardboard.

21. Plastic bags must be kept out of reach of children.

FOR EQUIPMENT THAT CONNECTS TO THE POWER MAINS:

22. CAUTION: If the power cord of the device is equipped with an earth-

ing contact, then it must be connected to an outlet with a protective

EN FRDE ES

ground. Never deactivate the protective ground of a power cord.

23. If the equipment has been exposed to strong fluctuations in tempera-

ture (for example, after transport), do not switch it on immediately.

Moisture and condensation could damage the equipment. Do not switch

on the equipment until it has reached room temperature.

24. Before connecting the equipment to the power outlet, first verify

that the mains voltage and frequency match the values specified on

the equipment. If the equipment has a voltage selection switch, con-

nect the equipment to the power outlet only if the equipment values

and the mains power values match. If the included power cord or power

adapter does not fit in your wall outlet, contact your electrician.

25. Do not step on the power cord. Make certain that the power cable does

not become kinked, especially at the mains outlet and/or power adapt-

er and the equipment connector.

26. When connecting the equipment, make certain that the

power cord or

power adapter is always freely acces

sible. Always disconnect the

equipment from the power supply if the equipment is not in use or if

you want to clean the equipment. Always unplug the power cord and

power adapter from the power outlet at the plug or adapter and not

by pulling on the cord. Never touch the power cord and power adapter

with wet hands.

27. Whenever possible, avoid switching the equipment on and off in quick

succession because otherwise this can shorten the useful life of the

equipment.

28. IMPORTANT INFORMATION: Replace fuses only with fuses of the same type

and rating. If a fuse blows repeatedly, please contact an authorised

service centre.

29. To disconnect the equipment from the power mains com

pletely, unplug the

power cord or power adapter from the power outlet.

30. If your device is equipped with a Volex power con

nector, the mating

Volex equipment connector must be unlocked before it can be removed.

However, this also means that the equipment can slide and fall down

if the power cable is pulled, which can lead to personal injuries

and/or other damage. For this reason, always be careful when laying

cables.

31. Unplug the power cord and power adapter from the power outlet if

there is a risk of a lightning strike or

before extended periods of disuse.

CAUTION:

Never remove the cover, because otherwise there may be a risk of electric

shock. There are no user serviceable parts inside. Have repairs carried

out only by qualified service personnel.

The lightning flash with arrowhead symbol within an equilateral

triangle is intended to alert the user to

the presence of unin-

sulated „dangerous voltage“ with

in the product‘s enclosure that

may be of sufficient magnitude to constitute a risk of electrical

shock.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

EN FRDE ES

The exclamation mark within an equilateral triangle is intended to

alert the user to the presence of

important operating and maintenance instructions.

CAUTION – HIGH VOLUME LEVELS WITH AUDIO PRODUCTS!

This equipment is intended for professional use. Therefore,

commercial use

of this equipment is subject to the respec

tively

applicable national accident

prevention rules and regula

tions. As a manufacturer, Adam Hall is obligat-

ed to notify you formally about the existence of potential health risks.

Hearing damage due to high volume and prolonged exposure: When in use,

this product is capable of producing high sound-pressure levels (SPL)

that can lead to irreversible hearing damage in performers, employees,

and audience

members. For this reason, avoid prolonged exposure to vol

umes in excess of

90 dB.

CAUTION! IMPORTANT INFORMATION ABOUT LIGHTING

PRODUCTS

1. Do not look into the beam from a distance of less than 40 cm.

2. Do not stare into the beam for extended periods at short-to-medium

distances.

3. Do not view the beam directly with optical instruments such as magni-

fiers.

4. Under some circumstances, stroboscopic effects may

trigger epileptic

seizures in sensitive individu

als! For this reason, persons who suf-

fer from epilepsy should always avoid places where strobe lights are

used.

CONTENTS

1) BEFORE SWITCHING THE AMP ON FOR THE FIRST TIME

2) SINGLE-ENDED OR PUSH-PULL

3) WHAT DOES A RECTIFIER DO?

4) CONNECTIONS AND CONTROLS

5) TUBE REPLACEMENT, MAINTENANCE, AND CARE

6) TROUBLESHOOTING

7) SPECIFICATIONS

8) MANUFACTURER'S DECLARATIONS

EN FRDE ES

1) BEFORE SWITCHING THE AMP ON FOR THE FIRST TIME

—Make certain that the voltage selected next to the rear panel pow-

er connector of the FAB5 (mains voltage selector) matches the mains

voltage in your country.

—Make certain that the amp is positioned safely and secured.

—Ensure sufficient air circulation through the cooling slits of the

FAB5.

PLEASE MAKE CERTAIN THAT YOU READ ALL OF THE SAFETY INSTRUCTIONS CON-

TAINED IN THIS MANUAL BEFORE YOU BEGIN USING YOUR FAB5!

2) SINGLE-ENDED OR PUSH-PULL

Like tube and diode rectifiers, both "single-ended and "push-pull" am-

plifiers have a fixed place among guitarists because of their varying

tone characteristics. Both terms actually refer only to the output stage.

Single-ended amplifiers produce a complex, warm tone with distinctive

harmonics, while push-pull amplifiers stand out because of high efficien-

cy, direct response, and high dynamics.

Single-ended circuits usually use only one power tube (or multiple tubes

connected in parallel for higher output). They always run at full power

regardless of whether or not an input signal is present - in other words,

the power tube is always "on". This mode of operation is also called

"Class A".

The push-pull circuit requires a pair of power tubes (or multiple pairs

connected in parallel for higher output). The input signal of a push-pull

amplifier is split into a signal with the same phase as the original and

a signal with the phase reversed by 180°. The two opposing signals now

drive the power tubes alternately, i.e., while one tube amplifies the

in-phase signal ("on"), the tube driven by the phase-reversed signal is

"off". The difference between the two sides is picked up as the output

signal. For this reason, push-pull amplifiers are also referred to as

differential amplifiers. They are usually operated in "Class AB".

The constant alternation produces distortion in the transition area

("on", "off"). Many guitarists love this aggressive, scratchy transition

distortion.

Unlike the single-ended circuit ("always on"), the output transformer of

a push-pull amplifier is not constantly under load. This means that it is

less saturated and attains higher sound fidelity. Push-pull circuits are

also more efficient, since the rest periods of the power tubes ("off")

permit higher output levels when they are "on". However, odd overtones

generated in the output stage are cancelled out by the push-pull func-

tion, while they are clearly predominant in single-ended amplifiers.

In the end, the choice is a matter of taste. In the studio, professional

guitarists like to use small single-ended amplifiers, while more powerful

push-pull amplifiers are preferred on stage.

EN FRDE ES

3) WHAT DOES A RECTIFIER DO?

The Palmer FAB5 has a EZ81 rectifier tube.

Rectifiers convert the alternating current from the mains connection into

direct current, which is required by the amplifier circuitry.

Early "classic" tube amplifiers used rectifier tubes that produce an

elastic feeling when playing. The advent of transistor technology result-

ed in the increasing use of silicon diodes as rectifiers, which produce

a direct, "crisp" response. They are cheaper, more efficient, and easi-

er to integrate in amplifier circuits than tube rectifiers are. Today,

one finds both tube and diode rectifiers in guitar amplifiers and has a

choice; many models even use diode rectifiers that emulate the response

and tone of a tube rectifier.

As a rule, diode rectifiers react more quickly to the high voltage re-

quirements of heavily played notes and chords. The significantly longer

rise time of a tube rectifier at first produces a voltage drop when the

strings(s) are plucked, which is often referred to as "sag" in English.

When the signal decays, the direct voltage increases again. This results

in essentially the same effect as that of a compressor/sustainer. Many

guitarists prefer tube rectifiers because of their quasi "breathing"

response and the possibility of controlling the tone by means of the at-

tack.

The maximum voltage and the rise time, i.e., the duration until the maxi-

mum voltage is generated, vary depending on the rectifier tube and type.

A different tube type or a diode plug-in that plugs into the tube socket

can change the playing feel, sound, and performance of an amplifier.

ALWAYS CONSULT A QUALIFIED TECHNICIAN BEFORE ANY CHANGE - A DIFFERENT

TUBE TYPE OR DIODE RECTIFIER COULD DAMAGE YOUR AMPLIFIER!

EN FRDE ES

4) CONNECTIONS AND CONTROLS

CONTROL PANEL (TOP)

1INPUT

Connect your guitar to this socket. Use a high-quality instrument cable

for this.

2VOLUME

This control sets the volume of the FAB5. With single-coil pickups, light

distortion sets in at around the 12-o'clock position, with humbuckers a

little sooner; then the overdrive increases continuously. At very high

settings and with a strong attack, the amp produces the typical, harmoni-

ous Class-A crunch with light compression.

3TONE

This control sets the tone reproduction of the FAB5. At 0, the treble is

reduced, but the sound always remains defined and never becomes exces-

sively muffled or flabby. In the middle position the treble is largely

neutral, and turning the knob further to the right adds edge and pres-

ence.

4BOOST

This control is always activated unless a footswitch (see 11) is con-

nected and increases the volume and overdrive as it is turned to the the

right. In conjunction with the VOLUME control (1), it makes it possible

to adjust the level of distortion and volume of the FAB5 sensitively over

a wide range from clean to crunch to medium gain overdrive.

With a standard footswitch connected to the BOOST socket (11) on the rear

of the amplifier, the boost function can be activated or deactivated.

This makes it possible to set individual volume and distortion levels for

rhythm and solo playing and retrieve them with the footswitch.

5POWER LAMP

This indicator shows that the FAB5 is turned on and connected to a suit-

able power supply.

EN FRDE ES

1 2 3 4 5 6

Table des matières

Langues :

Autres manuels Palmer Amplificateur d'instrument de musique

Palmer

Palmer PGA-04 ADIG-LB Manuel utilisateur

Manuels Amplificateur d'instrument de musique populaires d'autres marques

Peavey

Peavey Wiggy Manuel utilisateur

acus

acus One Forstreet 10 Manuel utilisateur

Marshall Amplification

Marshall Amplification MG10KK Manuel utilisateur

Pyle Pro

Pyle Pro PPG860A Manuel utilisateur

Laney

Laney BC30 Manuel utilisateur

Vox

Vox Pathfinder 15SMR Manuel utilisateur

Marshall Amplification

Marshall Amplification JVM205C Manuel utilisateur

Crate

Crate Professional BV-120H Manuel utilisateur

Peavey

Peavey Basic 60 Manuel utilisateur

Fender

Fender Bassman 1200 Manuel utilisateur

ZT Club Manuel utilisateur

Ibanez

Ibanez IFS2X Manuel utilisateur

Crate

Crate GLX1200H Manuel utilisateur

Laboga

Laboga THE BEAST Manuel utilisateur

Falken1

Falken1 Traveller Pro Manuel utilisateur

Hughes & Kettner

Hughes & Kettner Bass Kick 303 Manuel utilisateur

Yamaha

Yamaha GA-10 Manuel utilisateur

Engl

Engl Powerball-2 Manuel de service
