Palm TREO 680 Instructions d'installation

14NOV06

Disassembly Instructions for

Palm® Treo™ 680 Smartphone

Only authorized recyclers are permitted to use these disassembly instructions.

Any attempted disassembly by a user or unauthorized party will void the

product warranty and may irreparably damage the product.

T680.01 IDENTIFICATION

14NOV06

Disassembly Instructions for

Palm® Treo™ 680 Smartphone

Only authorized recyclers are permitted to use these disassembly instructions.

Any attempted disassembly by a user or unauthorized party will void the

product warranty and may irreparably damage the product.

T680.02 REQUIRED HANDTOOLS

H1 H2

H3

14NOV06

Disassembly Instructions for

Palm® Treo™ 680 Smartphone

Only authorized recyclers are permitted to use these disassembly instructions.

Any attempted disassembly by a user or unauthorized party will void the

product warranty and may irreparably damage the product.

T680.03 REMOVE STYLUS, BATTERY COVER AND BATTERY

BATTERY

LiIon

2

3

1

14NOV06

Disassembly Instructions for

Palm® Treo™ 680 Smartphone

Only authorized recyclers are permitted to use these disassembly instructions.

Any attempted disassembly by a user or unauthorized party will void the

product warranty and may irreparably damage the product.

T680.04 LIFT ANTENNA JACK COVER

H2

14NOV06

Disassembly Instructions for

Palm® Treo™ 680 Smartphone

Only authorized recyclers are permitted to use these disassembly instructions.

Any attempted disassembly by a user or unauthorized party will void the

product warranty and may irreparably damage the product.

T680.05 REMOVE ANTENNA COVER AND SCREWS (4)

3

1

4

2

H1

14NOV06

Disassembly Instructions for

Palm® Treo™ 680 Smartphone

Only authorized recyclers are permitted to use these disassembly instructions.

Any attempted disassembly by a user or unauthorized party will void the

product warranty and may irreparably damage the product.

T680.07 OPEN CASE

H2

14NOV06

Disassembly Instructions for

Palm® Treo™ 680 Smartphone

Only authorized recyclers are permitted to use these disassembly instructions.

Any attempted disassembly by a user or unauthorized party will void the

product warranty and may irreparably damage the product.

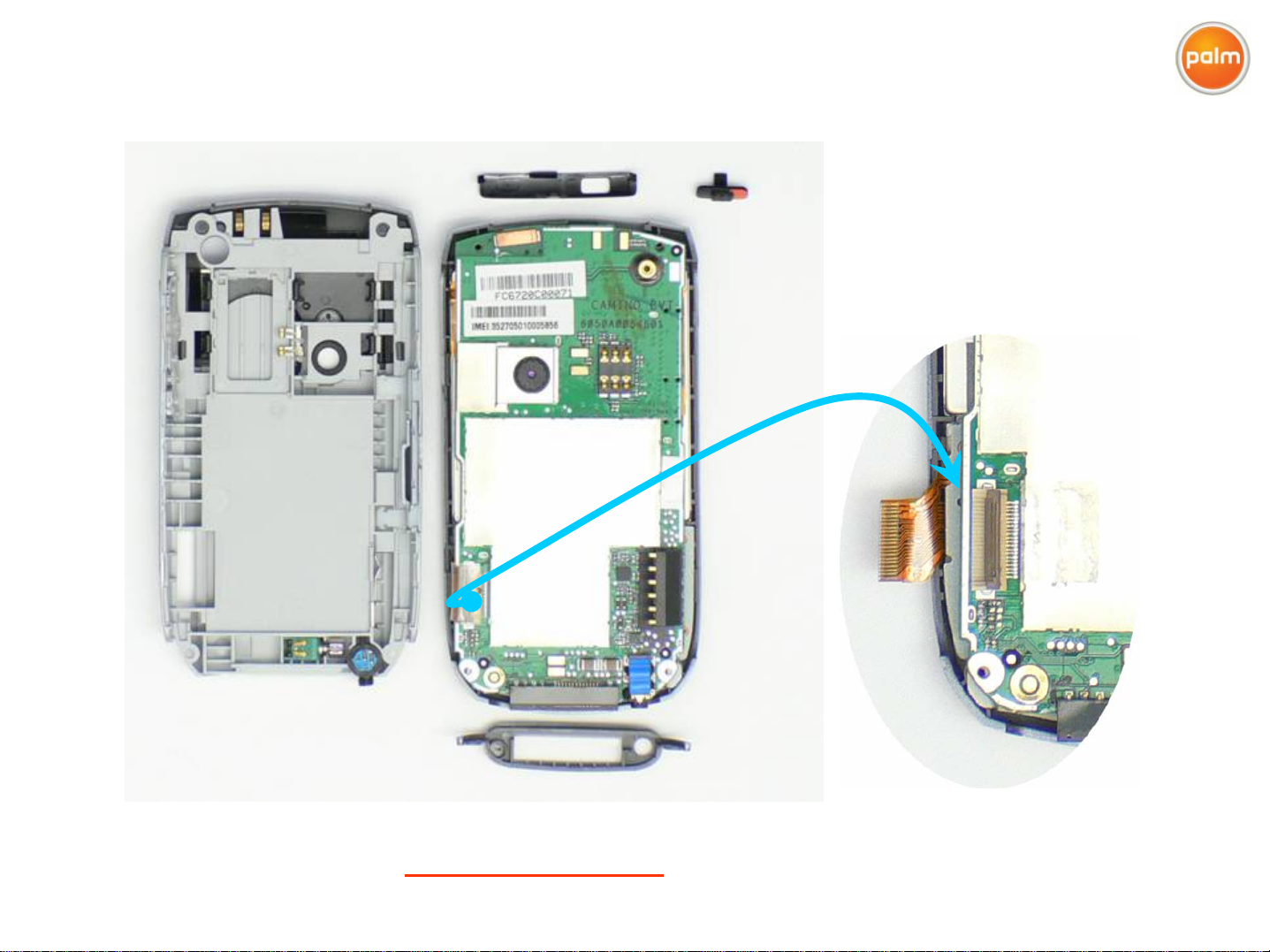

T680.08 REMOVE BACK COVER< IrDA WINDOW AND SLIDER, CONNECTOR BEZEL;

OPEN KEYBOARD CONNECTOR

14NOV06

Disassembly Instructions for

Palm® Treo™ 680 Smartphone

Only authorized recyclers are permitted to use these disassembly instructions.

Any attempted disassembly by a user or unauthorized party will void the

product warranty and may irreparably damage the product.

T680.09 REMOVE BACK COVER AND SHIELD

1

2

14NOV06

Disassembly Instructions for

Palm® Treo™ 680 Smartphone

Only authorized recyclers are permitted to use these disassembly instructions.

Any attempted disassembly by a user or unauthorized party will void the

product warranty and may irreparably damage the product.

T680.10 REMOVE RECEIVER, TAPE AND KEYBOARD SCREWS (2)

H3

1

1

14NOV06

Disassembly Instructions for

Palm® Treo™ 680 Smartphone

Only authorized recyclers are permitted to use these disassembly instructions.

Any attempted disassembly by a user or unauthorized party will void the

product warranty and may irreparably damage the product.

T680.11 REMOVE LCM AND KEYBOARD PARTS

1

5

3

42

LCM
