Palm Pixi Plus Manuel utilisateur
Quickstart
TXTNG &
DRIVNG…
IT CAN WAIT
Take the interactive
tutorial at
att.com/Tutorials
FOLD
Welcome to AT&T
Please use our interactive web tutorial
available at
att.com/tutorials
for the most complete and up-to-date
information available to set up your
device and services. Be sure to select
Manufacturer: Palm and Model: Pixi Plus
from the drop-down menus. The online
tutorials include detailed step-by-step
instructions and screenshots to assist
your learning.
Or use this simple Quickstart to quickly
get an overview of the major features and
services available with your phone.
Thanks again for choosing AT&T.
2
Insert the SIM card
You must insert an activated SIM card
before turning on the phone for the first
time. If you don’t have a SIM card,
contact AT&T.
WARNING Always remove the battery
before inserting or removing the SIM card.
NOTE: If you already turned on your
phone, you must turn it off before
inserting the SIM card. To turn the phone
off, press and hold the power button
(see p. 6) and tap Turn Off.

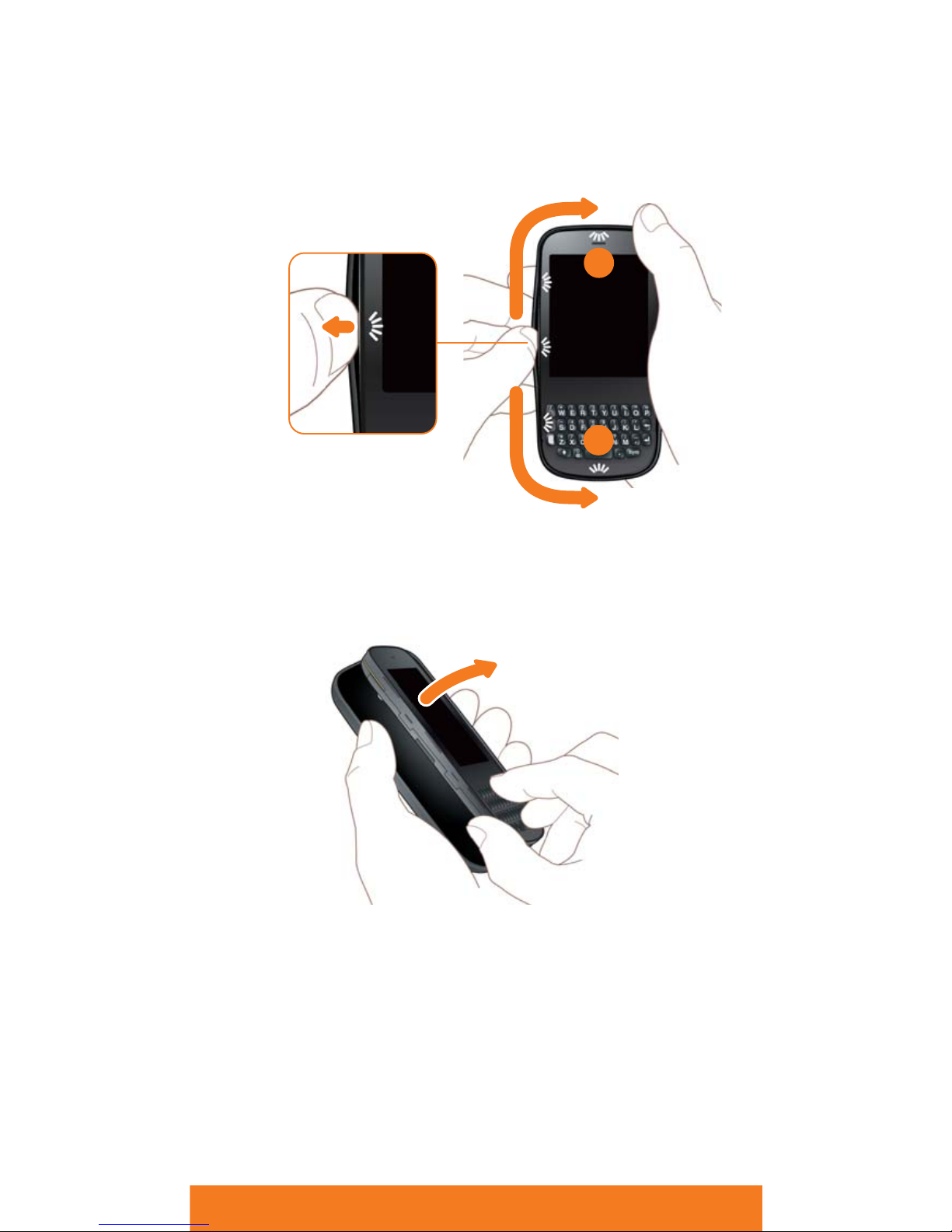

1 To separate the back cover from
the body of the phone: Use your
thumbnail to release the clasp at the
midpoint of the left side of the phone.
2 Run your thumbnail around the
hairline opening to release the
upper-left and top clasps (a). Repeat
to release the bottom-left and
bottom clasps (b).
3
a
b
3 Swing the body of the phone out of
the back cover as if the right side
were a hinge.
4 To remove the battery: Put your
finger in the recess to the right of the
battery; push the battery left and
then lift it up and out.
4
Notch
5 Insert the SIM card and replace the
battery.
6 To replace the back cover: Insert the
ringer switch into the hole provided
for it on the right side of the back
cover.
7 Press all clasps to fasten the cover to
the body of the phone.
5
Power button
Turn on your phone
Press and hold the power button for a
few seconds until you see the Palm logo.
Wait for setup to start (please be patient).
Can’t start setup?
If you inserted the SIM card without first
removing the battery, your phone cannot
connect to the AT&T network, and you
will not be able to complete setup. To fix
this, remove the battery, and then
remove the SIM card. Then insert the
SIM card and last, insert the battery.
6

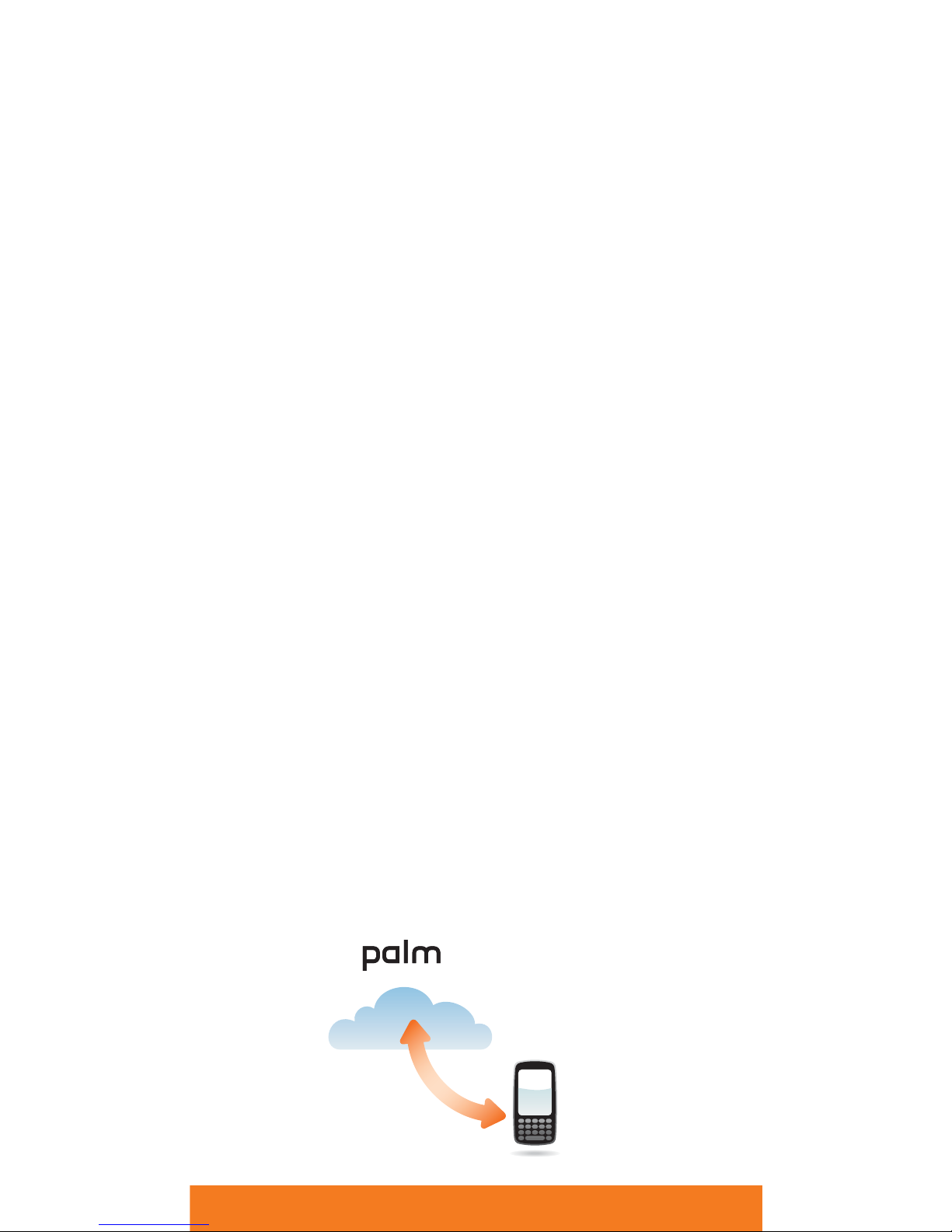

Set up your phone
To use your phone, you must agree to
Palm’s terms and conditions, and create
and verify a Palm profile. Be sure to write
down the valid email address and the
password that you use to create your
profile; you will need them later.
If you forget your password, go to
palm.com/palmprofile to reset it. If
you forget your email address, go to
palm.com/support for assistance.
For tips on tapping the screen and
entering text, see the Navigation guide
(after p. 12) and the info on p. 15.
NOTE: Do you have a Palm profile from a
webOS™ phone that you no longer use?
During setup, just sign in to your existing
profile when prompted. All info associated
with your profile is downloaded to your
new phone. If you are still using your
other phone, however, you should create
a new profile for your new phone—you
can’t use the same profile on two
phones at the same time.
7
7
6
8
9
10
4
5
3
2
1
12
Top
11
Overview
8
1 Earpiece
2 Speaker (on back)
3Gesture area: See the Navigation
guide, after p. 12.
4 Microphone
5 Option: See p. 15.
6 Camera lens and flash (on back)
7 Ringer switch: Slide to turn the ringer
and notification sounds on and off
(red means off).
8 Volume: For call, ringer, and
music/video playback.
9 Charger/microUSB connector
10 Sym: See p. 15.
11 Power: Press to wake up and turn
off the screen. To turn the phone,
Wi-Fi, and Bluetooth® off/on, use
airplane mode (see p. 14). When you
remove the battery, shut down the
phone completely by pressing and
holding power.
12 3.5mm headset jack
9

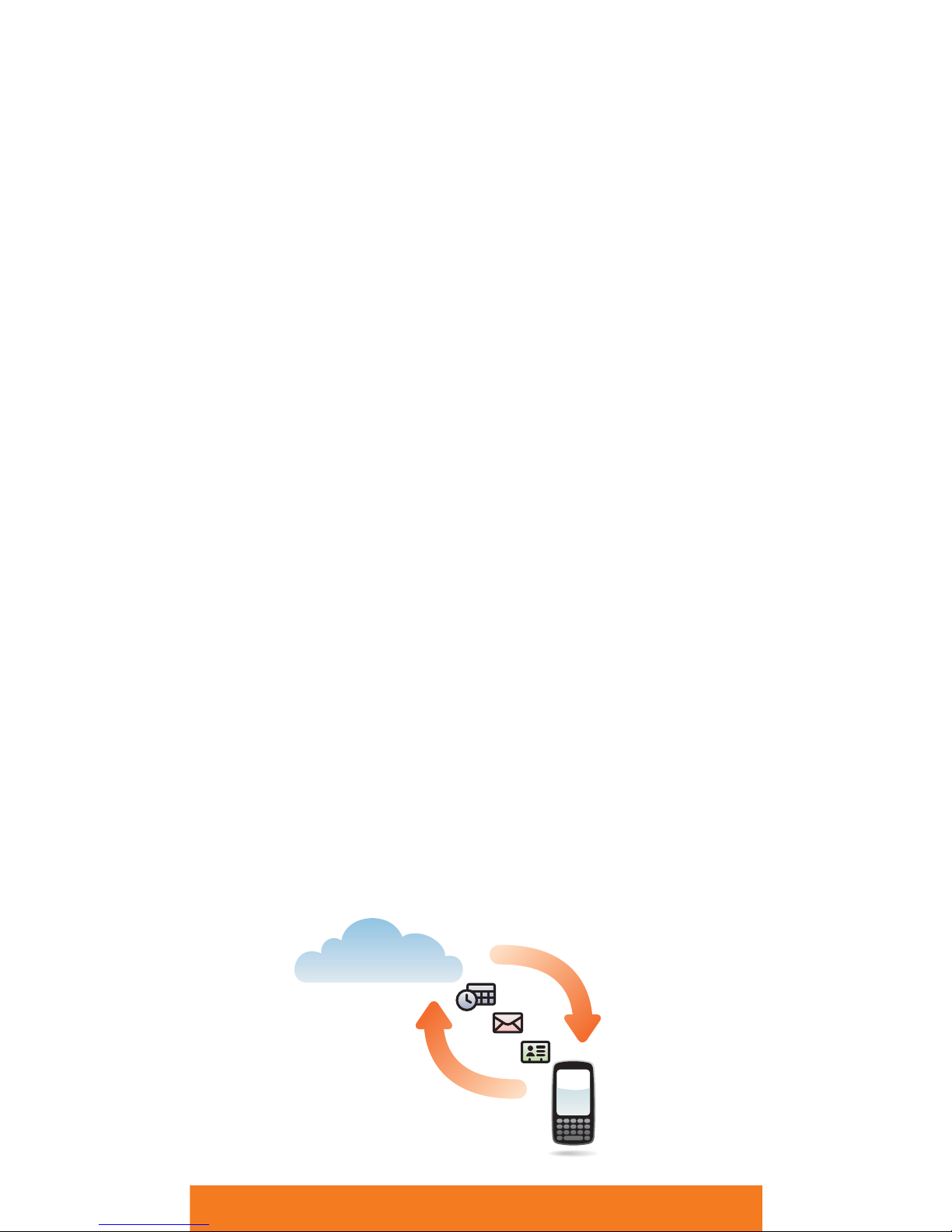

To wirelessly sync Contacts and Calendar
info, set up online accounts with
providers like Google and Microsoft
Exchange.
If you don’t already have an account with
a provider, you must create one before
you set up the account on your phone.
For example:
• Google: Go to gmail.com.
• Exchange: Check with your company’s
IT department.
After you create an online account, set
up the account on your phone. See p. 16.
For the full list of available online sync
accounts, see the online accounts table
at the back of the User Guide (see p. 22).
A sync relationship you set up in one app
is automatically set up in other apps. For
example, by setting up a Gmail email
account, your phone is also set to sync
Google Contacts, Calendar, and IM.
Set up online Contacts
& Calendar to sync
10
