Paitec ES-2000 Manuel utilisateur
Model ES-2000
User Manual
This manual provides detailed information on how to operate and maintain your
ES-2000.
Please read this manual before operating the machine in order to prevent any
damage caused by improper handling
-2-
Introduction
Thank you for purchasing Paitec USA product.
This manual is prepared to provide you with guidelines on how to properly operate and
maintain the ES-2000 Pressure Sealer.
Copyright
Any of the contents should not be copied, re-printed or translated by other languages
without Paitec USA approval.
-3-
ES-2000Specifications.
The ES-2000 offers a real office-friendly Pressure Sealer with
perfect sealing quality and extremely low noise level. It is
capable of processing 2,000 forms per hour.
•Form Size : A4 / Letter / Legal size
•Speed : 2,000 forms / hour
•Input Tray : up to 150* forms
•Form weight : 20#-28#
•Folding Setting : Z, C, V & Double, 14” uneven Z
•Noise Level : less than 45db
•weight : 49 lbs. (Without packaging)
•Dimension : 12.6” X 15.4” X 11”(WxLxH)
•*based on 20# paper weight.
Specifications:
-4-
Unpacking Your Machine

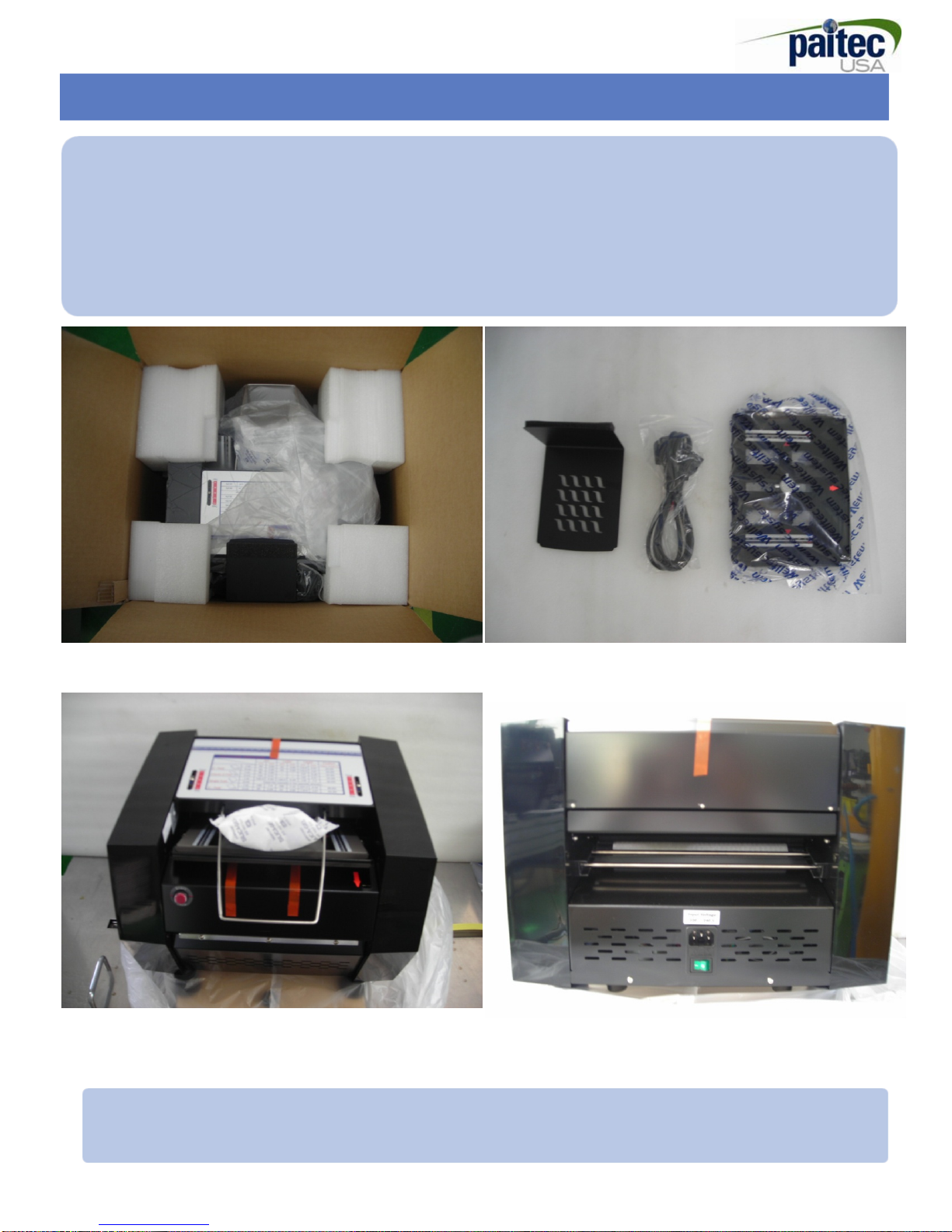

[2nd cassette, Stacker & Power cable]
[Box open]
Content
Please check if all of the following parts are included in the box
– Power cable, 1ST Fold Cassette, 2nd Fold Cassette, Stacker, User
manual
( 1st Fold Cassette is already inserted onto the machines from the factory.)
안전 테이프 및 보호 스티로폼 제거하기
기기를 작동하기 전에 모든 안전 테이프와 보호 스티로폼을 제거 하십시요.
안전 테이프 및 보호 스티로폼 제거하기
기기를 작동하기 전에 모든 안전 테이프와 보호 스티로폼을 제거 하십시요.
[Remove the safety tape]
* Power connection : Please refer to the label for electric information which is located
at the back side of the machine. If it is not working properly, please contact your
local dealer for service
[Power & on/off switch]
-5-
Identifying parts

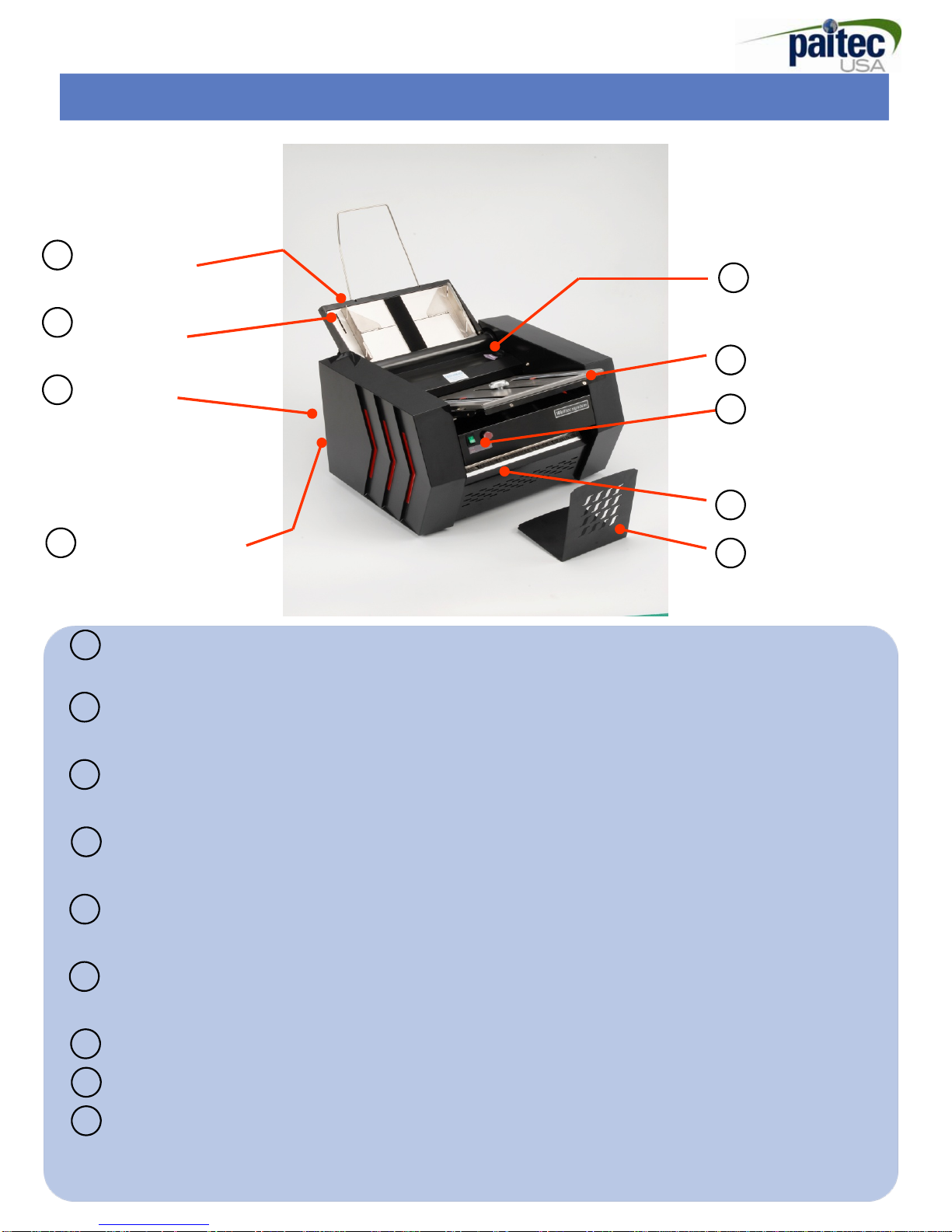

2
Paper Guide
Adjust to fit into your form size (wide)
3Power socket
Main power socker located on the back of the machine.
42nd Fold Cassette
Insert the 2nd Cassette on the back of the machine.
5Roller Cover
Open fold roller cover when jam occurs. (Please turn the Knob in clockwise rotation for unlock).
61st Fold Cassette
Insert the 1st Cassette for first folding forms.
7Start/Stop
1
Press Adjustment
Adjust the pressure for the paper (Adjust sliders to suit paper weight).
In-feed Pressure
adjustment
Fold Roller Cover
1st Fold
Cassette
Output
2nd Fold
Cassette
1
3
4
5
6
7
Paper Guide
2
Power
socket start/stop
8
8Output : Finished forms exit the front of the machine.
9Stacker
9Stacker
-6-
Folding Cassette Guide
안전 테이프 및 보호 스티로폼 제거하기
기기를 작동하기 전에 모든 안전 테이프와 보호 스티로폼을 제거 하십시요.
안전 테이프 및 보호 스티로폼 제거하기
기기를 작동하기 전에 모든 안전 테이프와 보호 스티로폼을 제거 하십시요.
A Fold cassette setting guide with ruler is attached on the front of the
hopper. Please select the folding type you require and adjust the 1st and
2nd cassette location based on this information.
If you want to process V-Fold documents (single fold) please
remove the 2nd fold cassette, rotate and replace
-7-
How to install the Fold Cassettes
Please follow the these instructions to adjust the fold 1st and 2nd Fold
Cassettes.
안전 테이프 및 보호 스티로폼 제거하기
기기를 작동하기 전에 모든 안전 테이프와 보호 스티로폼을 제거 하십시요.
안전 테이프 및 보호 스티로폼 제거하기
기기를 작동하기 전에 모든 안전 테이프와 보호 스티로폼을 제거 하십시요.

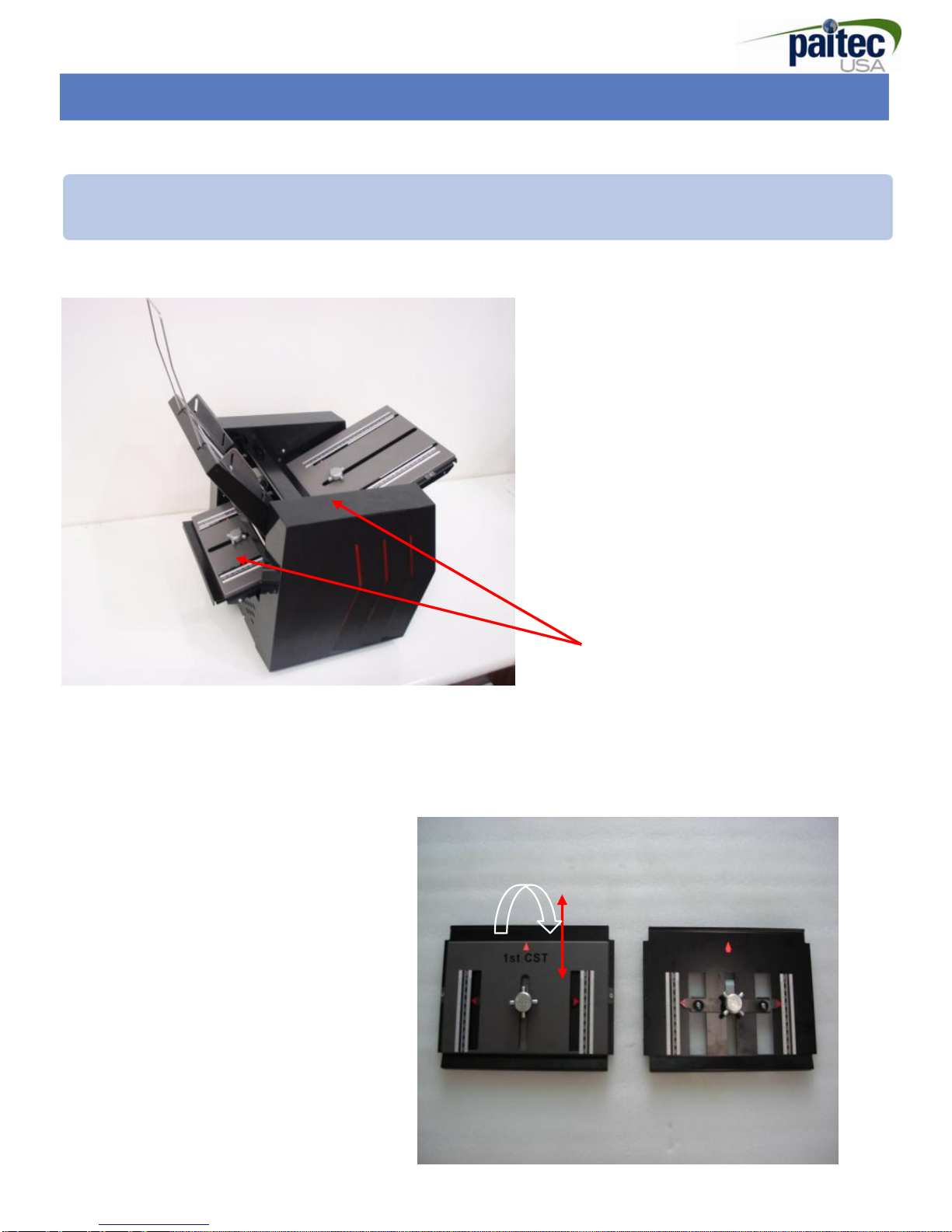

Knob for fold
cassette adjustment
1. the 1st cassette is inserted
on the front of the machine.
2. Insert the 2nd cassette on
the back of the machine.
1st Cassette 2nd cassette
1st Fold Cassette
2nd Fold Cassette
Adjusting the Fold Cassette
Turn the Knob to adjust the fold
cassette to the desired paper
size (Refer to fold assist label
on top of the in-feed tray.)
-8-
Different Folding cassettes for different paper sizes
안전 테이프 및 보호 스티로폼 제거하기
기기를 작동하기 전에 모든 안전 테이프와 보호 스티로폼을 제거 하십시요.
The ES-2000 has a 3 different size of 1st folding plate based on the
folding type required.
Standard
(148mm
plate)
240mm plate 270mm plate
Option Basic Option Option
Fold Type Z Letter,A4,
LEGAL Letter,A4,
LEGAL Letter,A4,
LEGAL
V Letter,A4 Letter,A4,
LEGAL Letter,A4,
LEGAL
C NA Letter,A4,
LEGAL Letter,A4,
LEGAL
Uneven
CNA NA Letter,A4,
LEGAL
Price Included Optional Extra Optional Extra
Remarks
sStandard 148mm S240mm Fold Cassette S270mm Fold Cassette
-9-
Features
안전 테이프 및 보호 스티로폼 제거하기
기기를 작동하기 전에 모든 안전 테이프와 보호 스티로폼을 제거 하십시요.
안전 테이프 및 보호 스티로폼 제거하기
기기를 작동하기 전에 모든 안전 테이프와 보호 스티로폼을 제거 하십시요.
•Paper Jam Detection : This
sensor will detect a paper jam
and stop the machine.
•Please note you will have to
remove the jammed form before
restarting the machine.
* Limit sensor for fold roller
cover. The machine will not run
with this cover missing or if this
cover is removed while the
machine is running.
Paper Alignment Paddle.
Please do not remove this item.
Your machine will not function
properly without it
-10-
Loading & Operation
안전 테이프 및 보호 스티로폼 제거하기
기기를 작동하기 전에 모든 안전 테이프와 보호 스티로폼을 제거 하십시요.
안전 테이프 및 보호 스티로폼 제거하기
기기를 작동하기 전에 모든 안전 테이프와 보호 스티로폼을 제거 하십시요.

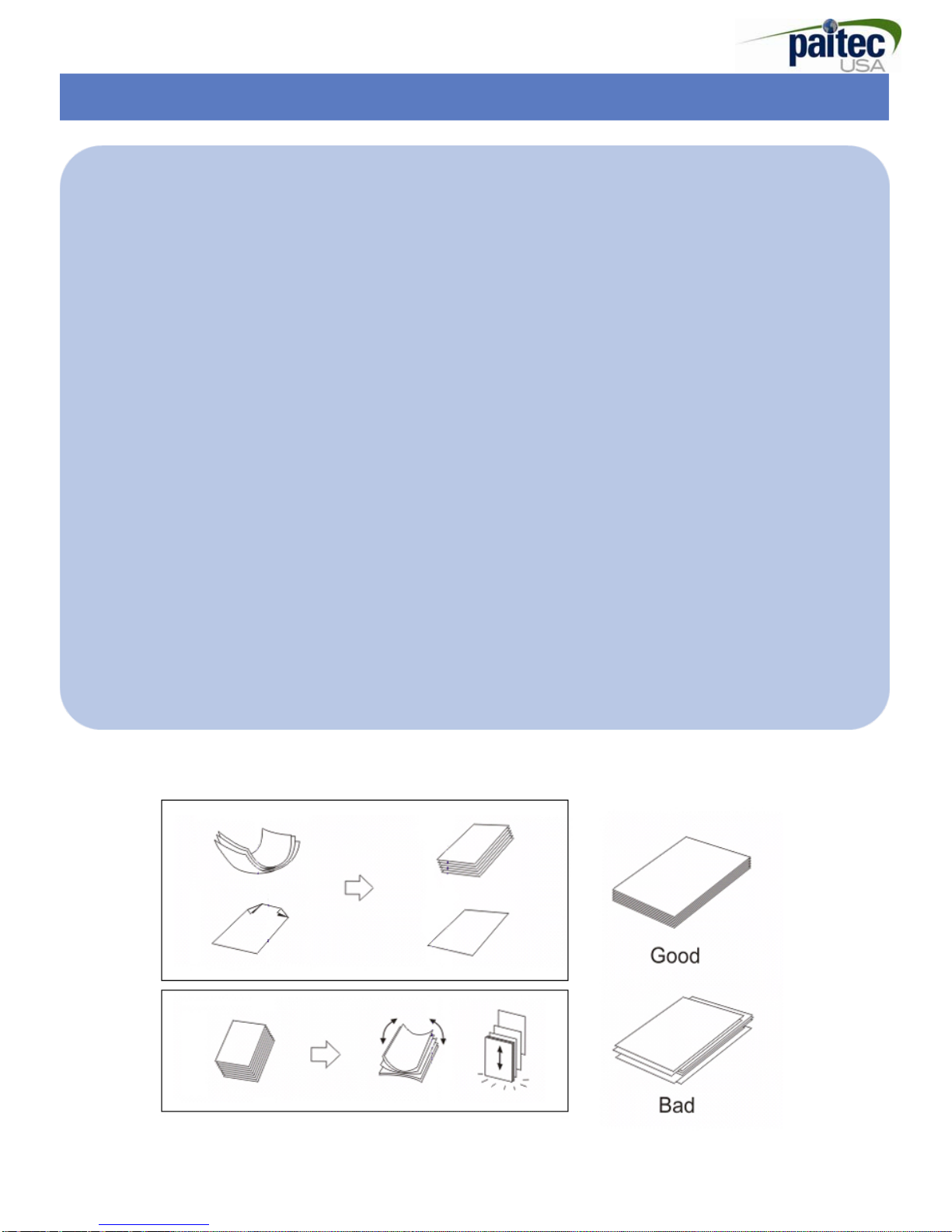

Fan the pressure seal forms to separate and to eliminate any
static that may have been caused by the laser printer.
Place the forms into the paper tray in the correct orientation as
indicated by the chart below. The paper tray will hold up
to 100 sheets of pressure seal paper. To correctly place your
forms in the paper tray, square-off & neaten the stack and,
push the paper tray back so the forms will rest on the solid
plate and behind the feed roller. The paper tray is sprung-loaded
to apply the correct amount of pressure for proper
feeding.
It is always a good idea to fold one form to verify that the
fold-plate settings are correct and have not been changed.
Adjust if necessary and then proceed to load your forms in
the paper tray, press start button to fold and seal your forms.
