PadBot X1 Manuel utilisateur
PadBot X1 User Manual
X1
Content
X1
1.Parts Identifications∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙01
2. How to Install∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙02
3. How to Charge∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙03
4. How to Switch On∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙04
5.How to Use∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙05
6. How to Use PadBot AI Brain App∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙05
6.1 Voice Communication∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙06
6.2 Custom Q&A∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙08
6.3 Main Interface∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙09
6.4 Face Recognition∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙11
6.5 Face Group∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙12
6.6 Welcome Message Playing Conditions∙∙∙∙∙∙∙∙∙∙∙13
6.7 Robot Sleep Management∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙14
6.8 Voice Interactive Prompt∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙15
Content
X1
7. How to Download PadBot Admin∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙16
8. How to Use PadBot Admin∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙17
8.1 User Rights∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙18
8.2 Welcome Message & Slogan∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙21
8.3 Custom Q&A∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙22
8.4 Remote Control∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙23
8.5 Video Chat∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙24
9. Technical Support∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙26
Parts Identifications
01
PadBot
Collision Prevention &
Anti Falling System
Charger x 1
10.1’’ HD Screen
Charging Base x 1
Remark: Please turn on Main Switch firstly, then long press Head Switch to turn robot on.
2. Accessories
1.Parts Identifications
X1
Light Bar
Head Sensor
How to Install
02
PadBot
X1
2.Loosen fastener at
the same time to
remove robot body
from base.
How to Disassemble：
1.Press these two
buttons and take
robot body apart.
socket
↑
rectangular
button
←— —→
1. Connect wire in robot body with wire in robot
base correctly, picture attached to follow.
2. After fix wires, put robot body in base and finish
installation.
follow the
direction
—→fastener
03
PadBot
3.2Way two: Connect Charger into Charging Base, use Charging Base to charge robot. After turn on
“ Auto Charge” function in App, robot will find charging base automatically if short of battery to
charge itself. After finish charging, it will leave charging base automatically.
1. Robot equips with lithium battery, please charge robot fully in the first time to guarantee normal operation.
2. During charging, the charger light will be red, when charge fully, the charger light will be green. While charger still
shows green when connects no robot.
3. Two ways to charge robot:
3.1 Way one: Charging by DC charging port.
X1 How to Charge
How to Switch On
04
PadBot
X1
Main
Switch
Step TWO: Long press Head
Switch until screen turn on.
Head
Switch
Step ONE: Turn Main
Switch on, and light bar
shines.
How to Use
05
PadBot
2.Register
3. Scan QR Code to
add robot
a. Manage Robot
b. Custom Q&A
c. Robot Settings
1. Open “PadBot
AI Brain”
1. Download
“PadBot Admin”
Scan QR
Code
After switch robot on, please open “PadBot AI Brain” application in robot, and download
“PadBot Admin” App in phone as the User Side.
Robot Side (PadBot AI Brain APP) User Side (PadBot Admin App)
X1
Voice
Communication
a. QR Code
b. Face Recognition
c. Audio
d. Video Call
e. Control
f. Photos
g. Setting
06
PadBot
PadBot AI Brain--Voice Communication
1.Open “PadBot AI Brain” App to enter into voice communication interface to start chatting with robot.
2. Voice communication supports Chinese and English and choose according language inside Settings.
Robot will fall asleep automatically if communication stops 1min (or you can set 0s，10s，20s，30s，
40s and 50s to make robot sleep). During sleeping status, can use “ Hello, Robot” to wake robot up. And
you can also touch screen to awaken robot or stop robot’s speaking.
X1
Scan QR Code to
add robot

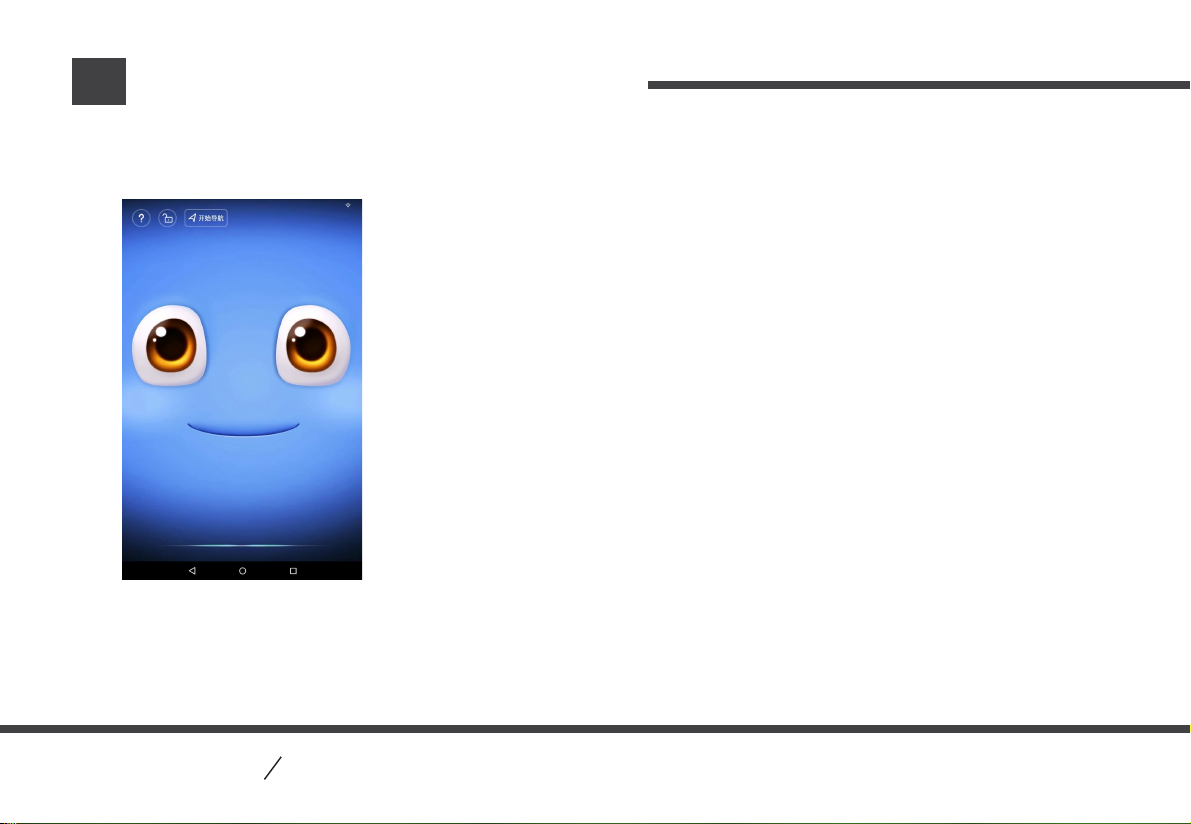

Voice Communication Page
X1
07
PadBot
• Basic voice communication and Media broadcast
In robot voice communication interface, you can ask it to answer
basic questions and broadcast media, and please speak slowly.
Communication Examples:
Movement Instructions：
“ go forward”, “ go backward”, “turn left”, “turn right”, “look up”,
“look down”, “stop moving”, etc.
Use “Play a song”, robot will play a song randomly.
PadBot AI Brain--Voice Communication
