ASSEMBLY INSTRUCTION
FIRE PLACE
PAGE 1 0F 5
20.004.22 HEARTH
20.004.22 BODY
20.004.22 HOOD
MODEL NO. 20.004.22
ASSEMBLY INSTRUCTION
Thank you for purchasing this quality product. Be sure to check all packing material carefully for small
parts which may have come loose inside the carton during shipment. Separate, identify, and count all
parts and metal hardware. Compare with parts list to be sure all parts are present.
WARNING: This fire place is heavy in weight. You must use 4 people to assemble safely. Use caution
when inserting body onto hearth (step 1) and hood onto body (step 4) to avoid injury of fingers.
Important Note: Follow instructions listed below in the proper sequence as numbered to assure fast,
easy and correct assembly.
Failure to assemble this fireplace in its entirety voids the warranty.
PARTS
(A) BODY (1) (E) BACK INSULATOR (1)
(B) HEARTH (1) (F) LOCKING CLIPS (2)
(C) BASE INSULATOR (1) (G) HOOD (1)
(D) SIDE INSULATOR (2); a. RIGHT INSULATOR (H) SPARK ARRESTER (1)
b. LEFT INSULATOR ( I ) GRATE (1)
ILLUSTRATION
(A) (B) (C) (D.a) (D.b) (E)
(F) (G) (H) (I)
WARNING: Do not overload grate with firewood
WARNING: Do not overload firebox with firewood
PAGE 2 0F 5
PAGE 3 0F 5
STEP I : Insert Body onto Hearth
Body (A)
Hearth (B)
STEP II : Insulator System Installation
Base Insulator (C)
Do not apply stress
to corners.
Lift from center
INSERT
This step will require 3 people. With one person holding the rear top of body and another person raising the body from front.
Have the third person insert the liner base into the fire box.
(E)
Side Insulator (D)
Back Insulator (E)
PAGE 4 0F 5

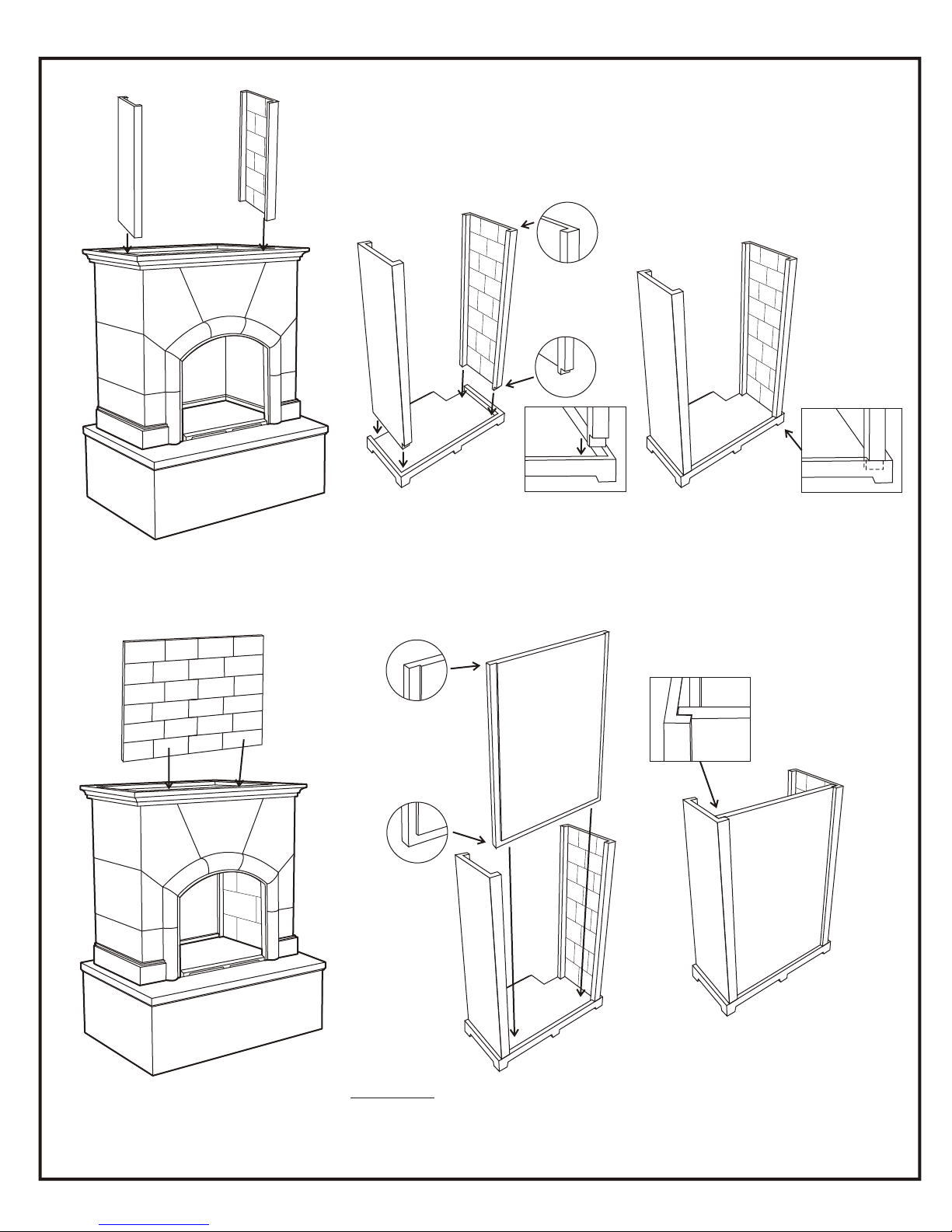

(D)LEFT (D)RIGHT
BACKSIDE
Important : All side labeled “BACKSIDE” must face inside walls of
fireplace body. The unit will not assembly correctly if this
is not done.
BACKSIDE
BACKSIDE
BACKSIDE
PAGE 5 0F 5
STEP IV : Insert Hood onto Body
Hood (G)
Spark Arrester (H)
Grate (I)
STEP III : Installing The Lock Clips
Hardware:
Locking Clips (F) : 2 pcs
