PACH & COMPANY QUANTUM QC1 Instructions de montage

Table of Contents

file:///C|/PACH%20&%20COMPANY/PACH-CO.COM/PACH-CO.COM%202011-1/online_manual/qc1-qc1ip-qc2-qc2ip_manual-2.htm[1/17/2012 3:21:55 PM]

TABLE OF CONTENTS

Table of Contents Limitation of Liability

Products Limited Warranty

Limited Warranty Limits and Exclusions

CHAPTER 1 GETTING STARTED

CHAPTER 2 INSTALLATION AND WIRING

DIAGRAM

General Wiring Diagram

Power Wiring Diagram

VOIP Diagram

Door Strike Wiring Diagram

Input Devices and Door Sensor Wiring Diagram

Satellite System Wiring Diagram

CHAPTER 3 KEYPAD CORRELATION

TABLE

CHAPTER 4 PROGRAMMING

Log-in to Programming Mode

Function Code 00: Change Master Code

Function Code 01: Add New Tenant Directory

Function Code 15: Initializing Event Recording

Function Code 16: Auto Unlock Schedule (AUS)

Function Code 17: Time Zone (TMZ)

Function Code 18: Holiday Zone (HLD)

Function Code 19: Directory Digit

Function Code 20: AUXIN1

Function Code 21: AUXIN2

Function Code 22: Do Not Disturb

Function Code 23: Lock-out Count

Function Code 24: Alarm

Function Code 25: Keypad Beep

Function Code26: Door Beep

Function Code 27: Talk Time

Function Code 28: Unlock Relay 1 Time

Function Code 29: Unlock Relay 2 Time

Function Code 33: Temporary Code

Function Code 34: Special Code

Function Code 35: Temporary Card

Function Code 36: Special Card

Function Code 38: System Acknowledge

Function Code 39: Disable and Enable Remote Access

Function Code 40: DTMF Relay 1

Function Code 41: DTMF Relay 2

Function Code 42: Relay 2 Mode

Function Code 43: Do Not Disturb Zone

Function Code 44: Disable Time Zone Relay

Function Code 45: Relay 1 and 2 Unlock Timer

Function Code 46: Firmware Version

Function Code 48: PBX Enable

Function Code 49: Edit Existing Access Code, Temporary Code and

Table of Contents

file:///C|/PACH%20&%20COMPANY/PACH-CO.COM/PACH-CO.COM%202011-1/online_manual/qc1-qc1ip-qc2-qc2ip_manual-2.htm[1/17/2012 3:21:55 PM]

Function Code 02: Edit Existing Directory

Function Code 03: Delete Tenant Directory

Function Code 04: Clear All Tenant Directories

Function Code 05: Enable or disable Call

Function Code 06: Add New Access Code

Function Code 07: Delete Access Code

Function Code 08: Clear All Access Codes

Function Code 09: Access Code Digit

Function Code 10: Add New Card or Transmitter

Function Code 11: Delete Card or Transmitter

Function Code 12: Clear All Cards and

Transmitters

Function Code 13: Set Time

Function Code 14: Set Date

Special Code

Function 50: Erase Memory to Factory Default

Function Code 51: Welcome Screen

CHAPTER 5 OPERATIONS

Call from the System

Opening Door Remotely

Opening Door Using Access Code, Temporary Code and Special Code

Opening Door Using Card, Temporary Card, and Special Card

Opening Door Using Transmitter, Temporary Code Transmitter and

Special Code Transmitter

Extending Talk Time

Call the System from Remote Location

CHAPTER 6 QWCM

Applicable for Quantum QC1IP and QC2IP

LIMITATIONS OF LIABILITY

This manual is subject to change without notice.

Pach and Company is not liable for any errors that might occur from use of this document, nor is any commitment to

update the information herein implied.

Pach and Company does not assume any liability for any damages, which may arise in installation or use of the Quantum

QC1-QC1IP-QC2-QC2IP. Pach and Company does not assume liability for any incompatibility between the Quantum

QC1-QC1IP-QC2-QC2IP and users devices.

Pach & Company reserves the right to make changes without prior notice to any products in order to improve reliability,

function or design.

PRODUCTS LIMITED WARRANTY

If your product does not work properly because of a defect in materials or workmanship, Pach and Company (referred to

as the warrantor ) will, for the length of the period indicated on the chart below, which starts with the date of original

purchase ( Limited Warranty Period ), at its option either (a) repair your product with new or refurbished parts or (b)

advance replacement with new or refurbished product. The decision to repair or advance replacement will be made by the

warrantor. Advance replacement will be ship UPS ground under the warranty period with no charge. The defective product

must be return to Pach and Company within 15 days after receiving the advanced replacement otherwise you will be

billed the full amount.

Parts: Two (2) year, does not cover parts needed to re-install the product by the installer

Labor: Two (2) year, does not cover installation labor

Cards, Fobs and Transmitters warranted for 90 days

Table of Contents

file:///C|/PACH%20&%20COMPANY/PACH-CO.COM/PACH-CO.COM%202011-1/online_manual/qc1-qc1ip-qc2-qc2ip_manual-2.htm[1/17/2012 3:21:55 PM]

LIMITED WARRANTY LIMITS AND EXCLUSIONS

This limited warranty ONLY COVERS failures due to defects in materials or workmanship, and DOES NOT COVER

normal wear and tear or cosmetic damage.

The Limited Warranty ALSO DOES NOT COVER damages which occurred in shipment, or failures which result from

accidents, misuse, abuse, neglect, bug infestation, mishandling, misapplication, alteration, faulty installation, setup

adjustment, misadjustment of consumer controls, improper maintenance, power line surge, lightning damage, modification,

introduction to sand, humidity or liquids or product has been installed by non-license installer or damage that is

attributable to acts of God.

ADVANCE REPLACEMENT can only be issued by Pach and Company Technical Department free of charge and

transport by standard transportation (UPS Ground, Standard US mail, whichever is applicable). Our Technical Department

has the right to decline advance replacement. It is your responsibility to return the defective part at your cost.

THERE ARE NO EXPRESS WARRANTIES EXCEPT AS LISTED UNDER LIMITED WARRANTY

COVERAGE . THE WARRANTOR IS NOT LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES

RESULTING FROM THE USE OF THIS PRODUCT, OR RISING OUT OF ANY BREACH OF THIS LIMITED

WARRANTY. (As examples, this excludes damages for lost time, lost calls or messages, cost of having a unit removed or

re-install if applicable, travel to and from the servicer.

ALL EXPRESS AND IMPLIED WARRATIES, INCLUDING THE WARRANTY OF MERCHANTABILITY,

ARE LIMITED TO THE PERIOD OF THE LIMITED WARRANTY.

Some states do not allow the exclusion or limitation of incidental or consequential damages, or limitation on how long an

implied warranty lasts, so the exclusions may not apply to you.

This Limited Warranty gives you specific legal rights and you may also have other rights which vary from state to state. If

a problem with this product develops during or after the Limited Warranty period, you may contact your dealer/installer. If

the problem is not handled to your satisfaction, then call Pach and Company at 1-888-678-7224.

PARTS AND SERVICE, WHICH ARE NOT COVERED BY LIMITED WARRANTY, ARE YOUR

RESPOSIBILITY.

CHAPTER 1

Getting Started

Introduction

Pach & Company thanks and congratulates you on the purchase of your Quantum QC1-QC1IP-QC2-QC2IP Telephone

Entry Access Control Systems.

The manual is designed to guide you through the proper programming and use of the Quantum QC1-QC1IP-QC2-QC2IP.

It is important for you to read and follow the manual completely.

The product comes with two years Limited Warranty, see above for more detail

System Descriptions

Table of Contents

file:///C|/PACH%20&%20COMPANY/PACH-CO.COM/PACH-CO.COM%202011-1/online_manual/qc1-qc1ip-qc2-qc2ip_manual-2.htm[1/17/2012 3:21:55 PM]

The Quantum QC1-QC1IP-QC2-QC2IP is residential and multi tenant telephone entry system. It can be installed as

follows:

1. Intercom mode, using existing phone line, no dial tone is required.

2. Intercom mode on existing active phone line, the system will call the premise s phone as an intercom and up to 10

tenant directories can be programmed to call to outside lines

3. Dedicated phone line, system only can call an outside line; up to 10 tenant directories can be programmed.

See Chapter 2 for more detail

Specifications

Input power: 12V-18 VAC 40VA (12VAC supplied), 12-18 VDC 3.0A

Minimal Current consumption: 750-100mA

DIMENSION: 6-7/16 (H) x 10 (W) x 2-1/16 (D)

1x16 Liquid Crystal Display (LCD)

Built-in Radio Frequency Receiver

Built-in 26 Bit Wiegand Card Reader

RS-485 for Satellite system (up to eight satellite)

Two on-board relays

Two Auxiliary inputs

Operating environment 10ºF-140ºF

Relative Humidity 0%-95% non-condensing

Double 3/4" knock-out on the back and bottom panel

Features

Optional Internet Browser Programming (QWCM)

Event recording

Automatic Enrollment

Automatic call forwarding, intercom mode on existing active phone line

200 total cards or transmitters and 200 access codes (4-8 digit)

20 programmable time zones, 10 programmable auto-unlock schedules and 20 holiday schedules

10 programmable temporary cards and access codes for limited use

10 programmable unlock hold cards and access codes

Program blocks of cards and blocks of codes

Accessories and Replacement parts

Visit our web site www.pach-co.com

Unpacking the System

All the items below come with the Quantum QC1-QC1IP-QC2-QC2IP. Contact Pach and Company for missing part(s) at

(888) 678-7224, Monday-Friday 7:30 AM -3:30 PM Pacific Standard Time.

Table of Contents

file:///C|/PACH%20&%20COMPANY/PACH-CO.COM/PACH-CO.COM%202011-1/online_manual/qc1-qc1ip-qc2-qc2ip_manual-2.htm[1/17/2012 3:21:55 PM]

CHAPTER 2

Installation and Wiring Diagram

Follow the wiring diagram carefully. Improper installation will void the warranty. Please call technical support in case you

have any difficulties during the installation. Click the selection below for different applications

General Wiring Diagram

Power Wiring Diagram

VOIP Diagram

Door Strike Wiring Diagram

Input Devices and Door Sensor Wiring Diagram

Satellite System Wiring Diagram

2.1 General Wiring Diagram

Table of Contents

file:///C|/PACH%20&%20COMPANY/PACH-CO.COM/PACH-CO.COM%202011-1/online_manual/qc1-qc1ip-qc2-qc2ip_manual-2.htm[1/17/2012 3:21:55 PM]

Figure 2.1

General Wiring Diagram

2.2 Power Wiring Diagram

Table of Contents

file:///C|/PACH%20&%20COMPANY/PACH-CO.COM/PACH-CO.COM%202011-1/online_manual/qc1-qc1ip-qc2-qc2ip_manual-2.htm[1/17/2012 3:21:55 PM]

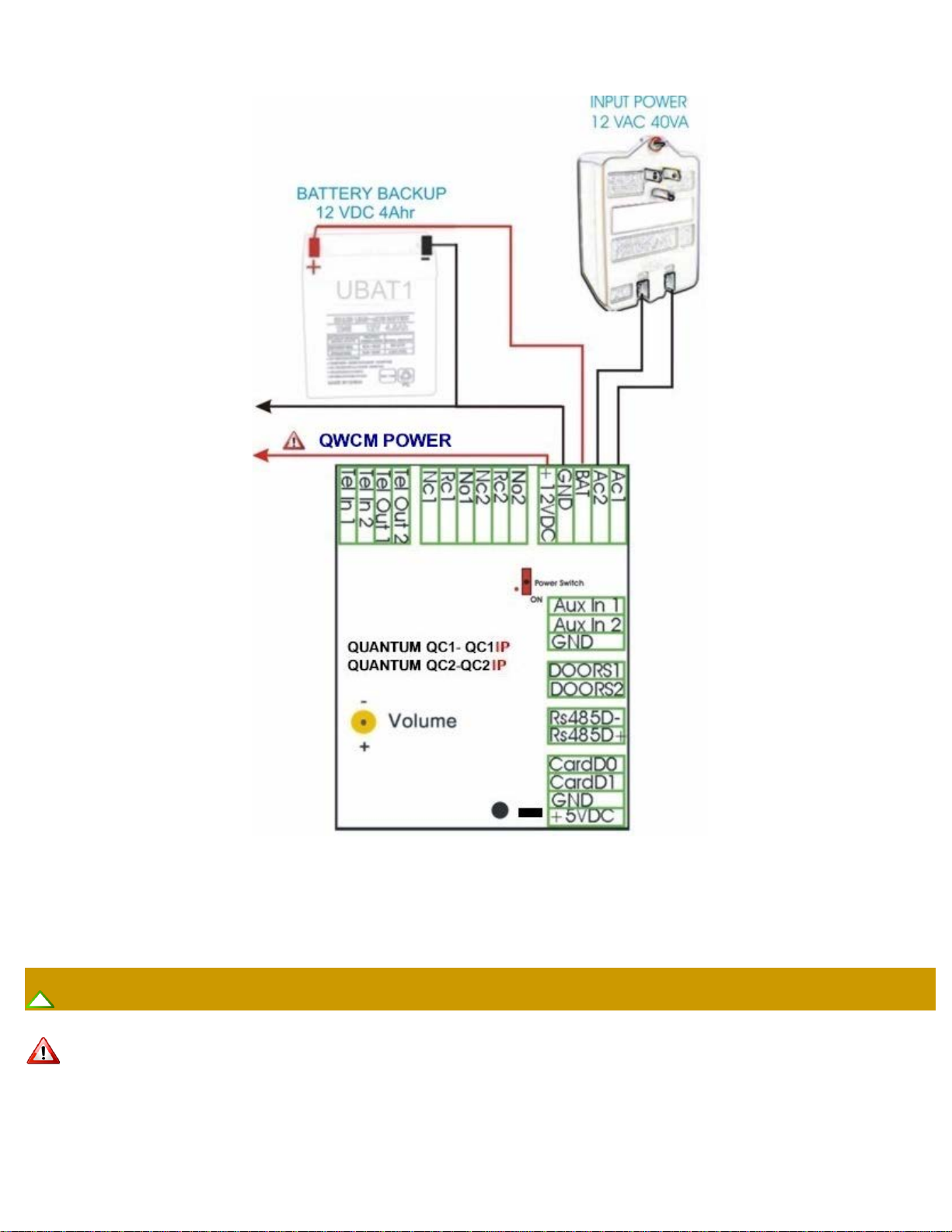

Figure 2.2

Power Wiring Diagram

2.3 VOIP Wiring Diagram

Compatibility issue may occur between the Quantum QC1-QC1IP-QC2-QC2IP and your VOIP line.

Table of Contents

file:///C|/PACH%20&%20COMPANY/PACH-CO.COM/PACH-CO.COM%202011-1/online_manual/qc1-qc1ip-qc2-qc2ip_manual-2.htm[1/17/2012 3:21:55 PM]

Figure 2.3

VOIP Wiring Diagram

2.4 Door Strike Wiring Diagram

Table of Contents

file:///C|/PACH%20&%20COMPANY/PACH-CO.COM/PACH-CO.COM%202011-1/online_manual/qc1-qc1ip-qc2-qc2ip_manual-2.htm[1/17/2012 3:21:55 PM]

Figure 2.4

Door Strike Wiring Diagram

2.5 Input Device and Door Sensor Wiring Diagram

Table of Contents

file:///C|/PACH%20&%20COMPANY/PACH-CO.COM/PACH-CO.COM%202011-1/online_manual/qc1-qc1ip-qc2-qc2ip_manual-2.htm[1/17/2012 3:21:55 PM]

Figure 2.5

Input Device and Door Sensor Wiring Diagram

2.6 Satellite System Wiring Diagram

Figure 2.6

Satellite System Wiring Diagram

Assuming all wiring has been done properly according to chapter 2 then turn the system s power on as shown on figure

2.1 number 10. The LCD will go into a cycling mode as below

LCD Display OK --- Flash OK --- RTC OK --- DTMF OK --- INIT START --- INIT COMPLTE --- SCROLLING

CHAPTER 3

Keypad Correlation Table
