P.R.C. SH-08-7 Manuel utilisateur

OIL FILLED HEATER

Product code: 65105892

Number model: SH-08-7

MANUAL

Intended use

The following instructions are essential for proper installation, assembly, mounting

and operation. Please keep these instructions for future reference. The construction

of the product complies with European statutory technical requirements. Adherence

to all applicable standards has been proven during the conformity process. In order

to maintain the product in this condition, it is essential that you as the user follow

the advice given in these instructions. Always refer to the technical data on the

product, subject to technical alterations. Please read the instructions carefully!

Explanation of symbols

Action symbol – Read this operating manual completely and carefully.

CE is an abbreviation of Conformité Européenne and indicates

compliance with EU directives. With a CE marking, the manufacturer confirms

that the product complies with the applicable European guidelines.

Protection class I

This product complies with protection class I and must be connected to the

protective conductor.

Technical data

Product description Oil Filled Heater

Article number 65105892

Rated voltage AC 220-240 V ~ 50/60 Hz

Rated power 1500W

Heat setting 600W/900W/1500W

Protection class Class I

Dimensions XXX x XXX x XXX mm

Scope of delivery

Safety directions

 This appliance is not intended for use by persons (including children) with reduced physical,

sensory or mental capabilities, or lack of experience and knowledge, unless they have been

given supervision or instruction concerning use of the appliance by a person responsible for

their safety.

 Children should be supervised to ensure that they do not play with the appliance.

 The product is for household use only.

 Connect the appliance to single phase AC supply of the voltage specified on the rating plate.

 In order to avoid overheating, do not cover the heater.

 Never leave the heater unattended while it is in use. Always turn the product to the OFF

position and unplug it from the electrical outlet when not in use.

 Extreme caution is necessary when any heater is used by or near children, invalids or elderly

person and whenever the heater is left operating and unattended.

 The heater must not be located immediately below an electrical socket-outlet.

 Do not run cord under carpeting and do not cover cord with throw rugs, runners or the like.

Arrange cord away from traffic area and where it will not be tripped over.

 Do not operate the heater with a damaged cord or plug, or after the heater malfunctions,

has been dropped, or damaged in any manner.

 If the supply cord is damaged, it must be replaced by the manufacturer or its service agent

1. Castor wheels

2. Button

3. LCD Display Screen

4. Power Switch

5. Control Panel

6. Front Cover

7. Heater Fins

8. Cord Storage

or a similarly qualified person to avoid a hazard.

 Avoid the use of an extension cord as this may overheat and cause a risk of fire.

 Use the heater in a well-ventilated area. Do not insert or allow objects to enter any

ventilation or exhaust opening. To prevent a possible fire, do not block air intakes or

exhaust openings in any manner. Do not use on soft surfaces, like a bed, where openings

may become blocked. Use the heater on flat, dry surfaces only.

 Do not place this heater near flammable materials, surfaces or substances, as there may be

a risk of fire. Keep the above flammable materials, surfaces or substances at least 1m from

the front of the product and keep them away from the sides and rear. 15. Do not use the

heater in any areas where petrol, paint or other flammable liquids are stored e.g. Garages or

workshops as a hot, arcing or sparking parts inside the heater.

 Don’t use this heater in the immediate surroundings of a bath, a shower or a swimming

pool. Never locate the heater where it may fall into bathtub or other water container.

 This heater is hot when in use. To avoid burns and personal injury, do not let bare skin touch

hot surfaces. If provided, use handles when moving the product.

 Be sure that no other appliances are in use on the same electrical circuit as your product as

an overload can occur.

 This heater is filled with a precise quantity of special oil.

 Repair requiring opening of the oil container are only to be made by the manufacturer or his

service agent who should be contacted if there is an oil leakage.

 Regulations concerning the disposal of oil when scrapping the appliance have to be

followed.

 The heater should not be used in a room, of which the floor area is less than 5 M2.

 The cord shouldn’t be placed nearby the hot surface of the appliance.

 Do not immerse the heater in water.

 Do not use any cleaning chemicals such as detergents and abrasives.

 Do not allow the interior to get wet as this could create a hazard.

Installation

The heater is packaged with the feet unattached. You must attach them before operating the

heater.

WARNING: Do not operate without feet attached. Do operate the heater only in upright

position (feet on the bottom, controls on the top), any other position could create a

hazardous situation.

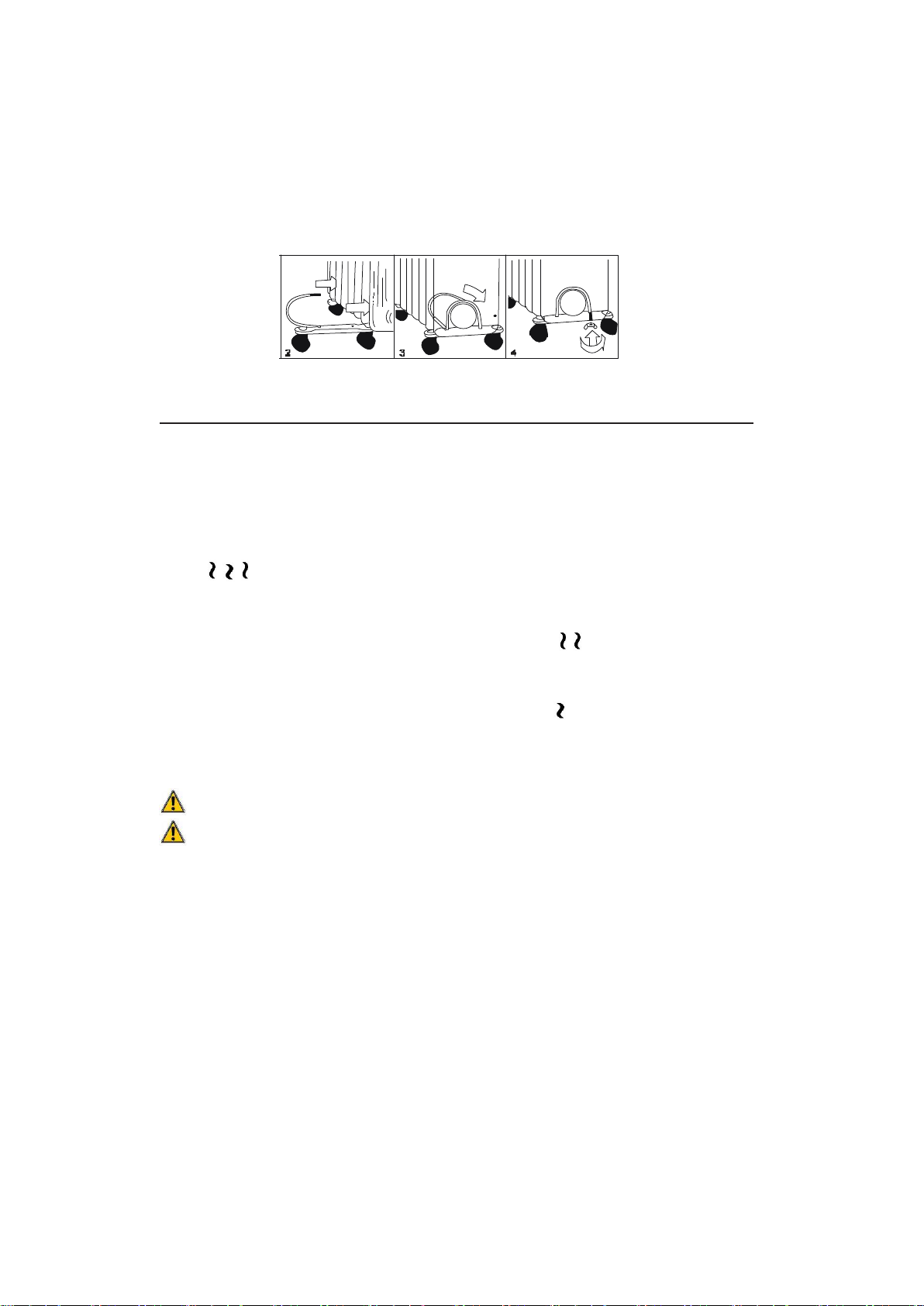

1. Place the radiator body upside-down on a scratch-free location, make sure it is stable and will

not fall.

2. Screw off the wing nuts from the U-shaped bolt provided, attach the U-shaped bolt to the U-

facing flange between first and second fins (near the front cover).

3. To attach the castor mounting plate to the radiator body, you should insert the threaded

ends of the U bolt in the holes on the castor mounting plate.

4. Screw the wing nuts back to the U bolt and fasten the wing nut properly.

Note: do not over tighten, which may cause the damage of radiator flange.

5. Screw off spherical nut from the castor, align the shaft to the hole of the castor mounting

plate, insert in, and screw on the spherical nut.

6. Repeat 2, 3, 4 and 5 on the rear of radiator for mounting of the rear castors.

Note: the rear castors must be mounted between the end two fins.

Operation

This heater is equipped with Electronic Digital Controls that provide the ability to set the

temperature to the exact degree desired. To operate , simply follow these instructions.

NOTE: The temperature display will not reflect the accurate room temperature until the

heater has been operating for at least 20 minutes.

1. Turn on Power Switch, Press the power button once to start the heater on High Power

( ), Continuous Run. If left at this setting, the unit will run continuously on High

Power and will not shut off until the unit is manually turned off or the room temperature

over 30℃.

2. Press the power button again to change to Middle Power ( ), Continuous Run. If left at

this setting, the unit will run continuously on Middle Power and will not shut off until the unit

is manually turned off or the room temperature over 30℃.

3. Press the power button again to change to Lower Power ( ), Continuous Run. If left at

this setting, the unit will run continuously on Lower Power and will not shut off until the unit is

manually turned off or the room temperature over 30℃.

4. Press the power button a fourth time to turn the heater OFF.

: the heater will run continuously if not setting temperature.

: if operated at the Low setting, the heater will not provide as much heat output as in the

High setting, however, the Low setting will not require a much electrical current to operate. To

avoid overloading a circuit, do not plug the heater into a circuit that already has other

appliances working.

SET TEMPERATURE

Press the switch button, the heater enters into standby mode,

By now, if the ambient temperature was below 4 ℃, the heater can automatically start heating

function;

1、Press the switch button, the heater enters into standby mode, the screen blinks at 1

second interval.

&；

2、Then press the “MODE” button, the heater enters into heating status. The screen blinks at 1

second interval.

&；

2.1、Press the “+” or “-” button to set the desired temperature, from 13 to30℃.

For example, press “+” one time to set temperature to be 25℃.

For example, press “-” one time to set temperature to be 23℃.

2.2、Meanwhile, you can press “℉/℃” button to convert Fahrenheit degrees and Celsius

POWER

degrees.

Following is the screen of 24℃ converted to be 75℉

3、Then press“MODE”again, the heater enters into “SET TIMER (AUTO-OFF)” status

To press “+” or “-” button to set the heater operation time between 1 and 24 hours. This

function will activate once the timer icon stops blinking.

The heater will automatically turn-off when time runs out.

If it was set to be 10 hours, the heater will stop heating after 10 hours.

4、Then press “MODE” again, the heater enters into “SET TIMER (AUTO-ON)” status

To press “+” or “-” button to set the heater operation time between 1 and 24 hours. This

function will activate once the timer icon stops blinking.

The heater will automatically turn-on when time runs out.

If it was set to be 1 hour, the heater will start heating after 1 hour.

5、After all, press “MODE” again, the heater will be back to STEP 2 status.

6、Under STEP 2 status, the heater is heating with POWER III.

Now, press once, the heater will heat with POWER II;

OR press twice, the heater will heat with POWER I;

OR press three times, the heater will be POWER OFF.

Following are the status of Screen under Heating Power with III, II and I.

III II I

Maintenance, cleaning

1. Always remove the plug from the socket-outlet and allow the radiator to cool down before

clean it.

2. Wipe radiator with a soft damp (not wet) cloth.

3. To store away the heater, wind the cable round bobbin and store the heater in a clean dry

place.

4. In case of malfunction or doubt, do not try to repair the radiator yourself, it may result in a

fire hazard or electric shock.

Disposal and environmental protection

 Dispose of the product at the end of its lifetime according to relevant legal

regulations.

 Electrical products such as electrical appliances, energy-saving lamps and

(rechargeable) batteries marked with a crossed-out garbage can may not be

disposed of with household waste.

 Dispose of the product for disposal at a specialized waste disposal site. You thereby fulfill

the legal obligations and make your contribution to environmental protection.

Made in P.R.C

Imported by BYKO

Skemmuvegi 2a, 200 Kópavogur, Iceland
