Ozito LMP-301 Manuel utilisateur

Cutting width: 300mm

Cutting height: 15 - 42mm

Type: 2

Features Height adjustable

Self sharpening blades

Quiet operation

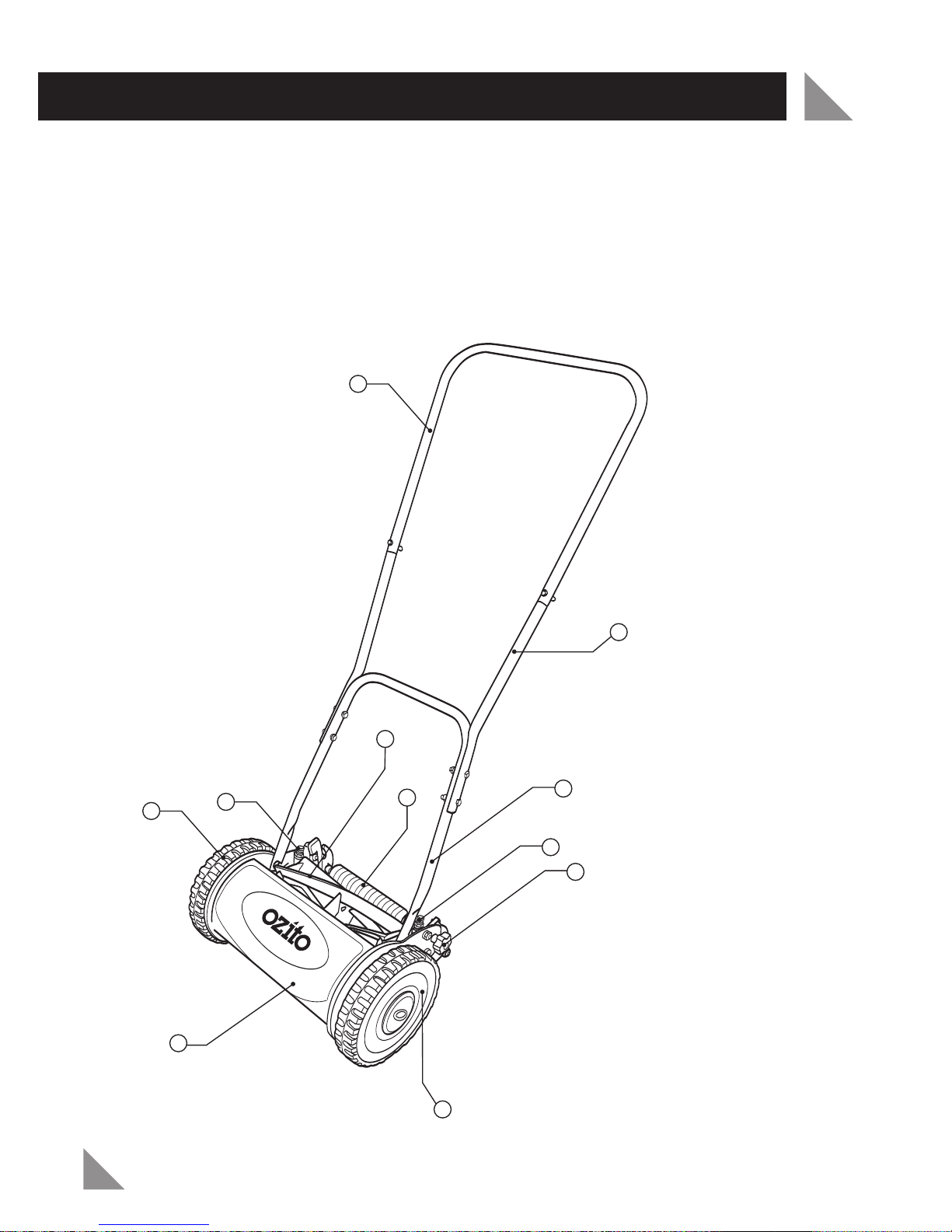

1. Wheels

2. Cutting adjustment bar nuts

3. Upper handle

4. Handle uprights

5. Blades

6. Rear roller

7. Lower handle

8. Height adjustment knobs

9. Blade guard

SPECIFICATIONS - MODEL NO. LMP-301 (TYPE 2)

TABLE OF CONTENTS

SPECIFICATIONS…………………………………………

TABLE OF CONTENTS…………………………………..

INTRODUCTION………………………………………...

SAFETY INSTRUCTIONS………………………………..

ASSEMBLY ……………………………………………..

MAINTENANCE …………….…………………………..

CONTENTS ……………………………………………...

WARRANTY………………………………………………

Page 2

Page 3

Page 4

Page 5

Page 10

Page 12

INTRODUCTION

Congratulations on purchasing an Ozito Push Reel Mower. We

aim to provide quality tools at an affordable price.

We hope you will enjoy using this tool for many years.

Your Push Reel Mower LMP-301 has been designed for

small to medium sized lawns and is intended for DIY

purposes only.

1. Never allow children or people unfamiliar with these instructions to use the mower.

2. Only use the mower in the manner and for the functions described here in.

3. Never operate the mower when you are tired, ill or under the influence of drugs,

alcohol or medicine.

4. The operator or user is responsible for accidents or hazards occurring to other

people or their property.

5. Use the mower only in daylight or good artificial light.

6. Avoid operating your mower in wet grass, where feasible.

7. Take care in wet grass, you may loose your footing.

8. On slopes be extra careful of your footing and wear non-slip footwear.

9. Mow across the face of slopes, never up and down.

10. Exercise extreme caution when changing direction on slopes. Walk never run.

11. Mowing on banks and slopes can be dangerous. Do not mow on banks or

steep slopes.

12. Do not walk backwards when mowing, you could trip.

13. Never cut grass by pulling the mower towards you.

14. Never operate the mower with damaged guards or without guards in place.

15. Keep hands and feet away from the blade at all times and especially when the

mower is in use.

16. Do not put hands near the blades during operation.

SAFETY INSTRUCTIONS

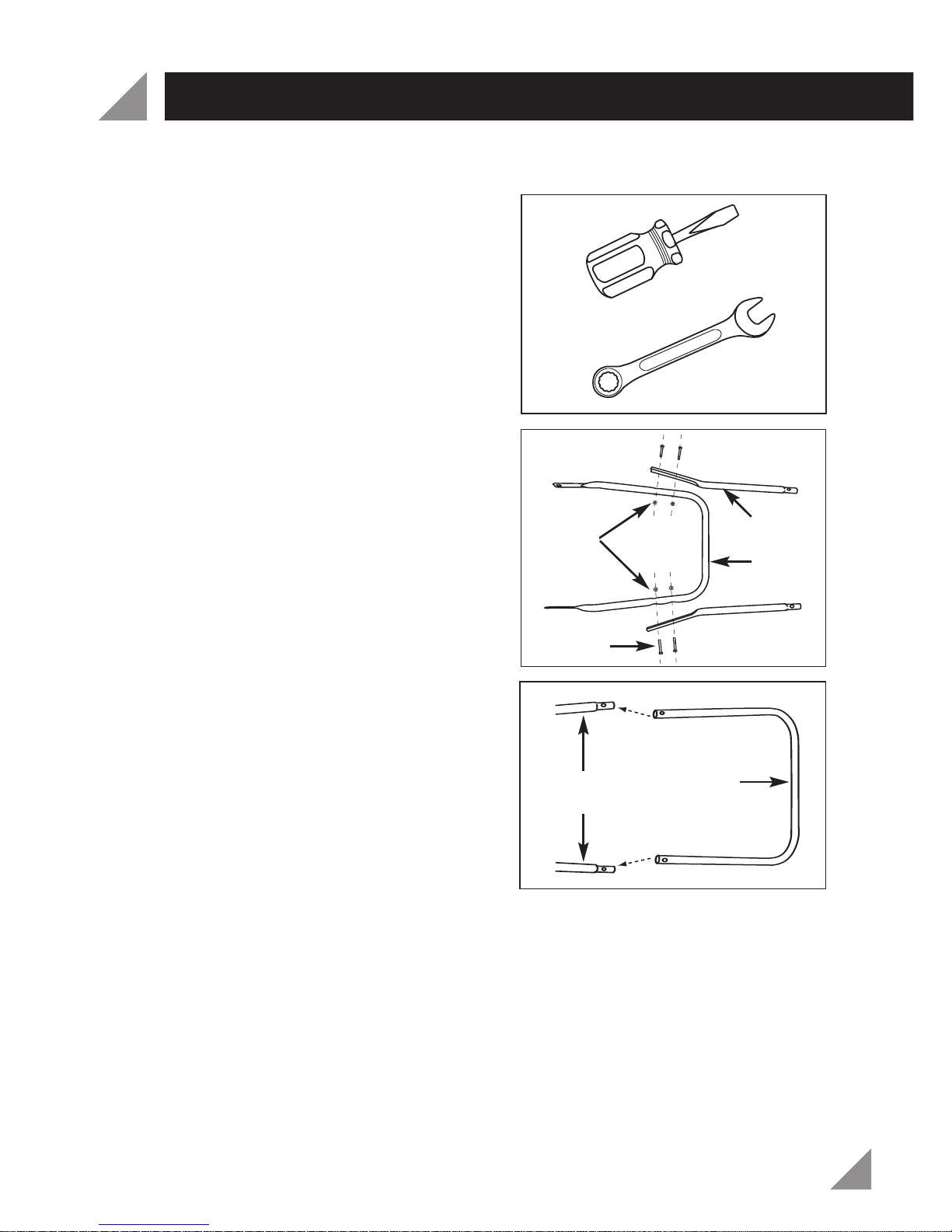

ASSEMBLY

Your Ozito Push Reel Mower comes partly assembled, only the handle

requires assembly.

To assemble the mower handles you will

require a flat-head screwdriver and a 10mm

spanner (of shifter). These tools are not

included with this product.

First select the lower handle and two

handle uprights. Fasten together using the

four screws and nuts as indicated.

Proceed to inserting the two handle

uprights into the upper handle.

Handle

upright

Lower

handle

Nut

Screw

Upper

handle

Handle

uprights

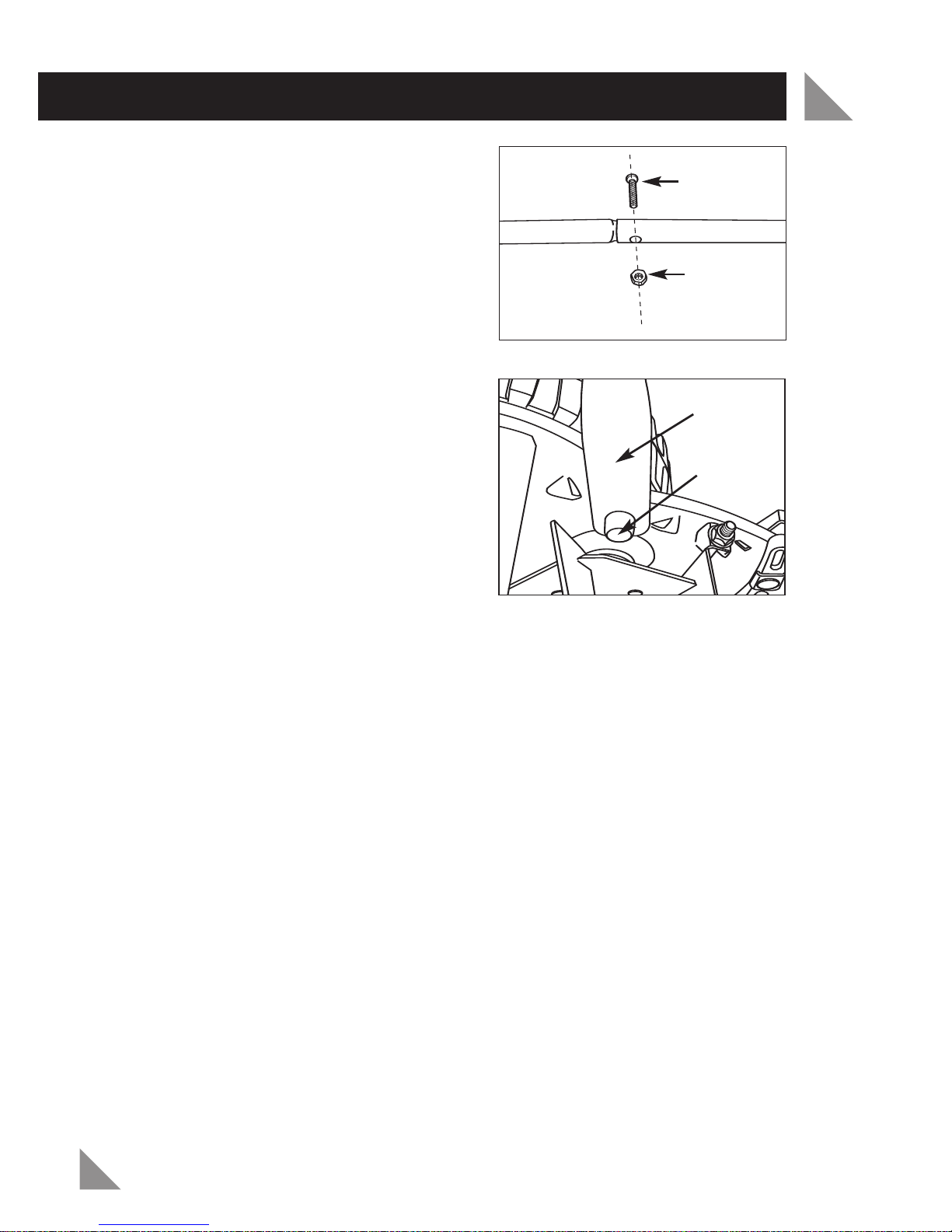

ASSEMBLY (cont.)

Fasten handle uprights and upper handle

together using two screws and nuts

as shown.

Now the handle is fully assembled and

ready to be attached to the mower head.

To attach the handle to the mower head,

locate the two metal lugs found forward of

the cutting bar adjustment lock nuts. Insert

one of the large holes in the handle over

the lug, then repeat the same process on

the other side. It may be necessary to

squeeze the two lower handle arms

together to allow room for locating the

second arm over the remaining metal lug.

Screw

Upright

Nut

Upper handle

Metal lug

Lower

handle

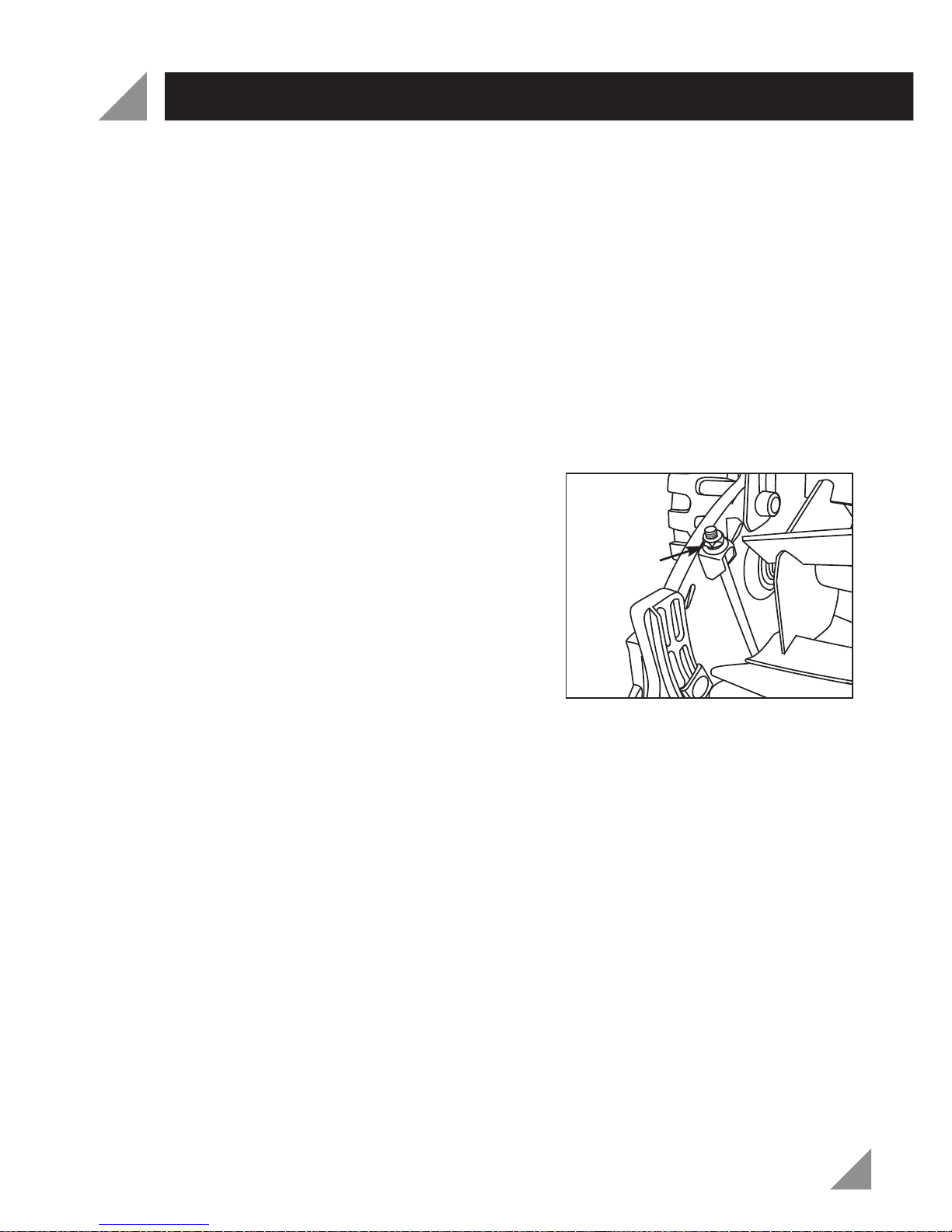

ADJUSTMENTS

Changing the Cutting Height

Changing the cutting height is quick, easy, and requires no tools. Simply loosen the

locking knobs on each side of the rear roller. This enables the roller assembly to slide

up or down to place the cutting bar at a different height level. Make sure the height is

the same on both sides. Re-tighten the locking knobs until the roller assembly is

secured in position.

Note: It is essential that the height is the same on both sides of the hand lawn mower.

Adjusting the Cutting Bar to the Blades

The cutting bar should be as close to the blades as possible, when the blades are

rotated manually they should make slight contact making a whispery sound (like

scissors opening and closing), ensure the bar does not stop the blades from rotating.

To raise or lower the bar loosen or tighten the

adjustment nuts (using a 10mm spanner, or

shifter) on the ends of the cutting bar (located

behind the reel blades, above the roller

as pictured).

Note: A small 1/16 of a turn is a

major adjustment.

To loosen the blades, or move them further

away from the cutting bar, loosen the cutting

bar adjustment nuts on each side equally by

turning them anti-clockwise.

To tighten the blades, or move them closer against the cutting bar, tighten both cutting

bar adjustment nuts equally turning them clockwise. If the mower is only cutting on

one side, the cutting bar may be out of alignment with the blade reel. Therefore,

tighten the side of the mower that is not cutting to bring it back into alignment.

If the mower is hard to push and the blades barely turn, the cutting bar may be over-

tightened against the blade reel.

If the blade reel spins freely and doesn't make contact against the cutting bar, or the

mower isn't cutting grass well, the cutting bar may be too loose against the blade reel.

Adjustment

nut

GRASS CATCHER

It is possible to purchase a grass catcher for the Ozito Push Reel Mower. This

accessory can be purchased through your local Bunnings Warehouse. Accessory

model no. ACLMP-001.

1. While using the push reel mower always wear substantial footwear and

long trousers.

2. Make sure the lawn is clear of sticks, stones, wire and debris; that could be

thrown by the blades.

3. Before using the mower and after any impact, check for signs of wear or

damage and repair as necessary.

4. Sharpen worn or damaged blades.

Walk at a Good, Steady Pace

With a push reel mower, the rotation of the wheels turn the blade reel. The mower

will tend to bind up and skid if it is moving at too slow a pace. The faster the

wheels are travelling, the faster the blade reel turns. Therefore, moving at a

comfortably quick walking pace will achieve the best results.

Overlapping Rows

When mowing a lawn, slightly overlap the row that has already been mowed. This

will make the force required to move the mower easier because less grass is being

mowed at one time. Overlapping rows will also ensure a neat cut by removing grass

that may have been missed on the previous row.

Don't let the Grass get too Tall

Push reel mowers are harder to push when the grass gets too tall, therefore it is

recommended to mow on a weekly basis.

Push Reel Mowers don't Mow Tall Weeds

The push reel mower will tend to roll over tall weeds without cutting them. This

includes tall weeds that are more than six inches, and things like dandelions and docs.

If the desired lawn to be mowed has a significant weed infestation, enquire at your

local Bunnings store how to rectify the problem, or as an alternative, rent a petrol

powered mower to gain control of the lawn. Push reel mowers are designed to cut

lawns in reasonable condition.

The Metal Guard protects your Garden

The metal guard does not only protect your hands and feet, but also the garden.

The push reel mower can be pushed right up to flowers and shrubs without

damaging them. This feature means the push reel mower can cut the edges of the

lawn where garden plants exist minimising any potential damage.

PREPARATION

HOW TO MOW

SHARPENING THE BLADE

Before taking the time and effort to sharpen the blades, make sure that it needs

sharpening. Most of all issues can be solved by ensuring the blades are properly

adjusted (ADJUSTMENTS section).

1. Prop up the push reel mower so that the blade reel can be rotated by turning

the wheels.

2. Check the blades for nicks and burrs. If any damage is found, it usually can be

removed by holding a file flat against the blade and pushing away from the edge.

3. Examine the cutting bar. It should just meet the blades along their entire

length. (To make sure the cutting bar is located correctly, grasp a wheel and

turn it forward; you should hear a whispery sound as the blades pass the

cutting bar).

4. If the bar is out of alignment, adjust using the adjustment nuts on the ends of

the bar (ADJUSTMENTS section).

5. Using your fingers or a soft paintbrush, cover the blades with a thin, even coat

of automotive valve-grinding compound (available at automotive stores).

6. Grasp a wheel and turn it slowly backward so the grinding compound is

squeezed between the blades and the cutting bar, thereby sharpening both

cutting edges as they pass each other. Be sure that each blade touches the

bar as the wheel is rotated.

7. Make about a dozen turns, applying more grinding compound when necessary.

8. Examine the blade edges. If they look sharp, wash off all the valve compound

with soapy water and rinse thoroughly.

9. Test for sharpness. Insert a sheet of newspaper between the blades and the

cutting bar, and rotate the reel forward. When the blades cut the paper as

easily and as cleanly as a sharp pair of scissors would, the task is complete.

Note: After each use, hose the mower clean and wipe it dry. Wipe all the metal

parts with a thin film of WD-40 or mineral oil.

Warning! Sharpen blades only by hand. The heat generated by a power

grinder or an electric drill with a grinding wheel attached can destroy the

temper of the metal. Wear thick leather gloves when handling the blade

reel and cutter bar and make slow, precise movements to avoid cutting

or jamming your fingers.

MAINTENANCE

CONTENTS

OZITO INDUSTRIES PTY LTD

AUSTRALIA (Head Office)

1-23 Letcon Drive, Bangholme, Victoria, Australia 3175

Telephone:1800 069 486

Website: www.ozito.com.au

Email: [email protected]

1 x Mower LMP-301 (Type 2)

1 x Lower handle

1 x Upper handle

2 x Handle uprights

6 x Handle screws & nuts

1 x Handle screw & nut (spare set)

1 x Operation manual

Power tools that are no longer usable should not be

disposed of with household waste but in an environmentally

friendly way. Please recycle where facilities exist. Check with

your local council authority for recycling advice.

Recycling packaging reduces the need for landfill and raw

materials. Reuse of recycled material decreases pollution in the

environment. Please recycle packaging where facilities exist.

Check with your local council authority for recycling advice.

Keep all nuts, bolts and screws tight to be sure the mower is in a safe working condition.

Replace worn or damaged parts for safety.

Be careful during adjustments of the hand lawn mower to prevent entrapment

of the fingers between moving blade and fixed parts of the machine.

CARING FOR THE ENVIRONMENT

Autres manuels pour LMP-301

Table des matières

Autres manuels Ozito Tondeuse à gazon

Ozito

Ozito PXCLMK-018 Manuel utilisateur

Ozito

Ozito ELM-1000 Manuel utilisateur

Ozito

Ozito PowerXChange PXCBLTLMC-218 Manuel utilisateur

Ozito

Ozito PXBMS-3647SP Manuel utilisateur

Ozito

Ozito Power X Change PXBSDMS-0182 Manuel utilisateur

Ozito

Ozito PXCSDMS-018 Manuel utilisateur

Ozito

Ozito PXCSDMK-418U Manuel utilisateur

Ozito

Ozito LMGT-1025 Manuel utilisateur

Ozito

Ozito PXBTMS-3638 Manuel utilisateur

Ozito

Ozito LML-036 Manuel utilisateur

Ozito

Ozito PowerXchange PXLMTS-0182 Manuel utilisateur

Ozito

Ozito XU1 XLMS-018 Manuel utilisateur

Ozito

Ozito Power X Change PXCLMK-218E Manuel utilisateur

Ozito

Ozito PXBMS-3647 Manuel utilisateur

Ozito

Ozito PXCLMK-218 Manuel utilisateur

Ozito

Ozito Power X Change PXCPM-018 Manuel utilisateur

Ozito

Ozito ECOMOW Manuel utilisateur

Ozito

Ozito ELM-1800 Manuel utilisateur

Ozito

Ozito Power X Change PXCLMK-418 Manuel utilisateur

Ozito

Ozito PXC PXBSPMS-0182 Manuel utilisateur

Ozito

Ozito ELM-300 Manuel utilisateur

Ozito

Ozito PXCLMS-018 Manuel utilisateur

Ozito

Ozito ELM-1030U Manuel utilisateur

Ozito

Ozito Power X Change PXCLES-018 Manuel utilisateur

Manuels Tondeuse à gazon populaires d'autres marques

RHINO

RHINO 1958 Manuel utilisateur

Wolf Garten

Wolf Garten Compact plus 40 B Manuel utilisateur

Cub Cadet

Cub Cadet LTX 1045 Manuel utilisateur

Craftsman

Craftsman 917.378461 Manuel utilisateur

GGP ITALY SPA

GGP ITALY SPA CR/CS 434 SERIES Manuel utilisateur

Challenge

Challenge CH18V2 Instructions de fonctionnement

TALEN TOOLS

TALEN TOOLS AVR HGM30 Manuel utilisateur

DEWEZE

DEWEZE ATM-725 Manuel d'utilisation

Weed Eater

Weed Eater 180083 Manuel utilisateur

Husqvarna

Husqvarna Poulan Pro PP185A42 Manuel utilisateur

Better Outdoor Products

Better Outdoor Products Quick Series Manuel utilisateur

Cub Cadet

Cub Cadet 23HP Z-Force 60 Manuel d'utilisation

MTD

MTD 795, 792, 791, 790 Manuel utilisateur

Toro

Toro Groundsmaster 3505-D Manuel utilisateur

Dennis

Dennis FT 610 Manuel utilisateur

AIRFORCE

AIRFORCE F-15 Gen 3 Manuel utilisateur

MTD

MTD 126-220-000 Manuel utilisateur

Toro

Toro 74806 Manuel utilisateur
