Steel Post Anchors
30000 (GB-700) 26" 1-5/8
30020 (HB-700) 24" 1-7/8
30060 (IS-600) 24" 2-3/8
30040 (ISW-850) 34" 2-3/8
Accessory-Cap Driving Tool
50890 (CDT-07)
1
Installation Instructions, Steel Post Anchors
Last updated: 3/29/2016
Weight: LBS
Scale: 1:1
Installation Instructions,
V2.00 - Installation Instructions, Specifications and Project Plans are effective 3/29/2016 . This information is updated periodically
and should not be relied upon after 2 years from 3/29/2016 . Please visit OZCOBP.com to get current information.
Overview 3
Installation Instructions, Steel Post Anchors

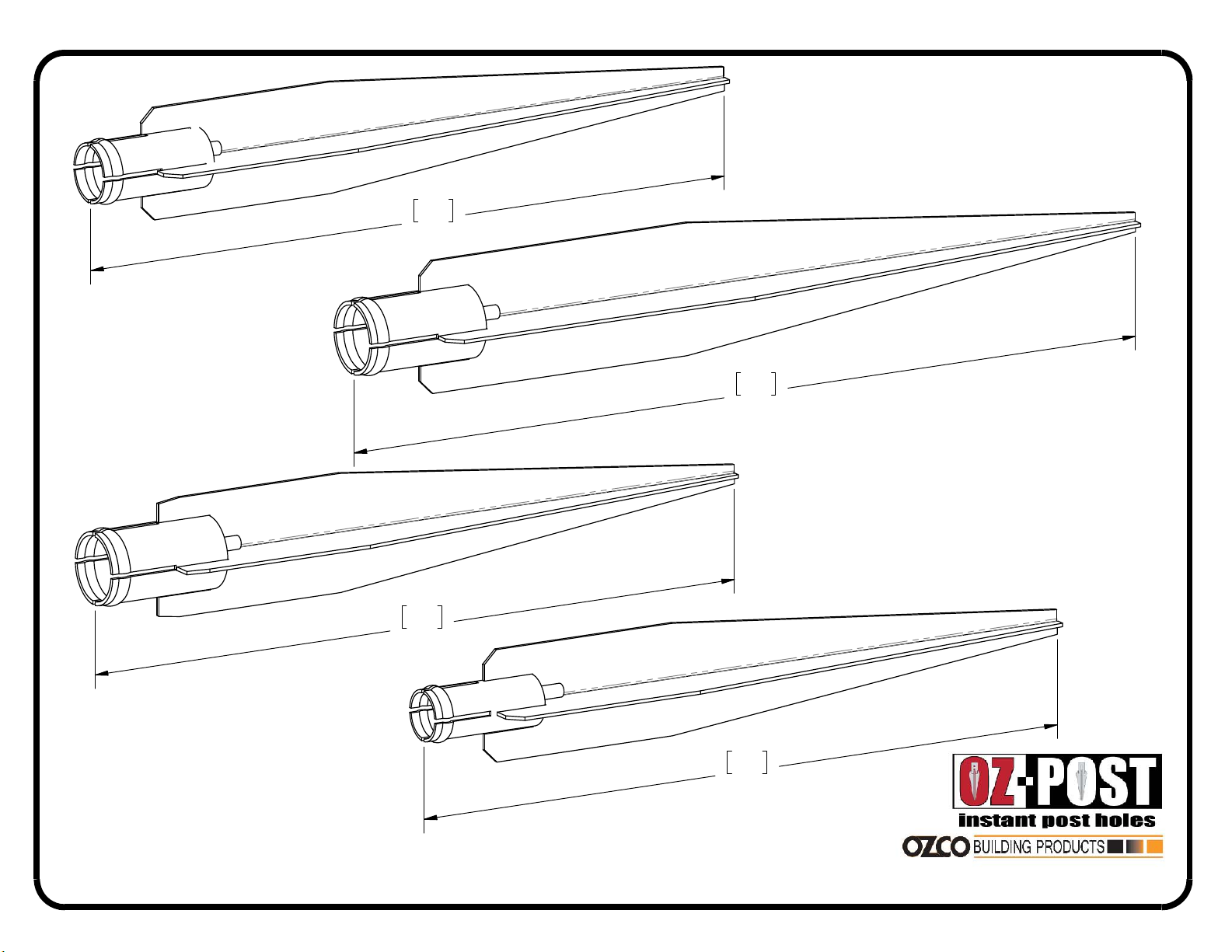

30020 664
26.15
30000 664
26.13
30060 670
26.38
30040 819
32.25
V2.00 - Installation Instructions, Specifications and Project Plans are effective 3/29/2016 . This information is updated periodically
and should not be relied upon after 2 years from 3/29/2016 . Please visit OZCOBP.com to get current information.
187.33
7.38

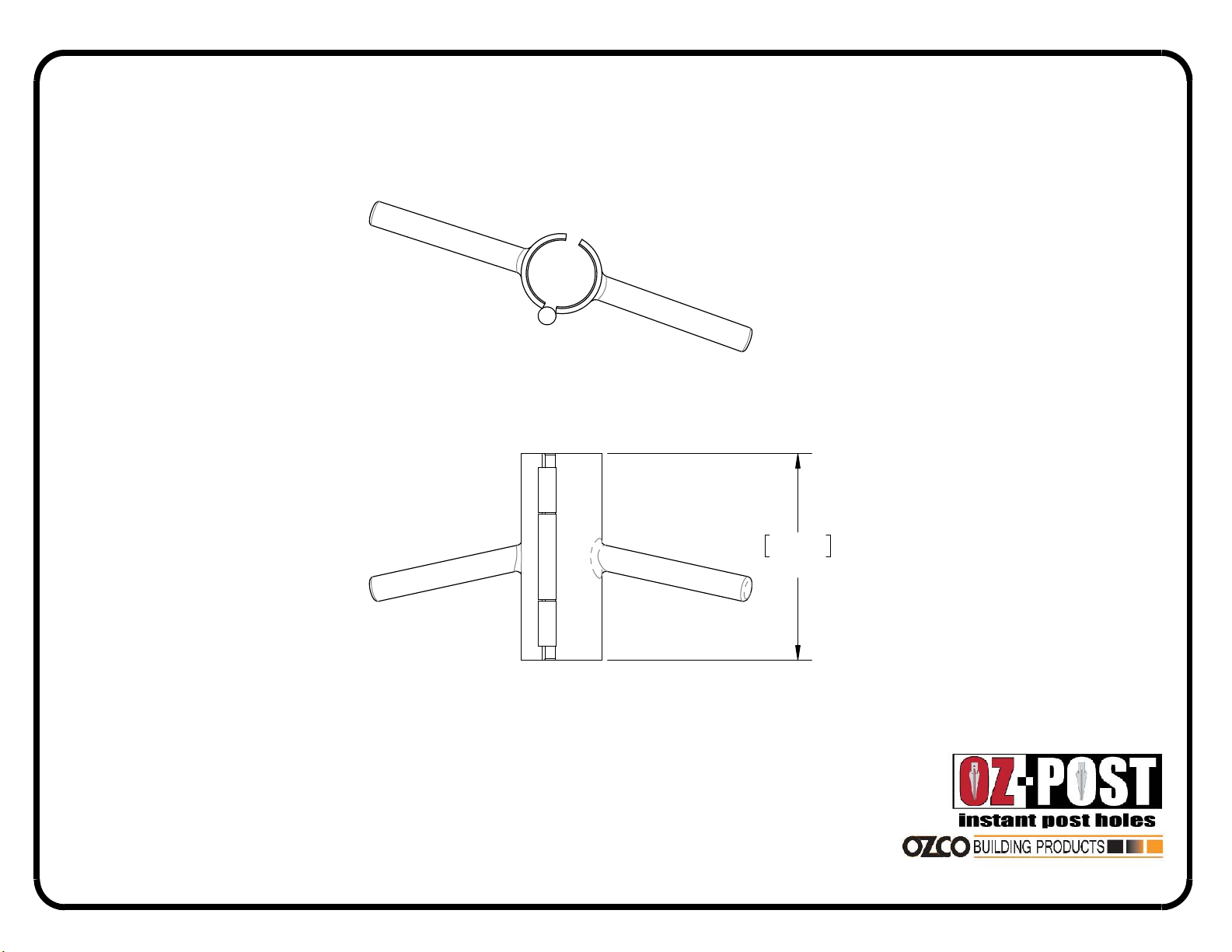

Accessory: Cap Driving Tool 4
Installation Instructions, Steel Post Anchors
V2.00 - Installation Instructions, Specifications and Project Plans are effective 3/29/2016 . This information is updated periodically
and should not be relied upon after 2 years from 3/29/2016 . Please visit OZCOBP.com to get current information.

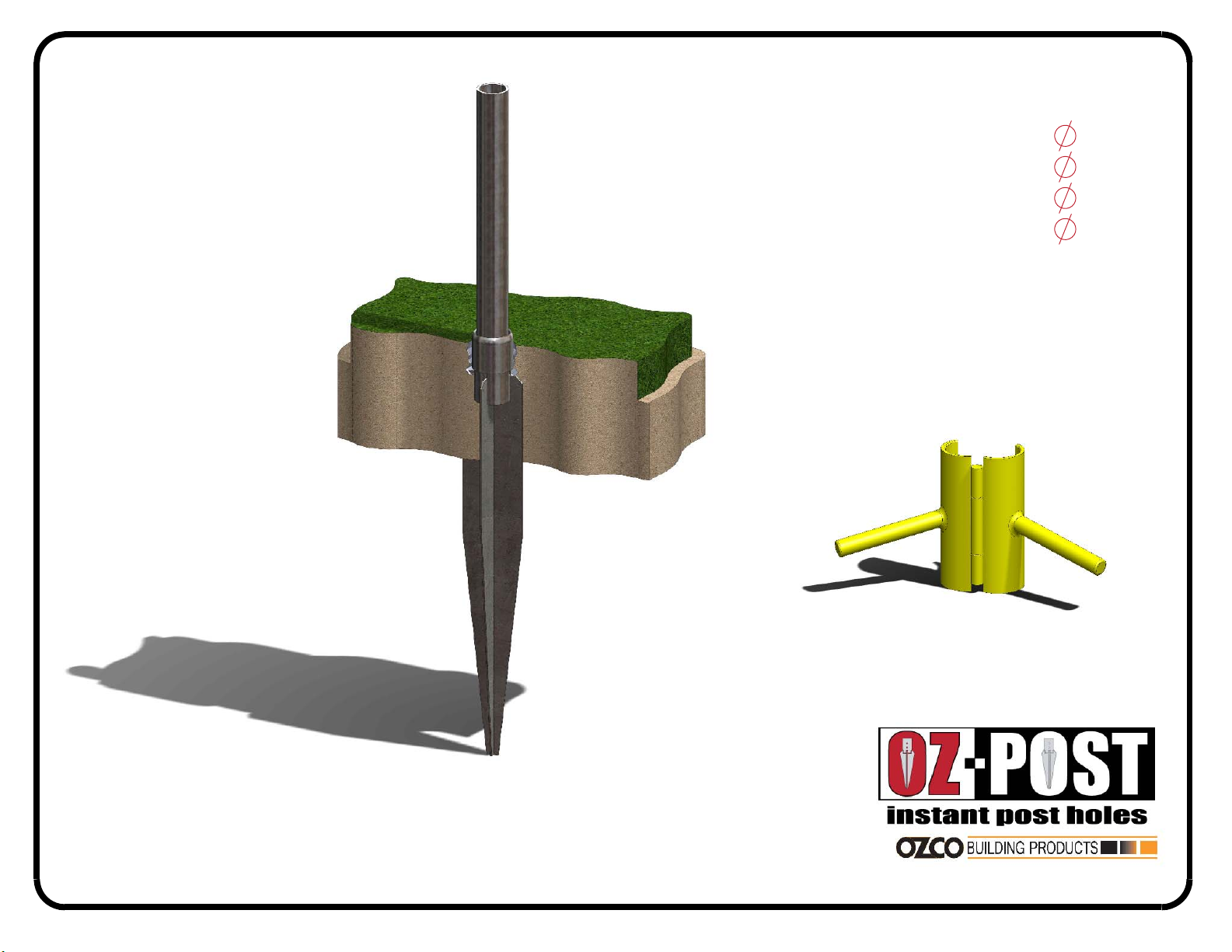

step 1 choose your installation method 5
Installation Instructions, Steel Post Anchors
Post Level (50740)
check level
frequently & adjust
as necessary
as desired or flush
soil & grass
MDK-13
Manual Driver Kit
(20500)
rental
JDK-10
Jackhammer Driver Kit
(20480)
Steel Post Anchor Installation choice
MDK JDK
GB-700 (30000) without spacer OH-02 Driver; without Spacer
HB-700 (30020) without spacer OH-02 Driver; with HSP-HB Spacer
IS-600 (30060) without spacer OH-01 Driver; without Spacer
ISW-850 (30040) without spacer OH-01 Driver; without Spacer
V2.00 - Installation Instructions, Specifications and Project Plans are effective 3/29/2016 . This information is updated periodically
and should not be relied upon after 2 years from 3/29/2016 . Please visit OZCOBP.com to get current information.

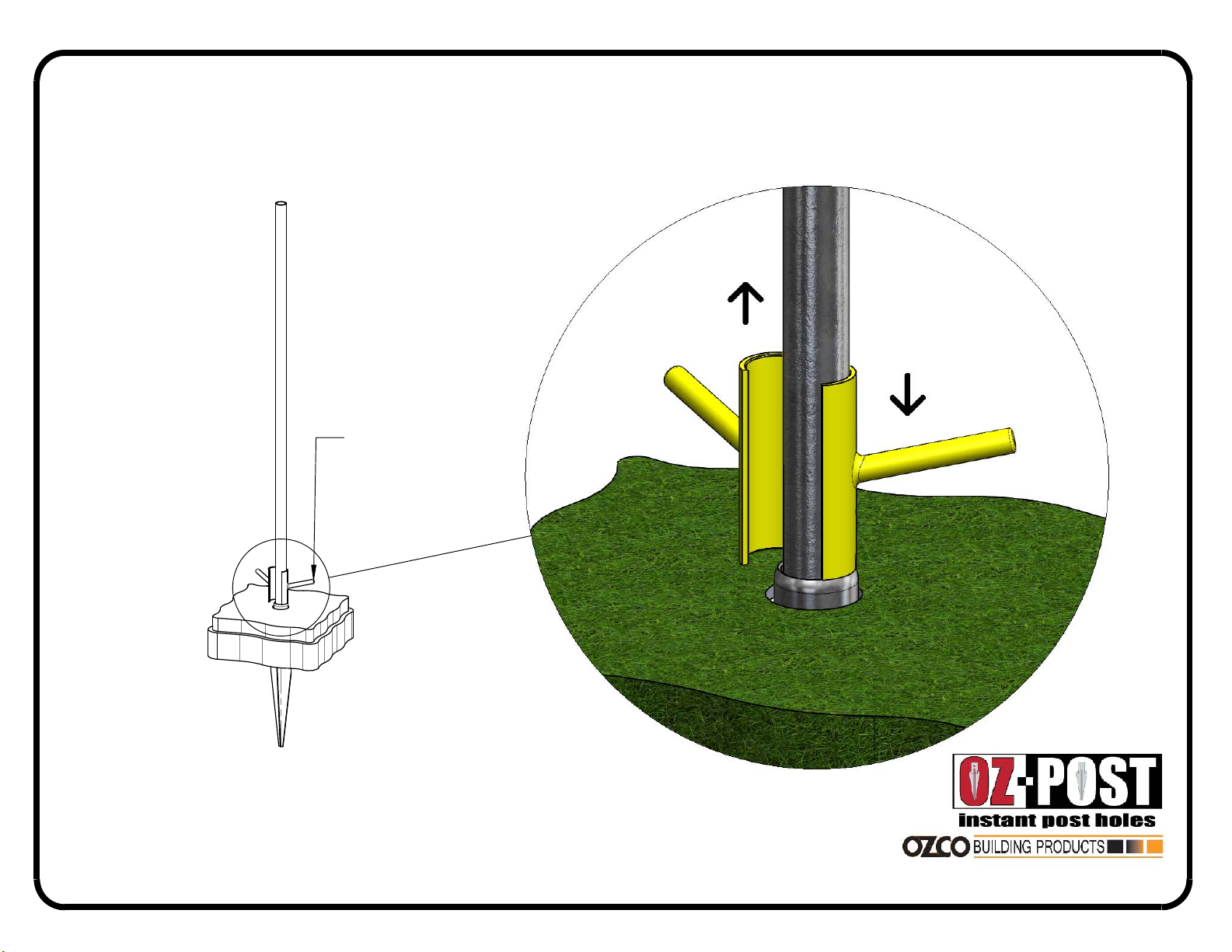

CDT-07 Cap
Driving Tool
(50890 sold
separately)
step 2 6
Installation Instructions, Steel Post Anchors
V2.00 - Installation Instructions, Specifications and Project Plans are effective 3/29/2016 . This information is updated periodically
and should not be relied upon after 2 years from 3/29/2016 . Please visit OZCOBP.com to get current information.
2438.40
96.00 2438.40
96.00
step 1-fence 7
Installation Instructions, Steel Post Anchors
8' posts (shown)

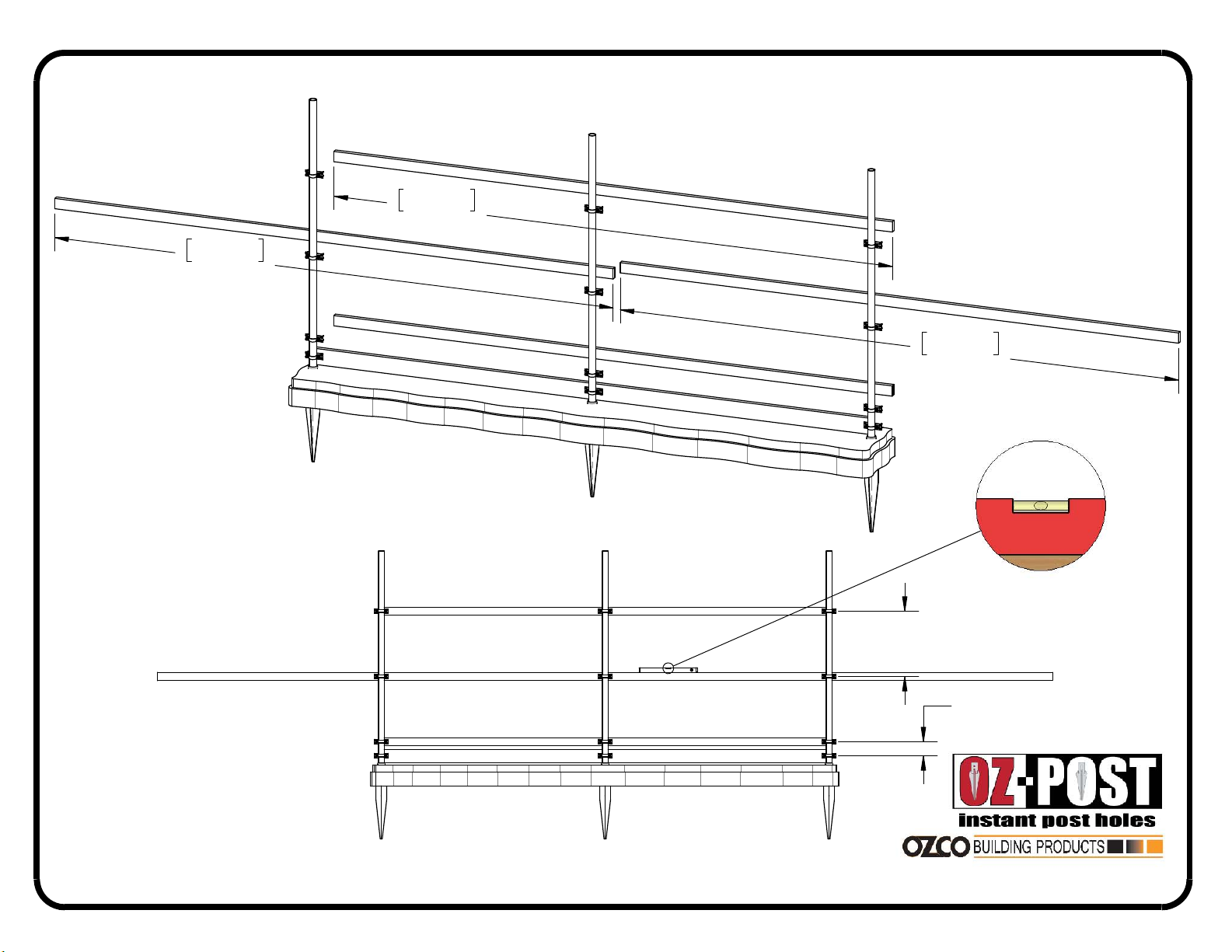

6 foot fence spacing•
6' posts
8 foot fence spacing•
V2.00 - Installation Instructions, Specifications and Project Plans are effective 3/29/2016 . This information is updated periodically
and should not be relied upon after 2 years from 3/29/2016 . Please visit OZCOBP.com to get current information.
mud board as desired
or flush
step 2-fence 8
Installation Instructions, Steel Post Anchors
V2.00 - Installation Instructions, Specifications and Project Plans are effective 3/29/2016 . This information is updated periodically
and should not be relied upon after 2 years from 3/29/2016 . Please visit OZCOBP.com to get current information.
as desired
evenly spaced
or as desired
step 3-fence 9
Installation Instructions, Steel Post Anchors

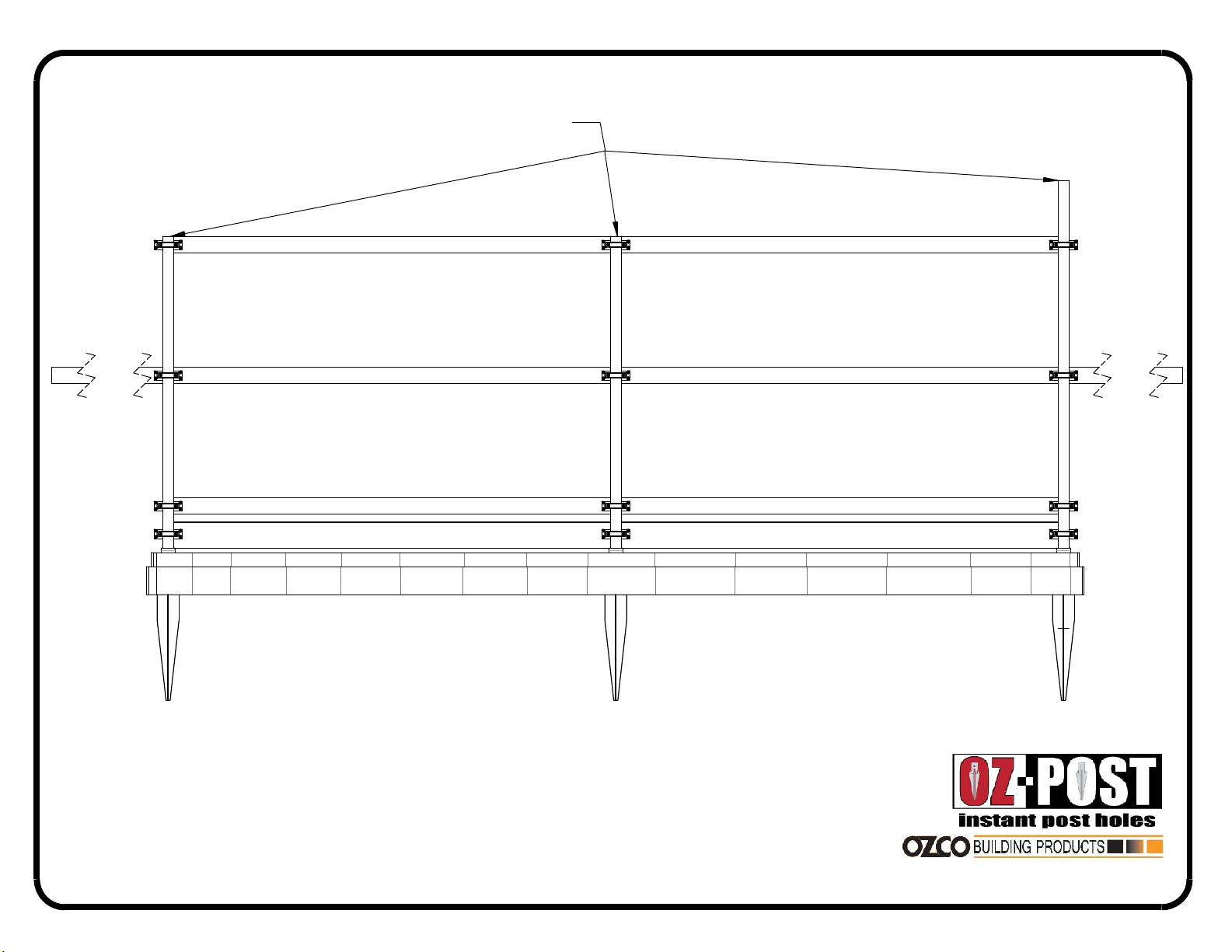

staggered beam installation shown
4876.80
192.00
4876.80
192.00
4876.80
192.00
3x
V2.00 - Installation Instructions, Specifications and Project Plans are effective 3/29/2016 . This information is updated periodically
and should not be relied upon after 2 years from 3/29/2016 . Please visit OZCOBP.com to get current information.
cut posts as desired
step 4-fence 10
Installation Instructions, Steel Post Anchors
