Outsunny 84C-261 Guide d'installation

ASSEMBLY & INSTRUCTION MANUAL

IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY

INbrb011_US

INbrb011_US_84C-261

1

2

02

01

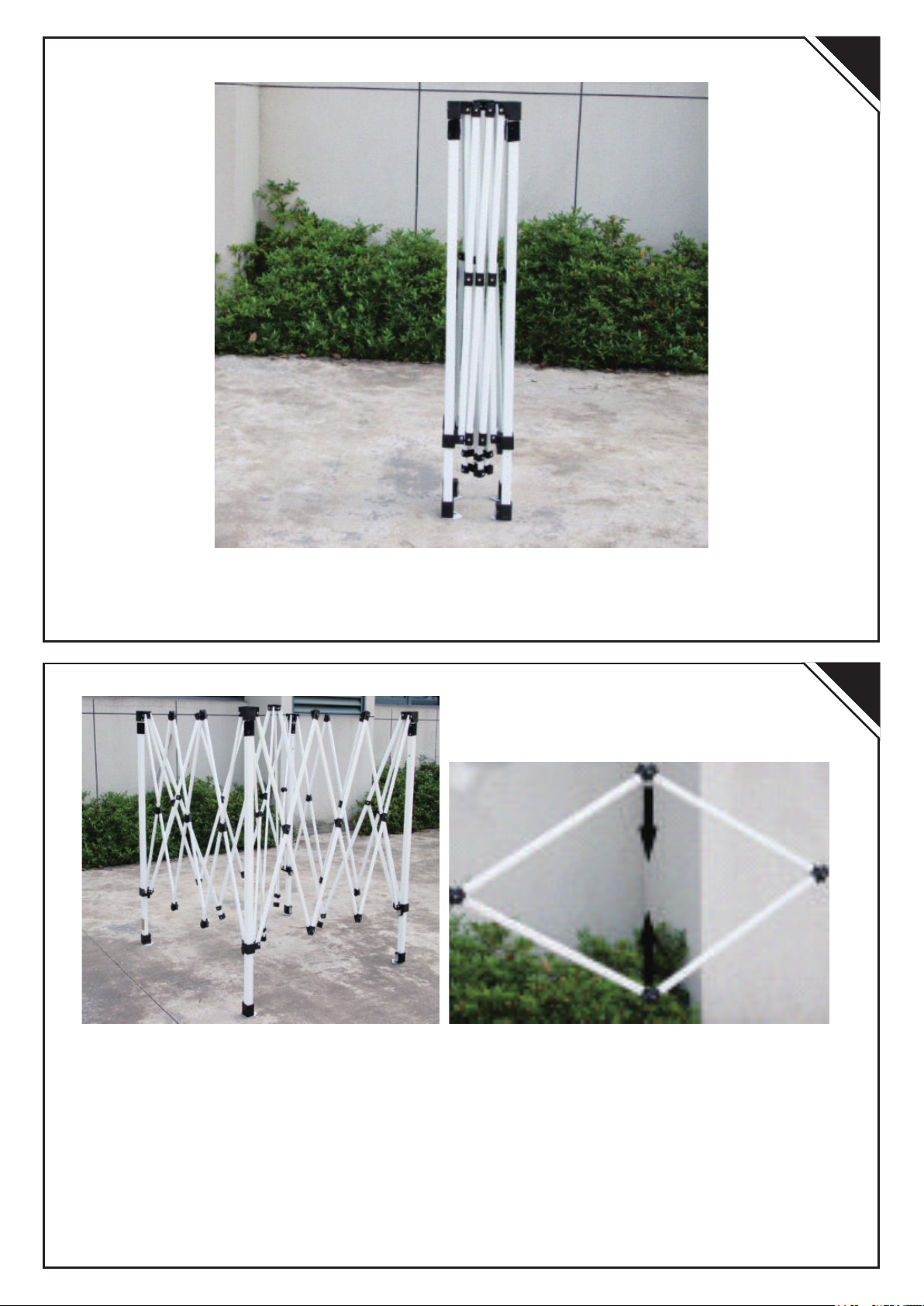

Remove all the parts from the carrybag.Place the canopy frame in the upright

standing position.

Slightly open the canopy frame using the legs. Continue opening the canopy frame

using the sides of the canopy as indicated.

3

04

03

Place the canopy top on the opened frame, put the plastic part into the

sleeve on the small top of the canopy top.

Open the frame unitl all the corners lock into place. You should hear a click

when the canopy frame has opened and corners has locked. and secure the

canopy top to the canopy frame on all four corners using the hook and loop

strips.

4

06

05

On the inside of the canopy, secure all four sides and ceiling to the canopy frame

using the inside hook and loop strips.

Extend all four legs to the desired preset height.Once extended to the appropriate

height, the canopy legs will lock into place. This should be done by extending two

legs on the same side at the same time.

5

08

07

Secure all the four half-leg fabric under the leg button through the hook and

loop strips.

After all the half-leg fabric secured on the frame, adjust the height through the

plastic buckle located upon the bottom of the half-leg fabric.

6

Secure all four guylines, stakes, and sandbag on the frame. Then the set up of

your Canopy is complete.

STOWED AWAY

Done

01

1.Remove all the guyline, stakes, and sandbags from the frame.

2.untie all the four half-leg fabric from the leg tube.

7

07

06

03

02

Lower the canopy by pressing the release button on each leg. This should be

completed by lowering two legs on the same side at the same time.

Inside the canopy, unstrap all the ceiling of the canopy top from the canopy frame.

8

09

08

05

04

Unstrap all four corners of the canopy top from the canopy frame. Remove and fold

the canopy top. If the canopy top is wet, allow time to dry before folding.

Push the release button located at the top of each corner. This will allow the

canopy frame to collapse.

9

07

06

Once all the four corners are released, slowly begin to close the canopy frame.

Once the frame is nearly closed, ﬁnish closing the frame using the legs.

Place the canopy top, frame, stakes, guylines, and sandbags in the carrybag.

Zip the carrybag closed. Take down of the canopy is complete.

Done
