oticon ConnectLine TV 2.0 Manuel utilisateur
INSTRUCTIONS FOR USE TV 2.0
Thank you
Thank you for choosing our product as your means to better hearing.
To support your eorts, we have put great care and attention into making sure that your
new TV adapter has the highest quality and is easy to use.
The complete system description is documented online at www.oticonusa.com/
connectline
Here you will also nd interactive presentations, “how to” videos and a support section
with frequently asked questions.
We recommend that you read this manual carefully to achieve the maximum benet of
your new TV adapter, before you start to use it. If you have any questions about the use
of the TV adapter, please contact your Hearing Care Professional.
Manufactured under license from Dolby Laboratories.
Dolby Digital and the double-D symbol are registered trademarks of Dolby Laboratories.
INSTALLATION GUIDE
Indications for Use
The TV adapter is intended to be used together with the Oticon Streamer or Oticon
Streamer Pro and Oticon wireless hearing instruments.
This enables the hearing instrument user to listen to the TV, by wirelessly sending the TV
sound from the TV adapter through the Streamer direct to the hearing instruments.
IMPORTANT NOTICE
Please familiarise yourself with the entire content of this booklet before using your TV
adapter. It contains instructions and important information about the use and handling
of your TV adapter.
INSTALLATIONUSER GUIDE
Package content 7
TV adapter overview 8
Warnings 10
Installation 13
Placing the TV adapter 14
Connecting the TV adapter to a power outlet 16
Connecting the TV adapter to the TV 18
Connecting using TOSLINK 20
Connecting using RCA 22
Connecting using mini jack adapter 24
Connecting using SCART 26
Pairing the Streamer to the TV adapter 28
Turn on the TV sound 34
Turn o the TV sound 34
SelectMe, using more than one TV adapter 36
Technical information 38
Contents
InstructIons for use tV 2.0
7
INSTALLATION GUIDE

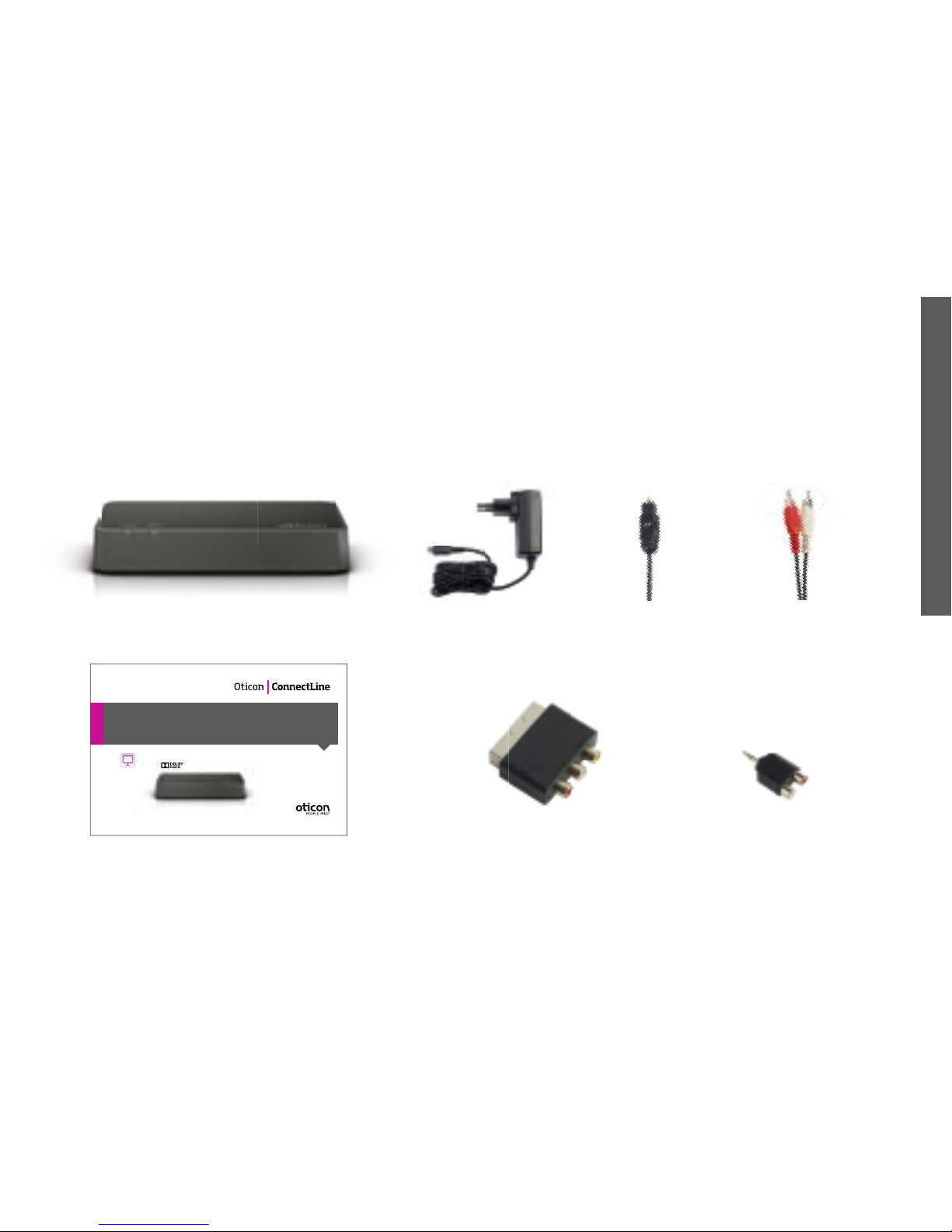

Package content
The TV adaptor box consists of the following elements:
TV adapter Power supply RCA cable
TOSLINK
SCART adapter Mini jack adapter
This guide (Installation guide and Instructions for use)
8
TV adapter overview
Mode Power indicator TV indicator
Power on, no connection to the Streamer
In pairing mode
Streaming - no audio input detected
RCA inserted and streaming
TOSLINK inserted and streaming (digital)
TOSLINK inserted and streaming (invalid signal)*
Fault condition **
No light Blinking Steady
* Try other input connection
* * Contact your Hearing Care Professional
OUT
IN
R
L
POWER
9
INSTALLATION GUIDE
Back
Power supply
Front
TV indicator
TOSLINK in
TOSLINK out
RCA left and right
Power indicator
* For more information please refer to: www.oticonusa.com/connectline
SelectMe
10
You should familiarize yourself fully with the following general warnings and the entire
contents of this booklet before using your TV adapter.
Products to be connected to external equipment
• The safety of the use of the TV with RCA input cable is determined by external
signal source. When the input cable is connected to mains-operated equipment, this
equipment must comply with IEC-60065, IEC-60601 or equivalent safety standards.
• The TV adapter is designed to comply with the most stringent Standards of
International Electromagnetic Compatibility. However, the TV adapter might cause
interference with other medical devices. Please contact relevant personnel to obtain
permission before using the TV adapter in hospitals or similar venues.
