TECHNICAL MANUAL

For WiSER2400.IP

WiSER2400.Plus

802.11 Wireless Serial Solutions

http://www.otcwireless.com

All manuals and user guides at all-guides.com

all-guides.com

Technical Manual

For WiSER2400.IP

WiSER2400.Plus

02.11 Wireless Serial Solutions

Information in this document is subject to chan e without notice. Complyin

with all applicable copyri ht laws is the responsibility of the user. No part of

this document may be reproduced or transmitted in any form or by any means,

electronic or mechanical, for any purpose, without the express written

permission of the seller. If, however, your only means of access is electronic,

permission to print one copy is hereby ranted.

The seller provides this documentation without warranty, term, or condition of

any kind. The seller may make improvements or chan es in the product(s)

and/or the pro ram(s) described in this documentation at any time.

Other product and company names herein may be trademarks of their

respective owners.

Version 2.16

All manuals and user guides at all-guides.com

TABLE OF CONTENTS

INTRODUCTION 4

1. Installation 6

1.2 Installation of WiSER2400 Administrative Software 9

1.3 Installation of VirCOM, the virtual serial COM port redirector 9

2. WiSER Deployment Strategies 10

2.1 Usin the WiSER2400 in a Point-to-point Link 10

2.2 Usin the WiSER2400 in a Point-to-multiple point Link 14

3. Using the WiSER 2400 Administration Software 1

3.1 Overview 18

3.2 Password Protection 20

3.3 Link Status 21

3.4 Confi uration Pa e 22

3.5 Encryption 27

3.6 Statistics 28

3.7 Admin 29

APPENDIX 30

Troubleshootin 30

Limited Warranty 31

Re ulatory Compliance 32

All manuals and user guides at all-guides.com

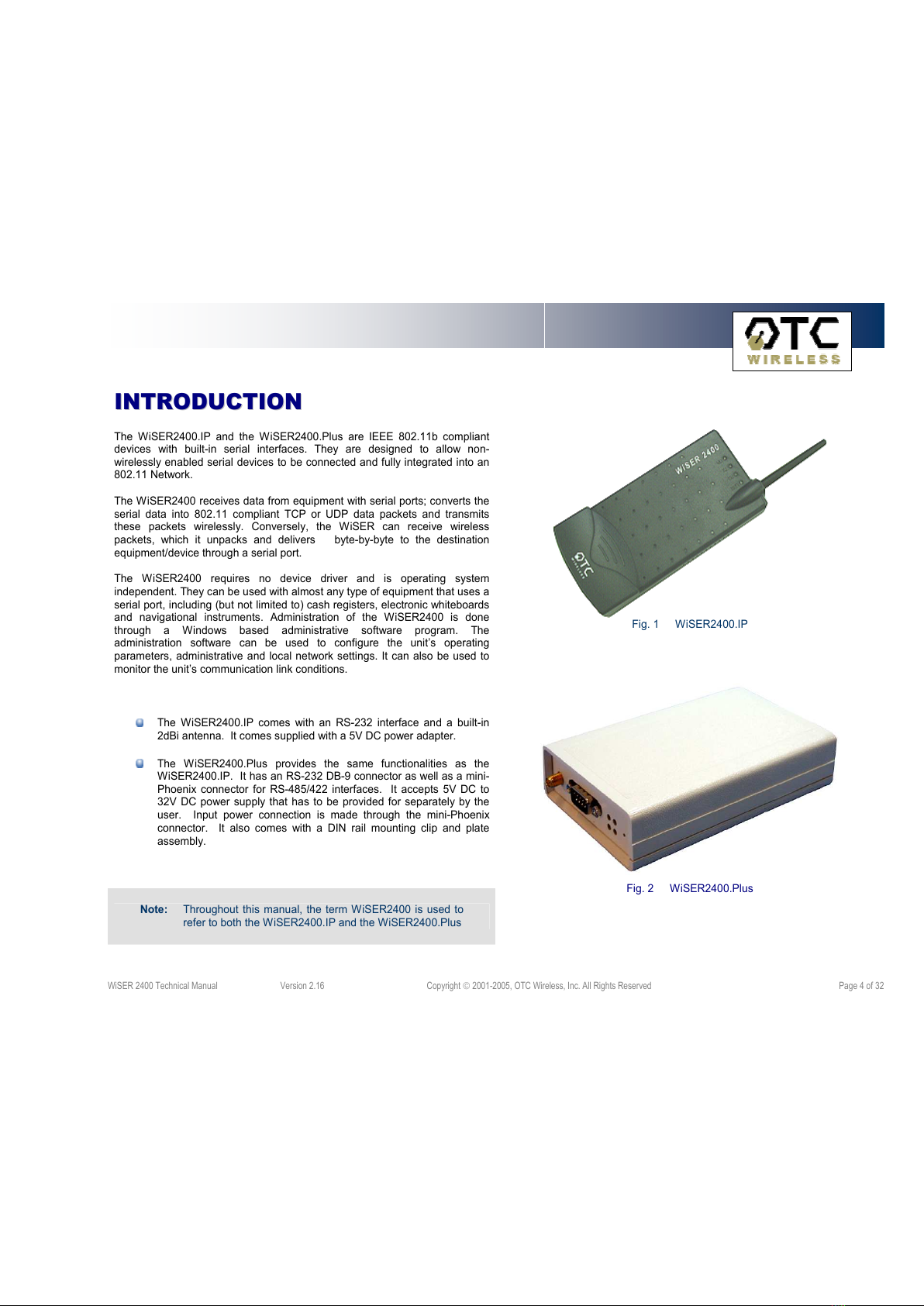

The WiSER2400.IP and the WiSER2400.Plus are IEEE 802.11b compliant

devices with built-in serial interfaces. They are desi ned to allow non-

wirelessly enabled serial devices to be connected and fully inte rated into an

802.11 Network.

The WiSER2400 receives data from equipment with serial ports; converts the

serial data into 802.11 compliant TCP or UDP data packets and transmits

these packets wirelessly. Conversely, the WiSER can receive wireless

packets, which it unpacks and delivers byte-by-byte to the destination

equipment/device throu h a serial port.

The WiSER2400 requires no device driver and is operatin system

independent. They can be used with almost any type of equipment that uses a

serial port, includin (but not limited to) cash re isters, electronic whiteboards

and navi ational instruments. Administration of the WiSER2400 is done

throu h a Windows based administrative software pro ram. The

administration software can be used to confi ure the unit’s operatin

parameters, administrative and local network settin s. It can also be used to

monitor the unit’s communication link conditions.

Fi . 1 WiSER2400.IP

The WiSER2400.IP comes with an RS-232 interface and a built-in

2dBi antenna. It comes supplied with a 5V DC power adapter.

The WiSER2400.Plus provides the same functionalities as the

WiSER2400.IP. It has an RS-232 DB-9 connector as well as a mini-

Phoenix connector for RS-485/422 interfaces. It accepts 5V DC to

32V DC power supply that has to be provided for separately by the

user. Input power connection is made throu h the mini-Phoenix

connector. It also comes with a DIN rail mountin clip and plate

assembly.

Note: Throu hout this manual, the term WiSER2400 is used to

refer to both the WiSER2400.IP and the WiSER2400.Plus

Fi . 2 WiSER2400.Plus

All manuals and user guides at all-guides.com

Key Features Specifications

Works with any 802.11b or 802.11 access point

Supports peer-to-peer networkin with one another or any 802.11b/

station devices

Supports TCP/IP and UDP networkin over 802.11

Plu & Play operation—

o No driver on the host device is required

o Operation independent of operatin system on the host

equipment or device (Windows 98/NT/2000/ME/XP, Linux, Unix,

embedded, etc.)

Supports 64-bit and 128-bit WEP encryption for secured

communication

11Mbps data rate and automatic selection of lower data rate (5.5, 2

and 1 Mbps) in de raded RF environment

Serial interface supports XON/XOFF, DTR/DSR (WiSER2400.IP and

WiSER2400.Plus) and RTS/CTS (WiSER2400.Plus) for both local

and remote hand-shake/flow control

Supports RS-232 interface (WiSER2400.IP)

Supports RS-232/485/422 interfaces, selectable by software

confi uration (WiSER2400.Plus)

Compact inte rated omni-directional-antenna (WiSER2400.IP)

Reverse-SMA RF connector for antenna attachment

(WiSER2400.Plus)

Microsoft-Windows-based administrative software

Protocols supported: TCP, UDP, ICMP, ARP

Comes with a virtual serial COM port redirector software, VirCOM

Model WiSER2400.IP; WiSER2400.Plus

Standard 802.11 and 802.11b

Host Interface RS232 (WiSER2400.IP)

RS232/485/422 (WiSER2400.Plus)

Frequency 2.4GHz – 2.497GHz

RF Channels 11 channels (US, Canada), 13 channels (Europe, Japan)

Transmission

power

16dBm at antenna input typical

RF Receiver

sensitivity

-80dBm @1e-5 BER typical

Antenna 2 dBi inte rated dipole antenna (WiSER2400.IP); Reverse-

SMA RF connector (WiSER2400.Plus)

Wireless Data

Rate

11, 5.5, 2 or 1 Mbps fixed rate, or confi ured to automatic

rate selection

Wireless

Modulation

CCK, Direct Sequence Spread Spectrum

Wireless Link

Distance

300 ~1200 ft (WiSER2400.IP, dependin on environment);

Link Distance for WiSER2400.Plus depends on antenna

used

Wireless Network

Types

Support infrastructure and ad-hoc station modes

Wireless Data

Encryption

Support the standard 64-bit and the 128-bit WEP

Network Security MAC-address-based access control

Serial Port

Interface

Data Bit: 7/8; Parity: none/even/odd; Stop Bit: 1

Serial Data Rate 1200, 2400, 4800, 9600, 14.4K, 19.2K, 38.4K, 57.6K,

115.2K

Input Power 5VDC for WiSER2400.IP (adapter provided); 5VDC to 32

VDC for WiSER2400.Plus (to be supplied by user)

Current

consumption

<480mA (max. reached in transmit-mode)

LED Indicators 4: Power, Transmission, Receivin , Link

Operating

Temperature

-10°C – 50°C

Regulation

Compliance

FCC part 15,Class B

CE (ETSI EN 300 328-1, ETSI EN 301 489-17)

All manuals and user guides at all-guides.com

1.1.1 Standard Hardware WiSER2400.IP WiSER2400.Plus

1 WiSER2400.IP radio

1 RS232-P cable

1 RS232-C cable

1 ac-dc power adapter

1 pair of Velcro mountin pads

1 WiSER2400.PLUS radio

1 DIN Rail Mountin Assembly

1.1.2 Power WiSER2400.IP WiSER2400.Plus

Uses 5V DC for input power. An AC-to-DC power

adapter is provided.

Uses 5V DC to 32V DC for input power (to be supplied

by user). See Fi . 4 for an illustration on how to

connect the power input to the mini-Phoenix

connector.

1.1.3 Serial Connections WiSER2400.IP WiSER2400.Plus

The WiSER2400.IP has a built-in RJ-45 connector and

uses an RJ-45 to DB-9 adapter cable for connectin to

the serial port of a PC or a device. Two cables are

included in the packa e:

The RS-232-P cable is for connectin the

WiSER2400.IP to the RS232 port of DCE equipment

(whiteboard, instrument, etc.) durin communication.

It terminates in a male DB-9 connector and is labeled

“Board” on the cable.

The RS-232-C cable is for connectin the

WiSER2400.IP to a computer or DTE equipment

durin confi uration usin the administrative software.

It terminates in a female DB-9 connector and is

labeled “Computer” on the cable

For RS-232 Connection

WiSER2400.Plus has a built-in DB-9 connector for

RS-232 connection. User is to provide the proper RS-

232 cable for connection to a PC or a device.

Use a null-modem serial cable to connect the

WiSER2400.Plus to a PC.

Use a strai ht-thru serial cable to connect the

WiSER2400.Plus to a DCE device

For RS-485/422 Connection

Please refer to Fi . 4 for connectin the RS-485 and

RS-422 data lines to the mini-Phoenix connector on

the WiSER2400.Plus.

All manuals and user guides at all-guides.com

all-guides.com

1.1.4 Selecting the Serial Mode for WiSER2400.Plus

WiSER2400.IP

The WiSER2400.Plus has a 4-position dipswitch next to the mini Phoenix

connector for selectin the serial operatin mode:

RS-232

RS-4 5

(select RS-485 and half-duplex)

RS-422

(select RS-485 and full-duplex)

The factory default has the dipswitch set in the RS-232 mode. Please refer to

Fi . 4 for details in settin the dipswitch for different operatin modes.

1.1.5 Status LEDs

Power on the WiSER2400, the LEDs on the front panel should exhibit the

followin patterns:

(Refer to Fi . 3 and Fi . 4)

LED Color Light Blinking

Pattern

Indication

ON RED Steady on Proper power is

supplied

Steady on Unit is linked to a

wireless system

RX GREEN

Steady blink Unit is not linked to

any wireless system

TX RED On when

transmittin

Unit is transmittin

RF si nal

LINK YELLOW

Blinkin Serial Mode

Secure the WiSER2400 at the desired location with the provided Velcro (for

WiSER2400.IP) or DIN Rail mountin kit (for WiSER2400.Plus) once the

hardware is setup and works properly with the intended host device or

equipment.

Fi . 3 WiSER2400.IP

All manuals and user guides at all-guides.com

WiSER2400.Plus

This section describes the si nals expected on the mini-Phoenix connector

pins.

10-pin mini-Phoenix terminal:

Pin:

1. DATA+(RS-485)

2. DATA- (RS-485)

3. N/C

4. TX+ (RS-422)

5. TX- (RS-422)

6. RX+ (RS-422)

7. RX- (RS-422)

8. N/C

9. V+ (Up to +32 VDC)

10. GROUND

DB 9 male connector:

Pin:

1. DCD

2. RXD

3. TXD

4. DTR

5. Ground

6. DSR

7. RTS

8. CTS

9. -

Dip Switch:

Location (from left to right)

1. #RS232/485 selector

2. #Full/Half duplex selector

3. 120 ohm termination -- 422

RX pair

4. 120 ohm termination -- 422

TX pair or 485 pair.

For 1 & 2:

The level up position is hi h.

The level down position is low.

For 3 & 4:

The level up position is without

terminator.

The level down position is with

terminator.

Fi . 4 WiSER2400.Plus

All manuals and user guides at all-guides.com

1.2 Installation of WiSER2400

Administ ative Softwa e

1.3 Installation of Vi COM, the vi tual

se ial COM po t edi ecto

1.2.1 System Requirements 1.3.1 System Requirements

To support the WiSER2400 administrative software, the computer must meet

the followin minimum requirements:

Windows®98 (SE)/ NT/ ME/ 2000/ XP

One COM port (with a DB-9 male connector or an appropriate

adapter to connect to a DB-9 female connector)

(Optional) A TCP/IP wireless network that connects the PC runnin

the administrative pro ram and the WiSER2400 unit.

To support the WiSER2400 administrative software, the computer

must meet the followin minimum requirements:

Windows®98 (SE)/ NT/ ME/ 2000/ XP

Active TCP/IP services

VirCOM files are under the VirCOM folder on the distribution CD-ROM.

1.2.2 Installation

1.3.2 Installation

To install the administrative pro ram, simply insert the distribution CD-ROM

into the CD-ROM drive. Copy the “wauti_nnnn.exe” file to the desired hard-

drive location on the PC (where ‘nnnn’ is a number).

Click on the setup.exe to install VirCOM.

See the VirCOM Technical Manual for the detail information on usin VirCOM.

All manuals and user guides at all-guides.com

2.1 Using the WiSER2400 in a Point-to-point Link

2.1.1 Using the WiSER2400 in a point-to-point link

Scheme 1

See Figure 5 (overleaf)

Connect the PC to an 802.11b/ access point, or use a PC with a

built-in 802.11b/ wireless LAN card.

Confi ure the WiSER2400 to match its serial parameters (baud rate,

parity bit, … etc.) with that of the serial device it is to be attached to.

Confi uration can be done by temporarily connectin the

WiSER2400, by a serial cable or wirelessly, to a PC runnin the

WiSER2400 administration software.

Confi ure the WiSER2400 to match up its TCP/UDP/IP settin s

(listenin port, destination IP address, … etc.) with that on the PC

side for a TCP/IP or UDP/IP connection.

Confi ure the WiSER2400 to operate in the proper wireless network

type: Infrastructure mode for linkin to an access point, or Ad-hoc

mode for linkin with a PC with a built-in wireless LAN card.

Attach the WiSER2400 to the serial device.

Establish the wireless link between the PC and the WiSER2400.

The system is now ready for runnin the application software on the

PC to control the serial device throu h the wireless link.

If the application software on the PC can only communicate throu h

a serial COM port interface and does not support the standard

TCP/UDP/IP protocols throu h the network interface, the COM port

re-directin software pro ram, VirCOM, will be needed to brid e the

application software to the TCP/UDP/IP network port.

Please refer to Section 3 of this manual as well as the VirCOM

Technical Manual for details on confi urin the WiSER2400 and the

Virtual COM port re-directin software.

All manuals and user guides at all-guides.com

Autres manuels pour 802.11 Wireless Serial Solutions...

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels OTC Wireless Carte réseau

OTC Wireless

OTC Wireless ACR-201 Manuel utilisateur

Manuels Carte réseau populaires d'autres marques

FirstComm

FirstComm OBiWiFi5G Manuel utilisateur

Sun Microsystems

Sun Microsystems Interface Adapter Manuel utilisateur

TRENDnet

TRENDnet TU2-ETG Manuel utilisateur

YASKAWA

YASKAWA SI-EN3 Manuel utilisateur

Paradyne

Paradyne BitStorm 2600 IP DSLAM Manuel utilisateur

Belkin

Belkin F5D7050 Manuel utilisateur

3Com

3Com EtherLink 3C509B Manuel utilisateur

TRENDnet

TRENDnet TEG-PCITX Manuel utilisateur

Cisco

Cisco MC16E Manuel utilisateur

Delta Electronics

Delta Electronics Braking Modules VFDB Series Manuel utilisateur

TwinMOS

TwinMOS Booming Manuel utilisateur

Dialogic

Dialogic Media Board DM/V1200BTEPEQ Manuel utilisateur

Buffalo

Buffalo AirStation WLI-PCM-L11GP Manuel utilisateur

National Instruments

National Instruments NI 9234 Manuel utilisateur

Hama

Hama 49276 Manuel utilisateur

Linksys

Linksys WCF54G - Wireless-G Compact Flash Card Manuel d'utilisation

Compaq

Compaq Wireless LAN 100 Manuel utilisateur

Bose

Bose PowerMatch Dante Manuel utilisateur
