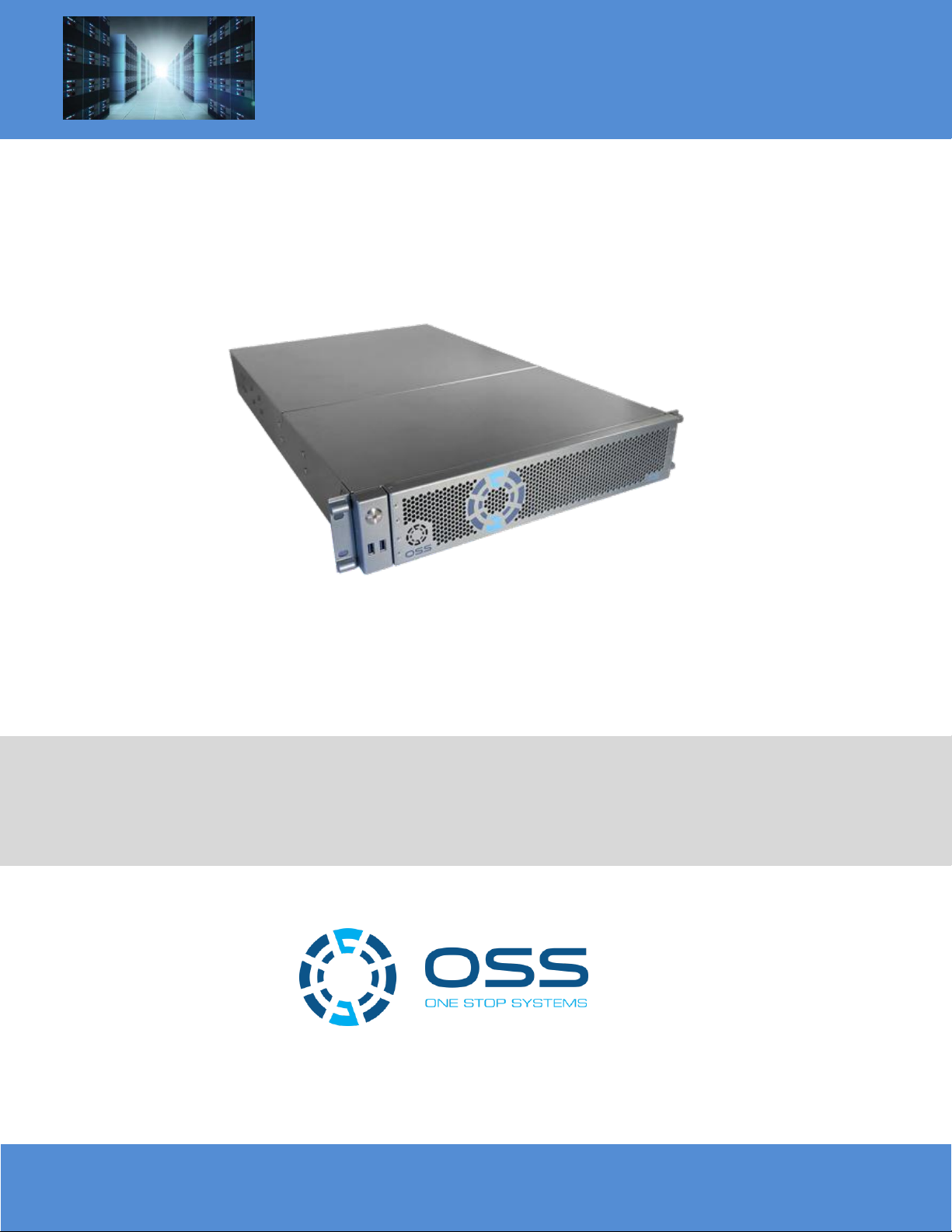

OSS OSS-MB-2U-X11Q Manuel utilisateur

User Manual

2U EOS Server

Expansion Optimized Server

SKU: OSS-MB-2U-X11Q

www.onestopsystems.com

One Stop Systems

2U EOS | 2

Table of Contents

Preface.................................................................................................................................................................................... 3

Advisories ............................................................................................................................................................................................................ 3

Safety Instructions ............................................................................................................................................................................................... 4

Protecting Against Electrostatic Discharge .......................................................................................................................................................... 5

1 Introduction...................................................................................................................................................................... 6

1.1 General Specifications............................................................................................................................................................................... 6

1.2 Features .................................................................................................................................................................................................... 8

1.3 Pre-Installation Information...................................................................................................................................................................... 8

1.4 Tools Required for Installation .................................................................................................................................................................. 8

2 Hardware Set-up / Installation .......................................................................................................................................... 9

2.1 Installation-Procedures Overview ............................................................................................................................................................. 9

2.2 Remove face-plate................................................................................................................................................................................... 10

2.3 Removing Drive Tray................................................................................................................................................................................ 10

2.4 Install Storage Drive ................................................................................................................................................................................. 11

2.5 Connect External Devices ......................................................................................................................................................................... 12

2.6 Power ON the system............................................................................................................................................................................... 13

2.7 PCIe Card Installation ............................................................................................................................................................................... 14

2.8 How to Remove Top Cover ...................................................................................................................................................................... 15

2.9 How to Remove Power Supply ................................................................................................................................................................. 16

3 Contacting Technical Support ..........................................................................................................................................17

4 Returning Merchandise to One Stop Systems ..................................................................................................................17

5 APPENDIX A Compliance................................................................................................................................................18

FCC ............................................................................................................................................................................................................... 18

CE ................................................................................................................................................................................................................. 18

One Stop Systems

2U EOS | 3

Preface

Advisories

Five types of advisories are used throughout this manual to provide helpful information, or to alert you to the potential for hardware damage

or personal injury.

Disclaimer: We have attempted to identify most situations that may pose a danger, warning, or caution condition in this manual. However, One

Stop Systems does not claim to have covered all situations that might require the use of a Caution, Warning, or Danger indicator.

One Stop Systems

2U EOS | 4

Safety Instructions

Always use caution when servicing any electrical component. Before handling the One Stop Systems Expansion chassis, read the following

instructions and safety guidelines to prevent damage to the product and to ensure your own personal safety. Refer to the “Advisories” section

for advisory conventions used in this manual, including the distinction between Danger, Warning, Caution, Important, and Note.

Always use caution when handling/operating the computer. Only qualified, experienced, authorized electronics personnel should access the

interior of the computer and expansion chassis.

WARNING

Never modify or remove the radio frequency interference shielding from your workstation or expansion unit. To do so may

cause your installation to produce emissions that could interfere with other electronic equipment in the area of your

system.

When Working Inside a Computer

Before taking covers off a computer, perform the following steps:

Turn off the computer and any peripheral devices.

Disconnect the computer and peripheral power cords from their AC outlets or inlets in order to prevent electric shock or system board damage.

In addition, take note of these safety guidelines when appropriate:

To help avoid possible damage to systems boards, wait five seconds after turning off the computer before removing a component,

removing a system board, or disconnecting a peripheral device from the computer.

When you disconnect a cable, pull on its connector or on its strain-relief loop, not on the cable itself. Some cables have a connector

with locking tabs. If you are disconnecting this type of cable, press in on the locking tabs before disconnecting the cable. As you pull

connectors apart, keep them evenly aligned to avoid bending any connector pins. Also, before connecting a cable, make sure both

connectors are correctly oriented and aligned.

CAUTION

Do not attempt to service the system yourself except as explained in this manual. Follow installation instructions closely.

One Stop Systems

2U EOS | 5

Protecting Against Electrostatic Discharge

Electrostatic Discharge (ESD) Warning

Electrostatic Discharge (ESD) is the enemy of semiconductor devices. You should always take precautions to eliminate any

electrostatic charge from your body and clothing before touching any semiconductor device or card by using an

electrostatic wrist strap and/or rubber mat.

Static electricity can harm system boards. Perform service at an ESD workstation and follow proper ESD procedures to reduce the risk of

damage to components. One Stop Systems strongly encourages you to follow proper ESD procedures, which can include wrist straps and

smocks, when servicing equipment.

You can also take the following steps to prevent damage from electrostatic discharge (ESD):

When unpacking a static-sensitive component from its shipping carton, do not remove the component’s anti-static packaging material until you

are ready to install the component in a computer. Just before unwrapping the anti-static packaging, be sure you are at an ESD workstation or

are grounded.

When transporting a sensitive component, first place it in an anti-static container or packaging.

Handle all sensitive components at an ESD workstation. If possible, use anti-static floor pads and workbench pads.

Handle components and boards with care. Do not touch the components or contacts on a board. Hold a board by its edges or by its metal

mounting bracket.

One Stop Systems

2U EOS | 6

1Introduction

1.1 General Specifications

The 2U EOS server revolutionizes the capabilities of homogenous systems containing closely coupled processors, NVMe solid-state storage,

high-speed networking and accelerator co-processing elements such as GP-GPUs and FPGAs. The 2U EOS contains two of the newest Intel

Scalable Processors and provides the widest BIOS compatibility with dense storage and accelerator expansion systems. This allows the highly

integrated server to stand alone or form the core CPU and memory resources for a scale-out, rack level, expandable solution. The EOS server

features two storage and I/O configurations providing up to six PCIe 3.0 x16 half-height slots or 24 U.2 NVMe drives. The server supports up to

4TB of memory and a resource expanded BIOS for scale-out device enumeration and large memory mapped I/O used for GP-GPUs and

accelerators

Item

Description

Dimensions

3.45” H x 17.2” (19” with rack ears) W x 28” D (8.7 x 43.7 x 71 cm)

CPU

Dual Intel® Xeon® Scalable Processors up to 205W TDP and 28 cores

LGA 3647 socket P with 3 UPI chip-to-chip bus up to 10.7GT/s

System Memory

16x 288-pin DDR4 DIMM sockets

Up to 4TB DDR4-2933MHz 3DS ECC RDIMM or LRDIMM, 1.2V low profile

2933/2666/2400/2133MHz Frequencies in 64GB, 128GB and 256GB capacities each module

Up to 2TB Intel® Optane™ DC Persistent Memory in memory mode (Cascade Lake only)

Expansion Slots

EOS configuration:

• 4 x PCIe 3.0 x16 HH/FL Double Width slots

• 2 x PCIe 3.0 x16 HH/HL Single Width slots

• 1 x PCIe 3.0 x4 HH/HL slot with x8 physical connector

• 1x PCIe3.0 x4 M.2 slot for 2280 and 22110 M-Key modules

NVMe configuration:

2 x PCIe 3.0 x16 FH/HL Single Width slots

2 x PCIe 3.0 x16 HH/HL Single Width slots

1 x PCIe 3.0 x4 HH/HL slot with x8 physical connector

1x PCIe3.0 x4 M.2 slot for 2280 and 22110 M-Key modules

Storage Subsystem

EOS configuration:

24x hot-swap configurable SATA-3, SAS-3 or NVMe x4 2.5” x 15mm drive carriers

12Gb SAS-3 or 6Gb SATA-3 SFF-8680 slots via 3x SFF-8643 backplane connectors

NVMe x4 32Gb slots via 24x Oculink connectors

Up to 10 SATA-3 slots use no PCIe slots

12x and 24x SAS-3 slots require 1 and 2 PCIe x16 HHHL slots respectively

8x and 16x NVMe x2 slots require 1 and 2 x16 PCIe HHHL slots respectively (for 24x NVMe x4 use NVMe

config)

Further expansion up to 4PB possible using OSS JBOF expansion systems

1x M.2 x4 and 2x SATA-DOM internal drive connections

NVMe configuration

24x hot-swap NVMe x4 2.5” x 15mm drive carriers

Up to 10 NVMe drive bays can be SATA-3 configured

-1x M.2 x4 and 2x SATA-DOM internal drive connections

On-board devices

Intel® C621 Express chipset

ASPEED AST2500BMC IPMI support for IPMI 2.0 with virtual medial over LAN and KVM-over-LAN support

Network Controllers

2x Intel X550 10Gigabit Ethernet each with an RJ-45

Additional 25, 40 and 100Gb Ethernet, 100Gb Infiniband or 32Gb Fiber Channel interfaces available

USB

5 USB 3.0 with 2 on rear panel, 2 on front panel and 1 Type A internal

4 USB 2.0 with 2 on rear panel and 2 internal headers

One Stop Systems

2U EOS | 7

Input/Output

7.1HD Audio Header, 1 VGA port, 2 COM ports (1 rear and 1internal header

2 Disk-on-Module ports

1 Trusted Platform Management TPM 1.2 20-pin header

BIOS

128 Mb SPI flash EEPROM with AMI BIOS

Supports PnP, PCI 3.0, ACPI 1.0-4.0, USB keyboard support, UEFI 2.3.1,

1TB BAR1 max size and 256 PCI bus enumeration support

Cooling Fans

Four 80mm x 38mm PWM hot-swap Cooling fans

Chassis

Rugged steel enclosure

Liquid paint with customizable front bezel

Weight

33-48lbs (15-22 kg)

Power Supply

1000W 90-264VAC, 47-63Hz Input:

1+1 Redundant 80plus Silver efficiency with Active PFC, PM Bus and Over Voltage Protection

15A input current at 115VAC and 7.5A at 230VAC each module

15A @ 115VAC and 30A @ 230VAC max inrush current each module

EPS 12V Output type with 22A at+5V, 83A at +12V, 0.5A at -12V, 22A at+3.3V and 3A at +5V Standby

Environment

Operating:

5°C to 35°C (41°F to 95°F) at 0 to 915m (3,000ft) altitude

5% to 90% non-condensing relative humidity, max dew point 21°C, max rate of change 5°C/hr

Non-Operating:

-20C to 60°C (-40°F to 140°F)

5% to 90% non-condensing relative humidity, max dew point 27°C, max rate of change 5°C/hr

Agency

Tested to conform to the following standards:

FCC - Verified to comply with Part 15 of the FCC Rules, Class A

Canada ICES-003, issue 4, Class A

CE Mark (EN55022 Class A, EN55024, EN61000-3-2, EN61000-3-3)

CISPR 22, Class A

Designed to conform to the following extended standards:

NOM-019

Argentina IEC60950-1

Japan VCCI, Class A

Australia/New Zealand AS/NZS CISPR 22, Class A

China CCC (GB4943), GB9254 Class A, GB17625.1

Taiwan BSMI CNS13438, Class A; CNS14336-1

Korea KN22, Class A; KN24

Russia/GOST ME01, IEC-60950-1, GOST R 51318.22, GOST R 51318.24, GOST R 51317.3.2,

GOST R 51317.3.3

TUV-GS (EN60950-1 /IEC60950-1,EK1-ITB2000)

Compliance

RoHS Compliant WEEE

One Stop Systems

2U EOS | 8

1.2 Features

Dual Intel Xeon Scalable Processors

Up to 6 x16 PCIe 3.0 x16 expansion slot

Up to 24 x 2.5 NVME or SAS Storage devices

Dual 1+1 redundant universal input power supplies

Resource expansnded BIOS for large expansion capability

Guaranteed to operate with all OSS expansion products

1.3 Pre-Installation Information

Before using the One Stop Systems expansion chassis, you should perform the following steps:

Inventory the shipping carton contents for all of the required parts

Gather all of the necessary tools required for installation

Read this manual

1.4 Tools Required for Installation

To complete the installation of the product you will need a Phillips-head screwdriver and ESD wrist strap to prevent electrostatic discharge.

One Stop Systems

2U EOS | 9

2 Hardware Set-up / Installation

The following steps will guide you through the installation of your One Stop Systems expansion system

CAUTION

Hardware installation shall be performed only by qualified service personnel per UL and IEC 60950-1.

Electrostatic Discharge (ESD) Warning

All PCI cards are susceptible to electrostatic discharge. When moving PCI cards, it is best to carry the cards in anti-static

packaging. If you need to set a PCIe card down, be sure to place it inside or on top of an anti-static surface. For more

information, see “Protecting Against Electrostatic Discharge” in the Preface.

WARNING

High voltages are present inside the expansion chassis when the unit’s power cord is plugged into an electrical outlet.

Disconnect the power cord from the AC outlet before removing the enclosure cover. Turning the system power off at the

power on/off switch does not remove power to components. High voltage is still present.

CAUTION

Before touching anything inside the enclosure, move to an ESD station and follow proper ESD procedures. Failure to do so

may result in electrostatic discharge, damaging the computer or its components. For more information, see “Protecting

Against Electrostatic Discharge” in the Preface.

2.1 Installation-Procedures Overview

Below is the concise version on how to set up the 4u Value 16 slot expansion unit.

1. Remove Face-plate

2. Remove Drive Tray

3. Install Storage Drive

4. Connect External Devices

5. Power ON the system

One Stop Systems

2U EOS | 10

2.2 Remove face-plate

Carefully remove the front face-plate of the unit.

2.3 Removing Drive Tray

Pull the drive tray out from the unit by pressing the release button. The drive tray handle will extend.

Grasp the handle and gently pull the drive tray out of the chassis.

Table des matières

Autres manuels OSS Serveur

OSS

OSS OSS-EOS-2U-41 Manuel utilisateur

OSS

OSS EOS-2U-4A Manuel utilisateur

OSS

OSS SDS-3U-4a Manuel utilisateur

OSS

OSS SDS-3U-4i Manuel utilisateur

Manuels Serveur populaires d'autres marques

HP AlphaServer ES47 Manuel utilisateur

Dell

Dell PowerEdge R410 Manuel utilisateur

PowerNAS

PowerNAS CMA Manuel utilisateur

Supero

Supero FatTwin F617R3-FT Manuel utilisateur

MSI

MSI P1-109N-L70 Manuel utilisateur

Dell

Dell PowerEdge XE9640 Manuel

Dell

Dell PS4100 Instructions de montage

EtroVISION

EtroVISION EV3151 Manuel utilisateur

NEC

NEC Express5800/T110j Manuel utilisateur

HP ProLiant Gen9 Manuel utilisateur

Compaq

Compaq ProLiant 3000 Manuel

Dell

Dell PowerEdge 3YPMN Manuel utilisateur

iRobo

iRobo IPC2U Manuel utilisateur

Nortel

Nortel 1000 Con?guration guide Manuel utilisateur

Asus

Asus AP7500 Manuel d'utilisation et d'entretien

Avid Technology

Avid Technology AirSpeed 5000 Manuel utilisateur

HP Integrity rx2600 Guide d'installation

Milestone

Milestone Husky IVO 350T Manuel utilisateur
