Osram 2720 Manuel utilisateur

2720

IP65 LED Strobe wash bar light

User manual

rea

ins

ction

s ca

refu

y before use

TABLE OF CONTENTS

ety

nst

uctions ......................................................................................1 -

2. Technical Specifications

...........................................................................................5

3. How To Control The Unit

..........................................................................................6

4. DMX Channel List.........................................................................................16

5. Shape.........................................................................................................................18

. Trouble shooting

......................................................................................................19

. Fixture Cleaning

.......................................................................................................20

statement

The product has well capability and intact packing when leave

factory. All of the user should comply with warning item and manual, any

misuse cause of the damages are not included in our guarantee, and

also can not be responsible for any malfunction & problem owing to

ignore the manual.

ety

nst

uctions

Please keep this User Guide for future consultation. If you sell the unit to another

user, be sure that they also receive this instruction booklet.

Unpack and check carefully there is no transportation damage before using

the unit.

Before operating, ensure that the voltage and frequency of power

supply match the power requirements of the unit.

It’s important to ground the yellow/green conductor to earth in order

to avoid electric shock.

The unit is for indoor use only. Use only in a dry location.

The unit must be installed in a location with adequate ventilation, at

least 50cm from adjacent surfaces. Be sure that no ventilation slots are

blocked.

Disconnect main power before replacement or servicing.

Make sure there are no flammable materials close to the unit while operating as

it is fire hazard.

Use safety cable when fixes this unit. DO NOT handle the unit by taking its head

only, but always by taking its base.

Maximum ambient temperature is Ta: 40℃. DO NOT operate it where the

temperature is higher than this Unit surface temperature may reach up to 85℃.

DO NOT touch the housing bare-hand during its operation. Turn off the power

and allow about 15 minutes for the unit to cool down before replacing or serving.

the event of serious operating problem, stop using the unit immediately.Never

try to repair the unit by yourself. Repairs carried out by unskilled people can

lead to damage or malfunction. Please contact the nearest authorized

technical assistance center. Always use the same type spare parts.



DO NOT touch any wire during operation as high voltage might be causing

electric shock.

Warning:



To prevent or reduce the risk of electrical shock or fire, do not expose the unit to

rain or moisture.



DO NOT open the unit within five minutes after switching off.



The housing, the lenses, or the ultraviolet filter must be replaced

if they are visibly damaged.

Caution:

There are no user serviceable parts inside the unit. DO NOT open the housing

or attempt any repairs yourself. In the unlikely event your unit may require

service, please contact your nearest dealer.

Installation:

The unit should be mounted via its screw holes on the bracket. Always ensure that

the unit is firmly fixed to avoid vibration and slipping while operating.

And make sure that the structure to which you are attaching the unit is secure

and is able to support a weight of 10 times of the unit’s weight. Also always use a

safety cable that can hold 12 times of the weight of the unit when installing the

fixture.

The equipment must be fixed by professionals. And it must be fixed at a place

where is out of the touch of people.

2. Technical Specifications

Light Sources: 960*0.2W 4IN1 RGBW LED

Beam Angle:120°

Power Consumption: 210w

Power Voltage: AC 100-260V, 50/60Hz

Control

DMX Channel:16/44 Channels

Control Modes: DMX512/Auto Run/Music

Construction

Display:180° reversible LCD Display

Data In/Out socket: 3-pin XLR sockets

Power Socket: Waterproof Powercon in/out

Protection Rating: IP65

Net Weight:6 kgs

Features

Dimmer:0~100% smooth dimming ;two dimmer model in optional( delay or

without delay)

8-Zone controlled

Strobe effects with high brightness

Led temperature protection & Fan run speed automatic based on the head

temperature.

3.Lux Date

4. Display & Menu

Display:

MENU To select the programming functions

DOWN To go backward in the selected functions

UP To go forward in the selected functions

ENTER To confirm the selected functions

Set DMX

Address Code

1 Press "Menu" to "Set DMX Address",and press"ENTER" keys to enter

into

2 Show "Set DMX Address DMX Address:001",Press the "UP and DOWN"

keys to amended

3 Press "ENTER"keys to save and Exit,Press the"MENU"Keys does not

save and Exit

Mic Sense

001 - 100,Sound sensitivity adjustment

Language

English

Chinese

Reset

Yes

Default

Yes

Adjust

Pass Word:up+down+up+down

Red

0 - 255

Green

0 - 255

Blue

0 - 255

White

0 - 255

Address

Setting from 001 - 512

Reverse

Forward or reversed setting

Channel

44 channels

16 channels

Inform

1.CH Value

Each channel show CH

value

2.Temp ____℃

Show the temperature of led

board

3.Soft V1.1

Show the version number

Mode

DMX 512

AUTO

SOUND

5.DMX Channel List

Model 1 - CH44

Channel

Display

Function

Value

CH-1

Dimming

From dark to bright

0 --- 255

CH-2

Dimming Model

Model - 1

0 --- 49

Model - 2

50 --- 99

Model - 3

100--- 149

Model - 4

150--- 255

CH-3

Strobe

0 --- 15

from slow to fast

16 --- 165

flashes strobe slow to fast

166---215

Random stroboscopic

215---255

CH-4

Red - 1

From dark to bright

0 --- 255

CH-5

Green - 1

CH-6

Blue - 1

CH-7

White - 1

CH-8

Red - 2

From dark to bright

0 --- 255

CH-9

Green - 2

CH-10

Blue - 2

CH-11

White - 2

CH-12

Red - 3

CH-13

Green - 3

CH-14

Blue - 3

CH-15

White - 3

CH-16

Red - 4

CH-17

Green - 4

CH-18

Blue - 4

CH-19

White - 4

CH-20

Red - 5

CH-21

Green - 5

CH-22

Blue - 5

CH-23

White - 5

CH-24

Red - 6

CH-25

Green - 6

CH-26

Blue - 6

Table des matières

Autres manuels Osram Projecteur

Osram

Osram NOXLITE LED HP FLOODLIGHT II Manuel utilisateur

Osram

Osram Clay Paky Alpha Spot HPE 1500 Manuel utilisateur

Osram

Osram Traxon e:cue Allegro Washer AC Static White Manuel d'instructions d'installation

Osram

Osram NOXLITE LED HP FLOODLIGHT II 23 W Manuel utilisateur

Osram

Osram Ledvance FLOODLIGHT LED 10W/6500K 10X1 LEDV Manuel utilisateur

Osram

Osram KREIOS FL Manuel utilisateur

Osram

Osram KREIOS FL Series Manuel

Osram

Osram kreios fresnel Manuel utilisateur

Osram

Osram traxon Allegro Washer AC Manuel d'instructions d'installation

Osram

Osram Pursos Manuel utilisateur

Osram

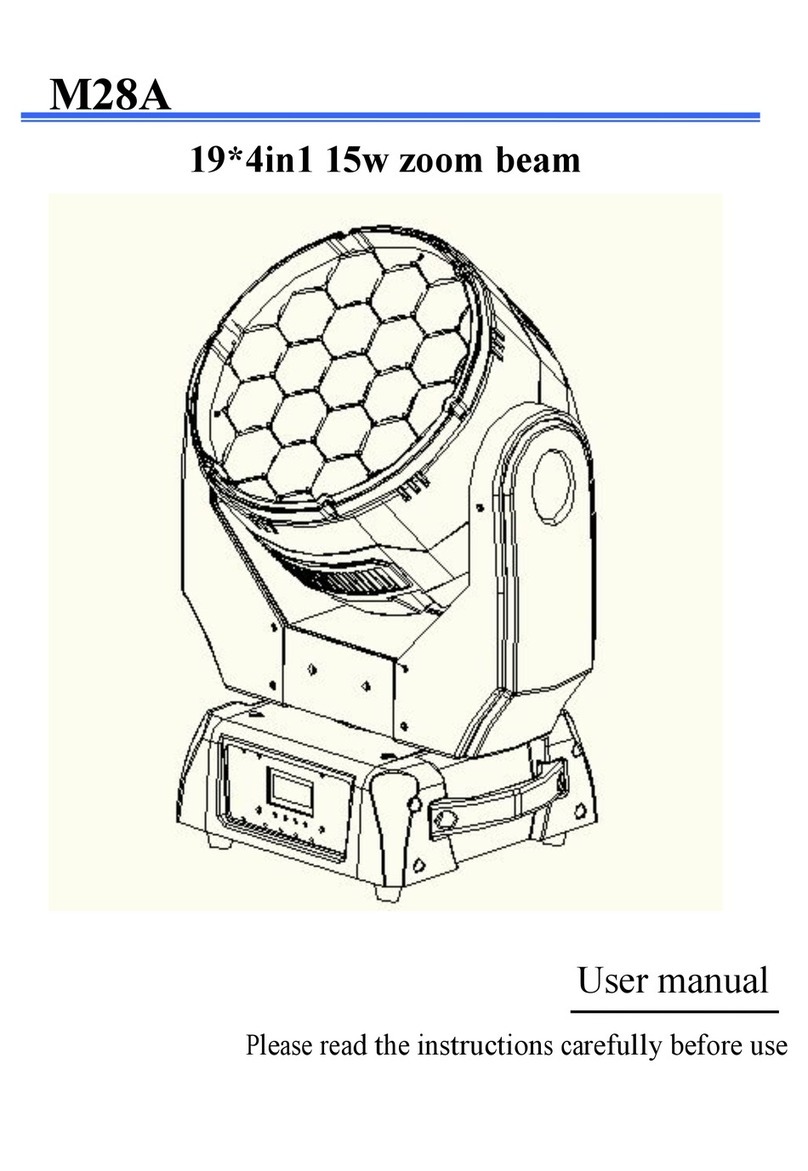

Osram M28 A Manuel utilisateur
