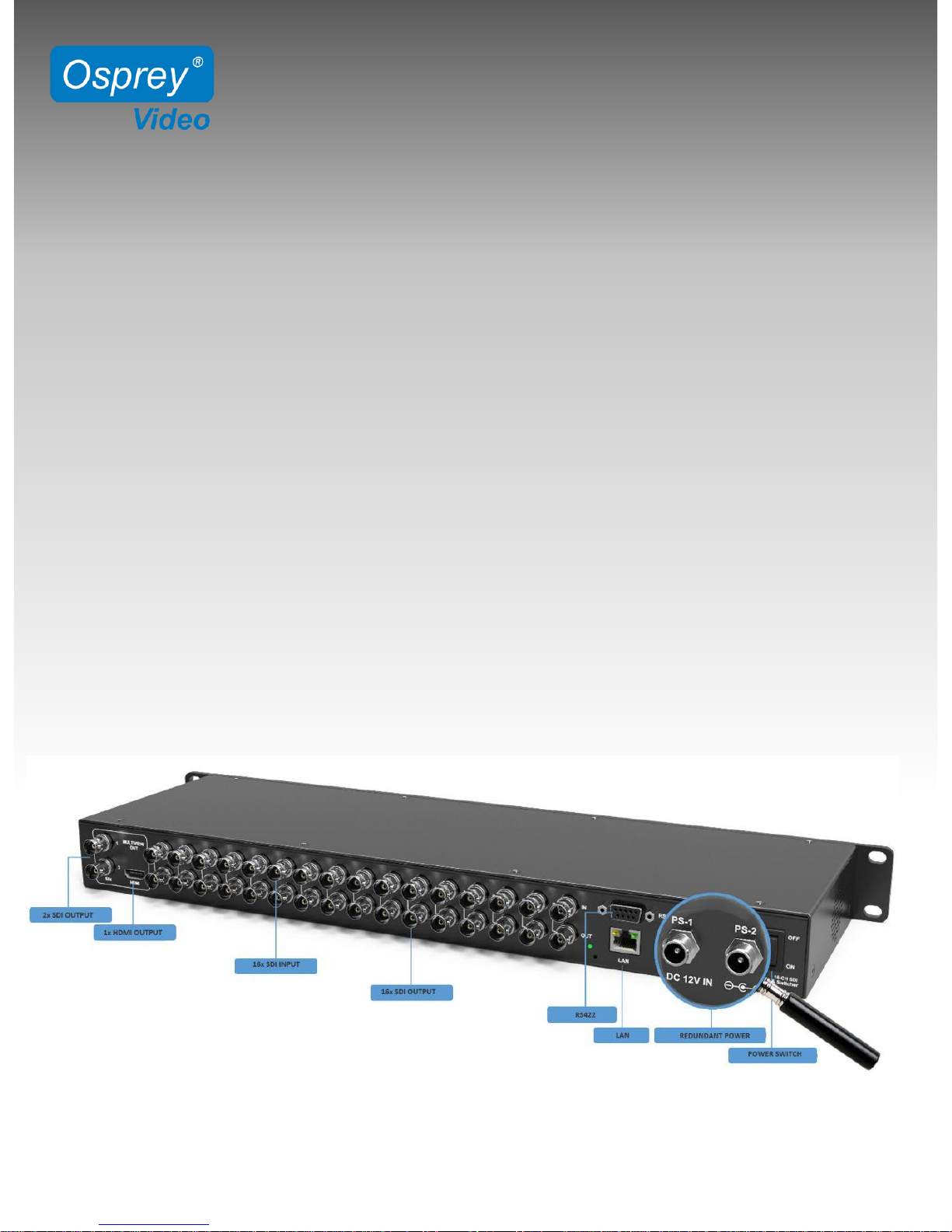

RACKMOUNT 8x8 MATRIX SWITCHER
MSS-8
Manual Keypad Controls
Using the Buttons on MSS-8 Front Panel
IN/OUT: Make individual Matrix Connections
Example Sequence: IN –2 –OUT –4 –6 –7 (Input 2 connected to
Outputs 4, 6 and 7 )
ALL: Connect one Input to all Outputs simultaneous
Example Sequence: IN –4 –ALL (Input 4 connected to all 8 Outputs)
LOCK: Keypad Lockout
Display: The first line represents Outputs 1-4, the second line Outputs 5-8.
SIP: Static IP Address
DIP: Dynamic IP Address (DHCP)
Above display shows the following connections.
- Input 1 to Outputs 5, 6, 7, 8
- Input 2 to Outputs 1, 2, 3, 4
The display brightness can be adjusted using the PC based Osprey
Control Software. There is also a “sleep” option.
www.ospreyvideo.com
2
Input Select Output Select Channel # One to All Keypad Lockout
