OSD Audio GLS8 Manuel utilisateur

GLS8

IN-GROUND SUBWOOFER INSTALL GUIDE

GLS 8 INSTALL GUIDE

Tools Needed

Pre Installation

Speaker Wire

Step 1

Step 2

- Trench Spade/Shovel

- Wire Cutter

- Measuring Tape

- Direct Burial Cables

- Silicon Cable Connectors (Optional)

- Outdoor Volume Control (Optional)

Designate the general area where the subwoofer would be most ideal. The

subwoofer should be placed with in 20 feet of the general listening area for

optimum performance. (See Diagram1) The shape and nish would blend

particularly well in your landscape if it is placed near landscape lighting, water

fountain, open planter or swimming pool.

Measure the distance from the designated speaker location

to your stereo receiver. Try to minimize your distance without

compromising on your overall appeal and safety concern.

Once the route is determined, use your spade and trench

to dig the hole for the subwoofer and a wire route between

8”-12” deep once the trench route is completed, lay the cable

in the route. If using the PVC pipe, cut the pipe to length,

ensure all electrical connections are watertight with silicone

burial connectors. Once the cable layout is done, connect the

subwoofer & rell the trench & subwoofer hole.

(See Diagram 2)

- Where is the best place to install the speakers?

- Where will the speakers sound the best?

- Place the speakers in a location where they

will blend in best with their surroundings.

To determine the length and the gauge of speaker wire, you will

need to measure the distance between your receiver/amplier

and the speakers.

- Always buy more than you think you would need.

- Equal wire lengths should always be used to maintain an equal

balance in sound volume.

- Sound quality is lost when using thin wire gauge over a long

distance.

18 AWG minimum - for distances up to ….……………………. . 10 ft

16-2 AWG - from ……………………………………………. 10 to 50 ft

14-4 AWG - from …………………………………………… 50 to 100ft

12-2 AWG - from …………………………………………… 50 to 100ft

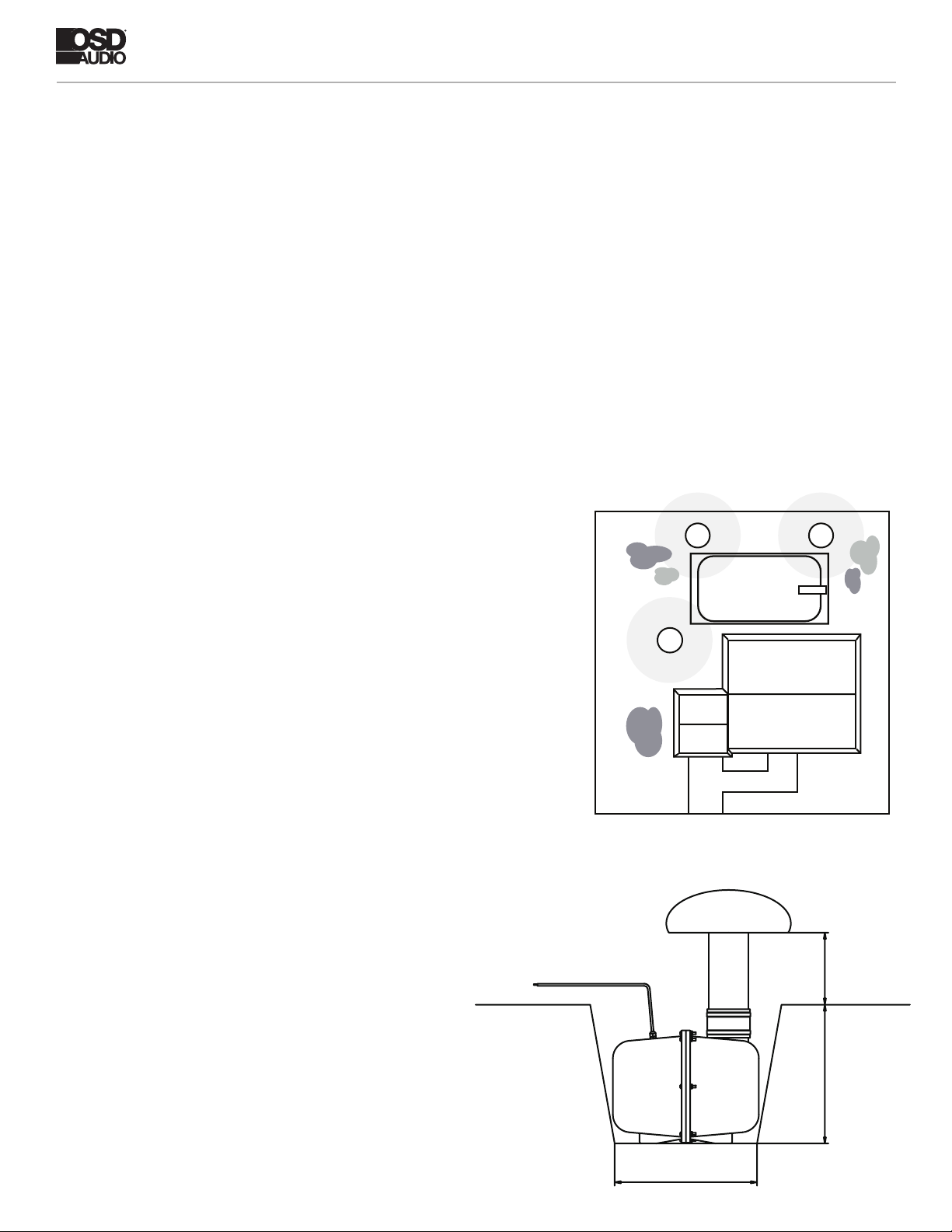

Diagram 2

Diagram 1

? ?

EARTH

17 inch

8-6 inch

15-17 inch

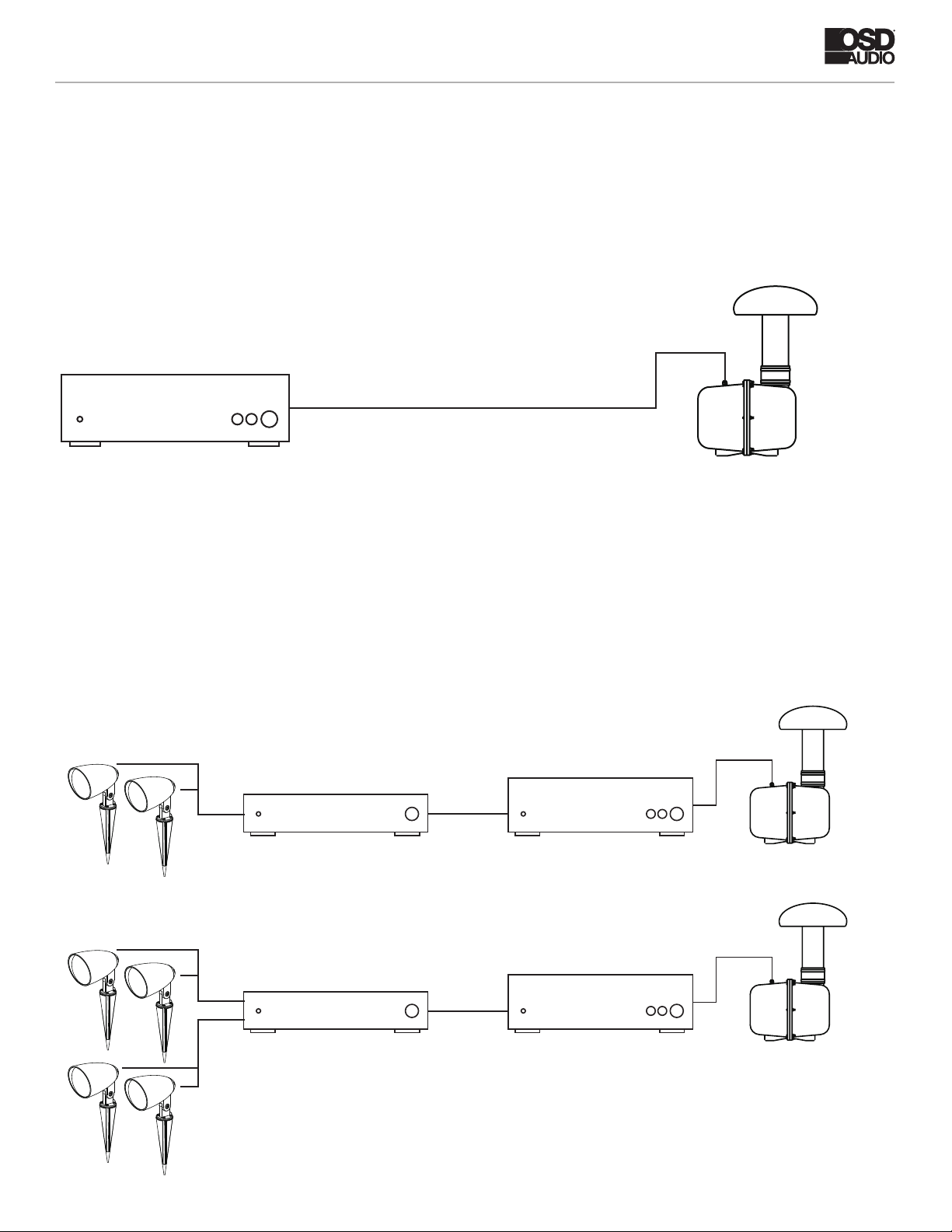

System Diagrams

Step 3

Connect to a Mono Subwoofer Amplier such as the OSD SMP250. Please note, the red lead indicates positive signal (+) and the

black indicates negative signal (-). Connecting the positive and negative leads incorrectly will cause it to be out of phase and will result

in weaker bass response. (See Diagram 3) Remove 2”- 3” of the outer layer of the speaker wire. Carefully strip ½” of the insulation

covering the speaker conductors within the outer layer and connect to the speaker outputs on the amplier.

For optimum performance combine the GLS8 with our LS2 landscape satellite speakers. Create an unobtrusive stealthy outdoor

sound system with the following system diagrams. Additional system congurations can be created for up to 8 pairs of speakers using

multichannel ampliers and or series parallel wiring.

Note: Please consult your electronics manual for Impedance and Power Rating before wiring a multi speaker system.

GLS 8 INSTALL GUIDE

SMP250 AMPLIFIER

SMP250 (Mono)

AMP/RECEIVER

Diagram 3

GLS 8 INSTALL GUIDE

Specications

Warranty Information

All OSD AUDIO outdoor speakers have (1) year Limited Warranty against defects in materials and workmanship. Proof of purchase must accompany

all claims. During the warranty period OSD AUDIO will replace any defective part and correct any defect in workmanship without charge for either

parts or labor

OSD AUDIO may replace returned speakers with a product of equal value and performance. In such cases, some modications to the mounting may

be necessary and are not OSD AUDIO’s responsibility.

For this warranty to apply, the unit must be installed and used according to its written instructions. If necessary, repairs must be performed by OSD

AUDIO. The unit must be returned to OSD AUDIO at the owner’s expense and with prior written permission. Accidental damage and shipping damage

are not considered defects, nor is damaged resulting from abuse or from servicing performed by an agency or person not specically authorized in

writing by OSD Audio

OSD AUDIO sells products only through authorized dealers and distributors to ensure that customers obtain proper support and service. Any OSD

AUDIO product purchased from an unauthorized dealer or other source, including retailers, mail order dealers and online sellers will not be honored or

serviced under existing OSD AUDIO warranty policy. Any sale of product by an unauthorized source or other manner not authorized by OSD AUDIO

shall void the warranty on the applicable product.

Damage to or destruction of components due to application of excessive power voids the warranty on those parts. In these cases, repairs will be

made on the basis of the retail value of the parts and labor. To return for repairs, you must email customer service at [email protected] for a

Returned Merchandise Authorization (RMA) number then the unit must be shipped to OSD AUDIO at the owner’s expense, along with a note explaining

the nature of service required. Be sure to pack the product(s) in a corrugated container with at least 3 inches of resilient material to protect the unit from

damage in transit.

This Warranty Does Not Cover: Damage caused by abuse, accident, misuse, negligence, or improper operation (installation) • Any products that have

been altered or modied • Any product whose identifying number of decal, serial #, etc. has been altered, defaced or removed • Normal wear and

maintenance.

GLS 8 Manual 7/17

OSD Audio | Brea, CA | osdaudio.com

Woofer 8” Polypropylene Cone With Rubber Surround

Power 500 Watts Max

Freq Response 28 - 200Hz

Sensitivity 84 dB

Impedance 8 Ohm

Dimensions (HxWxD) 28.0” x 19.75” x 15.5” inch

Weight 32 lbs

16.0

12.4

14.9

28.0

8.5

15.5

13.7519.75
