USER GUIDE

3

WIFI

POWER SOURCE CONNECT / RESET

NERO STREAM WRA

VOLUME / EQ

BT AUX VOLUME TREBLE BASS

WIFI

POWER SOURCE CONNECT / RESET

NERO STREAM WRA

VOLUME / EQ

BT AUX VOLUME TREBLE BASS

WIFI

POWER SOURCE CONNECT / RESET

NERO STREAM WRA

VOLUME / EQ

BT AUX VOLUME TREBLE BASS

WIFI

POWER SOURCE CONNECT / RESET

NERO STREAM WRA

VOLUME / EQ

BT AUX VOLUME TREBLE BASS

While the NERO STREAM WRS is weather resisitant and intended for outdoor use, it is

important to follow these saftey instructions for product longevity as well as personal safety.

• To reduce the risk of re or electrical shock, do not expose the product to rain or moisture.

• The product should not be exposed to any dripping or splashing liquid.

• Objects lled with liquids, such as vases, should not be placed on the product.

• Protect the power cord from damage. Do not pull/push the power cord excessively, and take

care not to let the power cord become pinched, particularly at or near the plug.

• Keep the product away from heat sources such as heat registers, stoves or other appliances

that produce heat.

• Avoid direct sunshine and covering vents. Do not operate in a sealed box and be sure to

have enough room for heat exchange.

• Avoid opening the cover. Do not open the cover, or touch the inner parts, refer servicing to

our customer service.

SAFETY INSTRUCTIONS AMPLIFIER FEATURES

1. Power Button

2. Wi-Fi®Indicator

3. Source Select

4. Bluetooth®Indicator

5. Aux In Indicator

6. Volume Indicator

7. Treble Adjust Indicator

8. Connect /Reset

9. Bass Adjust Indicator

10. Volume Knob/EQ Adjust

11. Antenna

12. Aux In

13. Speaker Output A L/R

14. Speaker Output B L/R

15. Power Input

7

12

3

456

8

9

15

11

10

12

13

14

3

WIFI

POWER SOURCE CONNECT / RESET

NERO STREAM WRA

VOLUME / EQ

BT AUX VOLUME TREBLE BASS

WIFI

POWER SOURCE CONNECT / RESET

NERO STREAM WRA

VOLUME / EQ

BT AUX VOLUME TREBLE BASS

WIFI

POWER SOURCE CONNECT / RESET

NERO STREAM WRA

VOLUME / EQ

BT AUX VOLUME TREBLE BASS

WIFI

POWER SOURCE CONNECT / RESET

NERO STREAM WRA

VOLUME / EQ

BT AUX VOLUME TREBLE BASS

While the NERO STREAM WRS is weather resisitant and intended for outdoor use, it is

important to follow these saftey instructions for product longevity as well as personal safety.

• To reduce the risk of re or electrical shock, do not expose the product to rain or moisture.

• The product should not be exposed to any dripping or splashing liquid.

• Objects lled with liquids, such as vases, should not be placed on the product.

• Protect the power cord from damage. Do not pull/push the power cord excessively, and take

care not to let the power cord become pinched, particularly at or near the plug.

• Keep the product away from heat sources such as heat registers, stoves or other appliances

that produce heat.

• Avoid direct sunshine and covering vents. Do not operate in a sealed box and be sure to

have enough room for heat exchange.

• Avoid opening the cover. Do not open the cover, or touch the inner parts, refer servicing to

our customer service.

SAFETY INSTRUCTIONS AMPLIFIER FEATURES

1. Power Button

2. Wi-Fi®Indicator

3. Source Select

4. Bluetooth®Indicator

5. Aux In Indicator

6. Volume Indicator

7. Treble Adjust Indicator

8. Connect /Reset

9. Bass Adjust Indicator

10. Volume Knob/EQ Adjust

11. Antenna

12. Aux In

13. Speaker Output A L/R

14. Speaker Output B L/R

15. Power Input

7

12

3

456

8

9

15

11

10

12

13

14

5

WIFI

POWER SOURCE CONNECT / RESET

NERO STREAM WRA

VOLUME / EQ

BT AUX VOLUME TREBLE BASS

WIFI

POWER SOURCE CONNECT / RESET

NERO STREAM WRA

VOLUME / EQ

BT AUX VOLUME TREBLE BASS

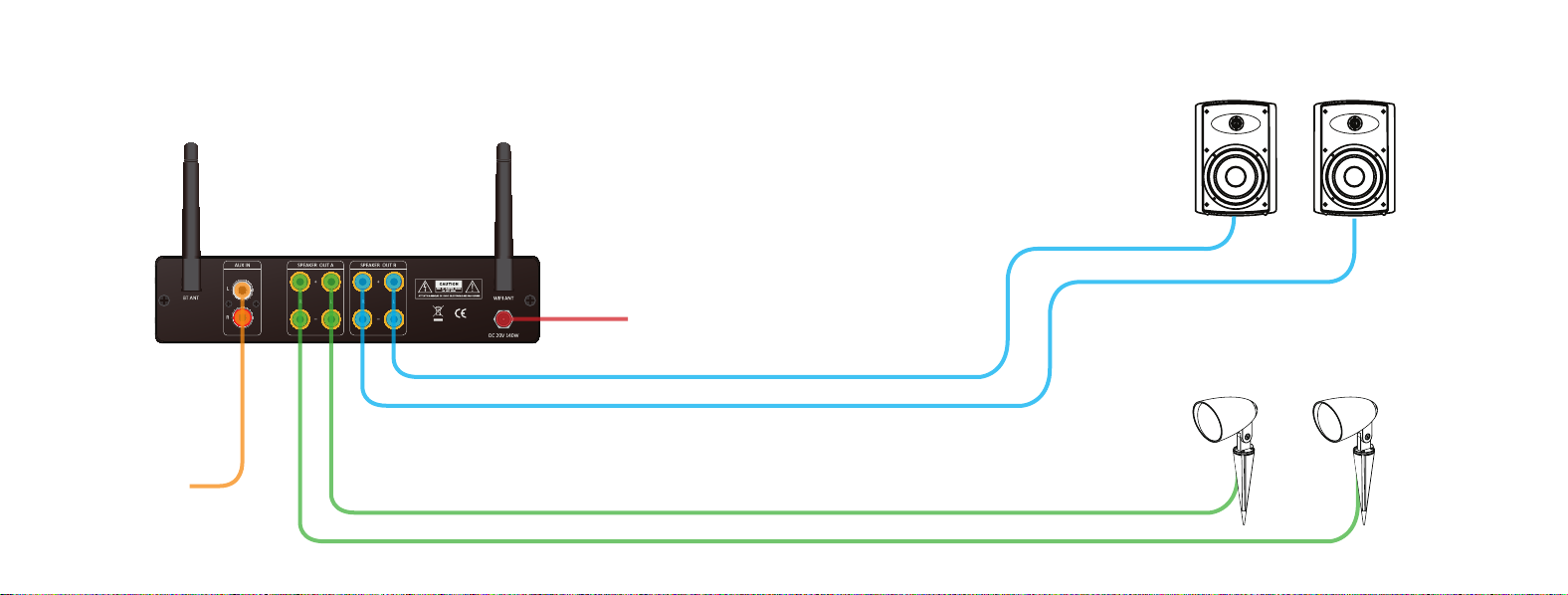

CONNECTION DIAGRAM

POWER

SUPPLY TO AC

OUTLET

OUTDOOR

SPEAKERS

OUTDOOR

SPEAKERS

RCA AUX INPUT

SOURCE

CD/RECEIVER/MP3

TO R&L

SPEAKERS

A

TO R&L

SPEAKERS

B

7

Bluetooth®Pairing:

1. Press the Source Select to BT when it

begins ashing it’s ready to connect.

2. Activate Bluetooth on your phone/tablet and

start searching for new Bluetooth devices.

3. When your phone/tablet nds NERO

STREAM WRS, choose this unit and begin

pairing.

4. Removing a Device: Press and hold the

Connect/Reset button for 2 seconds.

Wi-Fi®Connection:

1. Download and install the OSD Audio App for

your iOS or Android device.

2. Select Wi-Fi® from the source button then

wait for the musical tone from the amp signify-

ing it is ready to connect.

3. Link your device to the NERO STREAM

and your Wi-Fi network by following the setup

steps in the app.

Enable Wi-Fi®

Be sure your phone or tablets

Wi-Fi is turned on.

Wi-Fi Network

Be sure the NERO is powered

up and your phone or tablet is

set to the same Wi-Fi network

as the NERO.

Set Up

In your devices Wi-Fi settings

look for NERO STREAM_XXXX

and select to connect.

1. Connect the power cord to the back of the

amplier then connect it to a wall outlet.

2. Connect any suitable device to the Aux input

(see page 5).

3. Press the power button on the front of the unit,

after two seconds the unit will enter working status

and the input indicator will light up.

4. Press the Source Select Button to choose your

source, Bluetooth®, Wi-Fi®or AUX. Control the

playback via the OSD Player App.

Note: Always select the desired source for the

audio source to work.

Connect Your Device:

Connect your CD player phone/tablet/MP3 via its

RCA/AUX cable to the RCA L/R AUX input. Make

sure you connect the “L” plug to the left input

channel and the “R“ plug to the right input channel.

Connect your speakers to the Speaker

Output. Make sure you connect the -/+ and

the L/R cables to the right input.

SETUP APP CONTROL / USER INTERFACE

7

Bluetooth®Pairing:

1. Press the Source Select to BT when it

begins ashing it’s ready to connect.

2. Activate Bluetooth on your phone/tablet and

start searching for new Bluetooth devices.

3. When your phone/tablet nds NERO

STREAM WRS, choose this unit and begin

pairing.

4. Removing a Device: Press and hold the

Connect/Reset button for 2 seconds.

Wi-Fi®Connection:

1. Download and install the OSD Audio App for

your iOS or Android device.

2. Select Wi-Fi® from the source button then

wait for the musical tone from the amp signify-

ing it is ready to connect.

3. Link your device to the NERO STREAM

and your Wi-Fi network by following the setup

steps in the app.

Enable Wi-Fi®

Be sure your phone or tablets

Wi-Fi is turned on.

Wi-Fi Network

Be sure the NERO is powered

up and your phone or tablet is

set to the same Wi-Fi network

as the NERO.

Set Up

In your devices Wi-Fi settings

look for NERO STREAM_XXXX

and select to connect.

1. Connect the power cord to the back of the

amplier then connect it to a wall outlet.

2. Connect any suitable device to the Aux input

(see page 5).

3. Press the power button on the front of the unit,

after two seconds the unit will enter working status

and the input indicator will light up.

4. Press the Source Select Button to choose your

source, Bluetooth®, Wi-Fi®or AUX. Control the

playback via the OSD Player App.

Note: Always select the desired source for the

audio source to work.

Connect Your Device:

Connect your CD player phone/tablet/MP3 via its

RCA/AUX cable to the RCA L/R AUX input. Make

sure you connect the “L” plug to the left input

channel and the “R“ plug to the right input channel.

Connect your speakers to the Speaker

Output. Make sure you connect the -/+ and

the L/R cables to the right input.

SETUP APP CONTROL / USER INTERFACE

9

SYSTEM FEATURES

APP CONTROL / USER INTERFACE

Pool

LR

Heroes

Flying Lotus

DEVICE LIST

Patio

LR

Octopus's Garden

The Beatles

Garden

LR

Pause All

Stream & Select

Swipe right to view and select

a streaming service or source

input device.

Home Screen

Current song title, artist &

album art are shown along

with controls.

Device List

Choose which devices/zones

are connected and being used

and select separate volume

and source input for each

device/zone.

Multi-Device

Stream or play music from

dierent source devices

Multi-User

Multiple users can control the

audio source as well as the

zone it’s playing in.

Multi-Zone

Connect multiple NERO

STREAMS to create a outdoor

multi-zone audio system.

9

SYSTEM FEATURES

APP CONTROL / USER INTERFACE

Pool

LR

Heroes

Flying Lotus

DEVICE LIST

Patio

LR

Octopus's Garden

The Beatles

Garden

LR

Pause All

Stream & Select

Swipe right to view and select

a streaming service or source

input device.

Home Screen

Current song title, artist &

album art are shown along

with controls.

Device List

Choose which devices/zones

are connected and being used

and select separate volume

and source input for each

device/zone.

Multi-Device

Stream or play music from

dierent source devices

Multi-User

Multiple users can control the

audio source as well as the

zone it’s playing in.

Multi-Zone

Connect multiple NERO

STREAMS to create a outdoor

multi-zone audio system.

11

PROBLEM POSSIBLE CAUSE

No Power - The power cord is disconnected.

- Poor connection at the wall socket or the wall socket is

inactive.

No Sound - The speakers are disconnected.

- Volume control at lowest level.

- Check if the signal cables are damaged.

- Check if the LEDs are blinking. If not, restart the amplier and

ensure that the LED displays is in standby. If it still doesn’t work,

contact customers service.

Sudden Sound Loss - Check the audio source.

Poor Sound Quality - Audio source problem

- Bad or incorrect speakers connections.

- Treble and bass control are too low.

LED O - Check if the amplier is connected with the power outlet

and conrm that the voltage regulator works.

SPECIFICATIONS

TROUBLE SHOOTING

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG,

Inc. and any use of such marks by OSD Audio is under license. Other trademarks and

trade names are those of their respective owners.

• Wireless Streaming Amplier

• Type: Class D

• Weather Resistant

• App Control: Multi Source, Multi Zone

• Power: Stereo (8 ohm): 50W x 4 Peak, <1% THD+N

Stereo (4 ohm): 100W x 4 Peak, <1% THD+N

• Bass Adjustment: +/-12dB @ 100Hz/0dB

• Treble Adjustment: +/-12dB @ 10KHz/0dB

• Signal to Noise Ratio: 90dB

• Ingress Protection Rating: IP64

• Net Weight: 1.9 lbs

• Dimensions: 1.7” x 7.7” x 6.2” (HxWxD)

11

PROBLEM POSSIBLE CAUSE

No Power - The power cord is disconnected.

- Poor connection at the wall socket or the wall socket is

inactive.

No Sound - The speakers are disconnected.

- Volume control at lowest level.

- Check if the signal cables are damaged.

- Check if the LEDs are blinking. If not, restart the amplier and

ensure that the LED displays is in standby. If it still doesn’t work,

contact customers service.

Sudden Sound Loss - Check the audio source.

Poor Sound Quality - Audio source problem

- Bad or incorrect speakers connections.

- Treble and bass control are too low.

LED O - Check if the amplier is connected with the power outlet

and conrm that the voltage regulator works.

SPECIFICATIONS

TROUBLE SHOOTING

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG,

Inc. and any use of such marks by OSD Audio is under license. Other trademarks and

trade names are those of their respective owners.

• Wireless Streaming Amplier

• Type: Class D

• Weather Resistant

• App Control: Multi Source, Multi Zone

• Power: Stereo (8 ohm): 50W x 4 Peak, <1% THD+N

Stereo (4 ohm): 100W x 4 Peak, <1% THD+N

• Bass Adjustment: +/-12dB @ 100Hz/0dB

• Treble Adjustment: +/-12dB @ 10KHz/0dB

• Signal to Noise Ratio: 90dB

• Ingress Protection Rating: IP64

• Net Weight: 1.9 lbs

• Dimensions: 1.7” x 7.7” x 6.2” (HxWxD)
