Oru Kayak Beach LT Instructions d'installation

IMPORTANT

Read this entire Assembly

Guide before assembling

your Oru Kayak.

Watch the instruction video:

www.orukayak.com/assembly/beachlt

SERVICE@ORUKAYAK.COM

BEACH LT

SCAN AND

WATCH ON

YOUR PHONE

Assembly Guide (Pages 1-10)

Disassembly Guide (Pages 11-15)

WWW.ORUKAYAK.COM 1

The lid becomes

the kayak’s ﬂoorboard.

Loosen and slide off the two loops

that go around box. Set shoulder

strap aside (you won’t need it while

kayaking).

Lift the lid off. This will become

the kayak’s ﬂoorboard.

Unclip the buckles on the sides.

Remove the loose kayak components

packed into the box. [See page 3 for a

list of loose components.] Additional

components are permanently

attached to the hull/deck.

Step 1: Open the Oru Kayak box

The box contains all the components needed for assembly and

includes space to store gear—such as our 4-piece paddle.

2 4 5 67

1 31

2 ORU KAYAK | BEACH LT KAYAK ASSEMBLY GUIDE

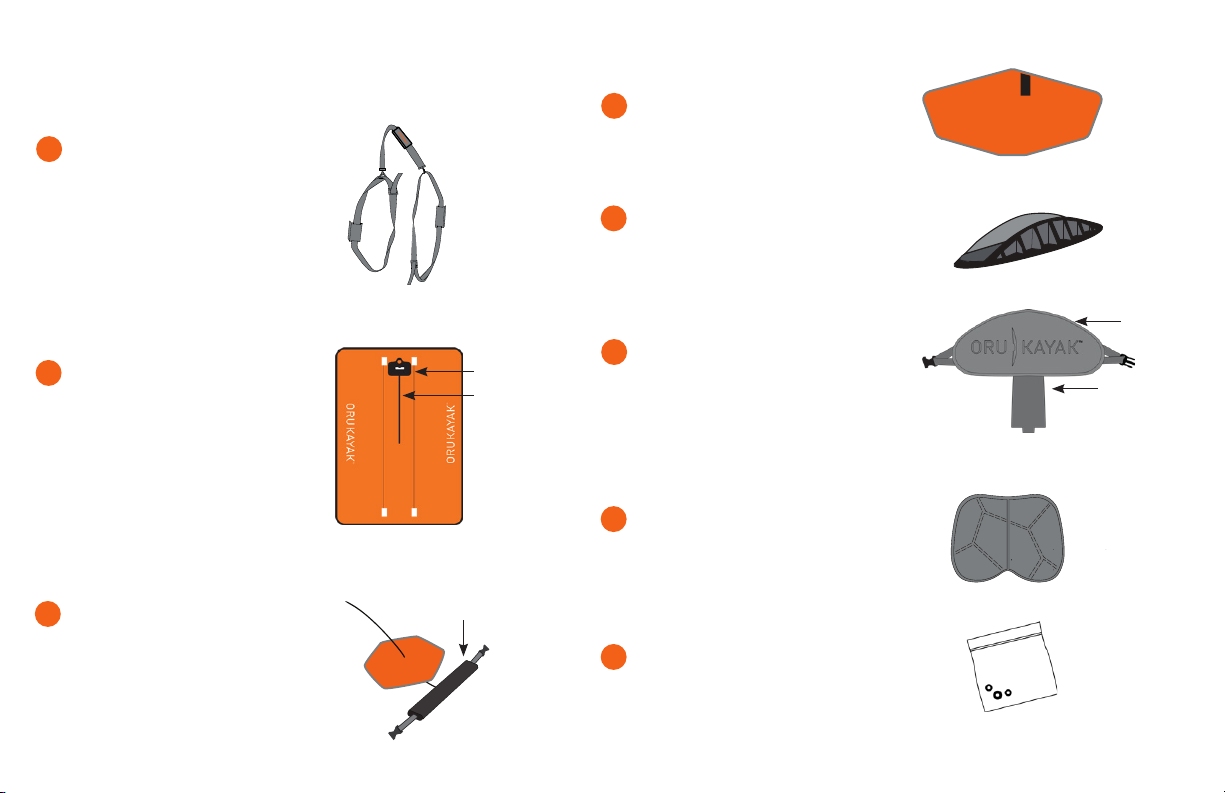

Shoulder strap: Used to carry

the kayak when in box form.

Stow out of the way while

kayaking.

Floorboard: Reinforces kayak

bottom and holds the seat.

Bow (front) bulkhead/Footrest:

Attached to the front half of

the kayak. Provides structural

rigidity and comfort.

TOP

Seat column plate

Seat pad bungee

Getting Familiar components

assembly

Backrest: Includes the seat column

and adjustable backrest.

Seat pad: Tucks under the

bungee in the ﬂoorboard.

Stern (back) bulkhead:

Provides structural rigidity.

TOP

Seat column

Backrest

Spare parts kit: Extra hardware for

repairs and upkeep.

Bulkhead channels: Attach to

the inner hull. Hold the two

bulkheads in securely.

Footrest

WWW.ORUKAYAK.COM 3

NOTE

The double-walled corrugated poly-

propylene that Oru Kayaks are made

from will naturally show marks and

scratches from use over time. As long

as the hull is not punctured, there is

nothing to worry about. Think of them

like marks and scratches on thick

leather boots.

Hold the two folds at the orange

stickers. Pull as

indicated in the illustration to

open. The skin will be stiff.

Push the ends apart to extend

the box into a long sheet.

Pop the hull ﬂat with your

hands as you extend it,

pushing down the inverted

folds, creating a bowl shape.

Step 2: Unfold the box

PUSH DOWN

SIDES POP UP TO

CREATE BOWL SHAPE

PROFILE VIEW

Pull

2 4 5 67

1 32

4 ORU KAYAK | BEACH LT KAYAK ASSEMBLY GUIDE

BOW

(front)

STERN

(back)

Footrest: For stability and to keep

your legs comfortable.

End straps: Help keep the

bow and stern tightly closed.

Fairings: Close the boat at the

bow and stern and include

handles for carrying

the kayak.

Deck buckles: Close the deck and

hold the kayak together.

Adjustable footrest straps: Clip

to the footrest to keep it in place.

In box form, these serve as box

closure straps.

Adjustable seatback straps: Clip

to the seatback to keep it in place.

In box form, these serve as box

closure straps.

Carrying handles: Make the kayak

easy to pick up and carry.

Parts: Hull/deck The box becomes the hull and deck of the kayak. Several key parts are permanently

attached to the hull/deck. The bow (front) and stern (back) of the Oru Kayak are

different, so pay attention to orientation throughout the assembly process.

WWW.ORUKAYAK.COM 5

Fold in ﬂaps on sides

of cockpit.

Pull footrest and bulkhead

into hull.

Clip footrest to adjustable

footrest straps as shown.

STERN

BOW

Footrest

Step 3: Attach the footrest

2 4 5 67

1 3

6 ORU KAYAK | BEACH LT KAYAK ASSEMBLY GUIDE

bulkhead channels

1Make sure the ends

are inverted.

2Fully tighten the end

strap at bow (front).

Place attached bow bulkhead

in bulkhead channels and forward

towards cockpit of screw. You may

have to hold

it there while starting the

next step.

Place ﬂap with curved edge

(adjustable buckles) over ﬂap with

straight edge, as shown. Engage

the cockpit side release buckle.

Tighten by pulling the strap.

Buckle the other two straps.

Tighten by pulling the strap.

Attach velcro to top of

bulkhead, as shown in close-up.

Stretch front fairing over the bow,

and clip the small buckle onto last

deck strap and tighten.

velcro

(front)

screw (behind)

bow >

< cockpit

Step 4: Close the front of the kayak

Place ﬂap with curved

edge (adjustable buckles)

over ﬂap with straight

edge

2 4 5 67

1 3 4

WWW.ORUKAYAK.COM 7

bulkhead channels

screw (behind)

Fully tighten the stern (back) end

strap.

Place loose stern bulkhead in

bulkhead channels as shown

(make sure the side with velcro

is on top). You may have to hold

it there while starting the next

step.

Place ﬂap with curved edge

(adjustable buckles) over ﬂap

with straight edge, as shown.

Engage the cockpit side release

buckle. Tighten by pulling the

strap. Buckle the other two

straps.

Attach velcro to top of bulkhead

as shown, like in Step 4.

Stretch rear fairing over the

stern, and clip the small buckle

onto last deck strap and tighten.

velcro

(front)

stern >

< cockpit

Step 5: Close the back of the kayak

Closing the back of the kayak is similiar to closing the front (Step 4).

NOTE

If the fairings won’t

stretch over, make

sure the ends

are inverted.

2 4 5 67

1 3 5

8 ORU KAYAK | BEACH LT KAYAK ASSEMBLY GUIDE

STERN

BOW

Orient ﬂoorboard relative to

hull as shown (seat back plate

towards stern).

Bend ﬂoorboard upward as

shown below. Place edges of

the ﬂoorboard into channels.

Press center of ﬂoorboard

down and push ﬂoorboard into

channels (ﬂoorboard may not

sit ﬂat until the

next step).

TOP

STERN

BOW

FLOORBOARD CHANNELS

Step 6: Insert the ﬂoorboard

FLOORBOARD FLOORBOARD

CHANNELS

CROSSSECTION VIEW

PUSH DOWN

2 4 5 6 7

1 3 6

WWW.ORUKAYAK.COM 9

2 4 5 6 7

1 3

Insert the bottom of seat

column into slot of seat

column plate on ﬂoorboard.

Clip seat back straps into

buckles on carrying handles.

Conenct the two clips to the

cord loops on the back end of

the ﬂoorboard chanel.

Place seat pad under bungee

on ﬂoorboard.

Connect the tension strap

together and tighten until the

buckle reaches the stop in the

strap.

CLOSEUP

Pull plate in the direction of

the arrow to insert column.

Step 7: Install the seat and tension strap

Autres manuels pour Beach LT

Table des matières

Autres manuels Oru Kayak Bateau

Oru Kayak

Oru Kayak Beach LT Sport Instructions d'installation

Oru Kayak

Oru Kayak The Coast Manuel utilisateur

Oru Kayak

Oru Kayak COAST XT Manuel utilisateur

Oru Kayak

Oru Kayak Beach LT Manuel utilisateur

Oru Kayak

Oru Kayak BAY Manuel utilisateur

Oru Kayak

Oru Kayak COAST XT Instructions d'installation

Oru Kayak

Oru Kayak Beach LT Manuel utilisateur

Oru Kayak

Oru Kayak HAVEN TT Manuel utilisateur

Oru Kayak

Oru Kayak LAKE Manuel utilisateur

Oru Kayak

Oru Kayak HAVEN Manuel utilisateur

Oru Kayak

Oru Kayak COAST XT Manuel utilisateur

Oru Kayak

Oru Kayak INLET Manuel utilisateur

Oru Kayak

Oru Kayak INLET Manuel utilisateur

Oru Kayak

Oru Kayak BAY ST Manuel utilisateur

Oru Kayak

Oru Kayak BAY+ Manuel utilisateur

Oru Kayak

Oru Kayak BAY ST Manuel utilisateur

Oru Kayak

Oru Kayak BAY ST Instructions d'installation

Oru Kayak

Oru Kayak BAY ST Manuel utilisateur

Oru Kayak

Oru Kayak Beach LT Manuel utilisateur

Oru Kayak

Oru Kayak Oru Beach Manuel utilisateur

Oru Kayak

Oru Kayak HAVEN TT Manuel utilisateur
