1. SAFETY INSTRUCTION

Follow this safety instruction to use the monitor properly and prevent the damages.

Keep this user’s guide book for later use.

This safety instruction has “Warning” & “Caution” as below

Warning - If the user does not follow this instruction,

it may cause the serious damage to the user.

Caution - If the user does not follow this instruction, it may cause the slight

damage to the user or cause some damages to the monitor.

Warning

Keep away the monitor from the

direct sunlight and a heating appliance.

Never push objects of any kind into

this product as they may result in

a risk of fire or electric shock.

Connect the power code to the wall

outlet tightly. If the power code or plug

are defective and the wall outlet is not

tight, please do not use them.

Never remove the back over and

touch the inside of the monitor.

If you need a service, please

contact the service center.

Installation and User’s Guide

http://www.orionimages.com

7300 Bolsa Avenue, Westminster CA 92683

Tel: 714-766-6300 / Fax: 714-766-6310 / [email protected]

Warning

Do not install this monitor on the outside

and near water. If may cause damage to

the product, electric shock and fire.

For cleaning do not use liquid cleaners.

Never touch the power plug with wet-hands.

When lightning and thundering, unplug the

monitor from the wall outlet and never touch

it.

When smoking and noising from the monitor,

unplug the product from the wall outlet and

contact a service center.

Unplug this product from the wall outlet, when

It does not operate for a long time.

How to fix

Do not open this product as it contains high voltage inside.

It may create an electric shock.

It the user disassembles and remove the back cover, it does not make sure

to make up for the damages and do a service and exchange the monitor.

Installation and User’s Guide

http://www.orionimages.com

7300 Bolsa Avenue, Westminster CA 92683

Tel: 714-766-6300 / Fax: 714-766-6310 / [email protected] 4

Cautions

Install this monitor some distance

From the wall and do not install unless

Proper ventilation is provided.

Place this product on a stable place.

If not, it may fall, causing serious

Damages to the monitor and people.

The openings must not be blocked by

curtain, rug or other similar surface.

Before carrying the monitor, tum it off and

Unplug the signal cables and the power code

From the wall outlet.

When carrying this monitor, be careful

not to damage the panel and drop it

It may cause some trouble.

Take the power plug out from the wall

outlet.

Do not pull the cable. It may snap the inner-

wires and cause overheating and fire.

Installation and User’s Guide

http://www.orionimages.com

7300 Bolsa Avenue, Westminster CA 92683

Tel: 714-766-6300 / Fax: 714-766-6310 / [email protected]

Cautions

Install this monitor about 50cm far from

the eyes and an angle of 0~15 degrees

below eyes. Too close installation may

cause having weak sight.

Do not press the LCD panel with hands or

the sharpened material hardly.

Do not use the chemical liquid for cleaning.

It may cause fading and breakage.

For cleaning, unplug the monitor from the

Wall outlet. Do net use the liquid cloth.

Use the soft cloth.

Installation and User’s Guide

http://www.orionimages.com

7300 Bolsa Avenue, Westminster CA 92683

Tel: 714-766-6300 / Fax: 714-766-6310 / [email protected] 6

FCC RF INTERFERENCE STATEMENT

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant

to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful

interference in a residential installation. This equipment generates, uses and can radiate radio frequency

energy and, if not installed and used in accordance with the instructions, may cause harmful

interference to radio communications. However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful interference to radio or television reception

which can be determined by turning the equipment off and on, the user is encouraged to try to correct

the interference by one or more of the following measures.

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the receiver

is connected.

Consult the dealer or an experienced radio, TV technician for help.

Only shielded interface cable should be used.

Finally, any changes or modifications to the equipment by the user not expressly approved by the

grantee or manufacturer could void the users authority to operate such equipment.

DOC COMPLIANCE NOTICE

This digital apparatus does not exceed the Class A limits for radio noise emissions from digital apparatus

set out in the radio interference re

ulation of Canadian De

artment of communications.

Installation and User’s Guide

http://www.orionimages.com

7300 Bolsa Avenue, Westminster CA 92683

Tel: 714-766-6300 / Fax: 714-766-6310 / [email protected]

SAFETY INSTRUCTION

12-3

1-1 Warning 4-5

1-2 Caution

FCC STATEMENT

3-1 Parts 93-2 How to Install 103-3 Remote Controller

INFORMATION TO USER

TROUBLESHOOTING

LIMITED WARRANTY

INSTALLATION

5-1 SOURCE Setting 12-22

5-2 Menu Setting (CAMERA, VIDEO2, DVI, VGA, S-VIDEO)

OSD MENU SETTING

4-1 Specifications 11

FEATURES

2. TABLE OF CONTENTS

Installation and User’s Guide

http://www.orionimages.com

7300 Bolsa Avenue, Westminster CA 92683

Tel: 714-766-6300 / Fax: 714-766-6310 / [email protected] 8

3. INSTALLATION

3-1 Parts

Power Cord VGA Cable

User’s Guide

Battery

Remote Control

TFT LCD Monitor

POWER

VIDEO1 VIDEO2 S-VIDEO

RGB AUTO COLORTEMP.

DVI HDMI COMP

CAMERA MEDIA S.SET

SCANMODE

MENU/EXIT

P.INPUT

P.SWAP STILL

P.LOC P.SIZE

KEYLOCK

VOL+

PIP

MUTE

ENTER

Installation and User’s Guide

http://www.orionimages.com

7300 Bolsa Avenue, Westminster CA 92683

Tel: 714-766-6300 / Fax: 714-766-6310 / [email protected]

3-2 How to Install

*WARNING:

Tilting more than 10 degrees to the front or 30 degrees to the back

may cause collapse of the product.

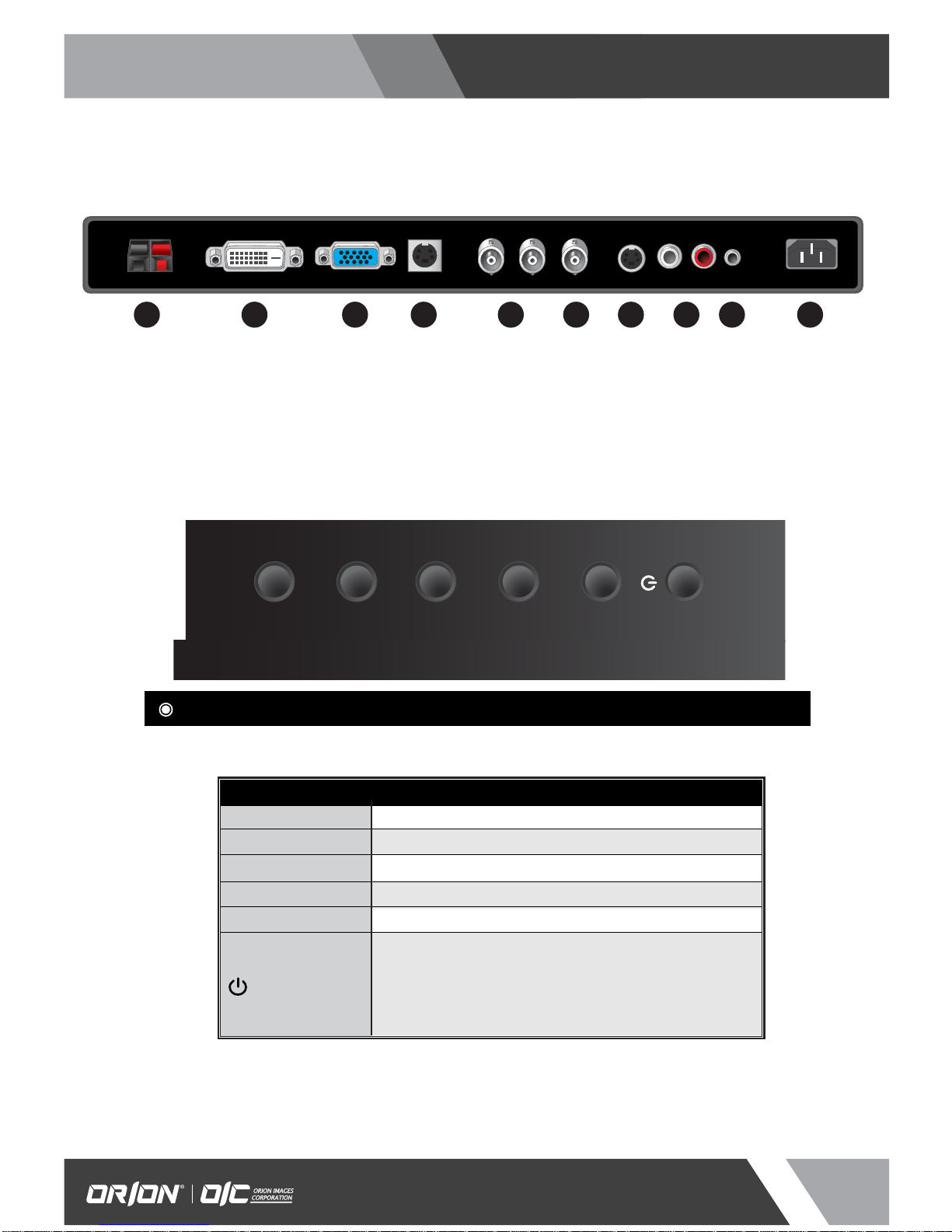

1. DC 24V Input

2. DVI-D In

3. VGA (15 Pin D-Sub)

4. S-VIDEO Input

5. Video In / Out

6. Camera Output

7. S-Video Ouput

9. PC Audio Input

10. AC Input

8. Audio Input (L + R)

1 2 3 4 5 6 7 8 9 10

SHORT KEY FUNCTION

SOURCE

DECREASE

INCREASE

MODE

OSD Key Function

Activates and exit the OSD

Select input source, and OSD menu

Control OSD menu and auto adjustment of RGB source

Decrease the level of volume and move the previous menu

Increase the level of volume and select rhe OSD menu

Turns the power ON or OFF. There will be a few seconds

delay before the display appears.The power LED (next to the

power switch) lights with green when the power is turned ON.

The power is turned off by pressing the power switch again

and the power LED goes red.

SOURCE

DECREASE

INCREASE

Installation and User’s Guide

http://www.orionimages.com

7300 Bolsa Avenue, Westminster CA 92683

Tel: 714-766-6300 / Fax: 714-766-6310 / [email protected] 10

3-3 Remote Controller

POWER

VIDEO1 VIDEO2 S-VIDEO

RGB AUTO COLORTEMP.

DVI HDMI COMP

CAMERA MEDIA S.SET

SCANMODE

MENU/EXIT

P. INPUT

P. SWAP STILL

P. LOC P. SIZE

KEYLOCK

VOL+

PIP

MUTE

ENTER

Turn the monitor ON or OFF

Temporarily silences the sound

Adjust the color temperature of the screen

Change the scan mode of the screen. (FULL/ UNDER / OVER)

Activates and exits the OSD menu

Activates/deactivates PIP/PBP mode

Prevent unauthorized operation of the equipment by locking

the buttons

PVM Input

ASOURCE SELECT

POWER

MUTE

COLOR TEMP

SCAN MODE

MENU/EXIT

KEY LOCK

STILL

Activates / deactivates PIP/ PBP mode

Selects an input source for the sub picture

Selects a location for the sub picture

Selects the size of the sub picture

Swaps the main and sub picture

Alternates between main and sub audio input

PIPMenu

PIP

P. INPUT

P. LOC

P. SIZE

P. SWAP

P. SET

Press the button to select the desired input source
