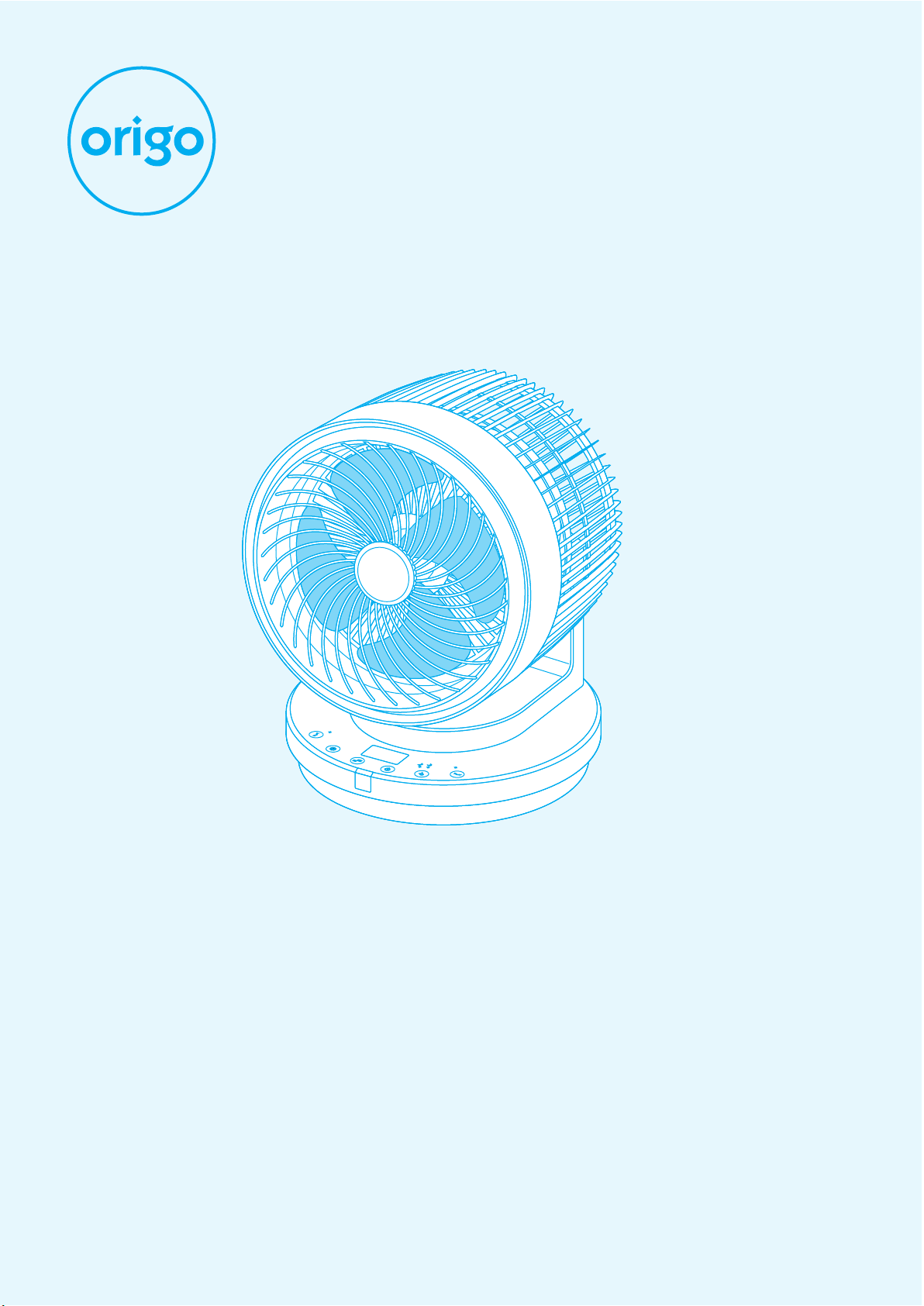

ORIGO CF-1507 Manuel utilisateur

立體搖擺對流扇

3D con vection fan

Instruction Manual

CF-1507

*使用風扇前，請先細閱使用說明，並請妥善保存以便將來翻閱。

***本說明書可於本公司網站下載 www.origin.hk。

*Read all instructions carefully before using the FAN, and keep this instruction for furture

reference when necessary.

使用說明書

***This instruction manual can be acquired at www.origin.hk.

Important Safety Information

重要安全提示

拔除插頭時不可拉扯電源線，必須緊握插頭

，把插頭拔出。

Do not pull the power cord to disconnect

from power source. Always grasp the plug

to pull out.

請使用獨立插座。使用萬能插頭或拖板，容

易發生危險。

Avoid using extension cord as it may

overheat and casue fire.

使用風扇前，請確定規格標貼上所示的額

定電壓與當地供電電壓相同。如有疑問可

向供應商查詢。

Before using the Fan, check if the

voltage marked on the rating label

corresponds to the mains at your

home.

220-240V~ 50-60Hz

包裝物料並非玩具，不可讓小孩玩耍。

Do not let children play parts of

package.

打開包裝，檢查風扇。如發現產品有損壞

，請勿使用及即時聯絡供應商。

Open the package and ensure that the

Fan is undamaged. In case of doubt

do not use the FAN Cooler and contact

your supplier.

必須按照使用說明指示操作本風扇，否則

可能引致產品損壞、短路、火警或人命損

傷。

Use this Fan only as described in

this manual. Any other use not

recommended by the manufacturer

may casue fire, electrical shock or

injury to persons.

使用本風扇前，請先細閱使用說明。

Read all instructions carefully before

using the Fan.

本機不是為體質、感覺或智力有障礙人士(包

括小孩)或缺乏經驗及知識者使用，除非他們

曾經接受負責安全人士的監督或指示，大人應

指導小孩不可把玩電器。

This appliance is not intended for use by

persons (including children) with reduced

physical, sensory or mental capabilities, or

lack of experience and knowledge, unless

they have been given supervision or

instruction concerning use of the appliance

by a person responsible for their safety.

Children should be supervised to ensure

that they do not play with the appliance.

立體搖擺對流扇

3D convection fan

Important Safety Information

重要安全提示

不可在潮濕或有積水的環境使用，不可將風

扇擺放於浴缸或大型容器上面。

The Fan is not intended for use in wet

or damp locations. Never locate the

Fan where it may fall into a bathtub or

other water container.

請保持清潔以維持風扇處於良好狀態

(詳細請參閱清理及維護部份)。

Keep the Fan clean to maintain in good

condition (refer to maintenance

section).

切勿將

風扇

擺放在發熱源頭或火源附近。

Do not place the

Fan

near a source

of heat or fire.

警告；清理前必須先拔除電源插頭。若電

源線損壞，必須交由製造商或其代理指定

維修服務中心檢查及修理。

WARNING: To avoid danger of electric

shock, unplug from outlet when not

in use and before cleaning. If the

power cord is damaged, it must be

replaced by the manufacturer, its

service agent or similarly qualified

persons in order to avoid hazard.

本風扇不適用於室外及作工業用途。

This Fan is intended for household

use ONLY and not for industrial

or outdoor use.

非使用風扇時請拔除插頭，切斷電源。

Do not leave the Fan unattended.

Always unplug the Fan Cooler when

not in use.

切勿將任何異物放入風扇內；或阻擋風扇

出風口及入風口，皆因以上一切行為均可

能導致風扇損壞。

Do not insert any objects into the Fan

as it may cause an electric shock or

damage. Do not block or tamper with

the Fan in any manner while it is in

operation.

警告：開/關鍵不應作為切斷電源的用途。

WARNING: The On/Off switch should

not be used as the sole means of

disconnecting power. Always unplug

the power cord before servicing or

moving the unit.

如須移動風扇，請先拔除插頭切斷電源。

Always disconnected the Fan from the

power supply when moving it from

one location to another.

本產品含有可回收材料，不可把本產

品作為未分類廢物。請聯繫當地就近

指定回收點。

This product contains recyclable

materials. Do not dispose this

product as unsorted municipal

waste. Please contact your local

municipality for the nearest collection

移除網罩前

，必須確保風扇已拔掉電源。

Ensure that the fan is switched off from

the supply mains before removing the

guard.

立體搖擺對流扇

3D convection fan

Control Panel

控制面版

Rear Grille

後網

Front Grille

前網

Remote Control Dock

遙控器儲存盤

Remote Receiver

遙控信號接收窗

Main Parts

各部名稱

Air Oulet

出風口

Air Inlet

入風口

Power Cord

電源線

Plug

插頭

LED Display

LED顯示

圖片只供參考

，

一切以實物為準

The picture is for reference only, everything in kind

shall prevail.

立體搖擺對流扇

3D convection fan

Function Setting

功能設定

1. Place the Fan on a stable and flat surface. Plug the Power Cord into an 220-240V~

50-60Hz electrical outlet.

5. 左右送風: 按下左右送風鍵，風扇以自動左右搖擺模式送風。如欲停止自動左右搖

5. OSC(LEFT/RIGHT): Press the button to allow the Fan to LEFT/RIGHT oscillate the

擺送風，再按此鍵一次。

wind direction. To stop the oscillation, press the button again.

將風扇擺放於穩固的平面上，將插頭插入交流電壓220-240V~50-60Hz的獨立插座，

3. 風速: 按風速設定鍵，設定所需風速：低、中、高、或超強。LED顯示燈將會顯示風速。

風扇可使用控制面板按鍵操控(如圖1)，或改用遙控器操控。

3. SPEED: Adjust the Fan speed to the desired level: Low, Medium, High or Gale

by pressing button. The speed setting is displayed on the LED light.

2. POWER: Turn the Fan ON by pressing the button, the Fan start at low speed.

圖1

Figure 1

開/關:按開/關鍵，風扇以低檔啟動。

6. 定時設置: 按下定時設置鍵，選定8個不同的自動關機時間，分別由1至8小時，

LED顯示燈將會亮起。

6. TIMER: Pressing the button to set desired auto power off time, There are 8 time

intervals, from 1-hour to 8-hour.

The Fan may be operated by the control panel (as shown in Figure 1) or by your

remote control.

7. 送風模式: 按送風模式鍵，設定所需送風模式：自然風、或睡眠風。LED顯示燈將

會亮起。

7. MODE: Press the button to set the Fan as Natural, or Sleep mode. The mode is

displayed on the LED light.

開/關

定時風速左右送風

上下送風送風模式

TIMER ON/OFF

SPEED L/R OSC

U/D OSC MODE

4. 上下送風: 按下上下送風鍵，風扇以自動上下搖擺模式送風。如欲停止自動上下搖

4. OSC(UP/DOWN): Press the button to allow the Fan to UP/DOWN oscillate the

擺送風，再按此鍵一次。

wind direction. To stop the oscillation, press the button again.

圖片只供參考

，

一切以實物為準

The picture is for

reference only,

everything in

kind shall prevail.

立體搖擺對流扇

3D convection fan

產品保用証(一年自攜服務)

產品:

立體搖擺對流扇

型號: CF-1507

此產品由購買日期起計算，本公司將根據下列條款及細則，提供一年保養服務(商業用享為3個月):

1. 於購買後一年內，經本公司技術員判斷為正常運作下損壞之產品，

可獲免費維修和/或零件更換。

2. 以下情況不被包括在保養範圍內：

-若產品是因為濫用、錯誤使用、疏忽及/或意外而遭致損壞；

-未經授權之自行處理、維修及/或改裝；

-任何搖控、機殼、面蓋、扇葉，以及配件。

3. 需要檢查或維修時，請將產品送往本公司服務中心，並於修理妥當後自行取回。

4. 更換後之任何損壞零件，均屬本公司所有。

5. 本保養服務只適用於香港特別行政區。

6. 顧客必須同時出示零售商之正式發票，方可得到免費維修服務。

*** 額外3個月保用: 凡於購買產品後10天內完成網上登記，即可免費延長保用期3個月，即15個月免費保用(商業用途

除外)。請即登入網站: www.origo.hk

服務中心

源澤市務有限公司

香港新界葵涌青山公路403號(近華星街12號)匯城集團大廈21樓H室

電話: 2156 8238

www.origo.hk

Warranty Card(1 year carry-in)

Item : 3D Convection Fan

Model : CF-1507

Service Centre

ORIGIN MARKETING LIMITED

Unit H, 21/F., Reason Group Tower (nearby 12 Wah Sing Street), 403 Castle Peak Road,

Kwai Chung, N.T., Hong Kong.

Tel: 2156 8238

www.origo.hk

This product is warranted for 1year (commercial use for 3 months) from the date of purchase under the

following conditions:

1. For any defect, in the judgment of our technician, if it is caused under normal use, we are responsible for

repairing the product, and/or replacing parts at free of charge.

2. This warranty DOES NOT apply to:

- If the product has been damaged through abuse, misuse, negligence or accidents;

- Unauthorized repair, alteration/modification;

- The remote control, housing, cover, blade or accessories.

3. The customer is requested to bring the unit to and from our Service Centre whenever

service is needed.

4. Any defective parts, which had been replaced, shall be of our property.

5. This warranty is valid in H.K.S.A.R. only.

6. Please show the Invoice to get free service.

***Extra 3 months warranty: just complete Online Warranty Registration within 10 days from the date of

receipt, free warranty will be extended to 15 months (not applicable to commercial use). Please enter our

website: www.origo.hk

www.origo.hk

立體搖擺對流扇

3D convection fan
