Installation Manual
P 80 & 60 Series
Producer Collection
P80DT, P80, P61, P60DT, P60
Table of Contents
Introduction 1
Specifications 2
What’s Included 3
Tools & Items 3
Wire Recommendation 3
Speaker Placement 4
About Speaker Wire 5
Installing the Wire 5
Wire Routing 6
Painting the Grille 7
Cutting the Hole 7
Connecting the Wire 8
Installing the Speaker 8
Installing the Grille 9
Testing & Adjustments 10
Installing the Grille 10
Troubleshooting 10
Technical Assistance 11
Warranty 12
Return Process 13
1
Thank you for purchasing the Producer 80 & 60 In-Ceiling Speaker. At Origin
Acoustics, we take pride in providing you with a high quality product. All of Origin
Acoustics’ speakers are designed to have excellent sound quality, longevity, and a
simple installation process.
Thisinstructionbookletcoversthenecessaryinformationforasmoothinstallation,
including: the tools you will need, step-by-step instructions for installation,
troubleshooting tips for any errors that may occur, and all warranty information.
If for any reason you experience problems or if you have installation questions
please call us at (844) 674-4461. Hours of operation are 8:00am to 5:00pm (Pacific
Time), Monday through Friday.
Introduction
2
Model P80DT P80 P61 P60DT P60
Part Number SCP2T-
80100
SCP80100 SCP60150 SCP2T-
60400
SCP60100
Woofer Cone Poly Poly IMG Poly Poly
Woofer
Diameter
8”
(203mm)
8”
(203mm)
6.5
(165mm)
6.5
(165mm)
6.5
(165mm)
Tweeter Dome Silk Silk Aluminum Silk Silk
Tweeter
Diameter
1”
(25mm)
1”
(25mm)
1”
(25mm)
1”
(25mm)
1”
(25mm)
Frequency
Response
38 Hz - 20
kHz
38 Hz - 20
kHz
48 Hz - 20
kHz
48 Hz - 20
kHz
48 Hz - 20
kHz
Impedance 8 ohm 8 ohm 8 ohm 8 ohm 8 ohm
Power
Handling
5 - 100
Watts
5 - 100
Watts
5 - 100
Watts
5 - 100
Watts
5 - 100
Watts
Diameter 10.73”
(273mm)
10.73”
(273mm)
8.82”
(224mm)
8.82”
(224mm)
8.82”
(224mm)
Grille Diameter 11”
(280mm)
11”
(280mm)
9.16
(233mm)
9.16
(233mm)
9.16
(233mm)
Cutout
Diameter
9.875”
(251mm)
9.875”
(251mm)
8”
(202mm)
8”
(202mm)
8”
(202mm)
Mounting
Depth
3.78”
(96mm)
3.78”
(96mm)
3.41”
(87mm)
3.47”
(88mm)
3.41”
(87mm)
Specifications
3

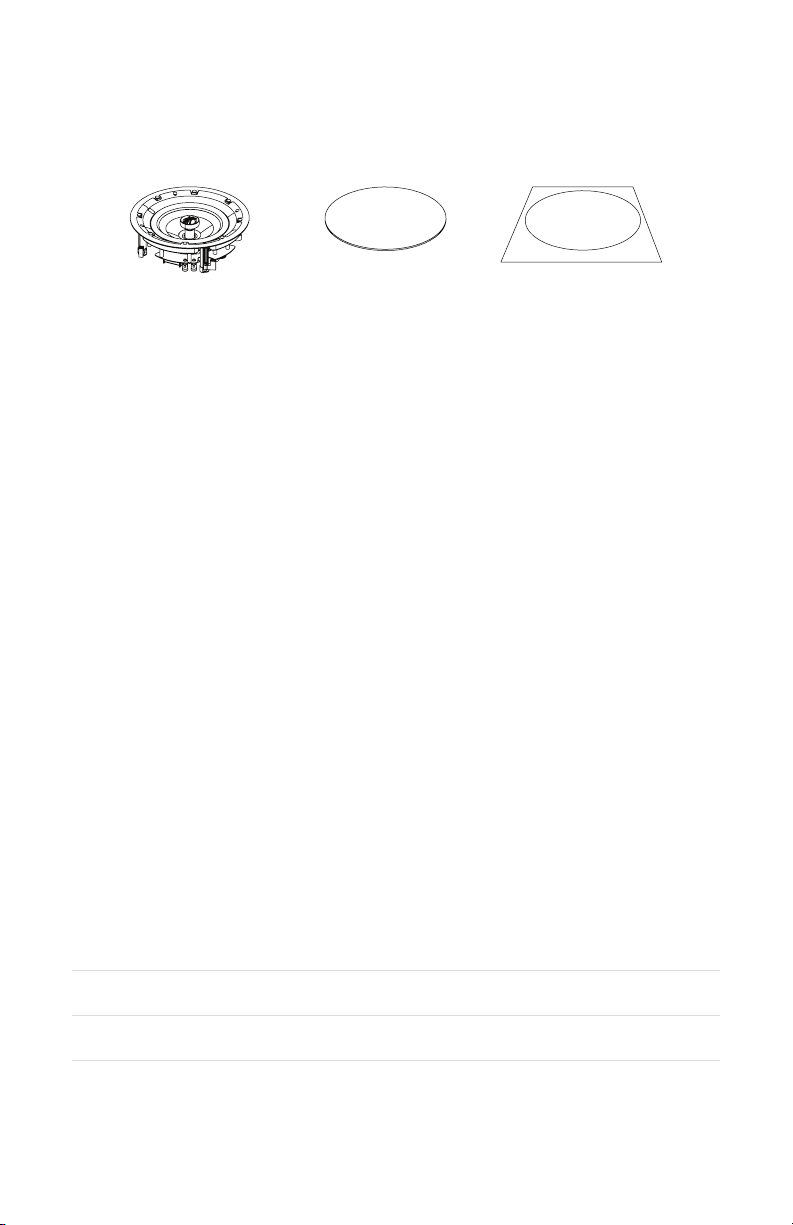

What’s Included
• Drywall Saw
• Speaker Wire
• Pencil
• Wire Stripper
• Measuring Tape
• Drill
• Drill Bit ⅛” (3mm)
• Stiff Wire
• Stud Finder
• Fish Tape
• Spray Paint
• Compressed Air
Tools & Items
The gauge of wire used can have an impact on the performance of your speakers.
Use a multi-stranded wiring designed for amplifier to speaker connections. Which
gauge to select depends on the length of wire to be used on any particular speak-
er. The longer your run is, the larger your wire size must be.
Wire Recommendation
Wire Length Wire Gauge
0 -100’ (0 - 30m) 16
50 - 150’ (15 - 45m) 14
Over 100’ (30m) 12
Speaker Grille Template
4
Position the two speakers in the mid-
dle of the room, no less than 6’ (2m)
apart. Ideally, the two speakers would
be placed an equal distance from the
listener. If the room has a lower ceiling,
the speakers can be closer together.
Also, if the speaker placement is in-
tended for standing (as opposed to
sitting) listeners, the speakers can be
closer together.
Auxiliary Room (2 Speaker Placement)
The Le Rear (LR) and Right Rear (RR)
speakers should be installed just be-
hind the listener, one on either side.
The Center Channel (CC) speaker
should be placed above and slightly
in front of the television, with the Le
Front (LF) and Right Front (RF) speak-
ers placed equidistant to either side.
Home Theater (5 Speaker Placement)
Listening Area
TV
6’ (2m)
3’ (1m)3’ (1m)
Listening Area
TV
6’ (2m)
3’ (1m)3’ (1m)
3’
(1m)
5
Strip ¼ to ½ inches (6 to 12 mm) of the
insulation o both ends of the wire. To
avoid stray strands, twist them at the
end. Connect the wire to the amplifier,
and make sure the wire connected to
the le speaker output will be routed
to the le speaker, right output to right
speaker, etc.
1. Installing the Wire
You will need a wire that has at least two conductors; one that can be identified
as the positive and the other as the negative. All two conductor wires have some
means of identifying which conductor is which, but at times this identification
may be subtle. It’s crucial that you keep track of which wire you use for positive
(+) and negative (-). Typically if the wires are colored red and black, the red wire
is used for positive and the black wire is used for negative, but sometimes other
colors or patterns are used. You can choose whichever color of wire you want to
be positive and negative as long as you remain consistent throughout the install.
On both your amplifier and your speaker the connectors will be identified as red
for positive and black for negative. It is very important to look carefully at the
speaker wires and be certain that the same wire that is attached to the positive
connector in the amplifier is attached to the positive connector in the speaker.
About Speaker Wire
0.25 - 0.5”
(6 - 12mm)
Speaker
Wire
6
Plan how you’ll route the wire to the desired speaker location. There are several
methods for routing the wire, and you may need to combine several of them.
Wire Routing
One option is to li up the carpet and
route “tape wire” under the carpet.
Under the Carpet
The wire can be routed behind the
baseboard by cutting a groove out of
the back of the baseboard, or by buy-
ing special baseboard designed for
concealing wires.
Behind the Baseboard
When available, you can route the wire
through an attic or crawlspace.
Attic or Basement
When running wires through a wall, be
sure to avoid all obstacles such as AC
wiring, pipes, and ducts.
Through Walls
If these speakers are being installed in a new home during construction, the
installation process will be a bit dierent (although much simpler). For these
situations, it’s recommended you purchase a bracket. Instructions on how to
install the speakers are provided with the bracket, or can be found on our web-
site. Visit www.originacoustics.com for more information.
For New Construction
7
When you’ve decided on the locations for all of the speakers, use the template to
trace a circle lightly in pencil where the hole should be. (If you don’t have a tem-
3. Cutting the Hole
In some situations the speakers may look better if the color matched the walls,
ceiling, or trim in the room. This can be accomplished by painting the grille. The
grille must be painted with spray paint, and most hardware stores will mix a can
of paint to match whatever color you need. Before painting, carefully remove the
thin cloth on the underside of the grille. Lightly spray the front of the grille with the
paint from a distance, being careful not to plug any of the holes. Diluting the paint
with paint thinner will lessen the risk of filling any holes. If a hole gets plugged use
a can of compressed air to open it. Once the paint is dry, put the cloth back on
the grille.
2. Painting the Grille
Grille
Paint
Grille
Cloth
Grille
8
plate, check the Specifications section for cutout sizes.) If you’re unsure on wheth-
er there may be obstacles (such as pipes or wires) where you plan on installing the
speaker, drill a ⅛ inch hole in the center of the circle, then put a bent coat hanger
through the hole to feel around. Use a keyhole or drywall saw to cut the hole.
Insert the wires into the connectors,
making sure that the positive wire is
being attached to the red connec-
tion and the negative wire is being
attached to the black connection. If
the negative and positive wires are
switched, speaker performance will be
drastically impacted.
4. Connecting the Wire
Speaker
Wire
Connector
Make sure all the dogs are in the up-
right position and facing to the side,
not outwards. Insert the speaker into
the hole. Turn the four screws so that
the dogs face outwards and continue
turning until they clamp down on the
ceiling. When you feel resistance, stop
tightening the screws.
5. Installing the Speaker
