Operating Instructions
UHF305 80 Channel UHF Citizen Band Radio
When a narrowband radio receives a transmission from an older wideband radio the speech may sound loud and
distorted – simply adjust your radio volume for the best listening performance. When an older wideband radio
receives a signal from a new narrowband radio the speech may sound quieter - simply adjust your radio volume for
best listening performance. When operating a narrowband radio or Channel 41 - 80 interference is possible from
wideband radios transmitting on high power or on adjacent frequency.
The issues described above are not a fault of the radio but a consequence of mixed use of wideband and
narrowband radios.
This unit complies with all relevant Australian
and New Zealand approval requirements
AS/NZS 4365:2011
3
Table of contents...........................................................3
Controls and Indicators..................................................4
Important information.....................................................7
Installation of your Oricom Radio ..................................8
Operations...................................................................10
UHF CB channels and frequencies .............................24
Express Warranty (Australia).......................................28
Table of contents
Need Help?
If you need assistance setting up or using your Oricom product now or in the future, call Oricom Support.
Australia (02) 4574 8888
www.oricom.com.au
Mon-Fri 8am – 6pm AEST
New Zealand 0800 67 42 66
www.oricom.co.nz
Mon-Fri 10am – 8pm NZST
4
Controls and Indicators
Controls and Indicators
Front View
1 2 3
4
5
1. Microphone connector
2. LCD display
3. Monitor/Triple watch
4. Scan/Menu
5. Volume/Channel/Squelch
Rear View
87
6
6. 3.5mm external jack for optional 8 ohm speaker
7. Power supply connection
8. Antenna Jack
5
Controls and Indicators
Microphone
1. Push to talk
2. Volume/Channel/SQ down
3. Volume/Channel/SQ up
4. MODE/INS
INS: Priority channel recall
You can set one priority channel, this is done in the menu.
You can recall priority channel by pressing and holding the
MODE/INS button.
Briey pressing the MODE/INS will select Channel change, then
the Squelch setting, and then Volume.
1
2 4 3
6
Controls and Indicators
LCD Icons & Indicators
1 2 3 4
5
6 7 8 9
1. Channel display
2. Memory channel
3. Status display
4. CTCSS on
5. DCS on
6. TX on
7. Triple watch on
8. Duplex on
9. Roger Beep on
10. Signal strength & TX
11. Scrambler on
12. CTCSS or DCS channel
display
7
Important information
Please read before installing or operating Your
Oricom Radio
The operation of this radio in Australia and New Zealand is
subject to conditions in the following licenses:
In Australia, the ACMA Radio communications (Citizen Band
Radio Stations) and in New Zealand by MED the General User
Radio License for Citizen Band Radio.
Safety Information and Warnings
WARNING
Potentially Explosive Atmosphere
Turn your radio OFF when in any area with a potentially explosive
atmosphere. Sparks in such areas could cause an explosion or re
resulting in injury or even death.
NOTE: Areas with potentially explosive atmospheres are often, but
not always clearly marked. They include fueling areas such as below
deck on boats; fuel or chemical transfer or storage facilities; areas
where the air contains chemicals or particles, such as grain, dust,
or metal powders; and any other area where you would normally be
advised to turn off your vehicle engine.
Blasting Caps and Areas
To avoid possible interference with blasting operations, turn your radio
OFF near electrical blasting caps or in a “blasting area” or in areas
posted: “Turn off two way radios.” Obey all signs and instructions.
Electromagnetic Interference/Compatibility
Nearly every electronic device is susceptible to electromagnetic
interference (EMI). To avoid the possibility of electromagnetic
interference and/or compatibility conicts, turn off your radio in any
location where posted notices instruct you to do so such as health
care facilities.
8
Installation of your Oricom Radio
CAUTION
When installing your radio in your vehicle, check that
during installation you do not damage any wiring or
vehicle components that may be hidden around the
mounting position.
Ensure the installation does not interfere with the
operation of the vehicle and meets all regulatory and
safety retirements for accessories tted to your vehicle.
For optimum performance, your radio needs to be
installed correctly. If you are unsure about how to
install your radio, we suggest you have your radio
professionally installed by a UHF specialist or Auto
electrician. When installing the radio, avoid mounting
it close to heaters or air conditioners. Never press the
PTT button before connecting the antenna to the radio.
Wiring Methods
There are two possible wiring congurations for connecting to
the vehicles power supply.
A. Radio stays ON when the ignition is switched OFF
Connect the radio’s negative (black) lead to the vehicle chassis,
or directly to the batteries negative terminal.
Connect the radio’s positive (red) lead via the 3 Amp fuse to
the battery’s positive terminal. Alternatively, the positive lead
could be connected at the fuse box at a point that has DC Power
continuously available (preferably the battery side of the ignition
switch) via the 3 Amp fuse.
B. Radio turns OFF with the ignition switch
Connect the radio’s negative (black) lead to the vehicle’s
chassis, or directly to the batteries negative terminal.
The radios positive (red) lead should connect to an accessory
point in the vehicle’s fuse box via the 3 Amp fuse.
9
Installation of your Oricom Radio
Antenna information
The antenna (not supplied) is of critical importance to maximize
your output power and receiver sensitivity.
A poorly installed, inferior quality antenna or one not designed
for the correct frequency band will give poor performance. You
should only purchase an antenna designed for the 477MHz
frequency band.
Antenna installation
1. This radio is tted with a NEW small FME type antenna
connector. If this is not compatible with your existing antenna
connection, please contact Oricom to purchase an adaptor.
(Part Number: 2U0159)
2. To obtain maximum performance from the radio, select a high
quality antenna and mount it in a good location.
Never press the PTT button before connecting the
antenna to the radio.
Optional accessories
If required, you may install an external (8 ohm, min 5W power)
speaker tted with a 3.5mm plug (not supplied).
Depending on the installation, it may be necessary to use an
external speaker (not supplied) to give improved volume and
clarity. This can be plugged into the external speaker (SP)
socket on the rear of the unit.
Oricom Micro UHF CB Radio Accessories
The following Oricom Micro UHF accessories can be purchased
directly from Oricom. Visit www.oricom.com.au or call
(02) 4574 8888.
Model No Description
PNPKIT
Plug and Play Windscreen Mounting Kit (Pack
includes: Windscreen mounting bracket, Mag
mount antenna and 12V Car charger)
10
Operations

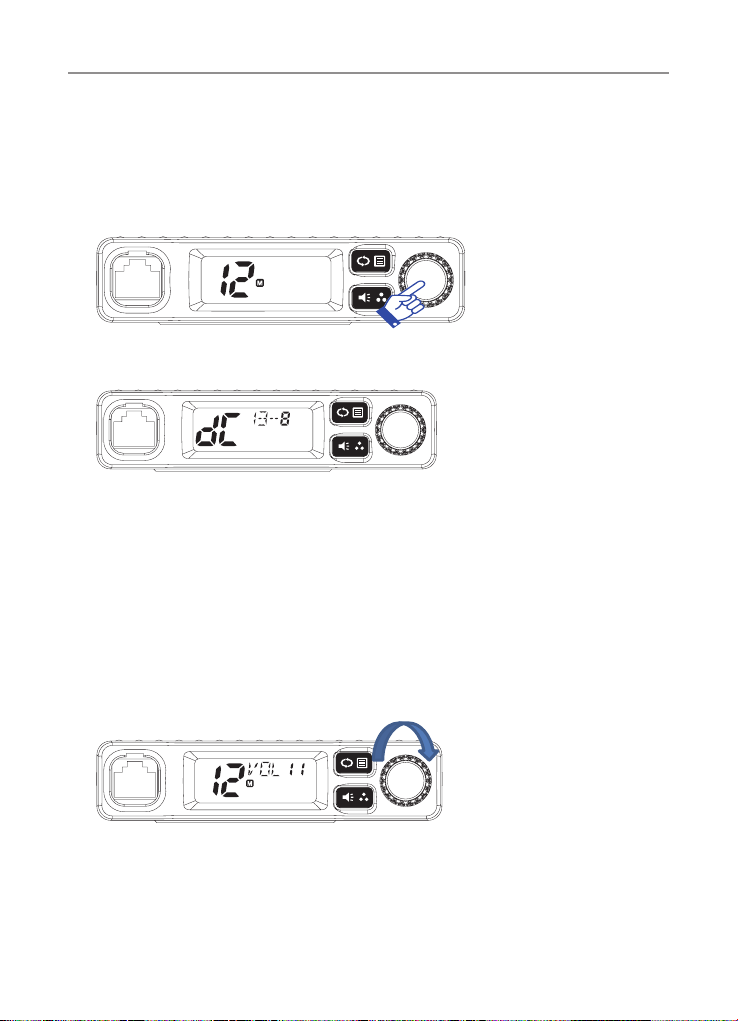

Turning on the Power
Press and hold the Channel selector.
At power on, the applied DC voltage is displayed numerically as
shown below.
Special overvoltage detection circuitry protects the radio and
warns of excessive voltage conditions by the LCD ashing the 7
backlight colours.
Setting the Volume
Turn the channel selector clockwise to adjust the sound level for
comfortable reception;
or; with the microphone, push the up or down buttons to
increase or decrease the volume. If held down, the volume will
increase or decrease quickly.
Operations
